ECharts甘特图\条状图实现

由于需要在移动端显示甘特图，但是原本的PC端密集的甘特图不适合移植，因此决定采用ECharts做一个简化版的。
以下仅提供一个甘特图示例，可以直接拷贝到http://www.echartsjs.com/examples/中运行修改。

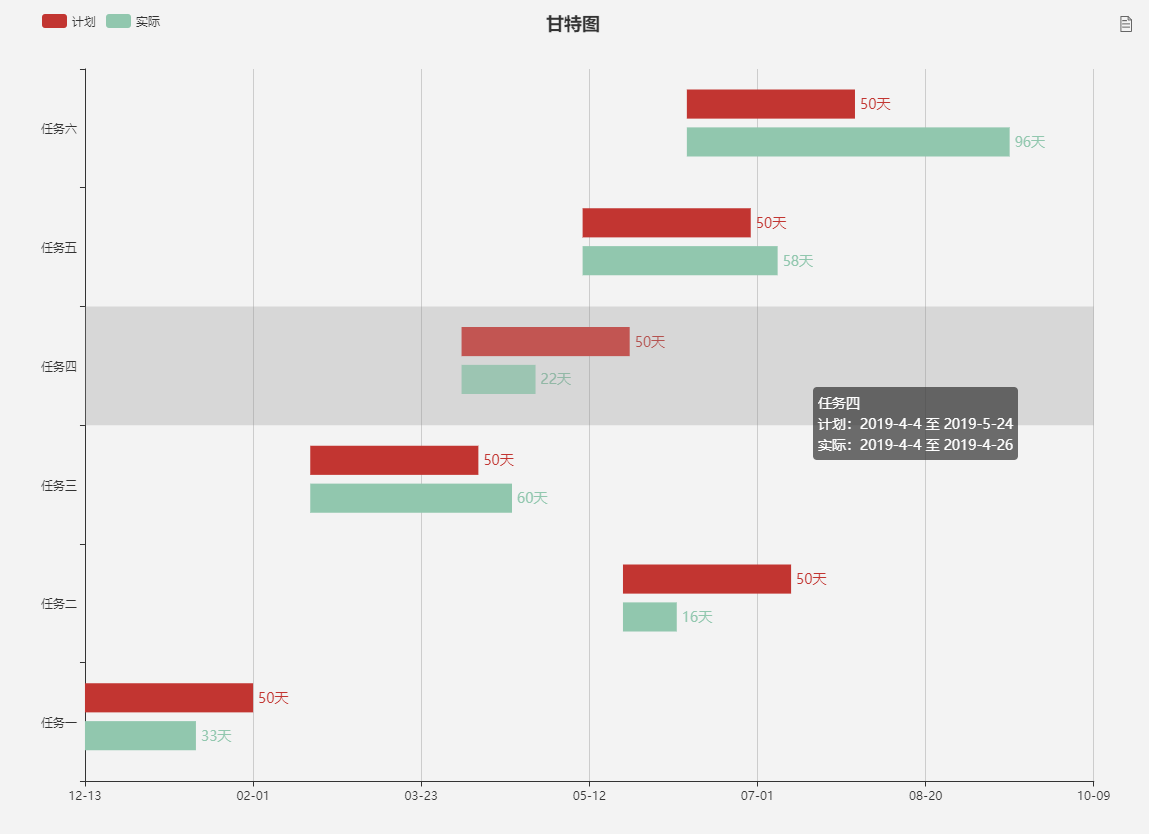

效果图：

代码：

       Date.prototype.Format = function (fmt) {
            let o = {
                "M+": this.getMonth() + 1, //月份
                "d+": this.getDate(), //日
                "H+": this.getHours(), //小时
                "m+": this.getMinutes(), //分
                "s+": this.getSeconds(), //秒
                "q+": Math.floor((this.getMonth() + 3) / 3), //季度
                "S": this.getMilliseconds() //毫秒
            };
            if (/(y+)/.test(fmt)) fmt = fmt.replace(RegExp.$1, (this.getFullYear() + "").substr(4 - RegExp.$1.length));
            for (let k in o)
                if (new RegExp("(" + k + ")").test(fmt)) fmt = fmt.replace(RegExp.$1, (RegExp.$1.length == 1) ? (o[k]) : (("00" + o[k]).substr(("" + o[k]).length)));
            return fmt;
        };
        option={
                        title: {
                            text: "",
                            x: "center"
                        },
                        tooltip: {
                            trigger: "axis",
                            axisPointer: {            // 坐标轴指示器，坐标轴触发有效
                                type: "shadow"        // 默认为直线，可选为：'line' | 'shadow'
                            },
                            extraCssText:"",
                            formatter: function (params) {
                                let relVal = params[0].axisValueLabel;
                                const getDateStr=(hideBar,dataBar)=>{
                                    let str='';
                                    str+=new Date(new Date().getTime() + (86400000) * hideBar.value).Format("yyyy-M-d")+" 至 "+new Date(new Date().getTime() + (86400000) * (hideBar.value+dataBar.value)).Format("yyyy-M-d");
                                    return str;
                                }
                                relVal+="<br/>计划："+getDateStr(params[0],params[1])+"<br/>实际："+getDateStr(params[2],params[3]);
                                return relVal;
                            }
                        },
                        legend: {
                            data: ["计划", "实际"],
                            x: 30
                        },
                        toolbox: {
                            show: true,
                            feature: {  //数据视图
                                mark: true,
                                dataView: {readOnly: false},
                                restore: true,
                                saveAsImage: true
                            }
                        },
                        grid: {
                            left: "3%",
                            right: "3%",
                            bottom: "3%",
                            containLabel: true
                        },
                        yAxis: {
                            type: "category",
                            splitLine: {show: false},
                            data: ["任务一", "任务二", "任务三", "任务四", "任务五", "任务六"]
                        },
                        xAxis: {
                            type: "value",
                            boundaryGap: [0, 0.01],
                            axisLabel: {
                                show: true,
                                interval: 0,
                                formatter: function (value) {
                                    return new Date(new Date().getTime() + (86400000) * value).Format("MM-dd")    //86400000，一天的毫秒数
                                }
                            }
                        },
                        series: [
                            {
                                name: "planDate",
                                type: "bar",
                                stack: "plan",
                                barCategoryGap: "10%",
                                itemStyle: {
                                    normal: {
                                        borderColor: "rgba(0,0,0,0)",
                                        color: "rgba(0,0,0,0)"
                                    },
                                    emphasis: {
                                        borderColor: "rgba(0,0,0,0)",
                                        color: "rgba(0,0,0,0)"
                                    }
                                },
                                data: [0, 160, 67, 112, 148, 179]   //计划的起始位置
                            },
                            {
                                name: "计划",
                                type: "bar",
                                stack: "plan",
                                itemStyle: {
                                    normal: {
                                        label: {
                                            show: true,
                                            position: "right",
                                            textStyle: {
                                                fontSize:14
                                            },
                                             formatter: function (obj) {
                                                return obj.value+'天';
                                            }
                                        },
                                        color: "#c23531"
                                    }
                                },
                                data: [50, 50, 50, 50, 50, 50]		//计划的数据内容
                            },
                            {
                                name: "factDate",
                                type: "bar",
                                stack: "fact",
                                itemStyle: {
                                    normal: {
                                        borderColor: "rgba(0,0,0,0)",
                                        color: "rgba(0,0,0,0)"
                                    },
                                    emphasis: {
                                        borderColor: "rgba(0,0,0,0)",
                                        color: "rgba(0,0,0,0)"
                                    }
                                },
                                data: [0, 160, 67, 112, 148, 179]   //实际进度的起始位置
                            },
                            {
                                name: "实际",
                                type: "bar",
                                stack: "fact",
                                itemStyle: {
                                    normal: {
                                        label: {
                                            show: true,
                                            position: "right",
                                            textStyle: {
                                                fontSize: 14
                                            },
                                            formatter: function (obj) {
                                                return obj.value+'天';
                                            }
                                        },
                                        color: "#91c7ae"
                                    }
                                },
                                data: [33, 16, 60, 22, 58, 96]   //实际进度行数据内容
                            }, {
                                type: "bar",
                                stack: "none",
                                barWidth: "2",
                                itemStyle: {
                                    normal: {
                                        borderColor: "rgba(0,0,0,0)",
                                        color: "rgba(0,0,0,0)"
                                    },
                                    emphasis: {
                                        borderColor: "rgba(0,0,0,0)",
                                        color: "rgba(0,0,0,0)"
                                    }
                                },
                                data: [0, 0, 0, 0, 0, 0]
                            }
                        ]
                    }
