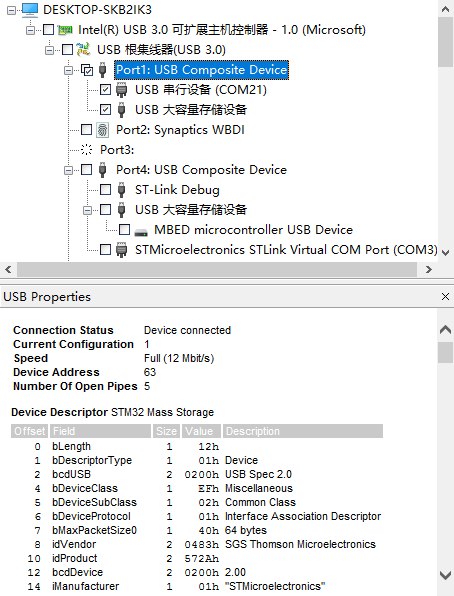

其实很简单搞了好久,怪ST呗,既没做到可读性增强,又搞到复杂了.目的先做一个CDC+MSC复合,就像STLink V2-1一样.

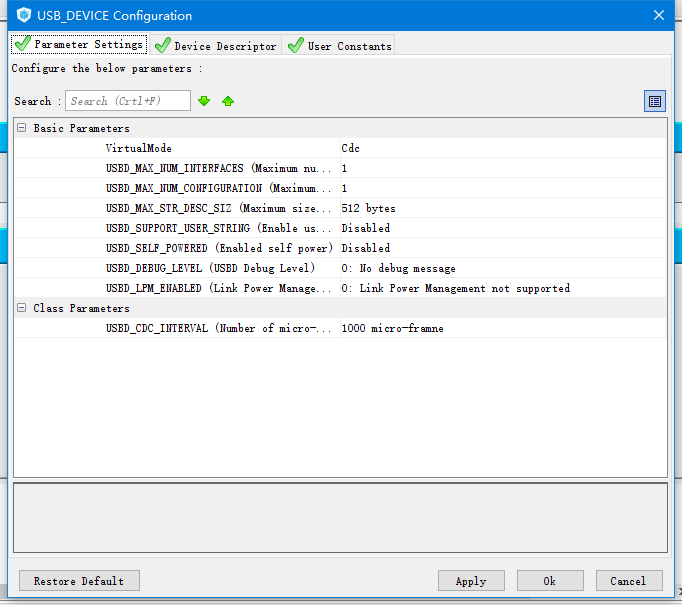

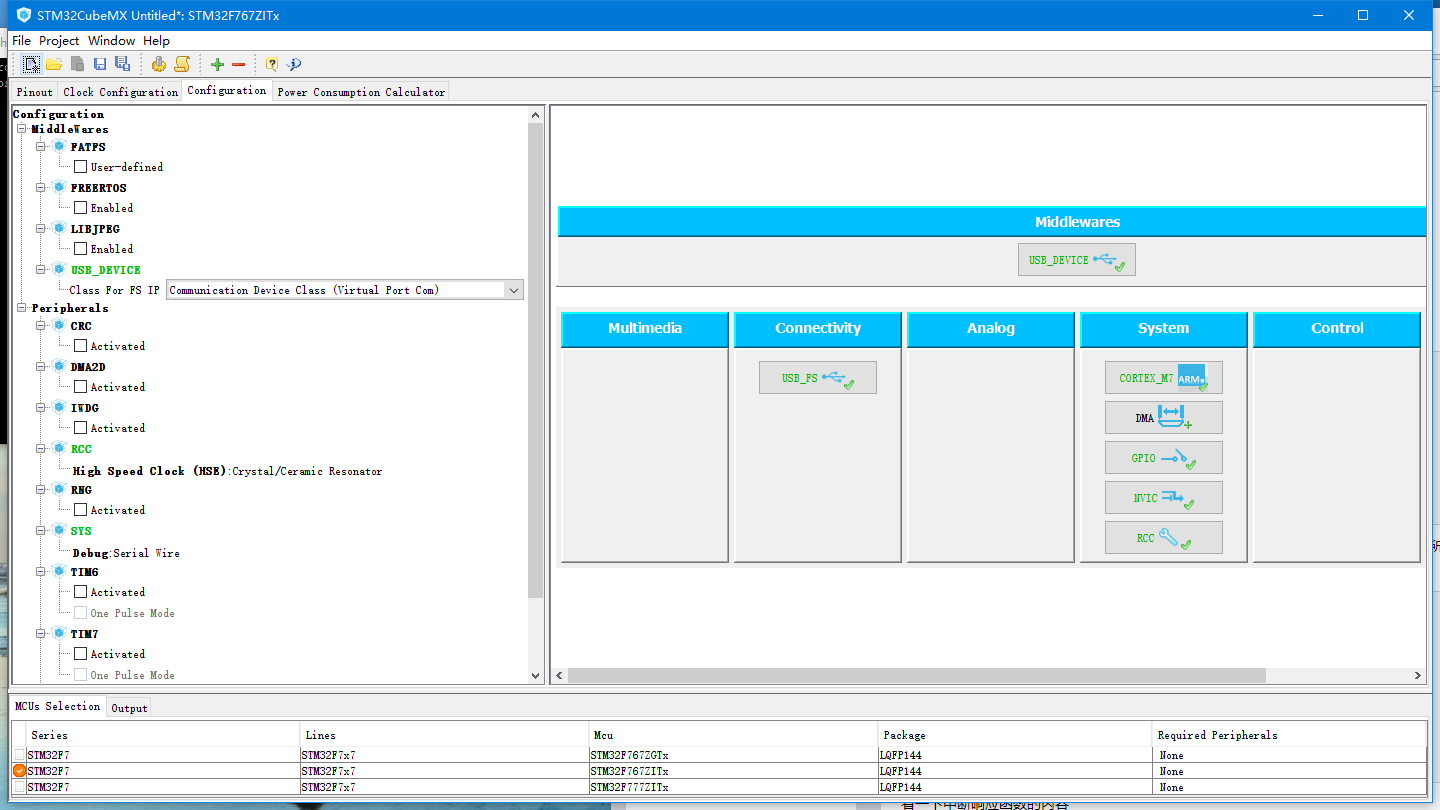

首先生成一个CDC工程并测试.

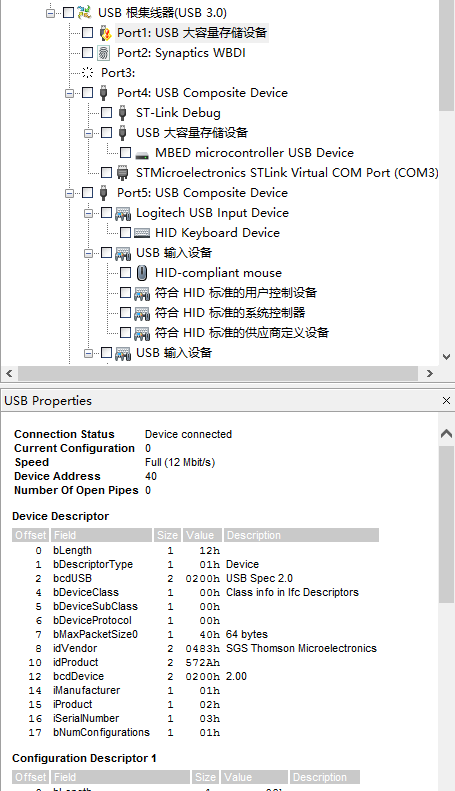

再用同样方法生成MSC,但是不要覆盖当前工程.因为木有分区和很多逻辑没实现,所以借助工具看看.

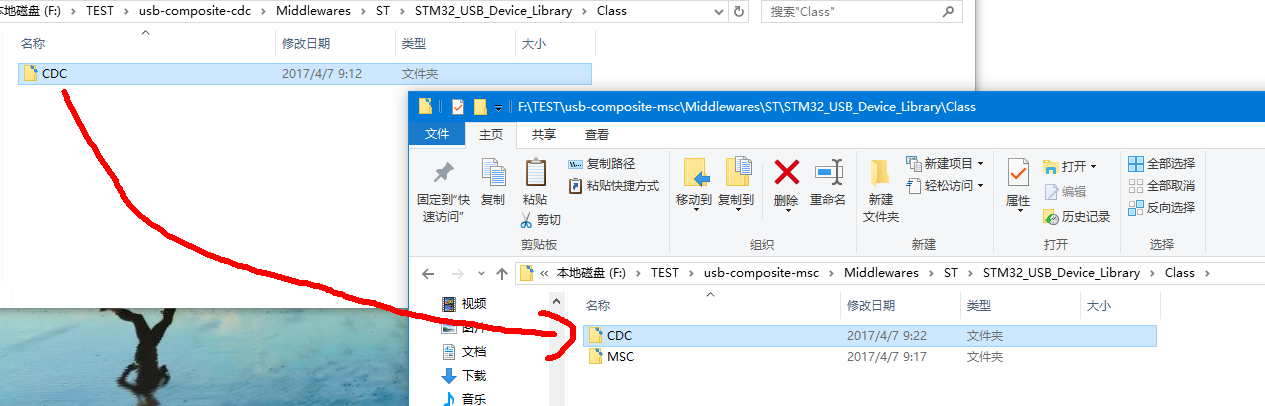

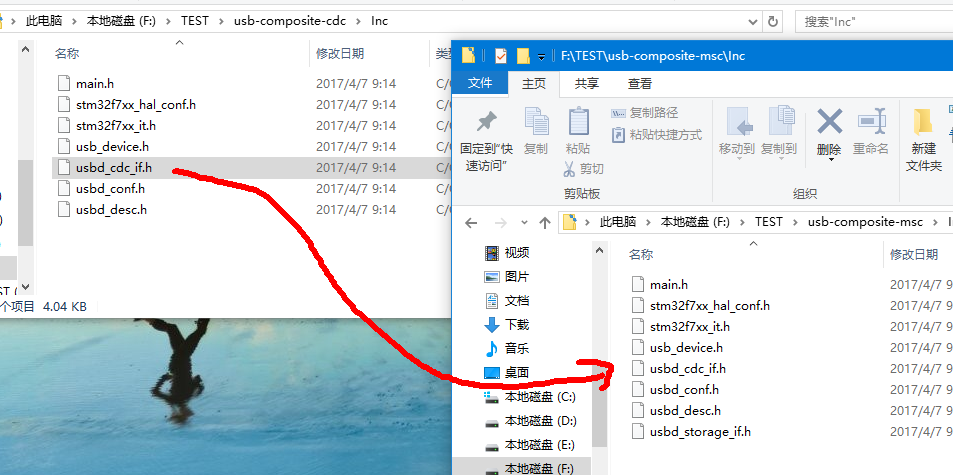

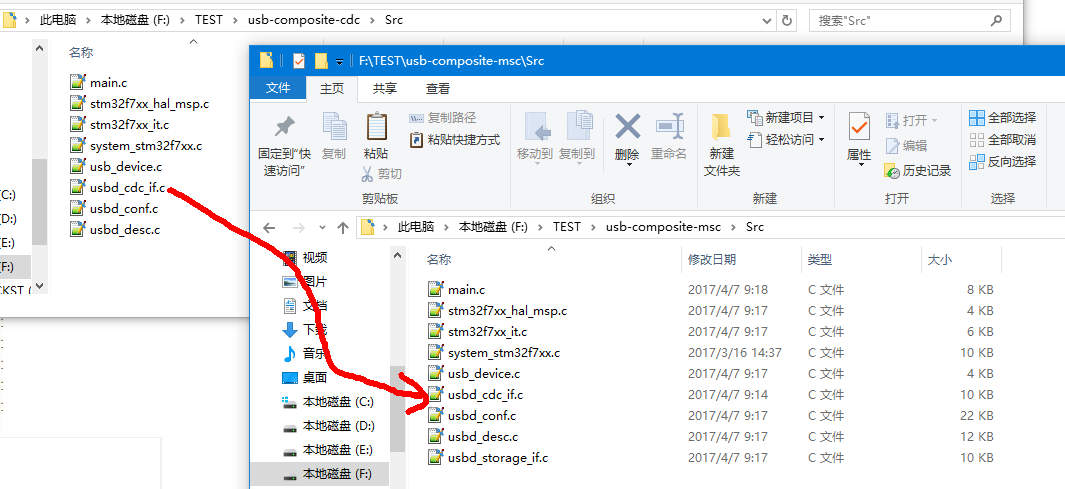

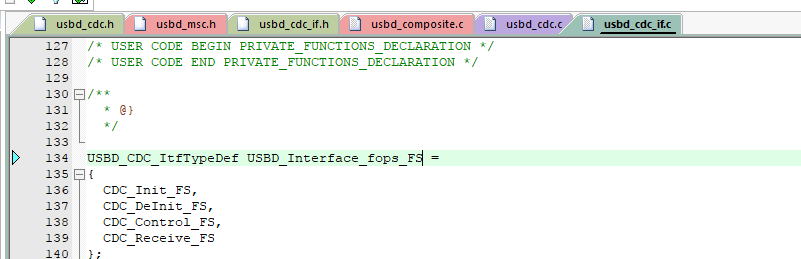

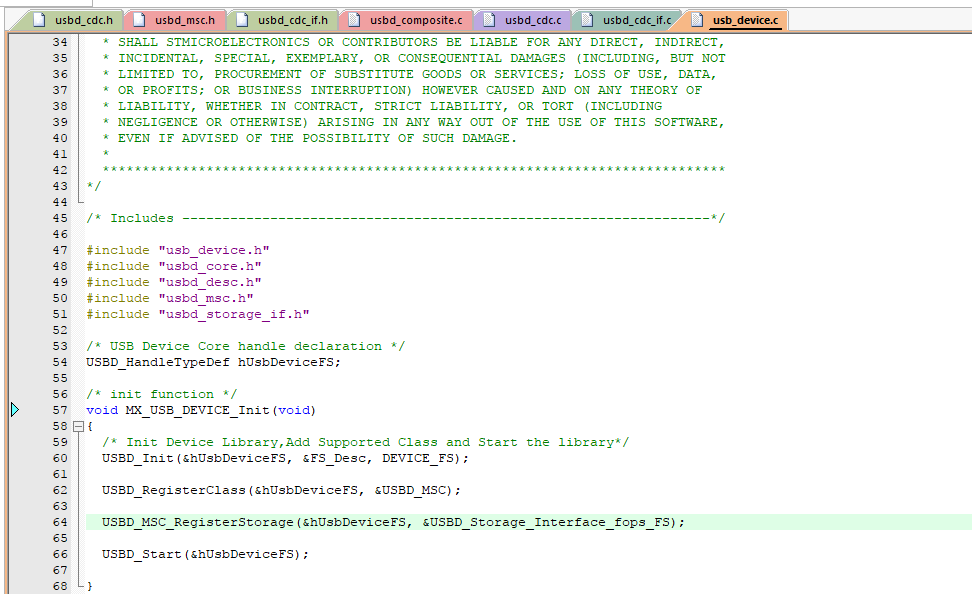

开始合并了,把CDC内容挪过来.

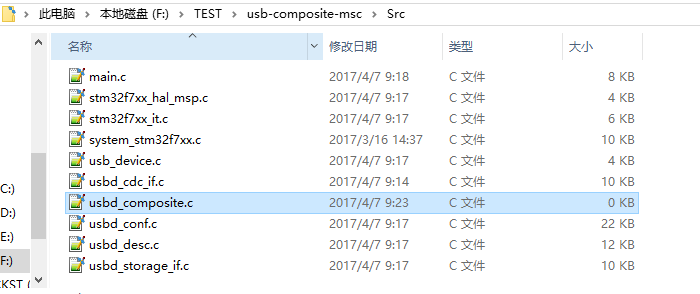

新建两个文件.

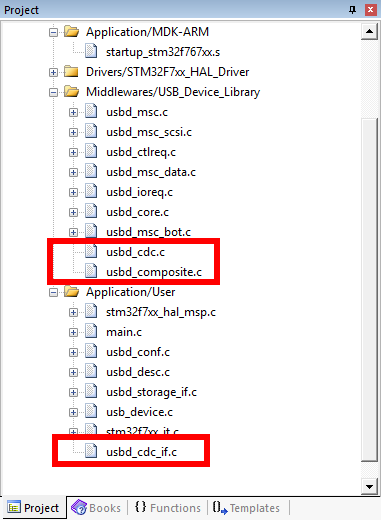

添加文件到Keil.

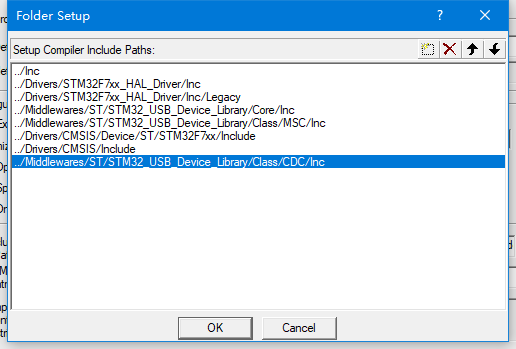

Keil的Include还要设置.然后编译测试,当然这个时候是不能用的.
修改CDC所用EP.

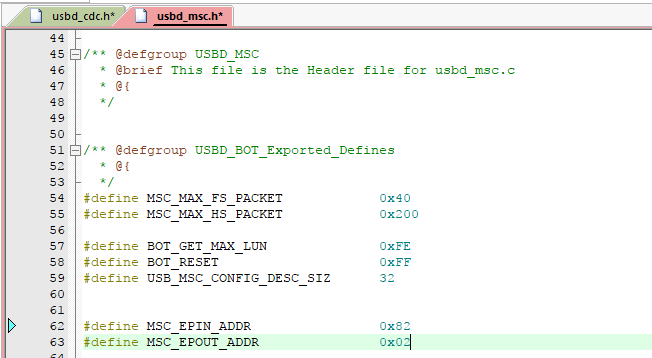

修改MSC所用EP.

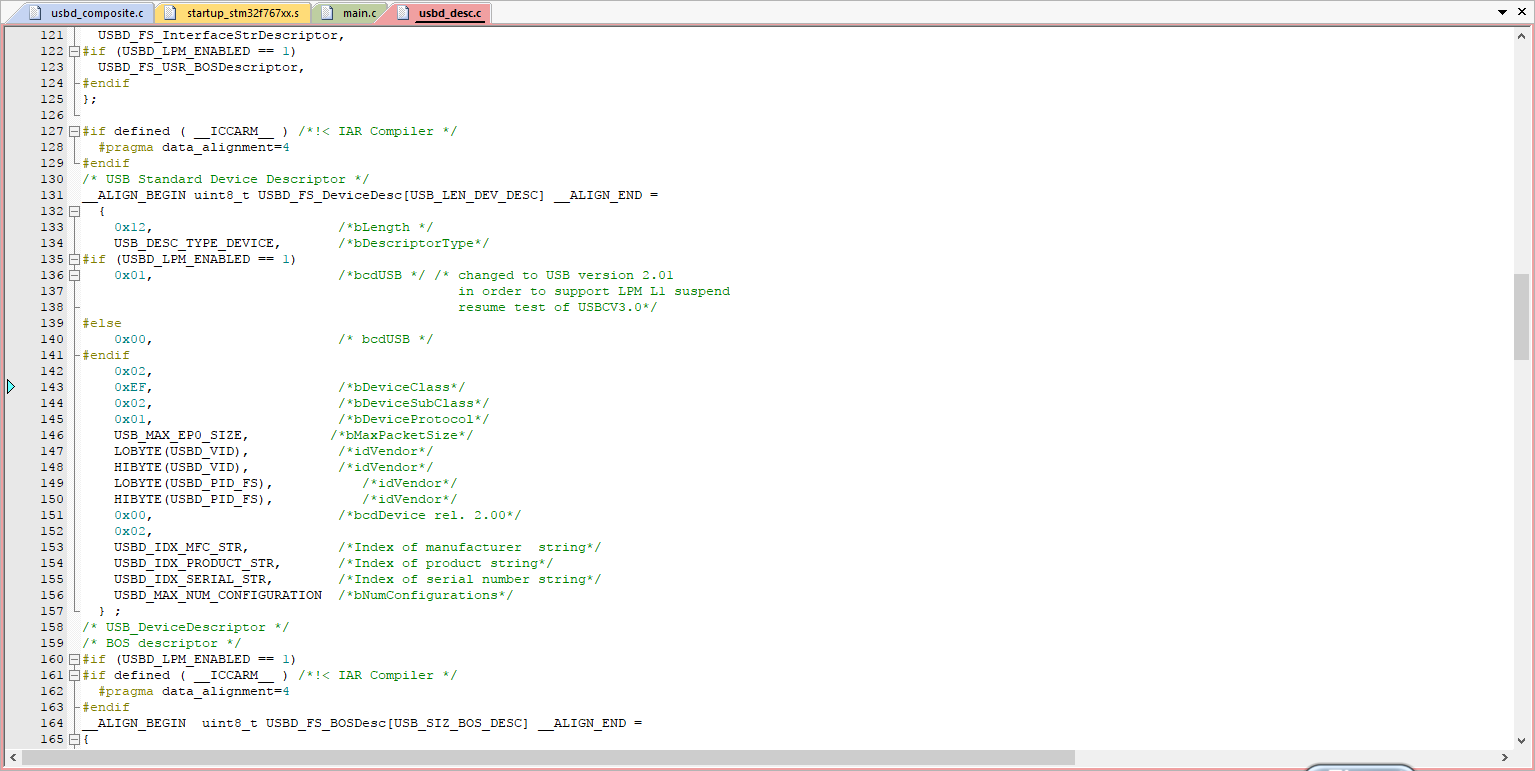

编辑我们的复合头文件.复合用IAD.大概都是写在一起.
/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef __USBD_COMPOSITE_H
#define __USBD_COMPOSITE_H
#ifdef __cplusplus
extern "C" {
#endif
/* Includes ------------------------------------------------------------------*/
#include "usbd_msc.h"
#include "usbd_cdc.h"
#include "usbd_storage_if.h"
#include "usbd_cdc_if.h"
#define WBVAL(x) (x & 0xFF),((x >> 8) & 0xFF)
#define DBVAL(x) (x & 0xFF),((x >> 8) & 0xFF),((x >> 16) & 0xFF),((x >> 24) & 0xFF)
#define USBD_IAD_DESC_SIZE 0x08
#define USBD_IAD_DESCRIPTOR_TYPE 0x0B
#define USBD_CDC_FIRST_INTERFACE 0 /* CDC FirstInterface */
#define USBD_CDC_INTERFACE_NUM 2 /* CDC Interface NUM */
#define USBD_CDC_CMD_INTERFACE 0
#define USBD_CDC_DATA_INTERFACE 1
#define USBD_MSC_FIRST_INTERFACE 2 /* MSC FirstInterface */
#define USBD_MSC_INTERFACE_NUM 1 /* MSC Interface NUM */
#define USBD_MSC_INTERFACE 2
#define MSC_INDATA_NUM (MSC_EPIN_ADDR & 0x0F)
#define MSC_OUTDATA_NUM (MSC_EPOUT_ADDR & 0x0F)
#define CDC_INDATA_NUM (CDC_IN_EP & 0x0F)
#define CDC_OUTDATA_NUM (CDC_OUT_EP & 0x0F)
#define CDC_OUTCMD_NUM (CDC_CMD_EP & 0x0F)
#define USBD_COMPOSITE_DESC_SIZE (9 + 58 + 8 + 32 + 8)
extern USBD_ClassTypeDef USBD_COMPOSITE;
/**
* @}
*/
/**
* @}
*/
#ifdef __cplusplus
}
#endif
#endif /* __USBD_MSC_H */
/**
* @}
*/
/*****************************END OF FILE****/
然后写对应C文件,分别初始化各种.
#include "usbd_composite.h"
#include "usbd_cdc.h"
#include "usbd_msc.h"
static USBD_CDC_HandleTypeDef *pCDCData;
static USBD_MSC_BOT_HandleTypeDef *pMSCData;
static uint8_t USBD_Composite_Init (USBD_HandleTypeDef *pdev,
uint8_t cfgidx);
static uint8_t USBD_Composite_DeInit (USBD_HandleTypeDef *pdev,
uint8_t cfgidx);
static uint8_t USBD_Composite_EP0_RxReady(USBD_HandleTypeDef *pdev);
static uint8_t USBD_Composite_Setup (USBD_HandleTypeDef *pdev,
USBD_SetupReqTypedef *req);
static uint8_t USBD_Composite_DataIn (USBD_HandleTypeDef *pdev,
uint8_t epnum);
static uint8_t USBD_Composite_DataOut (USBD_HandleTypeDef *pdev,
uint8_t epnum);
static uint8_t *USBD_Composite_GetFSCfgDesc (uint16_t *length);
static uint8_t *USBD_Composite_GetDeviceQualifierDescriptor (uint16_t *length);
USBD_ClassTypeDef USBD_COMPOSITE =
{
USBD_Composite_Init,
USBD_Composite_DeInit,
USBD_Composite_Setup,
NULL, /*EP0_TxSent*/
USBD_Composite_EP0_RxReady,
USBD_Composite_DataIn,
USBD_Composite_DataOut,
NULL,
NULL,
NULL,
NULL,
USBD_Composite_GetFSCfgDesc,
NULL,
USBD_Composite_GetDeviceQualifierDescriptor,
};
/* USB composite device Configuration Descriptor */
/* All Descriptors (Configuration, Interface, Endpoint, Class, Vendor */
__ALIGN_BEGIN uint8_t USBD_Composite_CfgFSDesc[USBD_COMPOSITE_DESC_SIZE] __ALIGN_END =
{
0x09, /* bLength: Configuation Descriptor size */
USB_DESC_TYPE_CONFIGURATION, /* bDescriptorType: Configuration */
WBVAL(USBD_COMPOSITE_DESC_SIZE),
USBD_MAX_NUM_INTERFACES , /* bNumInterfaces: */
0x01, /* bConfigurationValue: */
0x04, /* iConfiguration: */
0xC0, /* bmAttributes: */
0x96, /* MaxPower 300 mA */
/****************************CDC************************************/
/* Interface Association Descriptor */
USBD_IAD_DESC_SIZE, // bLength
USBD_IAD_DESCRIPTOR_TYPE, // bDescriptorType
USBD_CDC_FIRST_INTERFACE, // bFirstInterface
USBD_CDC_INTERFACE_NUM, // bInterfaceCount
0x02, // bFunctionClass
0x02, // bFunctionSubClass
0x01, // bInterfaceProtocol
0x04, // iFunction
/*Interface Descriptor */
0x09, /* bLength: Interface Descriptor size */
USB_DESC_TYPE_INTERFACE, /* bDescriptorType: Interface */
/* Interface descriptor type */
USBD_CDC_CMD_INTERFACE, /* bInterfaceNumber: Number of Interface */
0x00, /* bAlternateSetting: Alternate setting */
0x01, /* bNumEndpoints: One endpoints used */
0x02, /* bInterfaceClass: Communication Interface Class */
0x02, /* bInterfaceSubClass: Abstract Control Model */
0x01, /* bInterfaceProtocol: Common AT commands */
0x01, /* iInterface: */
/*Header Functional Descriptor*/
0x05, /* bLength: Endpoint Descriptor size */
0x24, /* bDescriptorType: CS_INTERFACE */
0x00, /* bDescriptorSubtype: Header Func Desc */
0x10, /* bcdCDC: spec release number */
0x01,
/*Call Management Functional Descriptor*/
0x05, /* bFunctionLength */
0x24, /* bDescriptorType: CS_INTERFACE */
0x01, /* bDescriptorSubtype: Call Management Func Desc */
0x00, /* bmCapabilities: D0+D1 */
0x01, /* bDataInterface: 1 */
/*ACM Functional Descriptor*/
0x04, /* bFunctionLength */
0x24, /* bDescriptorType: CS_INTERFACE */
0x02, /* bDescriptorSubtype: Abstract Control Management desc */
0x02, /* bmCapabilities */
/*Union Functional Descriptor*/
0x05, /* bFunctionLength */
0x24, /* bDescriptorType: CS_INTERFACE */
0x06, /* bDescriptorSubtype: Union func desc */
USBD_CDC_CMD_INTERFACE, /* bMasterInterface: Communication class interface */
USBD_CDC_DATA_INTERFACE, /* bSlaveInterface0: Data Class Interface */
/*Endpoint 2 Descriptor*/
0x07, /* bLength: Endpoint Descriptor size */
USB_DESC_TYPE_ENDPOINT, /* bDescriptorType: Endpoint */
CDC_CMD_EP, /* bEndpointAddress */
0x03, /* bmAttributes: Interrupt */
LOBYTE(CDC_CMD_PACKET_SIZE), /* wMaxPacketSize: */
HIBYTE(CDC_CMD_PACKET_SIZE),
0x01, /* bInterval: */
/*Data class interface descriptor*/
0x09, /* bLength: Endpoint Descriptor size */
USB_DESC_TYPE_INTERFACE, /* bDescriptorType: */
USBD_CDC_DATA_INTERFACE, /* bInterfaceNumber: Number of Interface */
0x00, /* bAlternateSetting: Alternate setting */
0x02, /* bNumEndpoints: Two endpoints used */
0x0A, /* bInterfaceClass: CDC */
0x02, /* bInterfaceSubClass: */
0x00, /* bInterfaceProtocol: */
0x01, /* iInterface: */
/*Endpoint OUT Descriptor*/
0x07, /* bLength: Endpoint Descriptor size */
USB_DESC_TYPE_ENDPOINT, /* bDescriptorType: Endpoint */
CDC_OUT_EP, /* bEndpointAddress */
0x02, /* bmAttributes: Bulk */
LOBYTE(CDC_DATA_FS_MAX_PACKET_SIZE), /* wMaxPacketSize: */
HIBYTE(CDC_DATA_FS_MAX_PACKET_SIZE),
0x01, /* bInterval: ignore for Bulk transfer */
/*Endpoint IN Descriptor*/
0x07, /* bLength: Endpoint Descriptor size */
USB_DESC_TYPE_ENDPOINT, /* bDescriptorType: Endpoint */
CDC_IN_EP, /* bEndpointAddress */
0x02, /* bmAttributes: Bulk */
LOBYTE(CDC_DATA_FS_MAX_PACKET_SIZE), /* wMaxPacketSize: */
HIBYTE(CDC_DATA_FS_MAX_PACKET_SIZE),
0x01, /* bInterval: ignore for Bulk transfer */
/****************************MSC************************************/
/* Interface Association Descriptor */
USBD_IAD_DESC_SIZE, // bLength
USBD_IAD_DESCRIPTOR_TYPE, // bDescriptorType
USBD_MSC_FIRST_INTERFACE, // bFirstInterface
USBD_MSC_INTERFACE_NUM, // bInterfaceCount
0x08, // bFunctionClass
0x06, // bFunctionSubClass
0x50, // bInterfaceProtocol
0x05,
/******************** Mass Storage interface ********************/
0x09, /* bLength: Interface Descriptor size */
USB_DESC_TYPE_INTERFACE, /* bDescriptorType: */
USBD_MSC_INTERFACE, /* bInterfaceNumber: Number of Interface */
0x00, /* bAlternateSetting: Alternate setting */
0x02, /* bNumEndpoints*/
0x08, /* bInterfaceClass: MSC Class */
0x06, /* bInterfaceSubClass : SCSI transparent*/
0x50, /* nInterfaceProtocol */
0x05, /* iInterface: */
/******************** Mass Storage Endpoints ********************/
0x07, /*Endpoint descriptor length = 7*/
0x05, /*Endpoint descriptor type */
MSC_EPIN_ADDR, /*Endpoint address (IN, address 1) */
0x02, /*Bulk endpoint type */
LOBYTE(MSC_MAX_FS_PACKET),
HIBYTE(MSC_MAX_FS_PACKET),
0x01, /*Polling interval in milliseconds */
0x07, /*Endpoint descriptor length = 7 */
0x05, /*Endpoint descriptor type */
MSC_EPOUT_ADDR, /*Endpoint address (OUT, address 1) */
0x02, /*Bulk endpoint type */
LOBYTE(MSC_MAX_FS_PACKET),
HIBYTE(MSC_MAX_FS_PACKET),
0x01, /*Polling interval in milliseconds*/
};
/* USB Standard Device Descriptor */
__ALIGN_BEGIN uint8_t USBD_Composite_DeviceQualifierDesc[USB_LEN_DEV_QUALIFIER_DESC] __ALIGN_END =
{
USB_LEN_DEV_QUALIFIER_DESC,
USB_DESC_TYPE_DEVICE_QUALIFIER,
0x00,
0x02,
0x00,
0x00,
0x00,
0x40,
0x01,
0x00,
};
/**
* @brief USBD_Composite_Init
* Initialize the Composite interface
* @param pdev: device instance
* @param cfgidx: Configuration index
* @retval status
*/
static uint8_t USBD_Composite_Init (USBD_HandleTypeDef *pdev,
uint8_t cfgidx)
{
uint8_t res = 0;
pdev->pUserData = &USBD_CDC_Interface_fops_FS;
res += USBD_CDC.Init(pdev,cfgidx);
pCDCData = pdev->pClassData;
pdev->pUserData = &USBD_Storage_Interface_fops_FS;
res += USBD_MSC.Init(pdev,cfgidx);
pMSCData = pdev->pClassData;
return res;
}
/**
* @brief USBD_Composite_DeInit
* DeInitilaize the Composite configuration
* @param pdev: device instance
* @param cfgidx: configuration index
* @retval status
*/
static uint8_t USBD_Composite_DeInit (USBD_HandleTypeDef *pdev,
uint8_t cfgidx)
{
uint8_t res = 0;
pdev->pClassData = pCDCData;
pdev->pUserData = &USBD_CDC_Interface_fops_FS;
res += USBD_CDC.DeInit(pdev,cfgidx);
pdev->pClassData = pMSCData;
pdev->pUserData = &USBD_Storage_Interface_fops_FS;
res += USBD_MSC.DeInit(pdev,cfgidx);
return res;
}
static uint8_t USBD_Composite_EP0_RxReady(USBD_HandleTypeDef *pdev)
{
return USBD_CDC.EP0_RxReady(pdev);
}
/**
* @brief USBD_Composite_Setup
* Handle the Composite requests
* @param pdev: device instance
* @param req: USB request
* @retval status
*/
static uint8_t USBD_Composite_Setup (USBD_HandleTypeDef *pdev, USBD_SetupReqTypedef *req)
{
switch (req->bmRequest & USB_REQ_RECIPIENT_MASK)
{
case USB_REQ_RECIPIENT_INTERFACE:
switch(req->wIndex)
{
case USBD_CDC_DATA_INTERFACE:
case USBD_CDC_CMD_INTERFACE:
pdev->pClassData = pCDCData;
pdev->pUserData = &USBD_CDC_Interface_fops_FS;
return(USBD_CDC.Setup(pdev, req));
case USBD_MSC_INTERFACE:
pdev->pClassData = pMSCData;
pdev->pUserData = &USBD_Storage_Interface_fops_FS;
return(USBD_MSC.Setup (pdev, req));
default:
break;
}
break;
case USB_REQ_RECIPIENT_ENDPOINT:
switch(req->wIndex)
{
case CDC_IN_EP:
case CDC_OUT_EP:
case CDC_CMD_EP:
pdev->pClassData = pCDCData;
pdev->pUserData = &USBD_CDC_Interface_fops_FS;
return(USBD_CDC.Setup(pdev, req));
case MSC_EPIN_ADDR:
case MSC_EPOUT_ADDR:
pdev->pClassData = pMSCData;
pdev->pUserData = &USBD_Storage_Interface_fops_FS;
return(USBD_MSC.Setup (pdev, req));
default:
break;
}
break;
}
return USBD_OK;
}
/**
* @brief USBD_Composite_DataIn
* handle data IN Stage
* @param pdev: device instance
* @param epnum: endpoint index
* @retval status
*/
uint8_t USBD_Composite_DataIn (USBD_HandleTypeDef *pdev,
uint8_t epnum)
{
switch(epnum)
{
case CDC_INDATA_NUM:
pdev->pClassData = pCDCData;
pdev->pUserData = &USBD_CDC_Interface_fops_FS;
return(USBD_CDC.DataIn(pdev,epnum));
case MSC_INDATA_NUM:
pdev->pClassData = pMSCData;
pdev->pUserData = &USBD_Storage_Interface_fops_FS;
return(USBD_MSC.DataIn(pdev,epnum));
default:
break;
}
return USBD_FAIL;
}
/**
* @brief USBD_Composite_DataOut
* handle data OUT Stage
* @param pdev: device instance
* @param epnum: endpoint index
* @retval status
*/
uint8_t USBD_Composite_DataOut (USBD_HandleTypeDef *pdev,
uint8_t epnum)
{
switch(epnum)
{
case CDC_OUTDATA_NUM:
case CDC_OUTCMD_NUM:
pdev->pClassData = pCDCData;
pdev->pUserData = &USBD_CDC_Interface_fops_FS;
return(USBD_CDC.DataOut(pdev,epnum));
case MSC_OUTDATA_NUM:
pdev->pClassData = pMSCData;
pdev->pUserData = &USBD_Storage_Interface_fops_FS;
return(USBD_MSC.DataOut(pdev,epnum));
default:
break;
}
return USBD_FAIL;
}
/**
* @brief USBD_Composite_GetHSCfgDesc
* return configuration descriptor
* @param length : pointer data length
* @retval pointer to descriptor buffer
*/
uint8_t *USBD_Composite_GetFSCfgDesc (uint16_t *length)
{
*length = sizeof (USBD_Composite_CfgFSDesc);
return USBD_Composite_CfgFSDesc;
}
/**
* @brief DeviceQualifierDescriptor
* return Device Qualifier descriptor
* @param length : pointer data length
* @retval pointer to descriptor buffer
*/
uint8_t *USBD_Composite_GetDeviceQualifierDescriptor (uint16_t *length)
{
*length = sizeof (USBD_Composite_DeviceQualifierDesc);
return USBD_Composite_DeviceQualifierDesc;
}
/**
* @}
*/
/**
* @}
*/
/**
* @}
*/

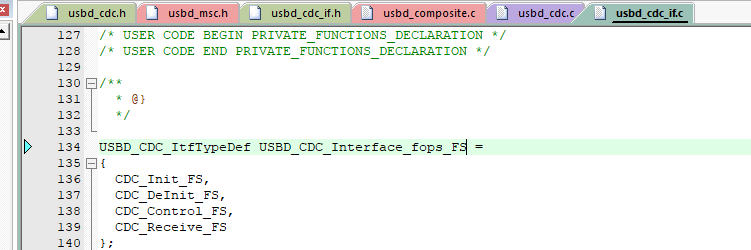

然后CDC的描述太任性了,改.

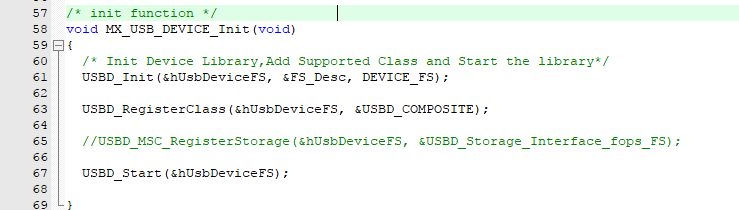

不然看文件吗根本不知道是什么玩意.接着修改usb_device.c

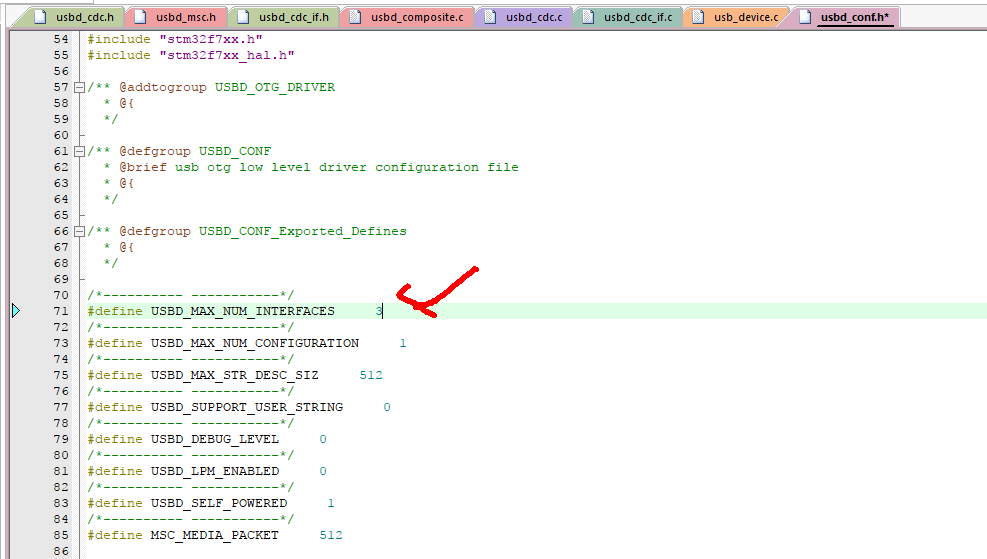

修改最大接口数.

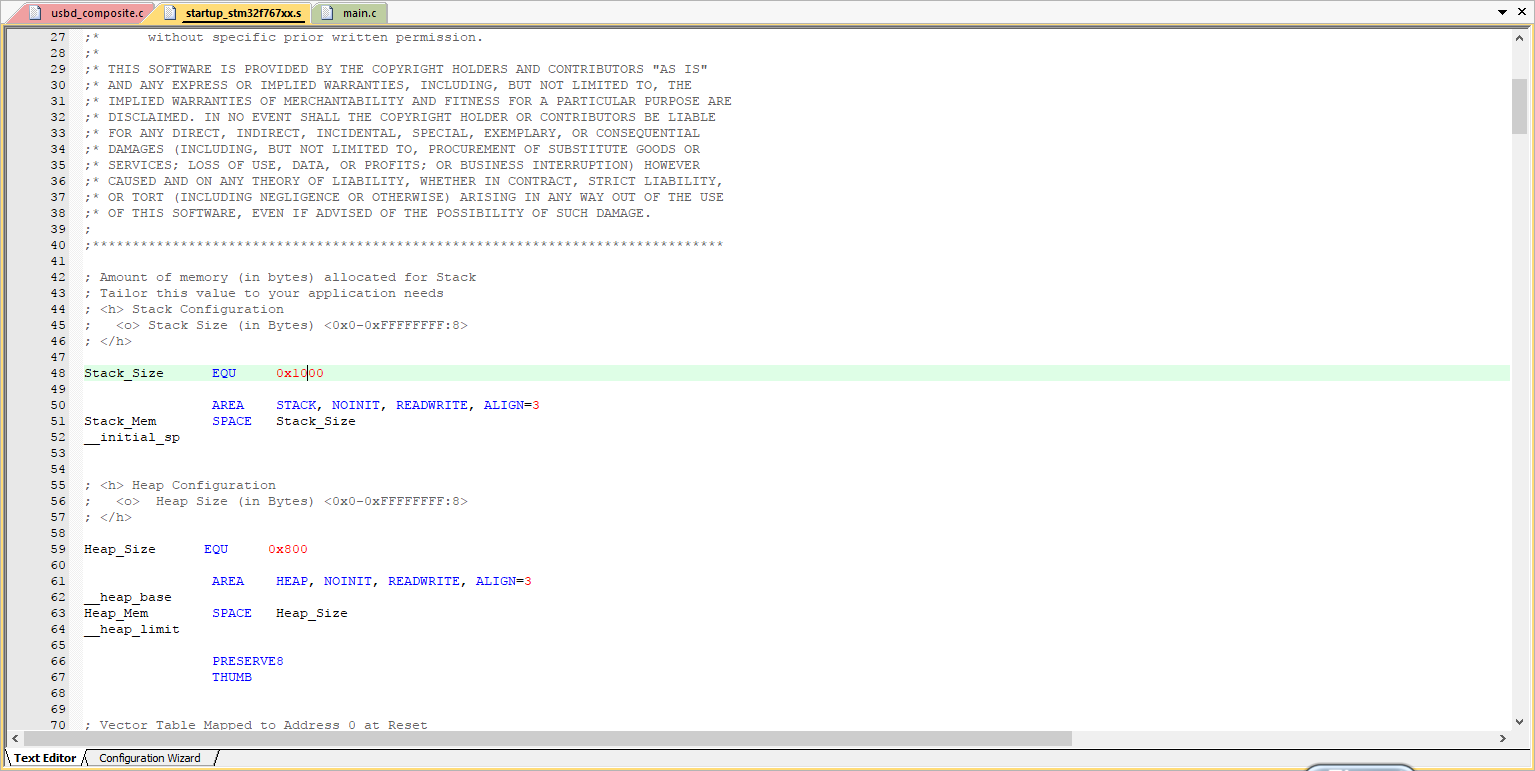

因为是CDC 2个 + MSC 1个.然后如果还没有识别,修改Stack Size.
修改为IAD兼容.
复合成功:
程序:
后话:
如果电脑没驱动,请求助官网:http://www.st.com/en/development-tools/stsw-stm32102.html
思考:
如何复合多重HID呢?复合只是为了增加功能,并不能增加带宽.
