muduo网络库学习--EventLoop

muduo网络库使用 muiltiple reactors + threadpool(one loop per thread + threadpool) 模型。

• one loop per thread ：每个线程最多只能有一个EventLoop对象，如果已经创建，则终止程序（LOG_FATAL）
• EventLoop构造函数会记住本对象所属线程（threadId_）
• 创建了EventLoop对象的线程称为IO线程，其功能是运行事件循环（EventLoop::loop）

//EventLoop.h/.cc

//不能跨线程调用
bool looping_;

void EventLoop::loop()
{
  assert(!looping_); //断言当前没有在循环
  assertInLoopThread(); //断言在LoopThread中
  looping_ = true;
}
void assertInLoopThread()
  {
    if (!isInLoopThread())//判断当前线程是否时创建当前EL对象的线程
    {
      abortNotInLoopThread();//终止程序
    }
  }

bool isInLoopThread() const { return threadId_ == CurrentThread::tid(); }

const pid_t threadId_; //当前对象所属线程ID
std::unique_ptr<Poller> poller_;

ChannelList activeChannels_; //Poller返回的活动通道
Channel* currentActiveChannel_; //当前正在处理的活动通道

void updateChannel(Channel* channel); //在Poller中添加（注册）或者更新通道

//channel.h/.cc

class Channel : noncopyable{
public:
  void enableReading() { events_ |= kReadEvent; update(); }
  void disableReading() { events_ &= ~kReadEvent; update(); }
  void enableWriting() { events_ |= kWriteEvent; update(); }
  void disableWriting() { events_ &= ~kWriteEvent; update(); }

private:
  EventLoop* loop_; //所属EvenLoop对象
  const int  fd_; //文件描述符，但不控制该fd
  int        events_; //关注的事件
  int        revents_; //实际返回的事件
  int        index_; //在poll事件数组中的序号
};

• 一个EventLoop对应一个Poller
• update()会调用EventLoop::updateChannel(), EventLoop对象持有Poller对象，调用Poller::updateChannel, 将事件注册到poll中

//Poller类

class Poller : noncopyable
{
 public:
  typedef std::vector<Channel*> ChannelList;

  Poller(EventLoop* loop);
  virtual ~Poller();

  /// Polls the I/O events.
  /// Must be called in the loop thread.
  virtual Timestamp poll(int timeoutMs, ChannelList* activeChannels) = 0;

  /// Changes the interested I/O events.
  /// Must be called in the loop thread.
  virtual void updateChannel(Channel* channel) = 0;
  virtual void removeChannel(Channel* channel) = 0;
  ...

protected:
  typedef std::map<int, Channel*> ChannelMap; //key是文件描述符
  ChannelMap channels_;

private:
  EventLoop* ownerLoop_;
};

Poller类中的纯虚函数在其子类PollPoller中实现
//PollPoller类

class PollPoller : public Poller
{
 public:
  Timestamp poll(int timeoutMs, ChannelList* activeChannels) override;
  void updateChannel(Channel* channel) override;
  void removeChannel(Channel* channel) override;

 private:
  void fillActiveChannels(int numEvents,
                          ChannelList* activeChannels) const;

  typedef std::vector<struct pollfd> PollFdList;
  PollFdList pollfds_;
};

Timestamp PollPoller::poll(int timeoutMs, ChannelList* activeChannels)
{
  int numEvents = ::poll(&*pollfds_.begin(), pollfds_.size(), timeoutMs);
  Timestamp now(Timestamp::now());
  if (numEvents > 0)
  {
    fillActiveChannels(numEvents, activeChannels);
  }
 ...
  return now;
}

void PollPoller::updateChannel(Channel* channel)
{
  Poller::assertInLoopThread();
  if (channel->index() < 0) //index_初始话为-1
  {
    // a new one, add to pollfds_
    assert(channels_.find(channel->fd()) == channels_.end());
    struct pollfd pfd;
    pfd.fd = channel->fd();
    pfd.events = static_cast<short>(channel->events());
    pfd.revents = 0;
    pollfds_.push_back(pfd);
    int idx = static_cast<int>(pollfds_.size())-1;
    channel->set_index(idx);
    channels_[pfd.fd] = channel;
  }
  else
  {
    // update existing one
    ...
  }
}

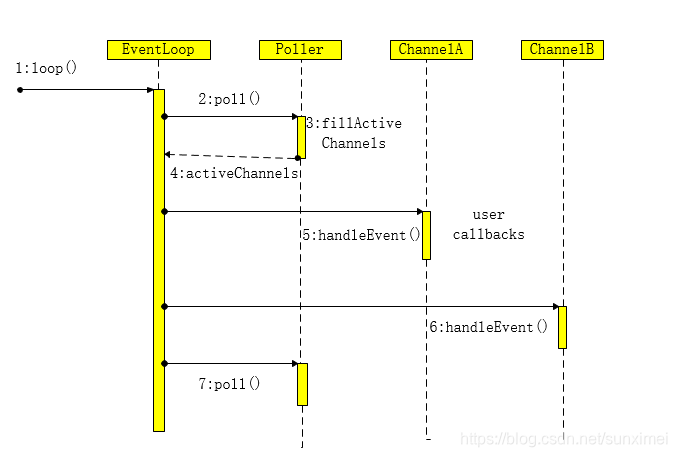

时序图
