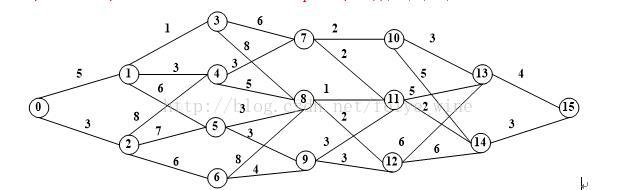

A multistage graph is a graph (1) G=(V,E)with V partitioned into K >= 2 disjoint subsets such that if (a,b) is in E,then a is in Vi , and b is in Vi+1 for some subsets in the partition; and (2) | V1 | = | VK | = 1.
多段图java解法：
package com.secondwork;
/**
* 多段图解法
* @author YR
*
*/
public class Test5 {
private static int n = 16;
private static int[][] arr= {
{0,5,3,0,0,0,0,0,0,0,0,0,0,0,0,0},
{5,0,0,1,3,6,0,0,0,0,0,0,0,0,0,0},
{3,0,0,0,8,7,6,0,0,0,0,0,0,0,0,0},
{0,1,0,0,0,0,0,6,8,0,0,0,0,0,0,0},
{0,3,8,0,0,0,0,3,5,0,0,0,0,0,0,0},
{0,6,7,0,0,0,0,0,3,3,0,0,0,0,0,0},
{0,0,6,0,0,0,0,0,8,4,0,0,0,0,0,0},
{0,0,0,6,3,0,0,0,0,0,2,2,0,0,0,0},
{0,0,0,8,5,3,8,0,0,0,0,1,2,0,0,0},
{0,0,0,0,0,3,4,0,0,0,0,3,3,0,0,0},
{0,0,0,0,0,0,0,2,0,0,0,0,0,3,5,0},
{0,0,0,0,0,0,0,2,1,3,0,0,0,5,2,0},
{0,0,0,0,0,0,0,0,2,3,0,0,0,6,6,0},
{0,0,0,0,0,0,0,0,0,0,3,5,6,0,0,4},
{0,0,0,0,0,0,0,0,0,0,5,2,6,0,0,3},
{0,0,0,0,0,0,0,0,0,0,0,0,0,4,3,0},
};
//使用向后递推算法求多段图的最短路径
public static void shortPath(int arr[][]){
int i = 1;
int sum = 0;
int temp = 0;
int p [] = new int[n];
int len[] = new int[n];
while(i<n){
int total = Integer.MAX_VALUE;
for(int j =0;j<i;j++){
if(arr[j][i]!=0){
//判断是否存在到该节点的路径，如果有则根据路径长度更新
if(total>(arr[j][i]+len[j])){
total = arr[j][i]+len[j];
temp = j;
}
len[i] = total;
sum = total;
p[i] = temp;
}
}
i++;
}
int path[] = new int[7];//此图段数为7段
path[0] = 0;
path[6] = 15;
for(int k = 5;k>=1;k--){
path[k] = p[path[k+1]];
}
System.out.println("最短路径为：");
for(int m = 0;m<6;m++){
System.out.print(path[m]+"->");
}
System.out.println(path[6]);
System.out.println("最小代价为："+sum);
}
public static void main(String[] args) {
shortPath(arr);
}
}
结果：
最短路径为：
0->1->4->7->11->14->15
最小代价为：18
