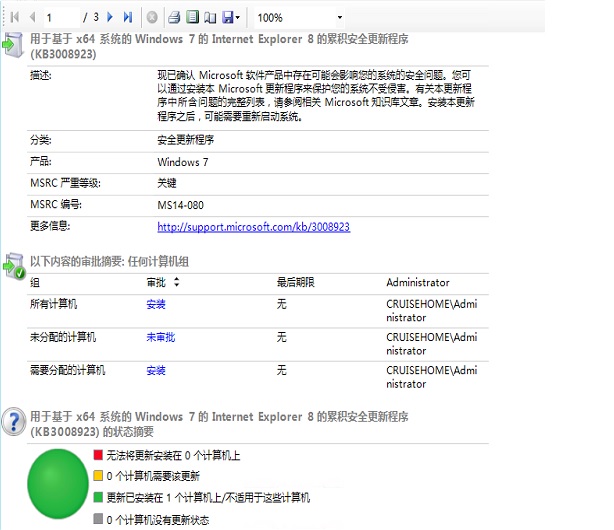

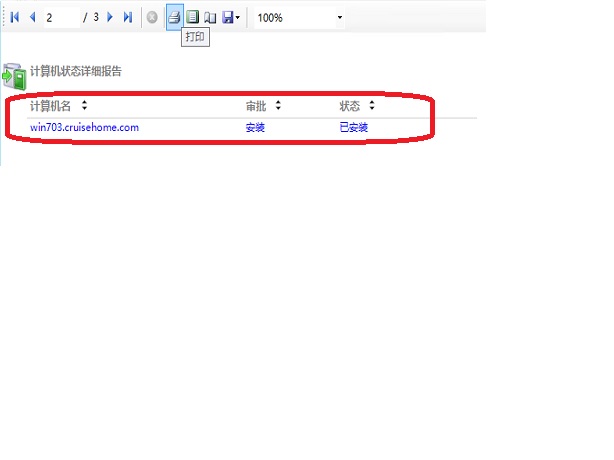

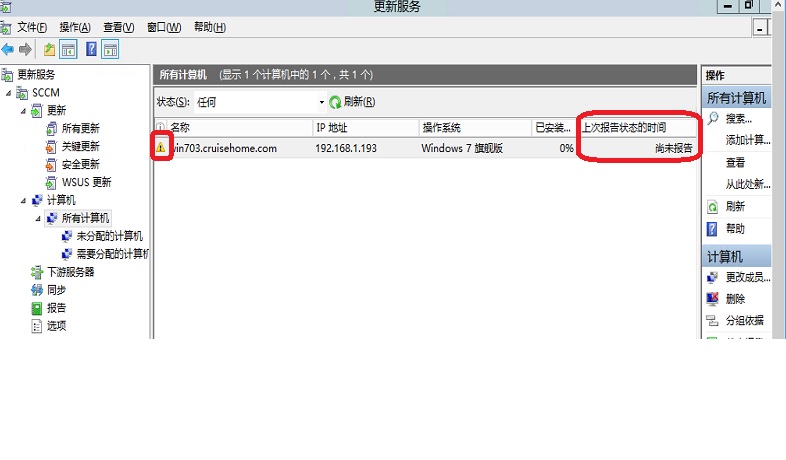

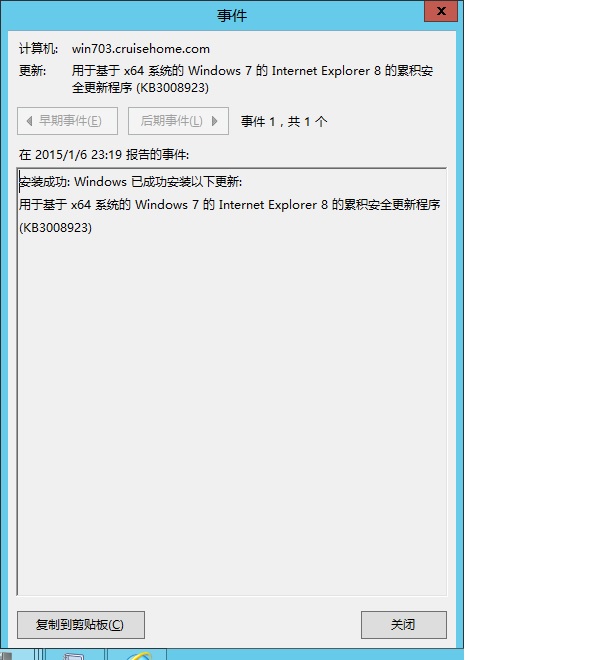

昨天新装的WSUS服务器，出现“尚未连接到此计算机”及上次报告状态时间“尚未报告”的提示。但客户端已经确认下载并安装，并且在WSUS的补丁报告里能正常显示此机器已经安装了这个补丁，请问是那方面没有设置好导致，由于本人刚接触WINDOWS SERVER，如果需要设置的请详细说明，谢谢。以下的截图是WSUS所显示的状态。
环境如下：
dc 1 192.168.1.100系统 server 2012 r2
dc 2 192.168.1.101系统 server 2012 r2
SCCM(WSUS服务器) 192.168.1.188系统 server 2012 r2
win703(客户端) 192.168.1.193系统 Win7 Sp1
WSUS 链接 SQL 2012 SP1 数据库 是用8530端口 (两个服务在同一个服务器上)
客户端与WSUS服务器的防火墙已经关闭，客户能telnet WSUS 8530端口，IE能正常访问 htt://SCCM
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
客户端 windowsupdate.log的记录
2015-01-07 10:29:35:128 924 18c AU AU received policy change subscription event
2015-01-07 10:30:01:395 924 18c AU AU received policy change subscription event
2015-01-07 10:30:21:441 924 18c AU AU received policy change subscription event
2015-01-07 10:31:50:505 924 18c AU ########### AU: Uninitializing Automatic Updates ###########
2015-01-07 10:31:50:677 924 18c Report CWERReporter finishing event handling. (00000000)
2015-01-07 10:31:50:833 924 18c Service *********
2015-01-07 10:31:50:833 924 18c Service ** END ** Service: Service exit [Exit code = 0x240001]
2015-01-07 10:31:50:833 924 18c Service *************
2015-01-07 10:31:55:615 924 a1c Misc =========== Logging initialized (build: 7.6.7600.256, tz: +0800) ===========
2015-01-07 10:31:55:615 924 a1c Misc = Process: C:\Windows\system32\svchost.exe
2015-01-07 10:31:55:615 924 a1c Misc = Module: c:\windows\system32\wuaueng.dll
2015-01-07 10:31:55:615 924 a1c Service *************
2015-01-07 10:31:55:615 924 a1c Service ** START ** Service: Service startup
2015-01-07 10:31:55:615 924 a1c Service *********
2015-01-07 10:31:55:630 924 a1c Agent * WU client version 7.6.7600.256
2015-01-07 10:31:55:630 924 a1c Agent * Base directory: C:\Windows\SoftwareDistribution
2015-01-07 10:31:55:630 924 a1c Agent * Access type: No proxy
2015-01-07 10:31:55:630 924 a1c Agent * Network state: Connected
2015-01-07 10:31:59:630 924 6a0 Report CWERReporter::Init succeeded
2015-01-07 10:31:59:630 924 6a0 Agent *********** Agent: Initializing Windows Update Agent ***********
2015-01-07 10:31:59:630 924 6a0 Agent *********** Agent: Initializing global settings cache ***********
2015-01-07 10:31:59:630 924 6a0 Agent * WSUS server: http://SCCM:8530
2015-01-07 10:31:59:630 924 6a0 Agent * WSUS status server: http://SCCM:8530
2015-01-07 10:31:59:630 924 6a0 Agent * Target group: (Unassigned Computers)
2015-01-07 10:31:59:630 924 6a0 Agent * Windows Update access disabled: No
2015-01-07 10:31:59:630 924 6a0 DnldMgr Download manager restoring 0 downloads
2015-01-07 10:31:59:662 924 6a0 AU ########### AU: Initializing Automatic Updates ###########
2015-01-07 10:31:59:662 924 6a0 AU # WSUS server: http://SCCM:8530
2015-01-07 10:31:59:662 924 6a0 AU # Detection frequency: 22
2015-01-07 10:31:59:662 924 6a0 AU # Approval type: Pre-install notify (Policy)
2015-01-07 10:31:59:662 924 6a0 AU # Auto-install minor updates: No (User preference)
2015-01-07 10:31:59:662 924 6a0 AU # Will interact with non-admins (Non-admins are elevated (User preference))
2015-01-07 10:32:00:162 924 a1c Report *********** Report: Initializing static reporting data ***********
2015-01-07 10:32:00:162 924 a1c Report * OS Version = 6.1.7601.1.0.65792
2015-01-07 10:32:00:162 924 a1c Report * OS Product Type = 0x00000001
2015-01-07 10:32:00:177 924 a1c Report * Computer Brand = Microsoft Corporation
2015-01-07 10:32:00:177 924 a1c Report * Computer Model = Virtual Machine
2015-01-07 10:32:00:177 924 a1c Report * Bios Revision = 090006
2015-01-07 10:32:00:177 924 a1c Report * Bios Name = BIOS Date: 05/23/12 17:15:53 Ver: 09.00.06
2015-01-07 10:32:00:177 924 a1c Report * Bios Release Date = 2012-05-23T00:00:00
2015-01-07 10:32:00:177 924 a1c Report * Locale ID = 2052
2015-01-07 10:32:00:209 924 6a0 AU Successfully wrote event for AU health state:0
2015-01-07 10:32:00:209 924 6a0 AU Initializing featured updates
2015-01-07 10:32:00:209 924 6a0 AU Found 0 cached featured updates
2015-01-07 10:32:00:209 924 6a0 AU Successfully wrote event for AU health state:0
2015-01-07 10:32:00:209 924 6a0 AU Successfully wrote event for AU health state:0
2015-01-07 10:32:00:209 924 6a0 AU AU finished delayed initialization
2015-01-07 10:32:00:209 924 6a0 AU Triggering AU detection through DetectNow API
2015-01-07 10:32:00:209 924 6a0 AU Triggering Online detection (non-interactive)
2015-01-07 10:32:00:209 924 a1c AU #############
2015-01-07 10:32:00:209 924 a1c AU ## START ## AU: Search for updates
2015-01-07 10:32:00:209 924 a1c AU #########
2015-01-07 10:32:00:209 924 a1c AU <
2015-01-07 10:32:00:209 924 6a8 Agent *************
2015-01-07 10:32:00:209 924 6a8 Agent ** START ** Agent: Finding updates [CallerId = AutomaticUpdates]
2015-01-07 10:32:00:209 924 6a8 Agent *********
2015-01-07 10:32:00:209 924 6a8 Agent * Online = Yes; Ignore download priority = No
2015-01-07 10:32:00:209 924 6a8 Agent * Criteria = "IsInstalled=0 and DeploymentAction='Installation' or IsPresent=1 and DeploymentAction='Uninstallation' or IsInstalled=1 and DeploymentAction='Installation' and RebootRequired=1 or IsInstalled=0 and DeploymentAction='Uninstallation'
and RebootRequired=1"
2015-01-07 10:32:00:209 924 6a8 Agent * ServiceID = {3DA21691-E39D-4DA6-8A4B-B43877BCB1B7} Managed
2015-01-07 10:32:00:209 924 6a8 Agent * Search Scope = {Machine}
2015-01-07 10:32:00:209 924 6a8 Setup Checking for agent SelfUpdate
2015-01-07 10:32:00:209 924 6a8 Setup Client version: Core: 7.6.7600.256 Aux: 7.6.7600.256
2015-01-07 10:32:00:209 924 6a8 Misc Validating signature for C:\Windows\SoftwareDistribution\SelfUpdate\wuident.cab:
2015-01-07 10:32:00:224 924 6a8 Misc Microsoft signed: Yes
2015-01-07 10:32:00:224 924 6a8 Misc Validating signature for C:\Windows\SoftwareDistribution\SelfUpdate\wuident.cab:
2015-01-07 10:32:00:240 924 6a8 Misc Microsoft signed: Yes
2015-01-07 10:32:00:240 924 6a8 Misc Validating signature for C:\Windows\SoftwareDistribution\SelfUpdate\wsus3setup.cab:
2015-01-07 10:32:00:240 924 6a0 AU Triggering AU detection through DetectNow API
2015-01-07 10:32:00:240 924 6a0 AU Piggybacking on an AU detection already in progress
2015-01-07 10:32:00:287 924 6a8 Misc Microsoft signed: Yes
2015-01-07 10:32:00:302 924 6a8 Misc Validating signature for C:\Windows\SoftwareDistribution\SelfUpdate\wsus3setup.cab:
2015-01-07 10:32:00:302 924 6a8 Misc Microsoft signed: Yes
2015-01-07 10:32:00:318 924 6a8 Setup Determining whether a new setup handler needs to be downloaded
2015-01-07 10:32:00:318 924 6a8 Setup SelfUpdate handler is not found. It will be downloaded
2015-01-07 10:32:00:318 924 6a8 Setup Evaluating applicability of setup package "WUClient-SelfUpdate-ActiveX~31bf3856ad364e35~amd64~~7.6.7600.256"
2015-01-07 10:32:02:365 924 6a8 Setup Setup package "WUClient-SelfUpdate-ActiveX~31bf3856ad364e35~amd64~~7.6.7600.256" is already installed.
2015-01-07 10:32:02:365 924 6a8 Setup Evaluating applicability of setup package "WUClient-SelfUpdate-Aux-TopLevel~31bf3856ad364e35~amd64~~7.6.7600.256"
2015-01-07 10:32:02:427 924 6a8 Setup Setup package "WUClient-SelfUpdate-Aux-TopLevel~31bf3856ad364e35~amd64~~7.6.7600.256" is already installed.
2015-01-07 10:32:02:427 924 6a8 Setup Evaluating applicability of setup package "WUClient-SelfUpdate-Core-TopLevel~31bf3856ad364e35~amd64~~7.6.7600.256"
2015-01-07 10:32:02:459 924 6a8 Setup Setup package "WUClient-SelfUpdate-Core-TopLevel~31bf3856ad364e35~amd64~~7.6.7600.256" is already installed.
2015-01-07 10:32:02:459 924 6a8 Setup SelfUpdate check completed. SelfUpdate is NOT required.
2015-01-07 10:32:33:615 924 6a8 PT +++++++++++ PT: Synchronizing server updates +++++++++++
2015-01-07 10:32:33:615 924 6a8 PT + ServiceId = {3DA21691-E39D-4DA6-8A4B-B43877BCB1B7}, Server URL =
http://SCCM:8530/ClientWebService/client.asmx
2015-01-07 10:32:33:708 924 6a8 PT WARNING: Cached cookie has expired or new PID is available
2015-01-07 10:32:33:708 924 6a8 PT Initializing simple targeting cookie, clientId = 18d86b85-3d11-47f8-88da-030d6f50be5e, target group = , DNS name = win703.cruisehome.com
2015-01-07 10:32:33:708 924 6a8 PT Server URL = http://SCCM:8530/SimpleAuthWebService/SimpleAuth.asmx
2015-01-07 10:32:41:989 924 6a8 Agent WARNING: Failed to evaluate Installed rule, updateId = {189A8F50-0C3A-4FDF-8BC2-BC23A3EB11FB}.101, hr = 80242013
2015-01-07 10:32:43:614 924 6a8 PT +++++++++++ PT: Synchronizing extended update info +++++++++++
2015-01-07 10:32:43:614 924 6a8 PT + ServiceId = {3DA21691-E39D-4DA6-8A4B-B43877BCB1B7}, Server URL =
http://SCCM:8530/ClientWebService/client.asmx
2015-01-07 10:33:28:458 924 6a8 Agent * Found 0 updates and 74 categories in search; evaluated appl. rules of 804 out of 1312 deployed entities
2015-01-07 10:33:28:599 924 6a8 Agent *********
2015-01-07 10:33:28:599 924 6a8 Agent ** END ** Agent: Finding updates [CallerId = AutomaticUpdates]
2015-01-07 10:33:28:599 924 6a8 Agent *************
2015-01-07 10:33:28:802 924 6a8 Report REPORT EVENT: {F49E9840-1A1C-475E-8733-D45CC437B340} 2015-01-07 10:32:00:209+0800 1 202 102 {00000000-0000-0000-0000-000000000000} 0 0 AutomaticUpdates Success Content Install Reboot completed.
2015-01-07 10:33:29:099 924 b18 AU >>## RESUMED ## AU: Search for updates [CallId = {6718FC5C-E932-44A8-9CEE-BD2E648D0E35}]
2015-01-07 10:33:29:099 924 b18 AU # 0 updates detected
2015-01-07 10:33:29:099 924 b18 AU #########
2015-01-07 10:33:29:099 924 b18 AU ## END ## AU: Search for updates [CallId = {6718FC5C-E932-44A8-9CEE-BD2E648D0E35}]
2015-01-07 10:33:29:099 924 b18 AU #############
2015-01-07 10:33:29:130 924 b18 AU Successfully wrote event for AU health state:0
2015-01-07 10:33:29:130 924 b18 AU Featured notifications is disabled.
2015-01-07 10:33:29:130 924 b18 AU AU setting next detection timeout to 2015-01-07 23:08:35
2015-01-07 10:33:29:130 924 b18 AU Successfully wrote event for AU health state:0
2015-01-07 10:33:29:146 924 b18 AU Successfully wrote event for AU health state:0
2015-01-07 10:33:29:240 924 6a8 Report CWERReporter finishing event handling. (00000000)
2015-01-07 10:33:29:240 924 6a8 Report REPORT EVENT: {DBA36FF1-1819-446A-A5C7-0E936CED2281} 2015-01-07 10:33:28:552+0800 1 147 101 {00000000-0000-0000-0000-000000000000} 0 0 AutomaticUpdates Success Software Synchronization Windows Update Client successfully
detected 0 updates.
2015-01-07 10:33:29:240 924 6a8 Report REPORT EVENT: {2A2BC2D2-9579-4A70-ABD1-A3CAA614C980} 2015-01-07 10:33:28:599+0800 1 156 101 {00000000-0000-0000-0000-000000000000} 0 0 AutomaticUpdates Success Pre-Deployment Check Reporting client status.
2015-01-07 10:33:29:240 924 6a8 Report CWERReporter finishing event handling. (00000000)
2015-01-07 10:33:34:131 924 6a8 Report CWERReporter finishing event handling. (00000000)
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
