wpf的path画三角形、四边形

PathFigure表示几何图形的一个子部分、一系列单独连接的二维几何线段。

以StartPoint为原点，画坐标轴，Y轴箭头向下；按顺序画图。StartPoint原点始终在控件左上角，当其他点的坐标值比原点的值小，原点会偏移。

通常为： ArcSegment 、BezierSegment, LineSegment, PolyBezierSegment, PolyLineSegment, PolyQuadraticBezierSegment, QuadraticBezierSegment.

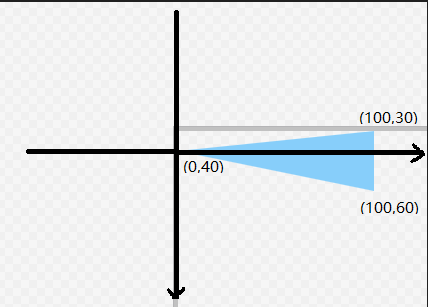

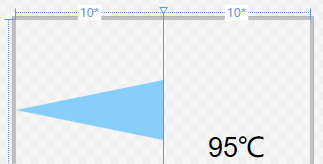

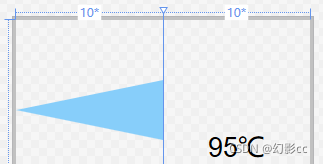

例子1：

 <Path Grid.Row="0" x:Name="pathLeft" Fill="LightSkyBlue" Stretch="Fill"

HorizontalAlignment="Left" VerticalAlignment="Bottom">

<Path.Data>

<PathGeometry>

<PathFigure StartPoint="0,40">

<PathSegmentCollection>

<LineSegment Point="100,30" />

<LineSegment Point="100,60" />

</PathSegmentCollection>

</PathFigure>

</PathGeometry>

</Path.Data>

</Path>

例子2：（（0,0）为控件的左上角坐标）

<Path Grid.Row="0" x:Name="pathLeft" Fill="LightSkyBlue" Stretch="Fill"

HorizontalAlignment="Left" VerticalAlignment="Bottom">

<Path.Data>

<PathGeometry>

<PathFigure StartPoint="0,0" >

<PathSegmentCollection>

<LineSegment Point="0,60" />

<LineSegment Point="100,40" />

<LineSegment Point="100,80" />

<LineSegment Point="0,60" />

</PathSegmentCollection>

</PathFigure>

</PathGeometry>

</Path.Data>

</Path>

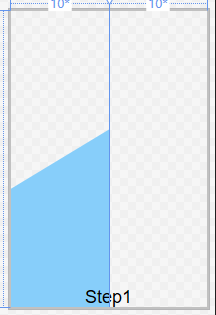

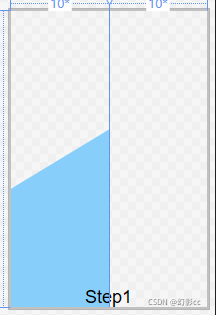

例子3：

<Path Grid.Row="0" x:Name="pathLeft" Fill="LightSkyBlue" Stretch="Fill"

HorizontalAlignment="Left" VerticalAlignment="Bottom">

<Path.Data>

<PathGeometry>

<PathFigure StartPoint="0,0" >

<PathSegmentCollection>

<LineSegment Point="0,60" />

<LineSegment Point="100,40" />

<LineSegment Point="100,100" />

<LineSegment Point="0,100" />

</PathSegmentCollection>

</PathFigure>

</PathGeometry>

</Path.Data>

</Path>
