prometheus+blackbox-exporter+grafana 监控服务器端口及url地址

prometheus 配置文件修改

  - job_name: "PORT_check_198"
    metrics_path: /probe
    params:
      module: [tcp_connect]
    file_sd_configs:
    - refresh_interval: 10s
      files:
      - "/data/prometheus/blackbox_exporter/198_port_check.yml"
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: guojing:9115

  - job_name: "PORT_check_253"
    metrics_path: /probe
    params:
      module: [tcp_connect]
    file_sd_configs:
    - refresh_interval: 10s
      files:
      - "/data/prometheus/blackbox_exporter/253_port_check.yml"
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: luodiyezhu:9115

  - job_name: "PORT_check_199"
    metrics_path: /probe
    params:
      module: [tcp_connect]
    file_sd_configs:
    - refresh_interval: 10s
      files:
      - "/data/prometheus/blackbox_exporter/199_port_check.yml"
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: zunshang:9115

  - job_name: "PORT_check_118"
    metrics_path: /probe
    params:
      module: [tcp_connect]
    file_sd_configs:
    - refresh_interval: 10s
      files:
      - "/data/prometheus/blackbox_exporter/118_port_check.yml"
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: luodiyebei:9115

  - job_name: "PORT_check_122"
    metrics_path: /probe
    params:
      module: [tcp_connect]
    file_sd_configs:
    - refresh_interval: 10s
      files:
      - "/data/prometheus/blackbox_exporter/122_port_check.yml"
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: dingdan:9115

  - job_name: "PORT_check_234"
    metrics_path: /probe
    params:
      module: [tcp_connect]
    file_sd_configs:
    - refresh_interval: 10s
      files:
      - "/data/prometheus/blackbox_exporter/234_port_check.yml"
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: guanggao:9115

  - job_name: "HTTP_check"
    metrics_path: /probe
    params:
      module: [http_2xx]
    file_sd_configs:
    - refresh_interval: 10s
      files:
      - "/data/prometheus/blackbox_exporter/199_http_check.yml"
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: guojing:9115

监控樽商端口配置如下

[root@guojing blackbox_exporter]# cat 199_port_check.yml
- targets:
  - zunshang:6379
  - zunshang:35050
  - zunshang:80
  - zunshang:8083
  - zunshang:8081
  - 127.0.0.1:8004
  - 127.0.0.1:8005
  labels:
    company: 'feitian'
    env: 'pro'
    project: '樽商'

[root@guojing blackbox_exporter]# cat 199_http_check.yml
- targets:
  - https://zsdev.jinzunft.com
  - https://zs.jinzunft.com
  labels:
    project: '樽商'
    company: 'web'

部署blackbox-exporter 可查我的其他文章，此过程不累述。

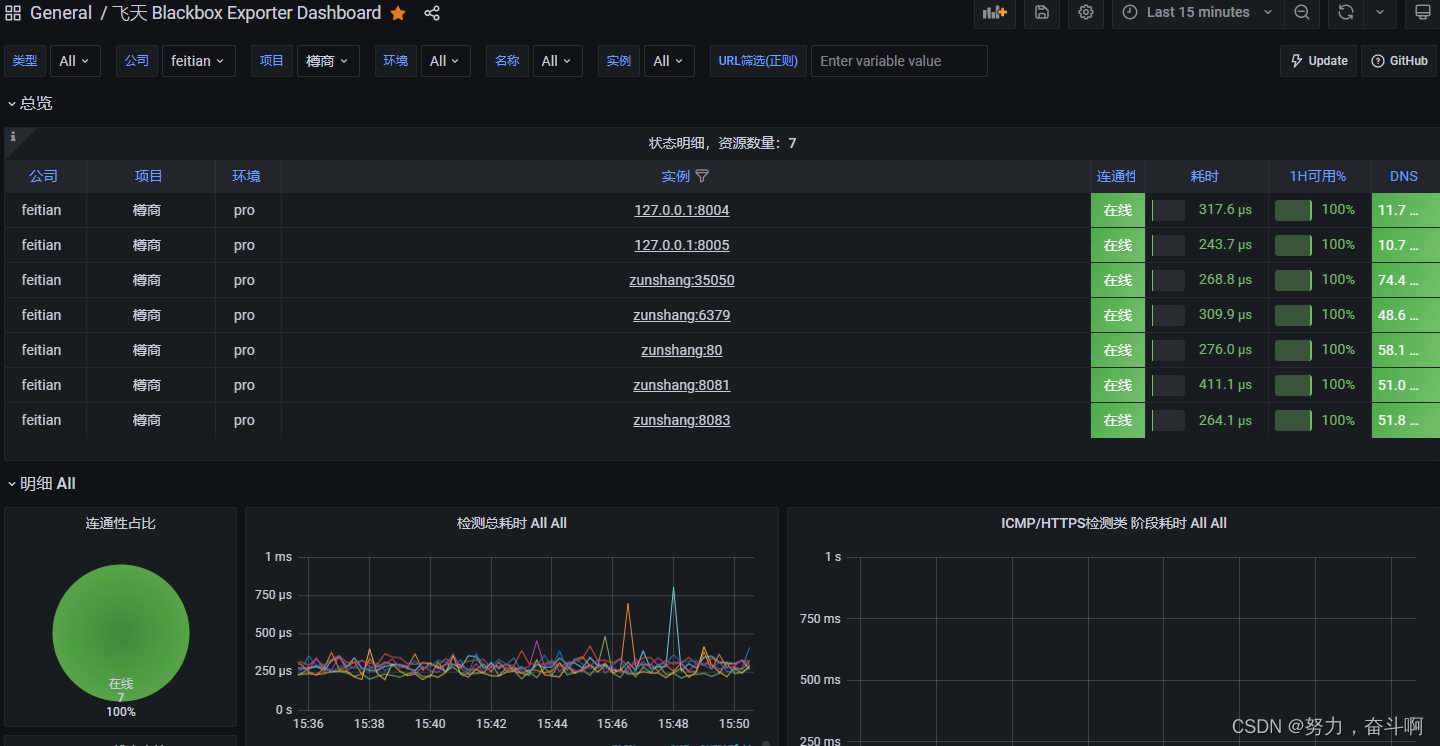

grafana 展示

blackbox-exporter 模板id为 9965
