推流拉流WebRtc+Janus+coturn+Nginx方案

1.创建测试SSL，本地http可以拉起摄像头，服务器需要配置https拉起摄像头

在nginx中，可以用ssl模块配置同时支持http和https并存

创建服务器私钥，命令会让你输入一个口令

openssl genrsa -des3 -out server.key 4096

创建签名请求的证书（CSR），设置信息

openssl req -new -key server.key -out server.csr

最后标记证书使用上述私钥和CSR

openssl x509 -req -days 365 -in server.csr -signkey server.key -out server.crt

openssl rsa -in server.key -out key.pem

openssl x509 -in server.crt -out cert.pem

2.安装coturn服务器

下载地址:https://github.com/coturn/coturn

安装依赖

sudo apt-get install libssl-dev

sudo apt-get install libevent-dev

sudo apt-get install libpq-dev

sudo apt-get install mysql-client

sudo apt-get install libmysqlclient-dev

sudo apt-get install libhiredis-dev

sudo apt-get install gcc

sudo apt-get install pkg-config

编译安装

sourcsource ./configure
make -j 8
sudo make installe ./configure make -j 8 sudo make install

配置/usr/local/etc/turnserver.conf

复制/usr/local/etc/turnserver.conf.default到/usr/local/etc/turnserver.conf

elay-device=eth0
listening-ip=内网IP
listening-port=3478
tsl-listening-port=5349
relay-ip=内网IP
external-ip=外网IP

lt-cred-mech
user=user:123456
realm=domain.com
cli-password=123456
cert=/root/janus/ssl/cert.pem //使用上面生成的pem
pkey=/root/janus/ssl/key.pem //使用上面生成的pem

min-port=3480
max-port=3500

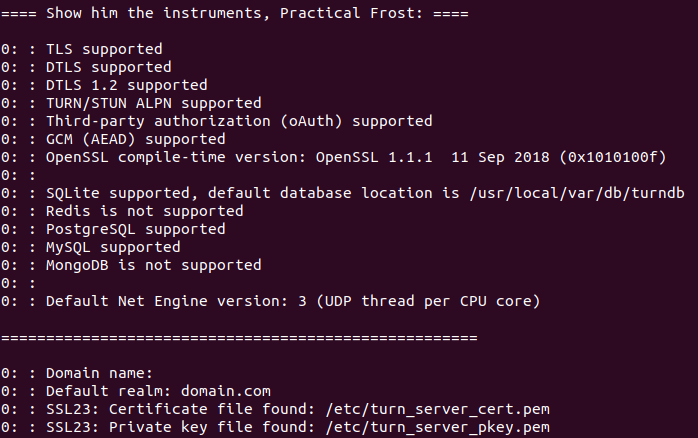

启动coturn

turnadmin -a -u user -p 123456 -r domain.com

sudo turnserver -c /usr/local/etc/turnserver.conf -a -f -v -r domain.com

测试端口是否正常

sudo lsof -n -i4TCP:3478 | grep LISTEN

sudo lsof -n -i4TCP:5349 | grep LISTEN

页面测试是否穿透成功

https://webrtc.github.io/samples/src/content/peerconnection/trickle-ice/

relay回来是自己的地址表示成功

3.安装janus服务器

安装依赖

sudo aptitude install libmicrohttpd-dev
sudo aptitude install libjansson-dev
sudo aptitude install libssl-dev
sudo aptitude install libsrtp-dev
sudo aptitude install libsofia-sip-ua-dev
sudo aptitude install libglib2.0-dev
sudo aptitude install libopus-dev
sudo aptitude install libogg-dev
sudo aptitude install libcurl4-openssl-dev
sudo aptitude install liblua5.3-dev
sudo aptitude install libconfig-dev
sudo aptitude install pkg-config
sudo aptitude install gengetopt
sudo aptitude install libtool
sudo aptitude install automake

如果有某一个安装失败，又是官网要求必须装的，则需要人肉解决一下

安装libnice

https://launchpad.net/ubuntu/+source/libnice/0.1.16-1

libnice_0.1.16.orig.tar.gz

./configure && make && sudo make install

安装libwebsocket

git clone https://libwebsockets.org/repo/libwebsockets

cd libwebsockets

# If you want the stable version of libwebsockets, uncomment the next line

# git checkout v3.2-stable

mkdir build

cd build

# See https://github.com/meetecho/janus-gateway/issues/732 re: LWS_MAX_SMP

cmake -DLWS_MAX_SMP=1 -DCMAKE_INSTALL_PREFIX:PATH=/usr -DCMAKE_C_FLAGS="-fpic" ..

make && sudo make install

安装libsrtp

wget https://github.com/cisco/libsrtp/archive/v2.2.0.tar.gz

tar xfv v2.2.0.tar.gz

cd libsrtp-2.2.0

./configure --prefix=/usr --enable-openssl

make shared_library && sudo make install

安装usrsctp

git clone https://github.com/sctplab/usrsctp

cd usrsctp

./bootstrap

./configure --prefix=/usr --disable-programs --disable-inet --disable-inet6

make && sudo make install

编译Janus

git clone https://github.com/meetecho/janus-gateway.git

sh autogen.sh

./configure --prefix=/opt/janus --enable-websockets

make

sudo make install

配置

目录在：/opt/janus/etc/janus/

将*.jcfg.sample文件复制成*.jcfg

Janus默认的配置，是没有enable SSL的，意味着，https和wss不支持。而有些浏览器，要拉起摄像头，必须是加密的。所以，如果你Demo运行不起来，可以服务端配置一下SSL

打开/opt/janus/etc/janus/janus.jcfg，certificates修改key路径

certificates: {

cert_pem = "/home/ssl/cert.pem" //使用之前生成的

cert_key = "/home/ssl/key.pem" //使用之前生成的

cert_pwd = "123456"

#dtls_accept_selfsigned = false

#dtls_ciphers = "your-desired-openssl-ciphers"

#rsa_private_key = false

}

再打开/opt/janus/etc/janus/janus.transport.http.jcfg，修改generals和certificates，启用https

general: {

#events = true

json = "indented"

base_path = "/janus"

http = true

port = 8088

https = true

secure_port = 8089

}

certificates: {

cert_pem = "/home/ssl/cert.pem" //使用之前生成的

cert_key = "/home/ssl/key.pem" //使用之前生成的

cert_pwd = "123456"

#ciphers = "PFS:-VERS-TLS1.0:-VERS-TLS1.1:-3DES-CBC:-ARCFOUR-128"

}

再打开/opt/janus/etc/janus/janus.transport.websockets.jcfg，修改generals和certificates，启用wss。

general: {

ws = true

ws_port = 8188

#ws_interface = "eth0"

#ws_ip = "192.168.0.1"

wss = true

wss_port = 8989

}

certificates: {

cert_pem = "/home/ssl/cert.pem" //使用之前生成的

cert_key = "/home/ssl/key.pem" //使用之前生成的

cert_pwd = "123456"

#ciphers = "PFS:-VERS-TLS1.0:-VERS-TLS1.1:-3DES-CBC:-ARCFOUR-128"

}

运行

/opt/janus/bin/janus --debug-level=7

查看打印信息

Janus 的视频会议插件运行成功

JANUS VideoRoom plugin initialized!

Janus的websocket启动成功

WebSockets thread started

Janus的http启动成功

HTTP webserver started (port 8088, /janus path listener)...

检查运行端口

lsof -i | grep janus

8089是https， 8188是ws， 8989是wss(websocket secure)

网页端的demo，在janus下载的源码就有了。在源码根目录的html目录下。

如果janus部署在本地，不需要ssl，http就可以，如果在云端，需要ssl通过https访问

打开https://IP:8442。是一个网页

如果要用websocket的ws或者wss，需要修改html/echotest.js或者html/videoroomtest.js文件，把server字段改一下，例如：
var server = "ws://" + window.location.hostname + ":8188";

coturn服务器配置

stun_server = "stun.domain.net"/"stun3.l.google.com"(免费)

stun_port = 3478

nice_debug = false

###要配置nat_1_1_mapping,且为当前服务器的公共ip地址.

nat_1_1_mapping = "publicIP"

#ice_ignore_list = "vmnet"

云服务器需要打开的端口

20000-40000:在spi plugin的配置文件里面,rtp 传输数据时候需要用到20000-40000[默认]这个区间的端口, 需要在阿里云以及防火墙上面都放开
/opt/janus/etc/janus/janus.plugin.sip.jcfg
firewall-cmd --add-port=20000-40000/udp --permanent
firewall-cmd --reload

coturn

3478：udp/tcp

443：tcp----8442

8088：tcp

8089：tcp

8090：tcp

40000-60000：udp

服务器防火墙相关

sudo ufw status

sudo ufw disable

systemctl stop firewalld

4.配置nginx服务器访问html

修改http server,配置SSL可以通过https访问，拉起摄像头

# HTTPS server
#
server {
    listen       8442 ssl;
    server_name localhost;

    ssl_certificate      /root/janus/ssl/server.crt;
    ssl_certificate_key /root/janus/ssl/server.key;

    location / {
        root   /root/janus/janus-gateway/html;
        index videoroomtest.html;
    }
}

如果需要ice

server: server,iceServers: [{urls: "turn:domain.com.cn:3478改成你自己的域名或ip", username: "user改成你自己的账号", credential: "123456改成你自己的密码"}],
