一、要求
设计一个序列检测同步时序逻辑电路，要实现的功能如下：
当已有输入码流出现序列111000或101110时输出检测信号为1，否则输出为0。在时序上检测到完整序列的下一个时钟周期输出检测结果。输入信号有效为1时表示当前输入有效，否则表示无效。之前输入依旧计入序列中并不清零，即允许序列重叠检测。例如：
输入码流（设输入数据均有效）和输出检测为
[I] 0 0 1 1 1 0 0 0 1 1 0 1 1 1 0 0 0 0
[O] 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 1
模块输入输出功能定义：
名称 | 方向 | 位宽 | 描述 |
clk | I | 1 | 系统时钟 |
rst_n | I | 1 | 异步复位，低电平有效 |
din_vld | I | 1 | 输入数据有效指示 |
din | I | 1 | 输入数据 |
result | O | 1 | 输出检测结果 |
二、实现（Vivado 2017.4）
1、最初的思路
我先按照一次送入6位输入信号自己做了一遍，出于对问题的理解不到位，写的程序写存在问题。如：输入应该一位一位往里送，而且在输入有效即din_vld = 0时输入不能进来，并不是输入无效时把result置0就行。以下是我最初写的程序，仅供参考。
module seq_detect(
/*端口定义*/
input clk,
input rst_n,
input din_vld,
input [5:0] din,
output reg result
);
reg [5:0] tmp;
always @(*)begin
tmp <= din;
end
always @(posedge clk or negedge rst_n) begin
tmp <= din;
if(!rst_n) begin //异步复位
tmp <= 6'd0;
end
else if(din_vld) begin //din_vld = 1时，检测到输入为111000或101110则result = 1
if((tmp[5:0] == 6'b111000)|(tmp[5:0] == 6'b101110))
result <= 1'b1;
else //否则result = 0
result <= 1'b0;
end
else begin //din_vld = 0时，result = 0
result <= 1'b0;
end
end
endmodule
testbench：
`timescale 1ns / 1ps
module tb_seq_detect();
reg clk;
reg rst_n;
reg din_vld;
reg [5:0] din;
wire result;
initial begin
clk = 1'b0;
rst_n = 1'b0;
din_vld = 1'b0;
din = 6'd0;
#40
din_vld = 1'b1;
#100
rst_n = 1'b1;
#100
din = 6'b111000;
#100
din = 6'b000000;
#100
din = 6'b101110;
#100
din_vld = 1'b0;
end
always #50 clk = ~clk;
seq_detect u_seq_detect(
.clk(clk),
.rst_n(rst_n),
.din(din),
.din_vld(din_vld),
.result(result)
);
endmodule
仿真结果：
2.移位寄存器比较法
/*模块端口定义*/
module seq_detect(
input clk,
input rst_n,
input din_vld,
input din,
output reg result
);
reg [5:0] tmp;
/*初始化寄存器*/
initial begin
tmp <= 6'd0;
end
/*移位寄存器*/
always @(posedge clk or negedge rst_n) begin
if(!rst_n) tmp <= 6'd0;
else if(din_vld) tmp[5:0] <= {tmp[4:0],din};
end
/*条件判断产生输出*/
always @(posedge clk or negedge rst_n) begin
if(!rst_n) result <= 1'b0;
else if(tmp == 6'b111000 || tmp == 6'b101110) result <= 1'b1;
else result <= 1'b0;
end
endmodule
testbench:
`timescale 1ns / 1ps
module tb_seq_detect();
reg clk;
reg rst_n;
reg din_vld;
reg din;
wire result;
initial begin
clk = 1'b0;
rst_n = 1'b0;
din_vld = 1'b0;
#10
din = 1'd0;
#100
rst_n = 1'b1;
din_vld = 1'b1;
end
always #50 clk = ~clk; //10MHz
always #2000 din_vld = ~din_vld;
/*产生随机输入*/
always @(posedge clk) begin
din <= {$random}%2;
end
/*实例化测试模块*/
seq_detect u_seq_detect(
.clk(clk),
.rst_n(rst_n),
.din(din),
.din_vld(din_vld),
.result(result)
);
endmodule
仿真结果：

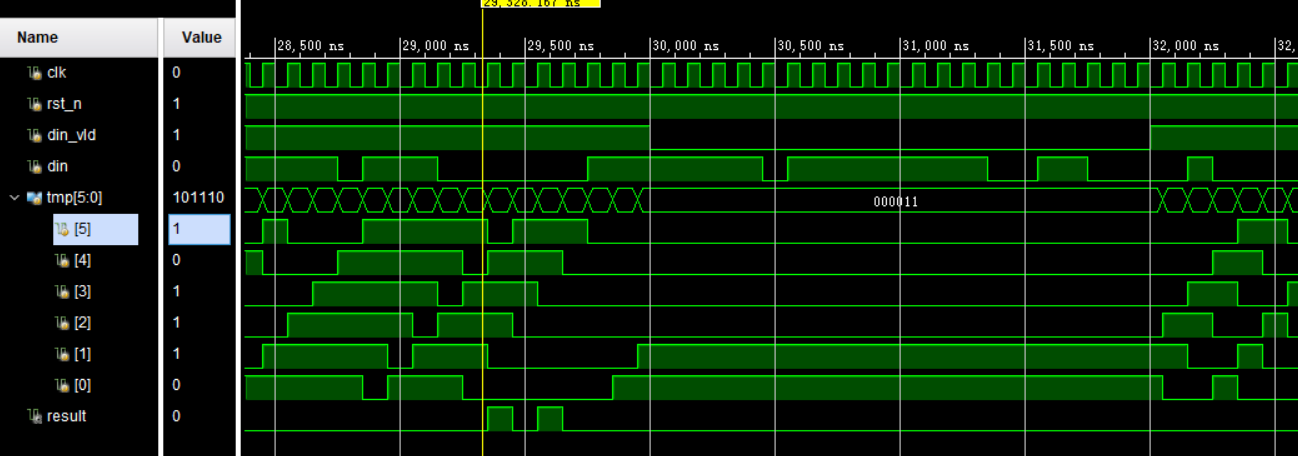

可见对于输入的随机序列，在rst_n = 1且din_vld = 1的条件下，满足连续输入的6bit为111000和101110时，输出result = 1。din_vld = 0时输入无效，tmp保持原状态。
3、有限状态机FSM
/*
三段式状态机：三个always模块
1.同步时序描述状态转移；
2.组合逻辑判断状态转移条件；
3.描述状态输出
*/
/*模块端口定义*/
module seq_detect(
input clk,
input rst_n,
input din_vld,
input din,
output reg result
);
reg [3:0] state, next_state;
/*
分析: 共有12个状态，对应输入如下：
idle:0 s1:1 s2:11 s3:111 s4 :1110 s5 :11100 s6:111000
s7:10 s8:101 s9:1011 s10:10111 s11:101110
*/
/*状态编码*/
parameter idle = 4'd0, s1 = 4'd1, s2 = 4'd2, s3 = 4'd3, s4 = 4'd4, s5 = 4'd5,
s6 = 4'd6, s7 = 4'd7, s8 = 4'd8, s9 = 4'd9, s10 = 4'd10, s11 = 4'd11;
/*状态转移*/
always @(posedge clk or negedge rst_n) begin
if(!rst_n) state <= idle;
else if (din_vld) state <= next_state;
else state <= state;
end
/*转移条件判断*/
always @(*) begin
case(state)
idle: next_state = din ? s1 : idle;
s1: next_state = din ? s2 : s7;
s2: next_state = din ? s3 : s7;
s3: next_state = din ? s3 : s4;
s4: next_state = din ? s8 : s5;
s5: next_state = din ? s1 : s6;
s6: next_state = din ? s1 : idle;
s7: next_state = din ? s8 : idle;
s8: next_state = din ? s9 : s7;
s9: next_state = din ? s10 : s7;
s10: next_state = din ? s3 : s11;
s11: next_state = din ? s8 : s5;
default: next_state = idle;
endcase
end
/*输出描述*/
always @(posedge clk or negedge rst_n) begin
if(!rst_n) result <= 1'b0;
else if(state == s6 || state == s11) result <= 1'b1;
else result <= 1'b0;
end
endmodule
testbench同上。
仿真结果：
可见输入为连续的101110和111000时，在下一个时钟周期有result = 1。

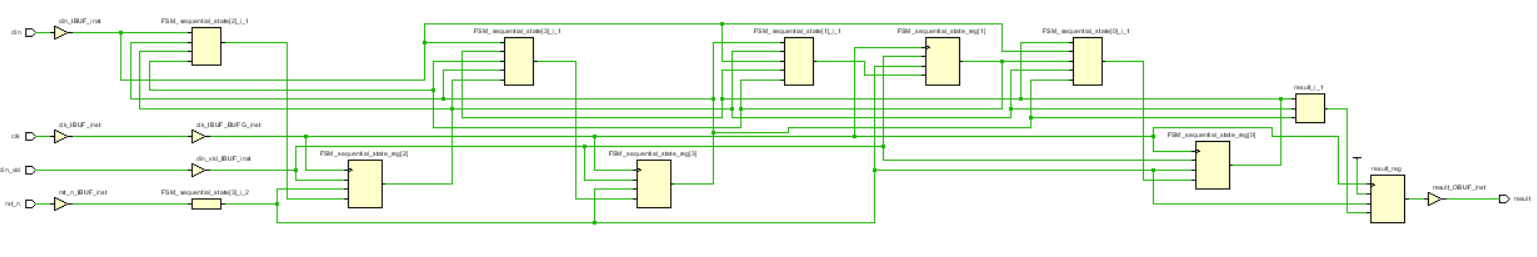

综合结果：
