以下是学习笔记：
参考：https://www.bilibili.com/video/BV1eQ4y1M7ZY?p=5

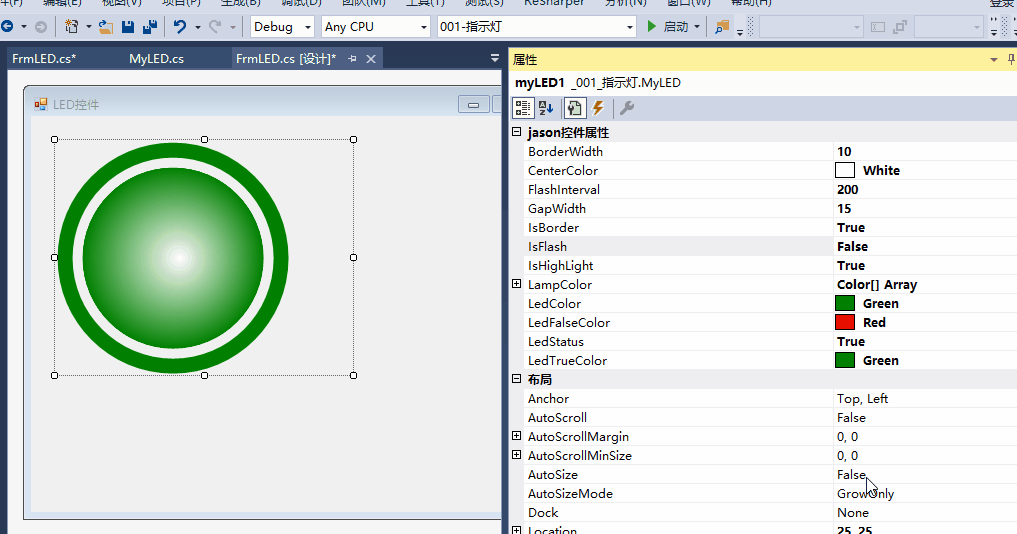

效果如下：
思考：实现以上效果要用到哪些属性
颜色，是否有边框，外环宽度，是否高亮，中心颜色，是否闪烁，颜色列表，闪烁的频率
如果是开关，就需要bool类型 True,False颜色
如果是多种状态，当前值数值类型
常规操作：
一，自定义LED显示的控件
1，添加“用户控件”，命名MyLED
2，编写用户控件的MyLED的代码
public partial class MyLED : UserControl
{
public MyLED()
{
InitializeComponent();
#region 【1】设置双缓冲等属性
this.SetStyle(ControlStyles.AllPaintingInWmPaint, true);
this.SetStyle(ControlStyles.DoubleBuffer, true);
this.SetStyle(ControlStyles.ResizeRedraw, true);
this.SetStyle(ControlStyles.Selectable, true);
this.SetStyle(ControlStyles.SupportsTransparentBackColor, true);
this.SetStyle(ControlStyles.UserPaint, true);
#endregion
}
#region 【2】定义三个字段
private Graphics g;
private Pen p;
private SolidBrush sb;
#endregion
#region 【3】添加一个设置Graphics的方法
private void SetGraphics(Graphics g)
{
//设置画布的属性
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.ClearTypeGridFit;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.AntiAlias;
}
#endregion
#region 【4】根据实际控件分析的结果，创建属性
private Color ledColor = Color.Green;
[Category("jason控件属性")]
[Description("LED指示灯演示")]
public Color LedColor
{
get { return ledColor; }
set
{
ledColor = value;
this.Invalidate();
}
}
#endregion
#region 【5】创建重绘的事件
protected override void OnPaint(PaintEventArgs e)
{
base.OnPaint(e);
g = e.Graphics;//获取画布
SetGraphics(g);//设置画布
//情况1：如果宽度大于高度(以高度为准)
if (this.Width > this.Height)
{
sb = new SolidBrush(ledColor);
Rectangle rec=new Rectangle(1,1,this.Height-2,this.Height-2);//创建矩形
g.FillEllipse(sb,rec);//画圆
}
}
#endregion
}
3，重新生成后在工具箱里面就可以看到MyLED的控件了，拖入后可以直接使用
注意：如果只有这个代码，那只有宽度大于高度的时候才会画圆。
根据指示灯的功能需求，最终代码如下
public partial class MyLED : UserControl
{
public MyLED()
{
InitializeComponent();
#region 【1】设置双缓冲等属性
this.SetStyle(ControlStyles.AllPaintingInWmPaint, true);
this.SetStyle(ControlStyles.DoubleBuffer, true);
this.SetStyle(ControlStyles.ResizeRedraw, true);
this.SetStyle(ControlStyles.Selectable, true);
this.SetStyle(ControlStyles.SupportsTransparentBackColor, true);
this.SetStyle(ControlStyles.UserPaint, true);
#endregion
}
#region 【2】定义三个字段
private Graphics g;
private Pen p;
private SolidBrush sb;
#endregion
#region 【3】添加一个设置Graphics的方法
private void SetGraphics(Graphics g)
{
//设置画布的属性
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.ClearTypeGridFit;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.AntiAlias;
}
#endregion
#region 【4】根据实际控件分析的结果，创建属性
private Color ledColor = Color.Green;
[Category("jason控件属性")]
[Description("LED指示灯演示")]
public Color LedColor
{
get { return ledColor; }
set
{
ledColor = value;
this.Invalidate();
}
}
private bool isBorder = true;
[Category("jason控件属性")]
[Description("是否有边框")]
public bool IsBorder
{
get { return isBorder; }
set
{
isBorder = value;
this.Invalidate();
}
}
private int borderWidth = 5;
[Category("jason控件属性")]
[Description("圆环的宽度")]
public int BorderWidth
{
get { return borderWidth; }
set
{
borderWidth = value;
this.Invalidate();
}
}
private int gapWidth = 5;
[Category("jason控件属性")]
[Description("间隙的宽度")]
public int GapWidth
{
get { return gapWidth; }
set
{
gapWidth = value;
this.Invalidate();
}
}
private bool isHighLight = true;
[Category("jason控件属性")]
[Description("是否高亮")]
public bool IsHighLight
{
get { return isHighLight; }
set
{
isHighLight = value;
this.Invalidate();
}
}
private Color centerColor = Color.White;
[Category("jason控件属性")]
[Description("渐变中心的颜色")]
public Color CenterColor
{
get { return centerColor; }
set
{
centerColor = value;
this.Invalidate();
}
}
#endregion
#region 【5】创建重绘的事件
protected override void OnPaint(PaintEventArgs e)
{
base.OnPaint(e);
g = e.Graphics;//获取画布
SetGraphics(g);//设置画布
#region 1，画一个圆
//if (this.Width > this.Height)//情况1：如果宽度大于高度(以高度为准)
//{
// sb = new SolidBrush(ledColor);
// Rectangle rec=new Rectangle(1,1,this.Height-2,this.Height-2);//创建矩形
// g.FillEllipse(sb,rec);//画圆
//}
//else//情况2：如果高度大于宽度(以宽度为准)
//{
// sb = new SolidBrush(ledColor);
// Rectangle rec = new Rectangle(1, 1, this.Width - 2, this.Width - 2);//创建矩形
// g.FillEllipse(sb, rec);//画圆
//}
//优化上面的代码
int LEDWidth = Math.Min(this.Width, this.Height);
sb = new SolidBrush(ledColor);
RectangleF rec = new RectangleF(1, 1, LEDWidth - 2, LEDWidth - 2);//创建矩形
g.FillEllipse(sb, rec);//画圆
#endregion
#region 2,在圆里面画一个圆环
//如果有边框，那就画一个圆环
if (isBorder)//参数这里用字段或属性都可以，如果用属性，程序要都走一些判断的代码
{
p = new Pen(this.BackColor, borderWidth);//使用背景色
//p = new Pen(Color.Red, borderWidth);
float x = 1 + gapWidth + borderWidth * 0.5f;
rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
g.DrawEllipse(p, rec);//画圆环
}
#endregion
#region 3，渐变色绘制，是否高亮
if (isHighLight)
{
//if (isBorder)
//{
// //先确定路径
// GraphicsPath gp = new GraphicsPath();
// //float x = 1 + gapWidth + borderWidth * 0.5f;//如果坐标是这个，会有点覆盖圆环
// float x = 1 + gapWidth + borderWidth;
// rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
// gp.AddEllipse(rec);//把矩形添加到路径
// //渐变色画刷，高亮
// PathGradientBrush pgb=new PathGradientBrush(gp);//把路径传入
// pgb.CenterColor = this.centerColor;
// //设置有多少组颜色来渐变
// pgb.SurroundColors=new Color[]
// {
// ledColor
// };
// g.FillPath(pgb,gp);
//}
//else
//{
// //先确定路径
// GraphicsPath gp = new GraphicsPath();
// float x = 1 ;
// rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
// gp.AddEllipse(rec);
// //渐变色画刷，高亮
// PathGradientBrush pgb = new PathGradientBrush(gp);
// pgb.CenterColor = this.centerColor;
// pgb.SurroundColors = new Color[]
// {
// ledColor
// };
// g.FillPath(pgb, gp);
//}
//优化上面的if else代码
GraphicsPath gp = new GraphicsPath();
float x = isBorder? 1 + gapWidth + borderWidth:1;//使用三元运算来判断，优化代码
rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
gp.AddEllipse(rec);//把矩形添加到路径
//渐变色画刷，高亮
PathGradientBrush pgb = new PathGradientBrush(gp);//把路径传入
pgb.CenterColor = this.centerColor;
//设置有多少组颜色来渐变
pgb.SurroundColors = new Color[]
{
ledColor
};
g.FillPath(pgb, gp);
}
#endregion
}
#endregion
}

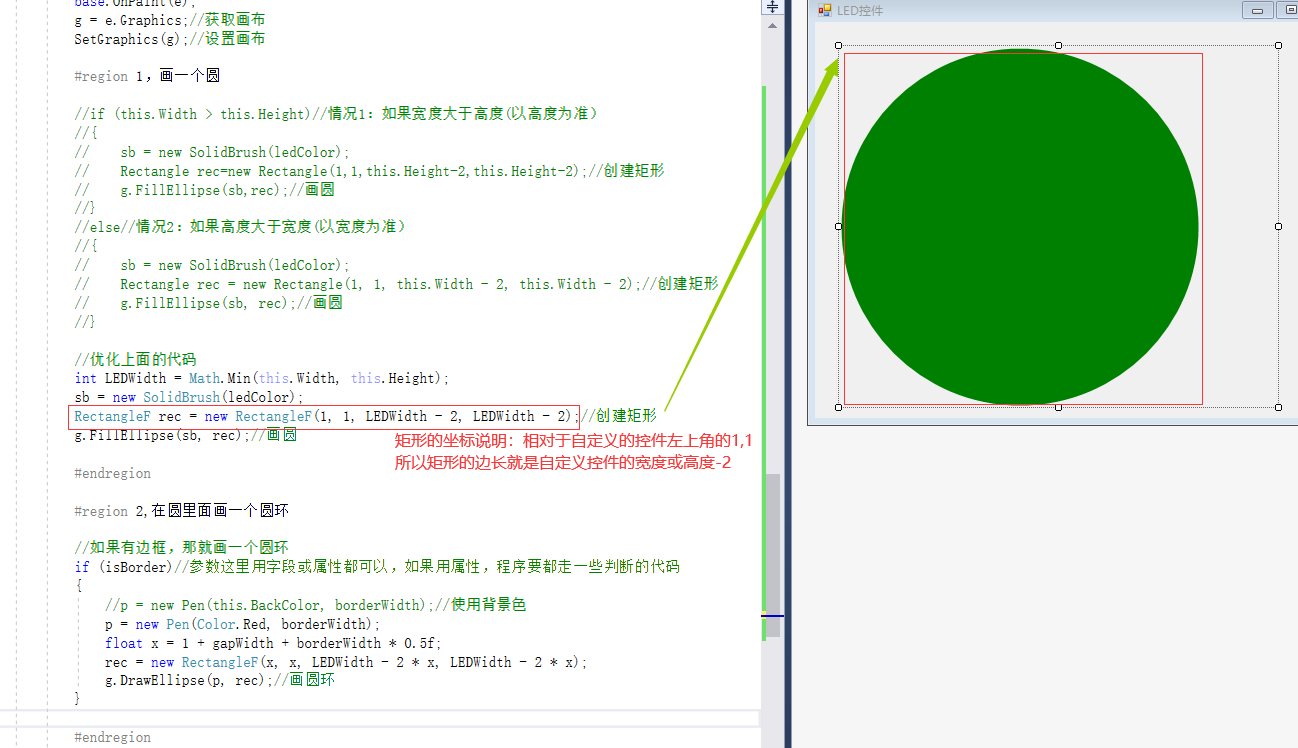

圆的绘制的坐标说明：

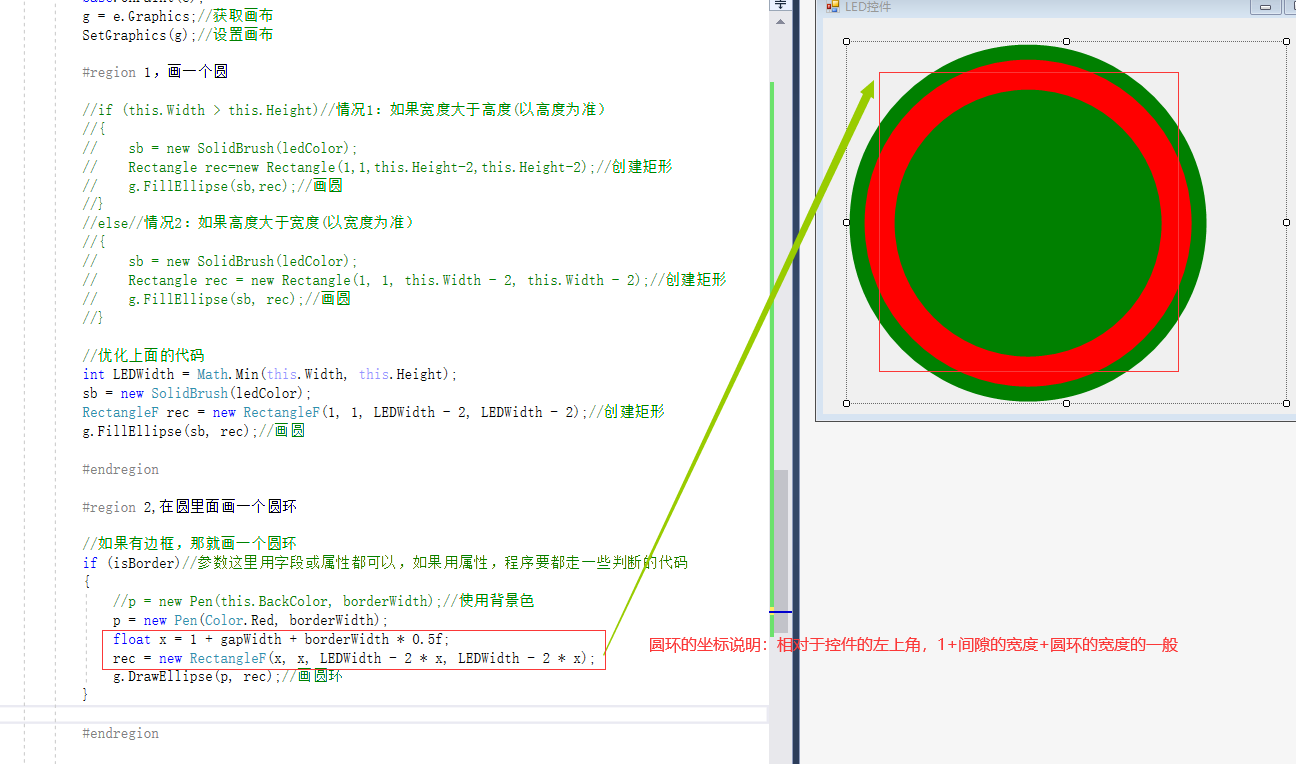

圆环的绘制的坐标说明：
二，在项目中使用自定义控件
1，拖入MyLED控件
2，在主程序中根据状态，来改变MyLED控件的颜色
bool myLEDStatus = true;
this.myLED1.LedColor = myLEDStatus ? Color.LimeGreen : Color.Red;
上面用法比较通用，用起来麻烦，如果项目中只是true或false,对自定义控件进行改造
三，针对上述调用问题进行改造
1，增加三个属性
private Color ledTrueColor = Color.Green;
[Category("jason控件属性")]
[Description("TRUE的时候LED指示灯颜色")]
public Color LedTrueColor
{
get { return ledTrueColor; }
set
{
ledTrueColor = value;
this.Invalidate();
}
}
private Color ledFalseColor = Color.Red;
[Category("jason控件属性")]
[Description("False的时候LED指示灯颜色")]
public Color LedFalseColor
{
get { return ledFalseColor; }
set
{
ledFalseColor = value;
this.Invalidate();
}
}
private bool ledStatus = true;
[Category("jason控件属性")]
[Description("当前的状态")]
public bool LedStatus
{
get { return ledStatus; }
set
{
ledStatus = value;
this.Invalidate();
}
}

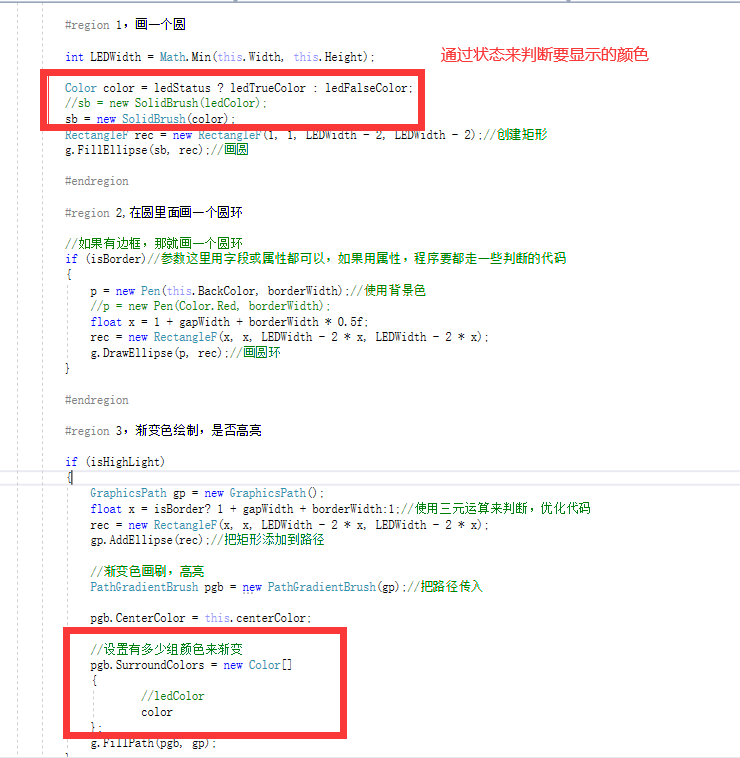

2，把根据状态来判断颜色的代码写在自定义控件里面
3，在主程序中调用，一句代码就可以了
this.myLED1.LedStatus = true;
//或者this.myLED1.LedStatus = false;
此时代码如下：
public partial class MyLED : UserControl
{
public MyLED()
{
InitializeComponent();
#region 【1】设置双缓冲等属性
this.SetStyle(ControlStyles.AllPaintingInWmPaint, true);
this.SetStyle(ControlStyles.DoubleBuffer, true);
this.SetStyle(ControlStyles.ResizeRedraw, true);
this.SetStyle(ControlStyles.Selectable, true);
this.SetStyle(ControlStyles.SupportsTransparentBackColor, true);
this.SetStyle(ControlStyles.UserPaint, true);
#endregion
}
#region 【2】定义三个字段
private Graphics g;
private Pen p;
private SolidBrush sb;
#endregion
#region 【3】添加一个设置Graphics的方法
private void SetGraphics(Graphics g)
{
//设置画布的属性
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.ClearTypeGridFit;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.AntiAlias;
}
#endregion
#region 【4】根据实际控件分析的结果，创建属性
private Color ledTrueColor = Color.Green;
[Category("jason控件属性")]
[Description("TRUE的时候LED指示灯颜色")]
public Color LedTrueColor
{
get { return ledTrueColor; }
set
{
ledTrueColor = value;
this.Invalidate();
}
}
private Color ledFalseColor = Color.Red;
[Category("jason控件属性")]
[Description("False的时候LED指示灯颜色")]
public Color LedFalseColor
{
get { return ledFalseColor; }
set
{
ledFalseColor = value;
this.Invalidate();
}
}
private bool ledStatus = true;
[Category("jason控件属性")]
[Description("当前的状态")]
public bool LedStatus
{
get { return ledStatus; }
set
{
ledStatus = value;
this.Invalidate();
}
}
private Color ledColor = Color.Green;
[Category("jason控件属性")]
[Description("LED指示灯演示")]
public Color LedColor
{
get { return ledColor; }
set
{
ledColor = value;
this.Invalidate();
}
}
private bool isBorder = true;
[Category("jason控件属性")]
[Description("是否有边框")]
public bool IsBorder
{
get { return isBorder; }
set
{
isBorder = value;
this.Invalidate();
}
}
private int borderWidth = 5;
[Category("jason控件属性")]
[Description("圆环的宽度")]
public int BorderWidth
{
get { return borderWidth; }
set
{
borderWidth = value;
this.Invalidate();
}
}
private int gapWidth = 5;
[Category("jason控件属性")]
[Description("间隙的宽度")]
public int GapWidth
{
get { return gapWidth; }
set
{
gapWidth = value;
this.Invalidate();
}
}
private bool isHighLight = true;
[Category("jason控件属性")]
[Description("是否高亮")]
public bool IsHighLight
{
get { return isHighLight; }
set
{
isHighLight = value;
this.Invalidate();
}
}
private Color centerColor = Color.White;
[Category("jason控件属性")]
[Description("渐变中心的颜色")]
public Color CenterColor
{
get { return centerColor; }
set
{
centerColor = value;
this.Invalidate();
}
}
#endregion
#region 【5】创建重绘的事件
protected override void OnPaint(PaintEventArgs e)
{
base.OnPaint(e);
g = e.Graphics;//获取画布
SetGraphics(g);//设置画布
#region 1，画一个圆
int LEDWidth = Math.Min(this.Width, this.Height);
Color color = ledStatus ? ledTrueColor : ledFalseColor;
//sb = new SolidBrush(ledColor);
sb = new SolidBrush(color);
RectangleF rec = new RectangleF(1, 1, LEDWidth - 2, LEDWidth - 2);//创建矩形
g.FillEllipse(sb, rec);//画圆
#endregion
#region 2,在圆里面画一个圆环
//如果有边框，那就画一个圆环
if (isBorder)//参数这里用字段或属性都可以，如果用属性，程序要都走一些判断的代码
{
p = new Pen(this.BackColor, borderWidth);//使用背景色
//p = new Pen(Color.Red, borderWidth);
float x = 1 + gapWidth + borderWidth * 0.5f;
rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
g.DrawEllipse(p, rec);//画圆环
}
#endregion
#region 3，渐变色绘制，是否高亮
if (isHighLight)
{
GraphicsPath gp = new GraphicsPath();
float x = isBorder? 1 + gapWidth + borderWidth:1;//使用三元运算来判断，优化代码
rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
gp.AddEllipse(rec);//把矩形添加到路径
//渐变色画刷，高亮
PathGradientBrush pgb = new PathGradientBrush(gp);//把路径传入
pgb.CenterColor = this.centerColor;
//设置有多少组颜色来渐变
pgb.SurroundColors = new Color[]
{
//ledColor
color
};
g.FillPath(pgb, gp);
}
#endregion
}
#endregion
}
四，增加闪烁的效果
效果：
1，增加闪烁要用到的属性
private bool isFlash = true;
[Category("jason控件属性")]
[Description("是否闪烁")]
public bool IsFlash
{
get { return isFlash; }
set
{
isFlash = value;
this.Invalidate();
}
}
private int flashInterval = 500;
[Category("jason控件属性")]
[Description("闪烁的频率")]
public int FlashInterval
{
get { return flashInterval; }
set
{
flashInterval = value;
timer.Interval = flashInterval;//timer的时间间隔要放在这里
this.Invalidate();
}
}
private Color[] lampColor = new Color[] { };
[Category("jason控件属性")]
[Description("闪烁灯的几种颜色，当需要闪烁时，至少需要2个及以上颜色，不需要闪烁则至少需要1个颜色")]
public Color[] LampColor
{
get { return lampColor; }
set
{
if (value == null || value.Length <= 0)
return;
lampColor = value;
this.Invalidate();
}
}
2，判断是否闪烁
3，timer事件
private void Timer_Tick(object sender, EventArgs e)
{
intColorIndex++;
if (intColorIndex >= lampColor.Length)
{
intColorIndex = 0;
}
this.Invalidate();
}
4，完整代码：
public partial class MyLED : UserControl
{
public MyLED()
{
InitializeComponent();
#region 【1】设置双缓冲等属性
this.SetStyle(ControlStyles.AllPaintingInWmPaint, true);
this.SetStyle(ControlStyles.DoubleBuffer, true);
this.SetStyle(ControlStyles.ResizeRedraw, true);
this.SetStyle(ControlStyles.Selectable, true);
this.SetStyle(ControlStyles.SupportsTransparentBackColor, true);
this.SetStyle(ControlStyles.UserPaint, true);
timer.Enabled = true;
timer.Tick += Timer_Tick;
#endregion
}
private void Timer_Tick(object sender, EventArgs e)
{
intColorIndex++;
if (intColorIndex >= lampColor.Length)
{
intColorIndex = 0;
}
this.Invalidate();
}
#region 【2】定义三个字段
private Graphics g;
private Pen p;
private SolidBrush sb;
Timer timer=new Timer();
private int intColorIndex = 0;
#endregion
#region 【3】添加一个设置Graphics的方法
private void SetGraphics(Graphics g)
{
//设置画布的属性
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.ClearTypeGridFit;
g.TextRenderingHint = System.Drawing.Text.TextRenderingHint.AntiAlias;
}
#endregion
#region 【4】根据实际控件分析的结果，创建属性
private Color ledTrueColor = Color.Green;
[Category("jason控件属性")]
[Description("TRUE的时候LED指示灯颜色")]
public Color LedTrueColor
{
get { return ledTrueColor; }
set
{
ledTrueColor = value;
this.Invalidate();
}
}
private Color ledFalseColor = Color.Red;
[Category("jason控件属性")]
[Description("False的时候LED指示灯颜色")]
public Color LedFalseColor
{
get { return ledFalseColor; }
set
{
ledFalseColor = value;
this.Invalidate();
}
}
private bool ledStatus = true;
[Category("jason控件属性")]
[Description("当前的状态")]
public bool LedStatus
{
get { return ledStatus; }
set
{
ledStatus = value;
this.Invalidate();
}
}
private Color ledColor = Color.Green;
[Category("jason控件属性")]
[Description("LED指示灯演示")]
public Color LedColor
{
get { return ledColor; }
set
{
ledColor = value;
this.Invalidate();
}
}
private bool isBorder = true;
[Category("jason控件属性")]
[Description("是否有边框")]
public bool IsBorder
{
get { return isBorder; }
set
{
isBorder = value;
this.Invalidate();
}
}
private int borderWidth = 5;
[Category("jason控件属性")]
[Description("圆环的宽度")]
public int BorderWidth
{
get { return borderWidth; }
set
{
borderWidth = value;
this.Invalidate();
}
}
private int gapWidth = 5;
[Category("jason控件属性")]
[Description("间隙的宽度")]
public int GapWidth
{
get { return gapWidth; }
set
{
gapWidth = value;
this.Invalidate();
}
}
private bool isHighLight = true;
[Category("jason控件属性")]
[Description("是否高亮")]
public bool IsHighLight
{
get { return isHighLight; }
set
{
isHighLight = value;
this.Invalidate();
}
}
private Color centerColor = Color.White;
[Category("jason控件属性")]
[Description("渐变中心的颜色")]
public Color CenterColor
{
get { return centerColor; }
set
{
centerColor = value;
this.Invalidate();
}
}
private bool isFlash = true;
[Category("jason控件属性")]
[Description("是否闪烁")]
public bool IsFlash
{
get { return isFlash; }
set
{
isFlash = value;
this.Invalidate();
}
}
private int flashInterval = 500;
[Category("jason控件属性")]
[Description("闪烁的频率")]
public int FlashInterval
{
get { return flashInterval; }
set
{
flashInterval = value;
timer.Interval = flashInterval;//timer的时间间隔要放在这里
this.Invalidate();
}
}
private Color[] lampColor = new Color[] { };
[Category("jason控件属性")]
[Description("闪烁灯的几种颜色，当需要闪烁时，至少需要2个及以上颜色，不需要闪烁则至少需要1个颜色")]
public Color[] LampColor
{
get { return lampColor; }
set
{
if (value == null || value.Length <= 0)
return;
lampColor = value;
this.Invalidate();
}
}
#endregion
#region 【5】创建重绘的事件
protected override void OnPaint(PaintEventArgs e)
{
base.OnPaint(e);
g = e.Graphics;//获取画布
SetGraphics(g);//设置画布
#region 1，画一个圆
int LEDWidth = Math.Min(this.Width, this.Height);
Color color = ledStatus ? ledTrueColor : ledFalseColor;
if (isFlash)
{
lampColor=new Color[]{color,Color.Yellow};
color = lampColor[intColorIndex];
}
sb = new SolidBrush(color);
RectangleF rec = new RectangleF(1, 1, LEDWidth - 2, LEDWidth - 2);//创建矩形
g.FillEllipse(sb, rec);//画圆
#endregion
#region 2,在圆里面画一个圆环
//如果有边框，那就画一个圆环
if (isBorder)//参数这里用字段或属性都可以，如果用属性，程序要都走一些判断的代码
{
p = new Pen(this.BackColor, borderWidth);//使用背景色
//p = new Pen(Color.Red, borderWidth);
float x = 1 + gapWidth + borderWidth * 0.5f;
rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
g.DrawEllipse(p, rec);//画圆环
}
#endregion
#region 3，渐变色绘制，是否高亮
if (isHighLight)
{
GraphicsPath gp = new GraphicsPath();
float x = isBorder? 1 + gapWidth + borderWidth:1;//使用三元运算来判断，优化代码
rec = new RectangleF(x, x, LEDWidth - 2 * x, LEDWidth - 2 * x);
gp.AddEllipse(rec);//把矩形添加到路径
//渐变色画刷，高亮
PathGradientBrush pgb = new PathGradientBrush(gp);//把路径传入
Color[] surroundColor = new Color[] {color};
pgb.CenterColor = this.centerColor;
//设置有多少组颜色来渐变
pgb.SurroundColors = surroundColor;
g.FillPath(pgb, gp);
}
#endregion
}
#endregion
}
