使用Threejs和shaderMaterial给plane贴图

搞了一段时间的threejs，最近想慢慢学习threejs中的shader用法，最然threejs中有TextureLoader很简单的就可以进行贴图，不过为了学习shader嘛，就写写喽！，俺也是初学，写的烂还望包容哈
1、使用shader给plane进行贴图

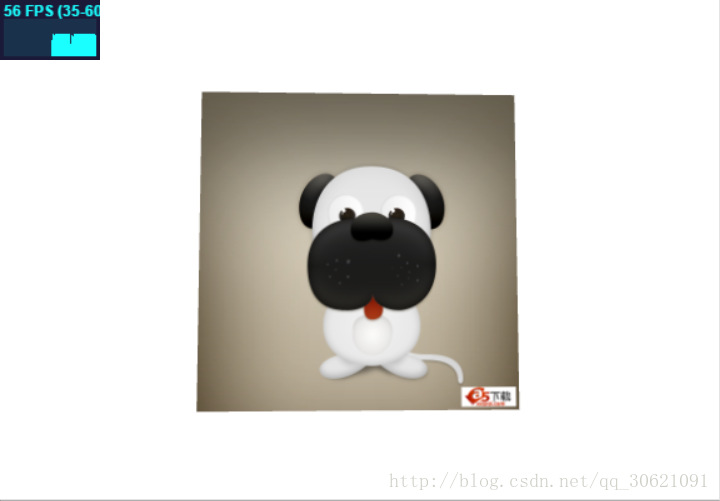

最终效果如下图所示：
这里写图片描述
完整代码如下：

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>无标题文档</title>
<script src="libs/three.js"></script>
<script src="libs/OrbitControls.js"></script>
<script src="libs/stats.min.js"></script>

<script src="js/stats.js"></script>
<script src="js/windowResize.js"></script>
    <script type="x-shader/x-fragment" id="fragmentShader">
        //获取纹理
        uniform sampler2D texture1;
        //纹理坐标
        varying vec2 vUv;

        void main(void){
        //texture2D()获取纹素
            gl_FragColor = texture2D(texture1, vUv);
        }


    </script>

    <script id="vertexShader" type="x-shader/x-vertex">
        varying vec2 vUv;
        void main()
            {
                vUv = uv;
                vec4 mvPosition = modelViewMatrix * vec4( position, 1.0 );
                //projectionMatrix * mvPosition; 最终得到MVP矩阵
                gl_Position = projectionMatrix * mvPosition;

            }
    </script>
<style>
*{ margin:0; padding:0}
</style>
</head>

<body>
<div id="Stats-output"></div>
<script>
    var stats = initStats();

    var scene = new THREE.Scene();

    var camera = new THREE.PerspectiveCamera(45, window.innerWidth/window.innerHeight, 0.1, 10000);
    camera.position.set(0, 0, 10);
    camera.lookAt(scene.position);

    var renderer = new THREE.WebGLRenderer({antialias:true});
    renderer.setClearColor(0xffffff);
    renderer.setSize(window.innerWidth, window.innerHeight);
    document.body.appendChild(renderer.domElement);

    var textureLoader = new THREE.TextureLoader();

    //配置shaderMaterial中的uniforms属性
    var uniforms = {
        texture1 : {value : textureLoader.load('img/img-1.png')}
    };
    //设置平铺方式
    uniforms.texture1.value.warpS = uniforms.texture1.value.warpT = THREE.RepeatWrapping;

    var planeGeometry = new THREE.PlaneGeometry(3, 3);
    var planeMaterial = new THREE.ShaderMaterial({
        uniforms : uniforms,
        vertexShader: document.getElementById( 'vertexShader' ).textContent,
        fragmentShader: document.getElementById( 'fragmentShader' ).textContent,
        side:THREE.DoubleSide
    });
    var plane = new THREE.Mesh(planeGeometry, planeMaterial);
    scene.add(plane);

    var orbitControls = new THREE.OrbitControls(camera);

    function render() {
        stats.update();
        requestAnimationFrame(render);
        renderer.render(scene, camera);
    }

    render();

</script>
</body>
</html>

原文链接：https://blog.csdn.net/qq_30621091/article/details/56051066
