java怎么做qq的聊天气泡_【HTML5】实现QQ聊天气泡效果

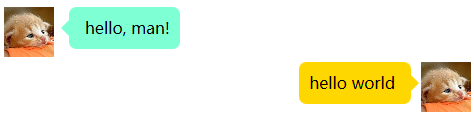

今天自己用 HTML/CSS 做了个类似QQ的聊天气泡,以下是效果图:


以下说下关键地方的样式设置。然后贴出html和css代码(不多)。

步骤1:布局

消息採用div+float布局,每条消息用一个DIV标签包裹,里面再放两个DIV分别用来包裹用户图标和用户消息内容。

左側消息,先清除浮动,然后设置 float:left。这样用户图标和消息内容就能够显示在同一行了,当中用户图标在左边,消息内容紧邻着用户图标。

右側消息,相同先清除浮动。然后设置 float:right,这样用户图标和消息显示在同一行了。当中图标在最右边。图标左側是消息。


步骤2:设置圆角矩形

border-radius:7px;


步骤3:三角形箭头

将DIV的宽度和高度设置为0,设置边框宽度,能够使其表现出一个由四个三角形组成的矩形,每一个三角形的颜色和大小能够通过设置border宽度和颜色设置。

这里将当中三个三角形颜色设置为透明。仅仅留下一个三角形可见。


.triangle{

width: 0px;

height: 0px;

border-width: 15px;

border-style: solid;

border-color: red blue green gold;

}


.triangle{

width: 0px;

height: 0px;

border-width: 15px;

border-style: solid;

border-color: transparent transparent transparent red;

}

关键点4:三角形尾随矩形框

使用相对定位。能够使三角形始终固定在矩形框的边上。

position:relative;


所有代码:

/* bubble style */

.sender{

clear:both;

}

.sender div:nth-of-type(1){

float: left;

}

.sender div:nth-of-type(2){

background-color: aquamarine;

float: left;

margin: 0 20px 10px 15px;

padding: 10px 10px 10px 0px;

border-radius:7px;

}

.receiver div:first-child img,

.sender div:first-child img{

width:50px;

height: 50px;

}

.receiver{

clear:both;

}

.receiver div:nth-child(1){

float: right;

}

.receiver div:nth-of-type(2){

float:right;

background-color: gold;

margin: 0 10px 10px 20px;

padding: 10px 0px 10px 10px;

border-radius:7px;

}

.left_triangle{

height:0px;

width:0px;

border-width:8px;

border-style:solid;

border-color:transparent aquamarine transparent transparent;

position: relative;

left:-16px;

top:3px;

}

.right_triangle{

height:0px;

width:0px;

border-width:8px;

border-style:solid;

border-color:transparent transparent transparent gold;

position: relative;

right:-16px;

top:3px;

}


hello, man!


hello world
