prometheus和granfana搭建监控系统

# 定义自己的目录映射

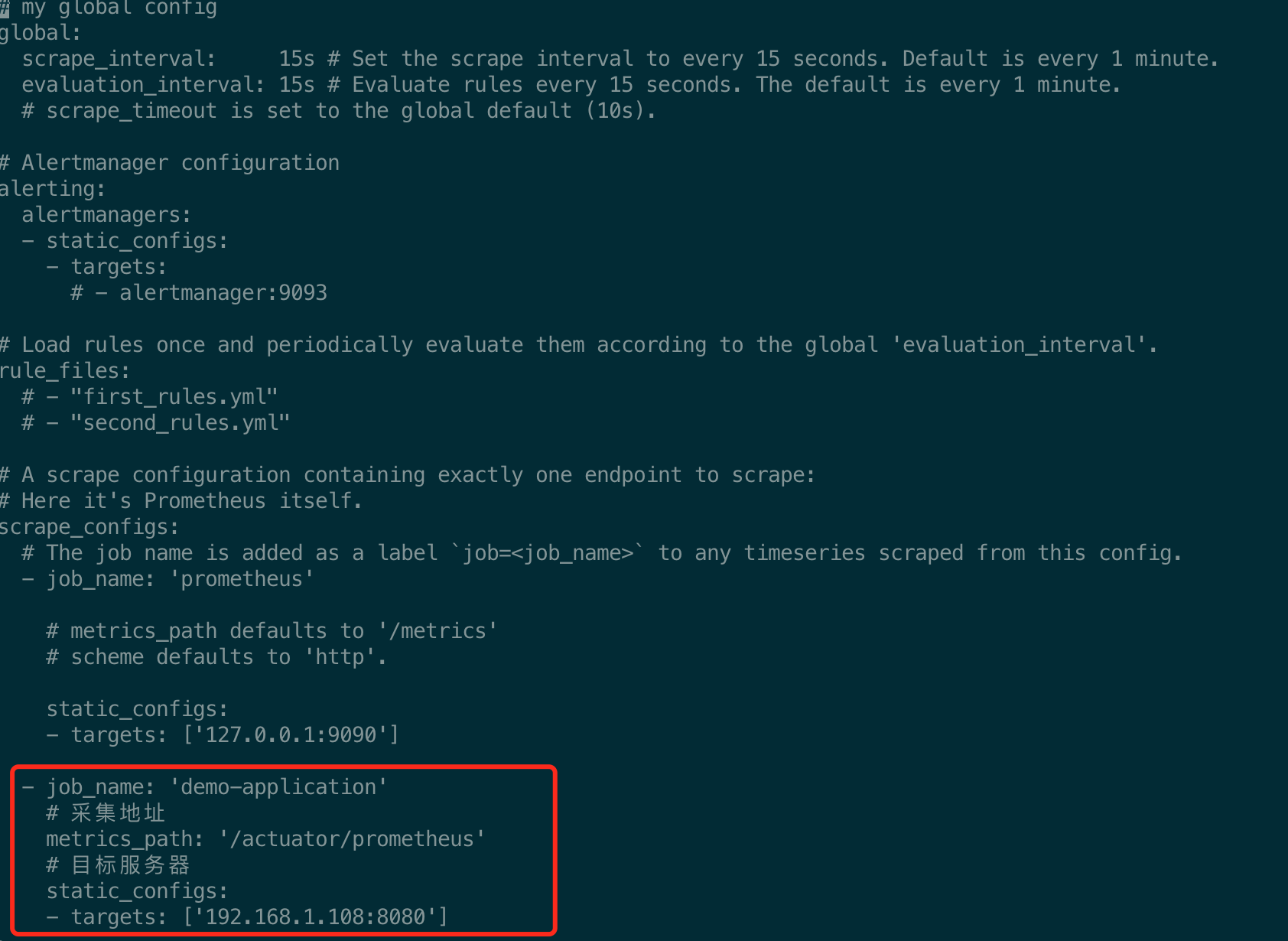

docker run -it -d -p 9090:9090 -v /**/**/prometheus/:/etc/prometheus/ prom/prometheus

docker run -d --name=grafana -p 3000:3000 grafana/grafana

1. 搭建spring boot项目，跳过
2. 引入pom

           <!-- 实现对 Actuator 的自动化配置 -->
   		<dependency>
   			<groupId>org.springframework.boot</groupId>
   			<artifactId>spring-boot-starter-actuator</artifactId>
   		</dependency>

   		<!-- Micrometer 对 Prometheus 的支持 -->
   		<dependency>
   			<groupId>io.micrometer</groupId>
   			<artifactId>micrometer-registry-prometheus</artifactId>
   		</dependency>

3. 引入后可以实现actuator集成prometheus，收集各种指标（jvm相关、http、db等）
4. application.properties配置

   spring.application.name=demo-application
   #表示开启所有指标收集
   management.endpoints.web.exposure.include=*
   management.metrics.tags.application=${spring.application.name}

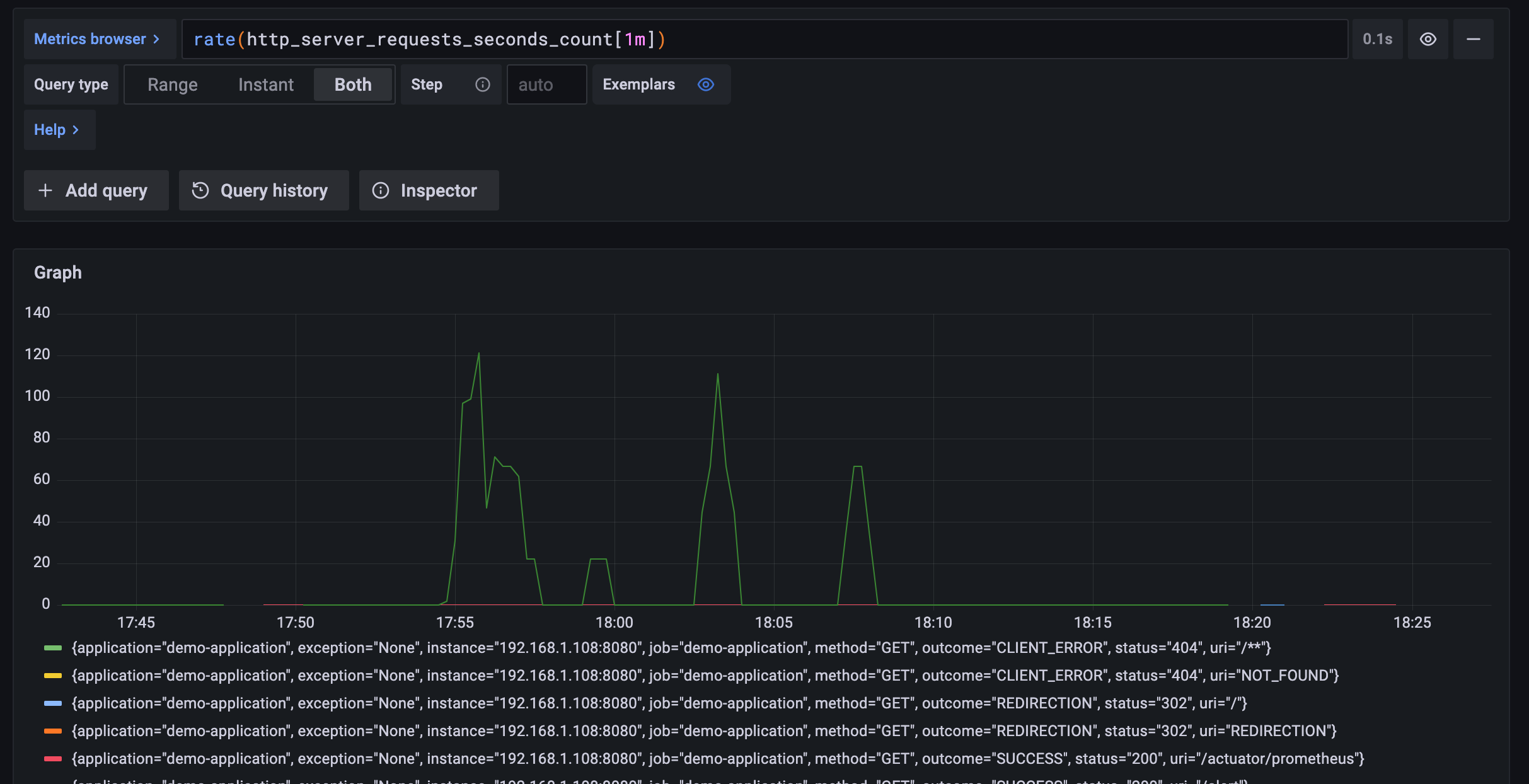

5. 启动服务，以上可以完成micrometer支持的指标收集，已经很全面了，看个http请求监控的例子

package com.yihuu.camunda.demo.util;

import io.prometheus.client.CollectorRegistry;
import io.prometheus.client.Counter;
import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * @author yuhui
 */
@Component
public class YMonitor implements ApplicationContextAware {

    private static final byte[] LOCK = new byte[0];

    private static ApplicationContext context;

    private static Map<String, Counter> map = new ConcurrentHashMap<>();

    public static void inc(String key) {
        Counter counter = map.get(key);
        if (counter != null) {
            counter.inc();
        } else {
            Counter newCounter = Counter.build(key, key).create();
            Counter old = map.putIfAbsent(key, newCounter);
            if (old != null) {
                old.inc();
            } else {
                synchronized (LOCK) {
                    CollectorRegistry collectorRegistry = context.getBean(CollectorRegistry.class);
                    newCounter.register(collectorRegistry);
                    newCounter.inc();
                }
            }
        }
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        setContext(applicationContext);
    }

    private void setContext(ApplicationContext applicationContext) {
        context = applicationContext;
    }
}

 @GetMapping("/start")
    public Object test1(Req req) {

        try {
            Map<String, Object> params = new HashMap<>();
            params.put("orderNo", req.getOrderNo());
            params.put("orderStatus", req.getOrderStatus());
            params.put("domain", req.getDomain());
            params.put("request", req);

            ProcessInstanceWithVariablesImpl processInstance = (ProcessInstanceWithVariablesImpl) runtimeService.startProcessInstanceByKey("no_ticket_refund", req.getOrderNo(), params);
            String tips = processInstance.getVariables().getValue("tips", String.class);
            return tips;
        } catch (Exception e) {
            YMonitor.inc("TestController_test1_exception");
            return null;
        } finally {
            YMonitor.inc("TestController_test1");
        }
    }

ab压测请求

ab -n1000 -c 20 'http://127.0.0.1:8080/start?orderNo=123456&orderStatus=1&domain=xep'

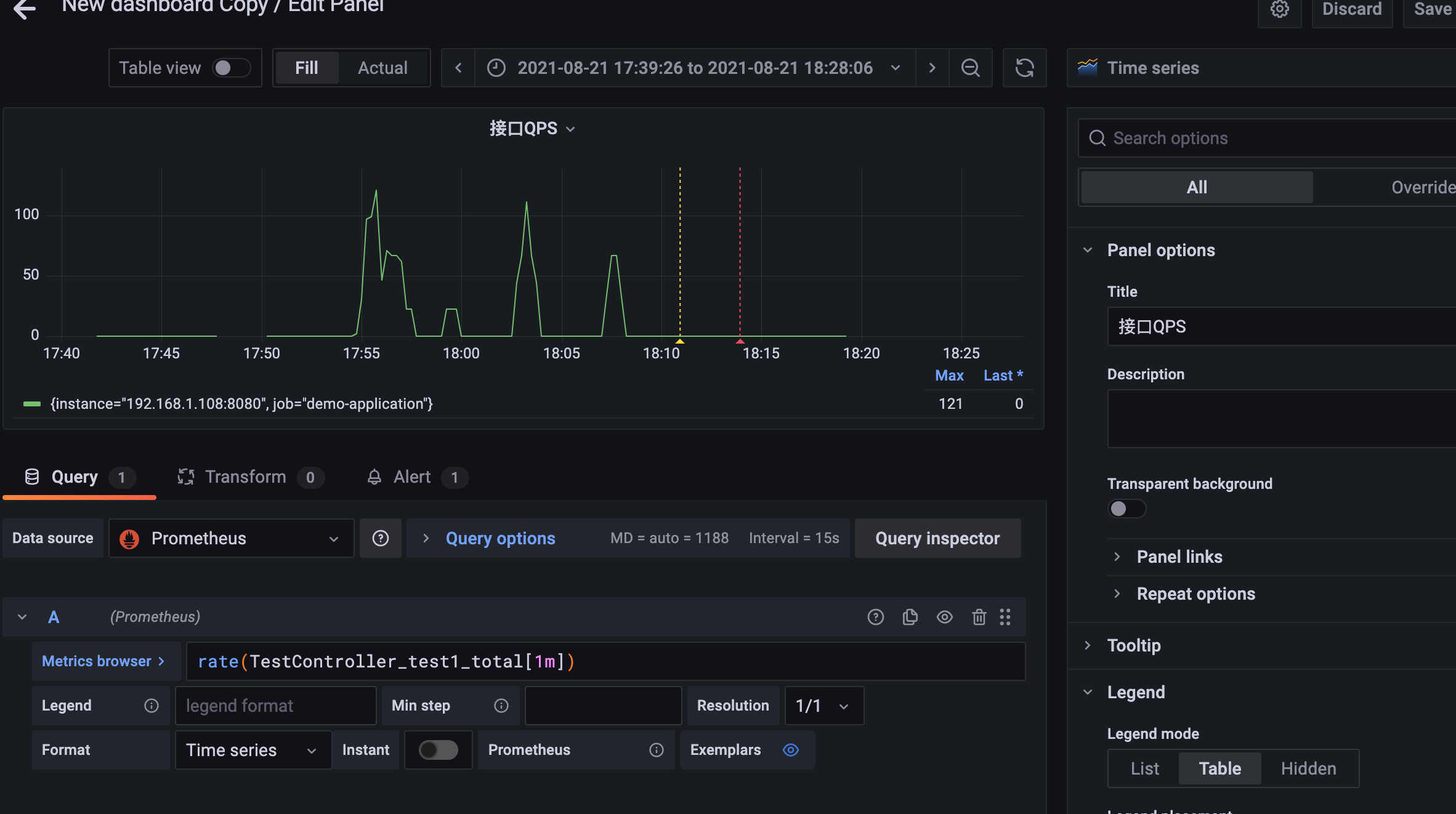

查看监控
