latex的一个算法框架

依赖库：

%%%%%%%%%%%%%%算法%%%%%%%%%%%
\usepackage{algorithmic}
\usepackage[ruled,vlined]{algorithm2e}  % 算法包
% \usepackage{algorithm}
% \renewcommand{\algorithmicrequire}{ \textbf{Input:}} %Use Input in the format of Algorithm
% \renewcommand{\algorithmicensure}{ \textbf{Output:}} %UseOutput in the format of Algorithm
%%%%%%%%%%%%%算法%%%%%%%%%%%%

代码：

 \begin{algorithm}
\label{algo_TD3}
    \caption{TD3 algorithm}%算法名字
    \LinesNumbered %要求显示行号
    \KwIn{initial policy parameters $\theta$, Q-function parameters $\phi_1$, $\phi_2$, empty replay buffer $\mathcal{D}$}
    % \KwOut{output result}%输出
    Set target parameters equal to main parameters $\theta_{targ}\leftarrow \theta$, $\phi_{targ,1}\leftarrow \phi_1$, $\phi_{targ,2}\leftarrow \phi_2$\;
    \For{episode=1 to M}{
        Receive initial observation state $s_1$\;
        Initialize a random process $\mathcal{N}$ for action exploration\;
        \For{t=1 to T}{
            Select action $a_t$ according to the current policy and exploration noise or the guidance policy\;

            Execute action $a_t$ and observe reward $r_t$ and observe new state $s_{t+1}$ \;
            Normalize the state $s_{t+1}$\;
            Get $r_t^{rs}$ using
            $ r_t^{rs}=T(s_{t+1})+F(s_t,a_t,s_{t+1})$

            Store transition $(s_t, a_t, r_t^{rs}, s_{t+1})$ in $\mathcal{D}$\;

            Sample a mini-batch of transitions,  \quad$\mathcal{B}=\{(s,a,r^{rs},s',d)\}$  from $\mathcal{D}$\;

            Compute target actions $a'(s')=$
             \quad$clip(\pi_{\theta_{targ}}(s')+clip(\epsilon,-c,c),a_{Low},a_{High})$\;

            Compute targets $y(r^{rs},s',d) =$
             \quad$ r^{rs}+\gamma(1-d)\min_{i=1,2}Q_{\phi_{i,targ}}(s',a')$\;

            Update Q-functions using
                 $\nabla_{\phi_{i}}\frac{1}{\mathcal{B}}\sum_{(s,a,s',r^{rs},d)\in \mathcal{B}}{(Q_{\phi_{i}}(s,a)-y(r^{rs},s',d))^2}$
            \If{t mod $p_{delay}$=0}{
                Update policy using
                  \quad$\nabla_{\theta}\frac{1}{\mathcal{B}}\sum_{s\in \mathcal{B}}{Q_{\phi_{1}}(s,\pi_{\theta}(s))}$\;

                Update the target network:\
             \quad\quad$\phi_{targ,i}\leftarrow\tau\phi_{targ,i}+(1-\tau)\phi_{i}$\
             \quad\quad$\theta_{targ}\leftarrow\tau\theta_{targ}+(1-\tau)\theta$
                }
        }
    }
\end{algorithm}

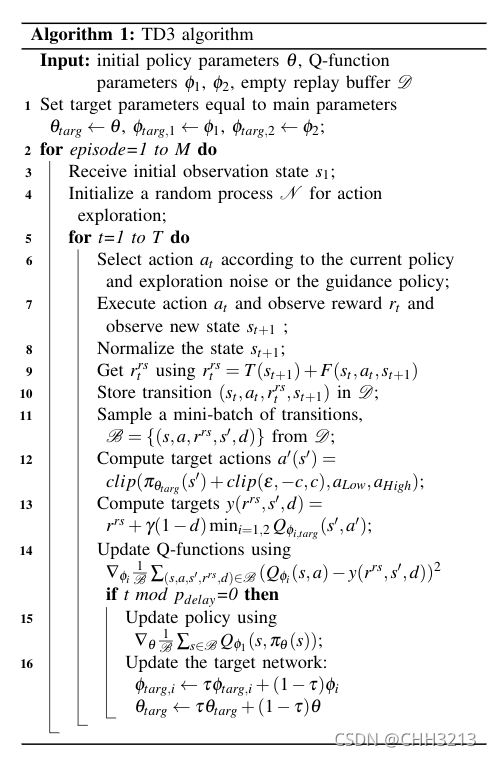

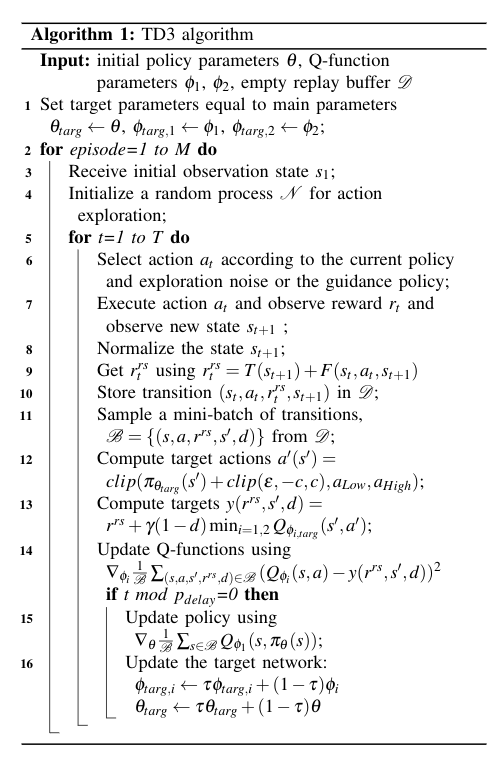

效果：
