mysql xtrabackup 压缩限流

mysql xtrabackup 压缩限流

官方文档：https://www.percona.com/doc/percona-xtrabackup/8.0/backup_scenarios/compressed_backup.html

官方文档：https://www.percona.com/doc/percona-xtrabackup/LATEST/advanced/throttling_backups.html

***********************

压缩复制

*****************

相关参数

--compress：使用压缩复制

--decompress：prepare备份目录前需要先解压缩，解压算法与压缩算法对应

Compress individual backup files using the specified compression algorithm.

# 支持的算法：quicklz(默认)、lz4
Supported algorithms are 'quicklz' and 'lz4'. The default algorithm is 'quicklz'.

--compress-threads：压缩备份时压缩线程

--parallel：同时解压的线程数，默认为1

--remove-original：清理备份目录中的压缩文件

Percona XtraBackup doesn’t automatically remove the compressed files. In order to clean up
the backup directory you should use --remove-original option. Even if they’re not removed
these files will not be copied/moved over to the datadir if --copy-back or --move-back are used

*****************

示例

创建 mysql

docker run -it  -d --net fixed --ip 172.18.0.3 -p 3306:3306 \
-v /usr/mysql/single/data:/var/lib/mysql \
--privileged=true -e  MYSQL_ROOT_PASSWORD=123456 --name mysql mysql

数据备份

xtrabackup -u root --password=123456 -H 192.168.57.120 -P 3306 --backup \
--compress --compress-threads=2 \
--log-bin=/usr/mysql/single/data/binlog --log-bin-index=/usr/mysql/single/data/binlog.index \
--datadir=/usr/mysql/single/data --target-dir=/usr/mysql/single/backup


# 备份目录
[root@centos single]# ls backup
backup-my.cnf.qp  ib_buffer_pool.qp  mysql.ibd.qp        undo_001.qp                xtrabackup_checkpoints  xtrabackup_tablespaces.qp
binlog.000003.qp  ibdata1.qp         performance_schema  undo_002.qp                xtrabackup_info.qp
binlog.index.qp   mysql              sys                 xtrabackup_binlog_info.qp  xtrabackup_logfile.qp

数据解压

xtrabackup --decompress --target-dir=/usr/mysql/single/backup

# 解压后备份目录
[root@centos backup]# ls
backup-my.cnf     binlog.index       ibdata1     mysql.ibd.qp        undo_001.qp             xtrabackup_binlog_info.qp  xtrabackup_logfile
backup-my.cnf.qp  binlog.index.qp    ibdata1.qp  performance_schema  undo_002                xtrabackup_checkpoints     xtrabackup_logfile.qp
binlog.000003     ib_buffer_pool     mysql       sys                 undo_002.qp             xtrabackup_info            xtrabackup_tablespaces
binlog.000003.qp  ib_buffer_pool.qp  mysql.ibd   undo_001            xtrabackup_binlog_info  xtrabackup_info.qp         xtrabackup_tablespaces.qp


xtrabackup --decompress --remove-original --target-dir=/usr/mysql/single/backup

# 解压后数据目录（删除了压缩文件）
[root@centos backup]# ls
backup-my.cnf  binlog.index    ibdata1  mysql.ibd           sys       undo_002                xtrabackup_checkpoints  xtrabackup_logfile
binlog.000003  ib_buffer_pool  mysql    performance_schema  undo_001  xtrabackup_binlog_info  xtrabackup_info         xtrabackup_tablespaces

prepare 数据

xtrabackup --prepare --target-dir=/usr/mysql/single/backup

restore 数据：将数据复制到空目录

xtrabackup --copy-back --datadir=/usr/mysql/single/data2 --target-dir=/usr/mysql/single/backup

***********************

复制限流

# 尽管xtrabackup不会阻塞数据库操作，但是备份操作会增加系统负载
Although xtrabackup does not block your database’s operation, any backup can add load to
the system being backed up.

# 如果系统没有充足的 i/o读写，可尝试在备份时进行限流
On systems that do not have much spare I/O capacity, it might be helpful to throttle the
rate at which xtrabackup reads and writes data.

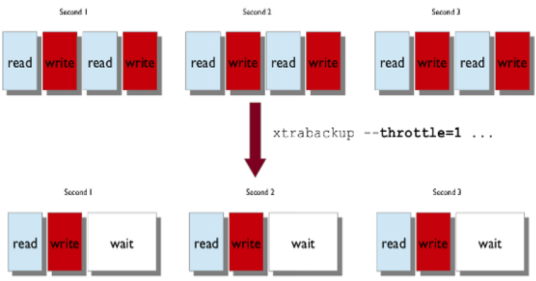

# --option参数限制每秒钟读写的chunk数，每个chunk大小为 10m
You can do this with the --throttle option. This option limits the number of chunks copied
per second. The chunk +size is 10 MB

--throttle=1

# 全量复制时，--throttle限制每秒读写的chunk数
When specified with the --backup option, this option limits the number of pairs of read-
and-write operations per second that xtrabackup will perform.

# 增量复制时，限制每秒读的chunk数
If you are creating an incremental backup, then the limit is the number of read I/O
operations per second

# 默认没有限流，xtrabackup会尽可能快的进行读写操作，完成备份
By default, there is no throttling, and xtrabackup reads and writes data as quickly as it can.

# 如果限制读写数很低，备份操作可能赶不上transaction log写入速度，备份就不会停止
If you set too strict of a limit on the IOPS, the backup might be so slow that it will
never catch up with the transaction logs that InnoDB is writing, so the backup might never complete
