Sharding-jdbc 简介

Sharding-JDBC是ShardingSphere的第一个产品，也是ShardingSphere的前身。 它定位为轻量级Java框架，在Java的JDBC层提供的额外服务。它使用客户端直连数据库，以jar包形式提供服务，无需额外部署和依赖，可理解为增强版的JDBC驱动，完全兼容JDBC和各种ORM框架。

• 适用于任何基于JDBC的ORM框架，如：JPA, Hibernate, Mybatis, Spring JDBC Template或直接使用JDBC。
• 支持任何第三方的数据库连接池，如：DBCP, C3P0, BoneCP, Druid, HikariCP等。
• 支持任意实现JDBC规范的数据库。目前支持MySQL，Oracle，SQLServer，PostgreSQL以及任何遵循SQL92标准的数据库。

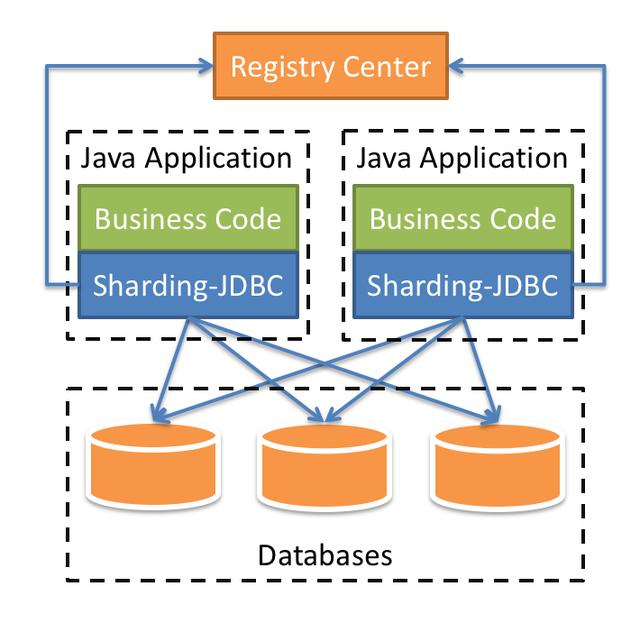

内部结构

使用流程

1. 初始化流程
2. 配置Configuration对象。
3. 通过Factory对象将Configuration对象转化为Rule对象。
4. 通过Factory对象将Rule对象与DataSource对象装配。
5. Sharding-JDBC使用DataSource对象进行分库。

版本依赖

org.apache.shardingspheresharding-jdbc-core4.0.0-RC2

场景使用demo

创建数据源方法

public static DataSource createDataSource() {DruidDataSource dataSource = new DruidDataSource();dataSource.setDriverClassName("com.mysql.jdbc.Driver");dataSource.setUrl("jdbc:mysql://10.136.15.102:3306/otoc_weixin_user?useUnicode=true&characterEncoding=utf-8");dataSource.setUsername("dptest");dataSource.setPassword("111111");return dataSource;}

sharding自定义类

package com.szeastroc.gateway;import java.util.Collection;import org.apache.commons.lang.StringUtils;import org.apache.shardingsphere.api.sharding.standard.PreciseShardingAlgorithm;import org.apache.shardingsphere.api.sharding.standard.PreciseShardingValue;import com.szeastroc.common.utils.RouterUtils;import lombok.extern.slf4j.Slf4j;/** * hash分片规则 * 适用于 =,>场景 * @author LiangHao * */@SuppressWarnings("rawtypes")@Slf4jpublic class HashShardingAlgorithm implements PreciseShardingAlgorithm{/** * 表数量 */private Integer tableNum;public HashShardingAlgorithm(Integer tableNum) {this.tableNum = tableNum;}@Overridepublic String doSharding(Collection availableTargetNames, PreciseShardingValue shardingValue) {StringBuilder table = new StringBuilder();table.append(availableTargetNames.iterator().next()).append("_");String value = (String) shardingValue.getValue();table.append(StringUtils.leftPad(String.valueOf(RouterUtils.getResourceCode(value) % tableNum), 3, '0'));        log.info("切片表名：{}",table);return table.toString();}}

package com.szeastroc.gateway;import java.util.Arrays;import java.util.Collection;import org.apache.shardingsphere.api.sharding.standard.RangeShardingAlgorithm;import org.apache.shardingsphere.api.sharding.standard.RangeShardingValue;import lombok.extern.slf4j.Slf4j;/** * 范围查询分片适用于between等范围语句 * @author LiangHao * */@SuppressWarnings("rawtypes")@Slf4jpublic class RangeShardingAlgoithm implements RangeShardingAlgorithm{@Overridepublic Collection doSharding(Collection availableTargetNames, RangeShardingValue shardingValue) { log.info("范围切片表名：{}",Arrays.asList("t_weixin_user_000","t_weixin_user_001"));return Arrays.asList("t_weixin_user_000","t_weixin_user_001");}}

package com.szeastroc.gateway;import java.util.Arrays;import java.util.Collection;import org.apache.commons.lang.StringUtils;import org.apache.shardingsphere.api.sharding.complex.ComplexKeysShardingAlgorithm;import org.apache.shardingsphere.api.sharding.complex.ComplexKeysShardingValue;import com.alibaba.fastjson.JSON;import com.szeastroc.common.utils.RouterUtils;import lombok.extern.slf4j.Slf4j;@Slf4jpublic class ComplexShardingAlgorithm implements ComplexKeysShardingAlgorithm{private Integer tableNum;private String[] shardingCloumns;public ComplexShardingAlgorithm(Integer tableNum,String ...shardingCloumns) {this.tableNum=tableNum;this.shardingCloumns = shardingCloumns;}@Overridepublic Collection doSharding(Collection availableTargetNames, ComplexKeysShardingValue shardingValue) { log.info("复合字段切片表名：{}",Arrays.asList("t_weixin_user_000","t_weixin_user_001"));return Arrays.asList("t_weixin_user_000","t_weixin_user_001");}}

1.标准分片demo，适用于单字段分片=,>

public static void standardShardingTableDemo() throws SQLException {Map dataSourceMap = new HashMap();dataSourceMap.put("ds0", createDataSource());/** * 配置表规则 */TableRuleConfiguration orderTableRuleConfig = new TableRuleConfiguration("t_weixin_user");orderTableRuleConfig.setTableShardingStrategyConfig(new StandardShardingStrategyConfiguration("openid", new HashShardingAlgorithm(10)));ShardingRuleConfiguration shardingRuleConfig = new ShardingRuleConfiguration();shardingRuleConfig.getTableRuleConfigs().add(orderTableRuleConfig);DataSource dataSource = ShardingDataSourceFactory.createDataSource(dataSourceMap, shardingRuleConfig,new Properties());Connection connection = dataSource.getConnection();PreparedStatement prepareStatement = connection.prepareStatement("select * from t_weixin_user where openid=?");prepareStatement.setString(1, "2342");prepareStatement.execute();ResultSet result = prepareStatement.getResultSet();if (result.next()) {log.info("标准分片查询数据x_openid:{}", result.getString(1));}connection.close();}

2.范围分片demo，适用于between语句

/** * 标准范围分片规则demo *  * @throws SQLException */public static void standardRangeShardingTableDemo() throws SQLException {Map dataSourceMap = new HashMap();dataSourceMap.put("ds0", createDataSource());/** * 配置表规则 */TableRuleConfiguration orderTableRuleConfig = new TableRuleConfiguration("t_weixin_user");orderTableRuleConfig.setTableShardingStrategyConfig(new StandardShardingStrategyConfiguration("openid",new HashShardingAlgorithm(10), new RangeShardingAlgoithm()));ShardingRuleConfiguration shardingRuleConfig = new ShardingRuleConfiguration();shardingRuleConfig.getTableRuleConfigs().add(orderTableRuleConfig);DataSource dataSource = ShardingDataSourceFactory.createDataSource(dataSourceMap, shardingRuleConfig,new Properties());Connection connection = dataSource.getConnection();PreparedStatement prepareStatement = connection.prepareStatement("select * from t_weixin_user where openid between ? and ?");prepareStatement.setString(1, "2342");prepareStatement.setString(2, "2342");prepareStatement.execute();ResultSet result = prepareStatement.getResultSet();if (result.next()) {log.info("范围分片查询数据x_openid:{}", result.getString(1));}connection.close();}

3.复合字段demo，适用于多个字段组合分片

/** * 复合字段规则demo *  * @throws SQLException */public static void complexShardingTableDemo() throws SQLException {Map dataSourceMap = new HashMap();dataSourceMap.put("ds0", createDataSource());/** * 配置表规则 */TableRuleConfiguration orderTableRuleConfig = new TableRuleConfiguration("t_weixin_user");orderTableRuleConfig.setTableShardingStrategyConfig(new ComplexShardingStrategyConfiguration("openid,x_openid",new ComplexShardingAlgorithm(10, "openid", "x_openid")));ShardingRuleConfiguration shardingRuleConfig = new ShardingRuleConfiguration();shardingRuleConfig.getTableRuleConfigs().add(orderTableRuleConfig);DataSource dataSource = ShardingDataSourceFactory.createDataSource(dataSourceMap, shardingRuleConfig,new Properties());Connection connection = dataSource.getConnection();PreparedStatement prepareStatement = connection.prepareStatement("select * from t_weixin_user where openid=? and x_openid=?");prepareStatement.setString(1, "2342");prepareStatement.setString(2, "234");prepareStatement.execute();ResultSet result = prepareStatement.getResultSet();if (result.next()) {log.info("复合字段分片查询数据x_openid:{}", result.getString(1));}connection.close();}

4.读写分离demo

    /** * 读写分离 *  * @throws SQLException */public static void masterSlaveDemo() throws SQLException {Map dataSourceMap = new HashMap();dataSourceMap.put("ds0", createDataSource());dataSourceMap.put("ds1", createDataSource());  MasterSlaveRuleConfiguration masterSlaveRuleConfig = new MasterSlaveRuleConfiguration("读写分离", "ds1", Arrays.asList("ds1", "ds_slave1"));    DataSource dataSource = MasterSlaveDataSourceFactory.createDataSource(dataSourceMap, masterSlaveRuleConfig,new Properties());Connection connection = dataSource.getConnection();PreparedStatement prepareStatement = connection.prepareStatement("select * from t_weixin_user_000 where openid=? and x_openid=?");prepareStatement.setString(1, "2342");prepareStatement.setString(2, "234");prepareStatement.execute();ResultSet result = prepareStatement.getResultSet();if (result.next()) {log.info("读写分离查询数据x_openid:{}", result.getString(1));}connection.close();}
