以idea编程工具为例，而且数据库中表已建好，数据库使用mysql
步骤一：
使用spring--boot搭建maven项目框架,集成springMVC,Mybatis,Mysql。配置application.properties文件
spring.datasource.driverClassName=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/course?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC
spring.datasource.username=root
spring.datasource.password=root
server.port=8888

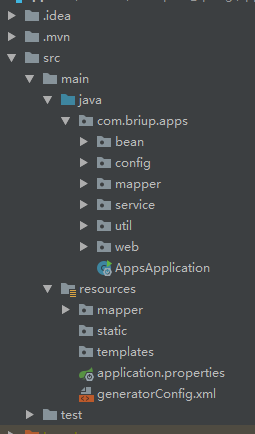

mybatis.mapper-locations= classpath:/mapper/**/*.xml 步骤二：新建目录结构如图
步骤三：使用mybatisgenerator生成bean文件和映射文件，映射接口
一，添加配置文件generatorConfig.xml，内容如下：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<!-- mybatis-generator的核心配置文件 -->
<generatorConfiguration>
<classPathEntry location="D:\android\repository\mysql\mysql-connector-java\8.0.15/mysql-connector-java-8.0.15.jar" />
<context id="DB2Tables" targetRuntime="MyBatis3">
<jdbcConnection driverClass="com.mysql.jdbc.Driver"
connectionURL="jdbc:mysql://127.0.0.1:3306/course?serverTimezone=UTC"
userId="root"
password="root">
<property name="useInformationSchema" value="true"/>
</jdbcConnection>
<!--指定生成的类型为java类型，避免数据库中number等类型字段 -->
<javaTypeResolver >
<property name="forceBigDecimals" value="false" />
</javaTypeResolver>
<!--自动生成的实体的存放包路径 -->
<javaModelGenerator targetPackage="com.briup.apps.bean" targetProject="./src/main/java">
<property name="enableSubPackages" value="true" />
<property name="trimStrings" value="true" />
</javaModelGenerator>
<!--自动生成的*Mapper.xml文件存放路径 -->
<sqlMapGenerator targetPackage="mapper" targetProject="./src/main/resources">
<property name="enableSubPackages" value="true" />
</sqlMapGenerator>
<!--自动生成的*Mapper.java存放路径 -->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.briup.apps.mapper" targetProject="./src/main/java">
<property name="enableSubPackages" value="true" />
</javaClientGenerator>
<!-- 映射配置 -->
<table tableName="c_user" domainObjectName="User" ></table>
<table tableName="c_course" domainObjectName="Course" ></table>
<table tableName="c_student_course" domainObjectName="StudentCourse" ></table>
</context>
</generatorConfiguration>二，在maven的pom.xml文件中加入插件
<plugin>
<groupId>org.mybatis.generator</gr
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.5</version>
</plugin>三，在config文件夹中添加配置类MybatisConfig.java标识Mapper类地址
package com.briup.apps.config;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Configuration;
@Configuration
@MapperScan("com.briup.apps.mapper")
public class MybatisConfig {
}
四，在控制台输入命令执行生成：
mvn -Dmybatis.generator.overwrite=true mybatis-generator:generate
步骤四：编写service代码和web代码
一，创建接口和存放实现的文件夹例如;
二，编写接口和实现
例：ICourseService接口
package com.briup.apps.service;
import com.briup.apps.bean.Course;
import com.briup.apps.bean.Extends.CourseExtends;
import java.util.List;
public interface ICourseService {
List<CourseExtends> findAll();
void saveOrUpdate(Course course) throws RuntimeException;
}其实现类
package com.briup.apps.service.impl;
import com.briup.apps.bean.Course;
import com.briup.apps.bean.Extends.CourseExtends;
import com.briup.apps.mapper.CourseMapper;
import com.briup.apps.mapper.Extends.CourseExtendsMapper;
import com.briup.apps.service.ICourseService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
@Service
public class CourseServiceImpl implements ICourseService {
@Autowired
CourseMapper courseMapper;
@Autowired
CourseExtendsMapper courseExtendsMapper;
@Override
public List<CourseExtends> findAll() {
return courseExtendsMapper.selectAll();
}
@Override
public void saveOrUpdate(Course course) throws RuntimeException {
if(course.getId() == null){
courseMapper.insert(course);
}else{
courseMapper.updateByPrimaryKey(course);
}
}
}
编写Controller代码，例CourseController
package com.briup.apps.web;
import com.briup.apps.bean.Course;
import com.briup.apps.bean.Extends.CourseExtends;
import com.briup.apps.service.ICourseService;
import com.briup.apps.util.Message;
import com.briup.apps.util.MessageUtil;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.util.List;
@Api(description = "课程相关接口")
@RestController
@RequestMapping("/course")
public class CourseController {
@Autowired
ICourseService courseService;
@ApiOperation("查询所有的课程信息，信息中级联任课老师信息")
@GetMapping("getAllCourse")
public Message getAllCourse(){
List<CourseExtends> list = courseService.findAll();
return MessageUtil.success(list);
}
/**
* 更新和保存courses数据
* @param course
* @return
*/
@ApiOperation(value = "保存或更新课程" ,notes = "填写Id为更新不填写为保存")
@GetMapping ("updateOrSave")
public Message updateOrSave(Course course){
courseService.saveOrUpdate(course);
return MessageUtil.success("保存成功");
}
}
步骤五：统一返回数据类型
一， 在工具文件夹中添加工具类Massage.java和MasssageUtil.java
Massage.java内容
package com.briup.apps.util;
public class Message {
private int code;
private String message;
private Object data;
private Long timestamp;
public int getCode() {
return code;
}
public void setCode(int code) {
this.code = code;
}
public String getMessage() {
return message;
}
public void setMessage(String message) {
this.message = message;
}
public Object getData() {
return data;
}
public void setData(Object data) {
this.data = data;
}
public Long getTimestamp() {
return timestamp;
}
public void setTimestamp(Long timestamp) {
this.timestamp = timestamp;
}
}
MassageUtil.java
package com.briup.apps.util;
import java.util.Date;
public class MessageUtil {
public static Message success(Object data){
Message message = new Message();
message.setCode(200);
message.setData(data);
message.setMessage("成功");
message.setTimestamp(new Date().getTime());
return message;
}
public static Message success(String str,Object data){
Message message = new Message();
message.setCode(200);
message.setData(data);
message.setMessage(str);
message.setTimestamp(new Date().getTime());
return message;
}
public static Message success(String str){
Message message = new Message();
message.setCode(200);
message.setData(null);
message.setMessage(str);
message.setTimestamp(new Date().getTime());
return message;
}
public static Message error(String str){
Message message = new Message();
message.setCode(500);
message.setData(null);
message.setMessage(str);
message.setTimestamp(new Date().getTime());
return message;
}
}
二，使用如CourseController中
return MessageUtil.success(list);

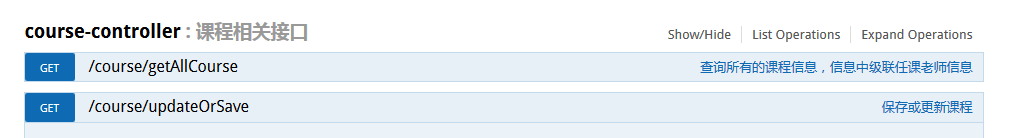

步骤六：使用swagger,让后台接口通过页面的形式展现在前端开发者面前
一，在config文件夹中添加swagger.java文件，注意更改basePackage("com.briup.apps.web")地址
/**
* Project Name:poll
* File Name:Swagger2.java
* Package Name:com.briup.apps.poll.config
* Date:2018年6月10日下午6:22:51
* Copyright (c) 2018, chenzhou1025@126.com All Rights Reserved.
*
*/
package com.briup.apps.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
/**
* ClassName:Swagger2 <br/>
* Function: TODO ADD FUNCTION. <br/>
* Reason: TODO ADD REASON. <br/>
* Date: 2018年6月10日 下午6:22:51 <br/>
* @author lichunyu
* @version
* @since JDK 1.6
* @see
*/
@Configuration
@EnableSwagger2
public class Swagger2 {
@Bean
public Docket createRestApi() {
return new Docket(DocumentationType.SWAGGER_2)
.apiInfo(apiInfo())
.select()
.apis(RequestHandlerSelectors.basePackage("com.briup.apps.web"))
.paths(PathSelectors.any())
.build();
}
private ApiInfo apiInfo() {
return new ApiInfoBuilder()
.title("智慧校园，课调系统API")
.description("昆山杰普软件科技有限公司，http://www.briup.com")
.termsOfServiceUrl("http://www.briup.com")
.version("1.0")
.build();
}
}
二，在pom.xml文件中添加依赖
<!-- swagger api文档 -->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.6.1</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>2.6.1</version>
</dependency>三，添加注解，便于让前端开发者使用

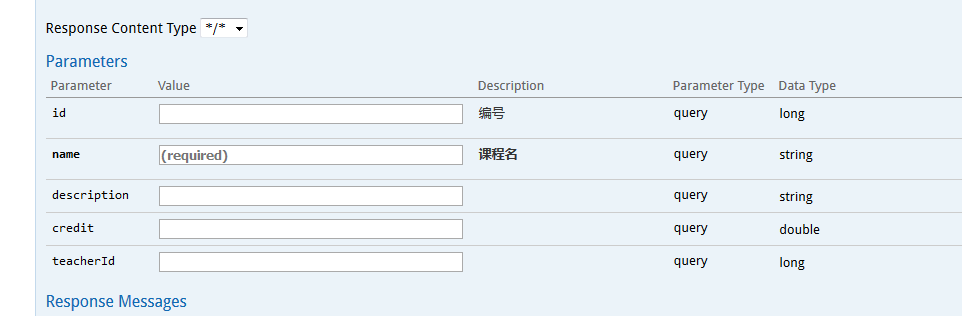

1>在bean类中添加注解：
@ApiModel("课程模型")
@ApiParam(value = "课程名" , required = true)
例：Course类
package com.briup.apps.bean;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiParam;
@ApiModel("课程模型")
public class Course {
/**
*
* This field was generated by MyBatis Generator.
* This field corresponds to the database column c_course.id
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
@ApiParam("编号")
private Long id;
/**
*
* This field was generated by MyBatis Generator.
* This field corresponds to the database column c_course.name
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
@ApiParam(value = "课程名" , required = true)
private String name;
/**
*
* This field was generated by MyBatis Generator.
* This field corresponds to the database column c_course.description
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
private String description;
/**
*
* This field was generated by MyBatis Generator.
* This field corresponds to the database column c_course.credit
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
private Double credit;
/**
*
* This field was generated by MyBatis Generator.
* This field corresponds to the database column c_course.teacher_id
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
private Long teacherId;
/**
* This method was generated by MyBatis Generator.
* This method returns the value of the database column c_course.id
*
* @return the value of c_course.id
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public Long getId() {
return id;
}
/**
* This method was generated by MyBatis Generator.
* This method sets the value of the database column c_course.id
*
* @param id the value for c_course.id
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public void setId(Long id) {
this.id = id;
}
/**
* This method was generated by MyBatis Generator.
* This method returns the value of the database column c_course.name
*
* @return the value of c_course.name
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public String getName() {
return name;
}
/**
* This method was generated by MyBatis Generator.
* This method sets the value of the database column c_course.name
*
* @param name the value for c_course.name
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public void setName(String name) {
this.name = name == null ? null : name.trim();
}
/**
* This method was generated by MyBatis Generator.
* This method returns the value of the database column c_course.description
*
* @return the value of c_course.description
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public String getDescription() {
return description;
}
/**
* This method was generated by MyBatis Generator.
* This method sets the value of the database column c_course.description
*
* @param description the value for c_course.description
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public void setDescription(String description) {
this.description = description == null ? null : description.trim();
}
/**
* This method was generated by MyBatis Generator.
* This method returns the value of the database column c_course.credit
*
* @return the value of c_course.credit
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public Double getCredit() {
return credit;
}
/**
* This method was generated by MyBatis Generator.
* This method sets the value of the database column c_course.credit
*
* @param credit the value for c_course.credit
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public void setCredit(Double credit) {
this.credit = credit;
}
/**
* This method was generated by MyBatis Generator.
* This method returns the value of the database column c_course.teacher_id
*
* @return the value of c_course.teacher_id
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public Long getTeacherId() {
return teacherId;
}
/**
* This method was generated by MyBatis Generator.
* This method sets the value of the database column c_course.teacher_id
*
* @param teacherId the value for c_course.teacher_id
*
* @mbg.generated Fri Apr 19 15:49:13 CST 2019
*/
public void setTeacherId(Long teacherId) {
this.teacherId = teacherId;
}
}二，在Controller类中添加注解
@Api(description = "课程相关接口")
@ApiOperation(value = "保存或更新课程" ,notes = "填写Id为更新不填写为保存")
例：如上CourseController
三，运行项目访问localhost:8888/swagger-ui.html实现结果为：

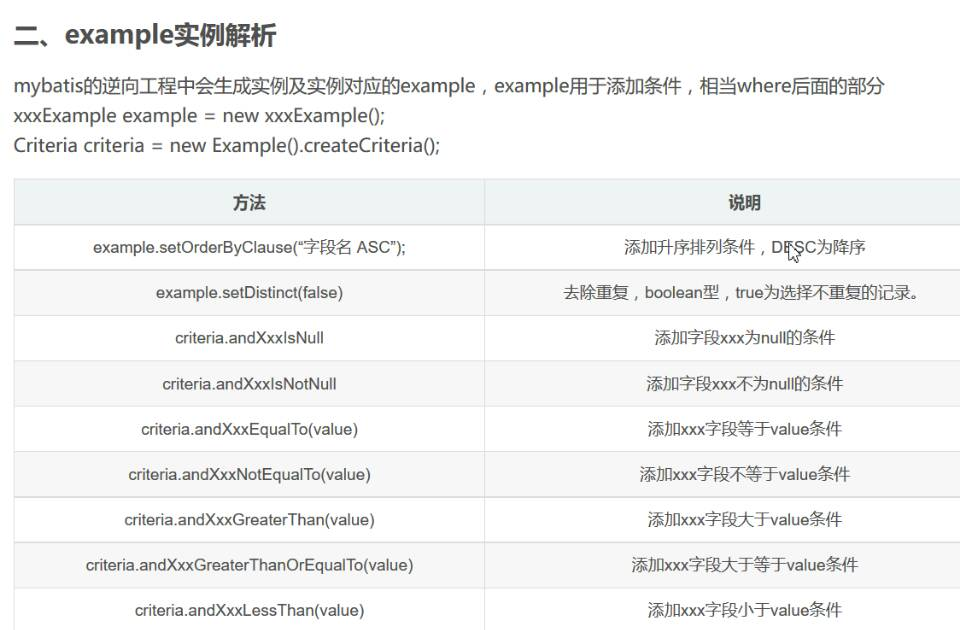

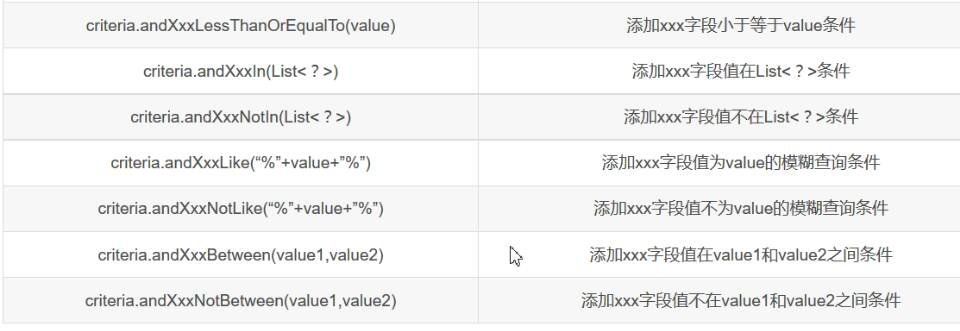

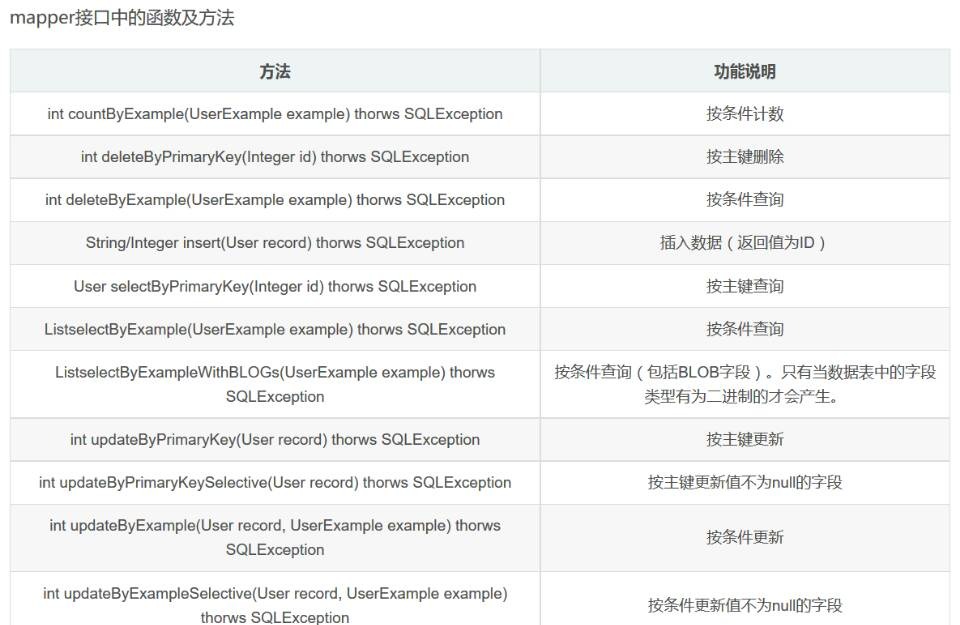

另附mybatis-generator的生成操作数据库的方法使用说明：来自其他网页
版权声明：本文为chenxing12345678hhh原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接和本声明。
