SSM个人思路总结

1、整体技术点

后端框架SSM：SpringMVC+Spring+MyBatis
前端框架：BootStrap
分页-PageHelper

2、环境搭建

2.1创建maven工程

通过idea工具，使用骨架的webapp方式创建或者跳过骨架进行创建；其中可能会缺少web.xml文件；下面是xml中一部分：

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://xmlns.jcp.org/xml/ns/javaee"
	xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
	id="WebApp_ID" version="3.1">
</web-app>

2.2、引入依赖的jar包

可以自行去maven官网上去下载以下相关的jar包

Spring相关
SpringMVC相关
MyBatis相关
数据库连接池
数据库驱动
JSTL
servlet-api
Junit 单元测试
Log4j 日志记录
Hibernate Validate 数据校验
Jackson @ResponseBody返回JSON数据
文件上传等

2.3、引用前端内容

css 文件、fonts 文件、js 文件、jQuery 文件

（可以去BootStrap官网上去找，自己练习就随便写个页面）

2.4、添加web文件

思路：项目最先加载的配置文件，所以里面先要加载Spring容器、再添加字符编码过滤器、Rest风格的URI、配置前端控制器

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://xmlns.jcp.org/xml/ns/javaee"
	xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
	id="WebApp_ID" version="3.1">

	<!-- 加载Spring容器 -->
	<!-- needed for ContextLoaderListener -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:applicationContext.xml</param-value>
	</context-param>

	<!-- 字符编码过滤器，放在所有过滤器最前面 -->
	<filter>
		<filter-name>encodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
		<init-param>
			<param-name>forceRequestEncoding</param-name>
			<param-value>true</param-value>
		</init-param>
		<init-param>
			<param-name>forceResponseEncoding</param-name>
			<param-value>true</param-value>
		</init-param>
<!-- 		<init-param>
			<param-name>forceEncoding</param-name>
			<param-value>true</param-value>
		</init-param> -->
	</filter>
	<filter-mapping>
		<filter-name>encodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<!-- 使用Rest风格的URI，将页面普通的POST请求转为指定的delete和put请求 -->
	<filter>
		<filter-name>HiddenHttpMethodFilter</filter-name>
		<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
	</filter>
	<filter-mapping>
		<filter-name>HiddenHttpMethodFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<!-- Bootstraps the root web application context before servlet initialization -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- 配置前端控制器 -->
	<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
	<servlet>
		<servlet-name>dispatcherServlet</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring-mvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<!-- Map all requests to the DispatcherServlet for handling -->
	<servlet-mapping>
		<servlet-name>dispatcherServlet</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>
</web-app>

2.5、Spring配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:util="http://www.springframework.org/schema/util"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
		http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd
		http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.3.xsd">

	<!--1、配置扫包-->
	<context:component-scan base-package="com.yeahsir">
		<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
		<context:exclude-filter type="annotation" expression="org.springframework.web.method.ControllerAdviceBean"/>
	</context:component-scan>

	<!--2、加载数据库配置文件-->
    <context:property-placeholder location="classpath:jdbc.properties" ignore-unresolvable="true"/>

    <!--3、加载数据源 mchange.v2.c3p0.ComboPooledDataSource-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <property name="driverClassName" value="${jdbc.driverClassName}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name = "filters" value = "${filters}" />
        <!-- 最大并发连接数 -->
        <property name="maxActive" value="${maxActive}" />
        <!-- 初始化连接数量 -->
        <property name="initialSize" value="${initialSize}" />
        <!-- 配置获取连接等待超时的时间 -->
        <property name="maxWait" value="${maxWait}" />
        <!-- 最小空闲连接数 -->
        <property name="minIdle" value="${minIdle}" />
        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="${timeBetweenEvictionRunsMillis}" />
        <!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="${minEvictableIdleTimeMillis}" />
        <property name="validationQuery" value="${validationQuery}" />
        <property name="testWhileIdle" value="${testWhileIdle}" />
        <property name="testOnBorrow" value="${testOnBorrow}" />
        <property name="testOnReturn" value="${testOnReturn}" />
        <property name="maxOpenPreparedStatements" value="${maxOpenPreparedStatements}" />
        <!-- 打开removeAbandoned功能 -->
        <property name="removeAbandoned" value="${removeAbandoned}" />
        <!-- 1800秒，也就是30分钟 -->
        <property name="removeAbandonedTimeout" value="${removeAbandonedTimeout}" />
        <!-- 关闭abanded连接时输出错误日志 -->
        <property name="logAbandoned" value="${logAbandoned}" />
    </bean>

    <!--4、(配置和MyBatis整合)创建sqlSessionFactory，加载mybatis的配置文件，注入数据源-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="mapperLocations" value="classpath:../mappers/*.xml"/>
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!--5、扫描dao接口所在的包，生成代理实现类-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="xxxx"/>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
    </bean>

     <!--6、平台事物管理器-->
    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--7、通知-->
    <tx:advice id="txAdvice" transaction-manager="txManager">
        <tx:attributes>
            <tx:method name="add*" isolation="REPEATABLE_READ" rollback-for="Exception"/>
            <tx:method name="update*" isolation="REPEATABLE_READ" rollback-for="Exception"/>
            <tx:method name="get*" isolation="REPEATABLE_READ" read-only="true"/>
            <tx:method name="delete*" rollback-for="Exception"/>
            <tx:method name="find*" isolation="REPEATABLE_READ" read-only="true"/>
            <tx:method name="*"/>
        </tx:attributes>
    </tx:advice>

    <!--8、aop管理事物-->
    <aop:config>
        <aop:pointcut expression="execution(* xxx..*.*(..))" id="serviceMethod"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="serviceMethod"/>
    </aop:config>
</beans>

2.6、springmvc配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
		http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
	<!-- 配置包扫描 -->
	<context:component-scan base-package="xx" use-default-filters="false">
		<!-- 只扫描Controller -->
		<context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
		<context:include-filter type="annotation" expression="org.springframework.web.method.ControllerAdviceBean"/>
	</context:component-scan>

	<!-- 视图解析器 -->
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<!-- 前缀 -->
		<property name="prefix" value="/WEB-INF/pages/"></property>
		<!-- 后缀 -->
		<property name="suffix" value=".jsp"></property>
		<!-- 通过viewName(视图名)拼接起来后如下，来访问页面 -->
		<!-- /WEB-INF/pages/<viewName>.jsp -->
	</bean>

	<!-- 两个标准配置 -->
	<!-- 将SpringMVC不能处理的请求交给tomcat -->
	<mvc:default-servlet-handler/>
	<!-- 只能SpringMVC更高级的功能，比如不需要配置HandlerMapping、HandlerAdapter，支持JSR303数据校验等等 -->
	<mvc:annotation-driven />
</beans>

2.7、日志

#分级别记录 debug<info<warn<error<fatal
log4j.rootLogger=debug,stdout,debug,info,warn,error,fatal

#日志输出样式
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{yyyy-MM-ddHH\:mm\:ss,SSS}[%p]\=\=\=\=%t\:%c.%M(%L)t%m%n

2.8、逆向工程配置

网上有，或者idea里面下载插件

2.9、数据库配置文件

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/xxx?characterEncoding=utf-8
jdbc.username=root
jdbc.password=root

3、注意事项

如果逆向工程生成的xml在java包下面，项目则不会主动加载xml文件，则需要添加配置文件，在pom.xml中标签中添加

<resources>
    <resource>
         <directory>src/main/java</directory>
        <includes>
        	<include>**/*.*</include>
        </includes>
    </resource>
    <resource>
        <directory>src/main/resources</directory>
        <includes>
        	<include>**/*.*</include>
        </includes>
    </resource>
</resources>

4、编写Service

简单写个测试例子

注意：由于逆向工程的帮助，所以，mapping、dao、entity这三层都主动写好了，只需要调用；

@Service("testService")
public class testService  {
	@Autowired
	private TestMapper testMapper;

	public Test selectByPrimaryKey(Integer deptId) {
		return testMapper.selectByPrimaryKey(Id);
	}

}

5、控制层Controller

@Controller
@RequestMapping("/dept")
public class DepartmentController {
	@Autowired
	private TestService tetsService;

	@RequestMapping("/getInfoById/{deptId}")
	@ResponseBody
	public Department getInfoById(@PathVariable("deptId") Integer deptId) {
		return tetsService.selectByPrimaryKey(deptId);
	}
}

6、写JSP

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title>Insert title here</title>
	</head>
	<body>
		<h1>首页</h1>
		<a href="dept/getInfoById/1">通过ID获取数据</a>
	</body>
</html>

7、Spring集成Junit进行单元测试

下面是测试依赖：Test相关

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>${spring.version}</version>
</dependency>

7.1、测试

还有Example的用法

@ContextConfiguration(locations = {"classpath:applicationContext.xml"})
@RunWith(SpringJUnit4ClassRunner.class)
public class TestMapper {

	@Autowired
	private TestMapper testMapper;

	/**
	 * 普通的测试
	 */
	@Test
	public void test01() {
		Test test = testMapper.selectByPrimaryKey(1);
		System.out.println(test.getDeptName());
	}

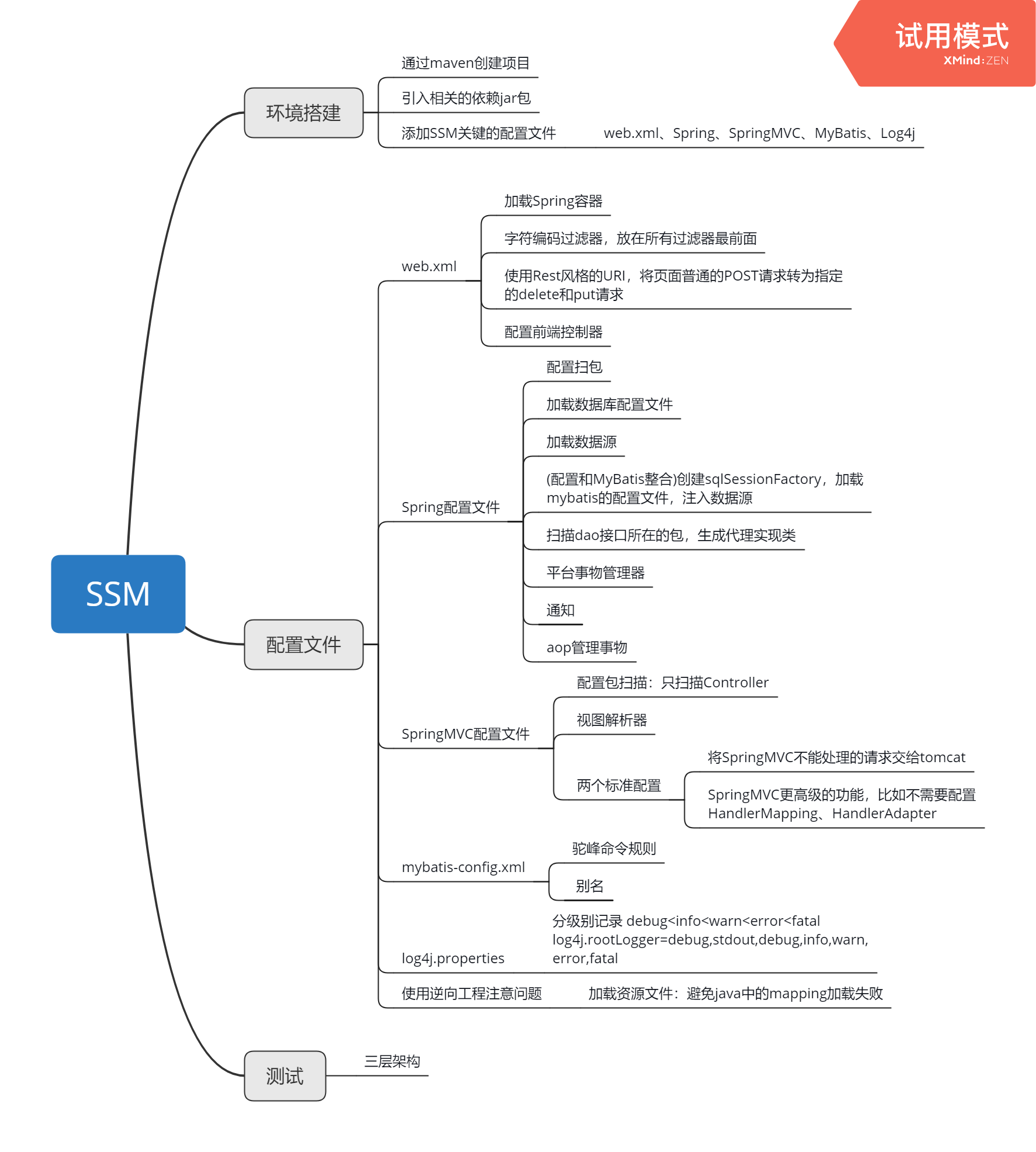

8、小结
