springboot集成zipkin

一：下载zipkin

Docker:

docker run -d -p 9411:9411 openzipkin/zipkin

linux

wget -O zipkin.jar 'https://search.maven.org/remote_content?g=io.zipkin.java&a=zipkin-server&v=LATEST&c=exec'

linux:

访问测试

localhost:9411

二：spring配置文件集成

1.导入jar包

在pom文件中添加：

<!-- zipkin-->
<dependency>
    <groupId>io.zipkin.brave</groupId>
    <artifactId>brave-core</artifactId>
    <version>3.10.0</version>
</dependency>
<dependency>
    <groupId>io.zipkin.brave</groupId>
    <artifactId>brave-spancollector-http</artifactId>
    <version>3.10.0</version>
</dependency>
<dependency>
    <groupId>io.zipkin.brave</groupId>
    <artifactId>brave-web-servlet-filter</artifactId>
    <version>3.10.0</version>
</dependency>
<dependency>
    <groupId>io.zipkin.brave</groupId>
    <artifactId>brave-okhttp</artifactId>
    <version>3.10.0</version>
</dependency>
<!-- zipkin-->

2.在配置文件中书写参数

##########请求的项目名##########
server.servlet.context-path=/


##########zipKin################
zipkin.serviceName=bbscontent
zipkin.url=http://47.93.136.21:9411
zipkin.connectTimeout=6000
zipkin.readTimeout=6000
zipkin.flushInterval=1
zipkin.compressionEnabled=true

3.添加配置类

package com.jfbank.discuz.config;

import com.github.kristofa.brave.Brave;
import com.github.kristofa.brave.EmptySpanCollectorMetricsHandler;
import com.github.kristofa.brave.Sampler;
import com.github.kristofa.brave.SpanCollector;
import com.github.kristofa.brave.http.DefaultSpanNameProvider;
import static com.github.kristofa.brave.Brave.Builder;
import static com.github.kristofa.brave.http.HttpSpanCollector.create;

import com.github.kristofa.brave.http.HttpSpanCollector;
import com.github.kristofa.brave.okhttp.BraveOkHttpRequestResponseInterceptor;
import com.github.kristofa.brave.servlet.BraveServletFilter;
import okhttp3.OkHttpClient;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 *@program: content
 *@description:
 *@author: zhihua
 *@create: 2019-07-11 11:41
 */


@Configuration
public class ZipkinConfig {

    /**
     * 服务名称
     */
    @Value("${zipkin.serviceName}")
    private String serviceName;

    /**
     * zipkin地址
     */
    @Value("${zipkin.url}")
    private String url;

    /**
     * 连接时间
     */
    @Value("${zipkin.connectTimeout}")
    private int connectTimeout;

    /**
     * 读取时间
     */
    @Value("${zipkin.readTimeout}")
    private int readTimeout;

    /**
     * 每间隔多少秒执行一次Span信息上传
     */
    @Value("${zipkin.flushInterval}")
    private int flushInterval;

    /**
     * 是否启动压缩
     */
    @Value("${zipkin.compressionEnabled}")
    private boolean compressionEnabled;

    public String getServiceName() {
        return serviceName;
    }

    public void setServiceName(String serviceName) {
        this.serviceName = serviceName;
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public int getConnectTimeout() {
        return connectTimeout;
    }

    public void setConnectTimeout(int connectTimeout) {
        this.connectTimeout = connectTimeout;
    }

    public int getReadTimeout() {
        return readTimeout;
    }

    public void setReadTimeout(int readTimeout) {
        this.readTimeout = readTimeout;
    }

    public int getFlushInterval() {
        return flushInterval;
    }

    public void setFlushInterval(int flushInterval) {
        this.flushInterval = flushInterval;
    }

    public boolean isCompressionEnabled() {
        return compressionEnabled;
    }

    public void setCompressionEnabled(boolean compressionEnabled) {
        this.compressionEnabled = compressionEnabled;
    }

    /**
     * @Description: span（一次请求信息或者一次链路调用）信息收集器
     * @Param:
     * @return: SpanCollector 控制器
     * @Author: zhihua
     * @Date: 2019-07-11 11:41
     */
    @Bean
    public SpanCollector spanCollector() {
        HttpSpanCollector.Config config = HttpSpanCollector.Config.builder()
                // 默认false，span在transport之前是否会被gzipped
                .compressionEnabled(compressionEnabled)
                .connectTimeout(connectTimeout)
                .flushInterval(flushInterval)
                .readTimeout(readTimeout)
                .build();
        return create(url, config, new EmptySpanCollectorMetricsHandler());
    }

    /**
     * @Description: 作为各调用链路，只需要负责将指定格式的数据发送给zipkin
     * @Param:
     * @return:
     * @Author: r
     * @Date: 2019-07-11 11:41
     */
    @Bean
    public Brave brave(SpanCollector spanCollector) {
        //调用服务的名称
        Builder builder = new Builder(serviceName);
        builder.spanCollector(spanCollector);
        //采集率
        builder.traceSampler(Sampler.ALWAYS_SAMPLE);
        return builder.build();
    }


    /**
     * @Description: 设置server的（服务端收到请求和服务端完成处理，并将结果发送给客户端）过滤器
     * @Param:
     * @return: 过滤器
     * @Author: zhihua
     * @Date: 2019-07-11 11:41
     */
    @Bean
    public BraveServletFilter braveServletFilter(Brave brave) {
        BraveServletFilter filter = new BraveServletFilter(brave.serverRequestInterceptor(),
                brave.serverResponseInterceptor(), new DefaultSpanNameProvider());
        return filter;
    }

    /**
     * @Description: 设置client的（发起请求和获取到服务端返回信息）拦截器
     * @Param:
     * @return: OkHttpClient 返回请求实例
     * @Author: zhihua
     * @Date: 2019-07-11 11:41
     */
    @Bean
    public OkHttpClient okHttpClient(Brave brave) {
        OkHttpClient httpClient = new OkHttpClient.Builder()
                .addInterceptor(new BraveOkHttpRequestResponseInterceptor(
                        brave.clientRequestInterceptor(),
                        brave.clientResponseInterceptor(),
                        new DefaultSpanNameProvider())).build();
        return httpClient;
    }
}

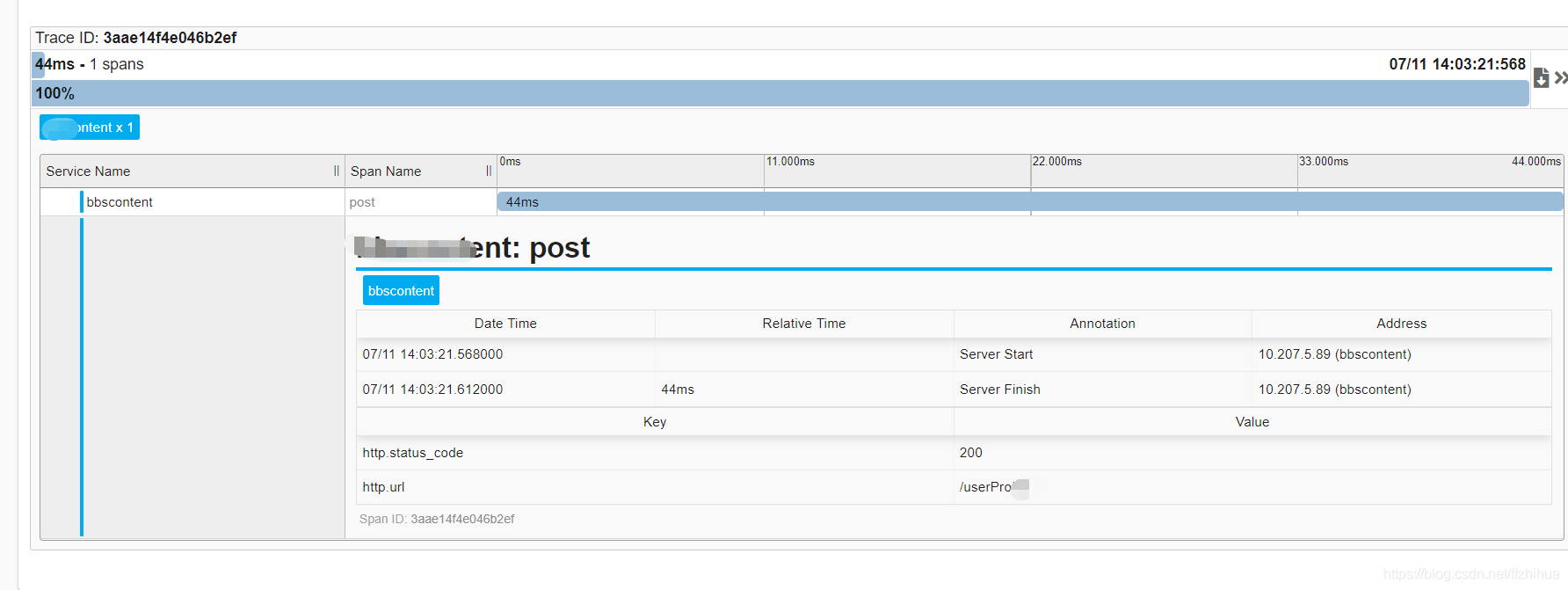

zipkinUI展示
