使用Docker搭建FastDFS+FastDHT(单机+集群版)文件服务器

1、搜索fastdfs文件服务器镜像

docker search fastdfs

DockerHub文件服务器镜像地址：https://hub.docker.com/r/qbanxiaoli/fastdfs

2、linux环境下可用如下命令拉取镜像后直接运行容器，其中IP为容器所在宿主机的内网地址，集群部署IP用逗号分隔

docker pull qbanxiaoli/fastdfs

docker run -d --restart=always --net=host --name=fastdfs -e IP=192.168.23.21 -v ～/fastdfs:/var/local qbanxiaoli/fastdfs

3、测试fastdfs是否搭建成功

docker exec -it fastdfs /bin/bash

echo "Hello FastDFS!">index.html

fdfs_test /etc/fdfs/client.conf upload index.html

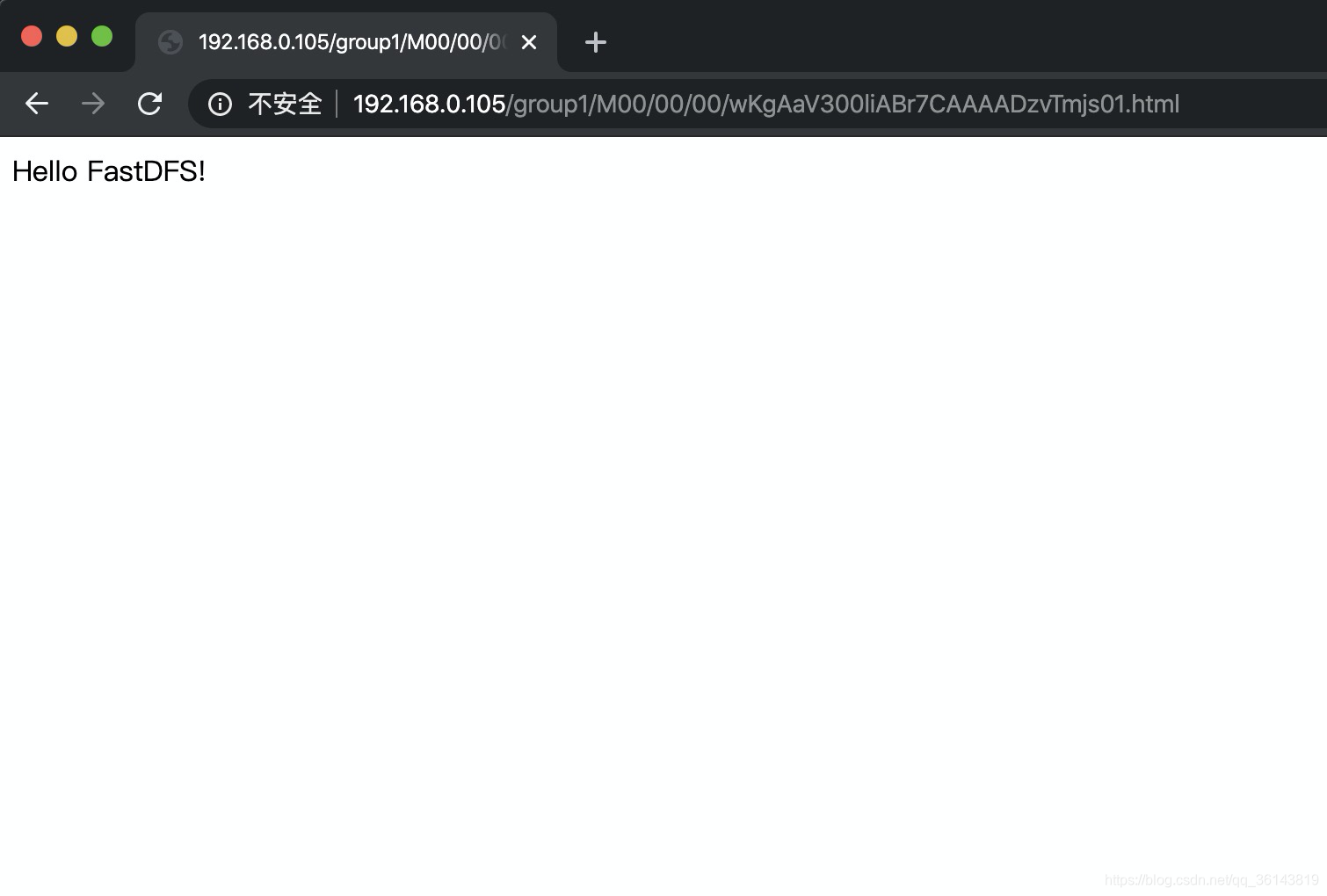

搭建成功后效果如下图所示：

4、文件上传成功后默认nginx访问端口为80端口，可省略，访问路径如下图，如需修改配置请参考：https://github.com/qbanxiaoli/fastdfs

Spring Boot集成FastDFS

1、使用maven引入第三方jar包，来源于https://github.com/tobato/FastDFS_Client

<dependency>
    <groupId>com.github.tobato</groupId>
    <artifactId>fastdfs-client</artifactId>
    <version>1.26.7</version>
</dependency>

2、添加fastdfs配置

# 分布式文件系统fastdfs配置
fdfs:
  # socket连接超时时长
  so-timeout: 1500
  # 连接tracker服务器超时时长
  connect-timeout: 600
  pool:
    #从池中借出的对象的最大数目（配置为-1表示不限制）
    max-total: -1
    #获取连接时的最大等待毫秒数(默认配置为5秒)
    max-wait-millis: 5000
    #每个key最大连接数
    max-total-per-key: 50
    #每个key对应的连接池最大空闲连接数
    max-idle-per-key: 10
    #每个key对应的连接池最小空闲连接数
    min_idle_per_key: 5
  # 缩略图生成参数，可选
  thumb-image:
    width: 150
    height: 150
  # 跟踪服务器tracker_server请求地址,支持多个，这里只有一个，如果有多个在下方加- x.x.x.x:port
  tracker-list:
    - ${FDFS_TRACKER:127.0.0.1}:${FDFS_PORT:22122}
  # 存储服务器storage_server访问地址
  web-server-url: http://${WEB_SERVER_URL:127.0.0.1}:${WEB_PORT:80}/

FastDFS文件操作工具类

@Component
public class FastDFSUtil {

    private static ThumbImageConfig thumbImageConfig;

    private static FastFileStorageClient fastFileStorageClient;

    private static FdfsWebServer fdfsWebServer;

    public FastDFSUtil(ThumbImageConfig thumbImageConfig, FastFileStorageClient fastFileStorageClient, FdfsWebServer fdfsWebServer) {
        FastDFSUtil.thumbImageConfig = thumbImageConfig;
        FastDFSUtil.fastFileStorageClient = fastFileStorageClient;
        FastDFSUtil.fdfsWebServer = fdfsWebServer;
    }

    /**
     * @param multipartFile 文件对象
     * @return 返回文件地址
     * @author qbanxiaoli
     * @description 上传文件
     */
    @SneakyThrows
    public static String uploadFile(MultipartFile multipartFile) {
        StorePath storePath = fastFileStorageClient.uploadFile(multipartFile.getInputStream(), multipartFile.getSize(), FilenameUtils.getExtension(multipartFile.getOriginalFilename()), null);
        return storePath.getFullPath();
    }

    /**
     * @param multipartFile 图片对象
     * @return 返回图片地址
     * @author qbanxiaoli
     * @description 上传缩略图
     */
    @SneakyThrows
    public static String uploadImageAndCrtThumbImage(MultipartFile multipartFile) {
        StorePath storePath = fastFileStorageClient.uploadImageAndCrtThumbImage(multipartFile.getInputStream(), multipartFile.getSize(), FilenameUtils.getExtension(multipartFile.getOriginalFilename()), null);
        return thumbImageConfig.getThumbImagePath(storePath.getFullPath());
    }

    /**
     * @param file 文件对象
     * @return 返回文件地址
     * @author qbanxiaoli
     * @description 上传文件
     */
    @SneakyThrows
    public static String uploadFile(File file) {
        @Cleanup FileInputStream inputStream = new FileInputStream(file);
        StorePath storePath = fastFileStorageClient.uploadFile(inputStream, file.length(), FilenameUtils.getExtension(file.getName()), null);
        return storePath.getFullPath();
    }

    /**
     * @param file 图片对象
     * @return 返回图片地址
     * @author qbanxiaoli
     * @description 上传缩略图
     */
    @SneakyThrows
    public static String uploadImageAndCrtThumbImage(File file) {
        @Cleanup FileInputStream inputStream = new FileInputStream(file);
        StorePath storePath = fastFileStorageClient.uploadImageAndCrtThumbImage(inputStream, file.length(), FilenameUtils.getExtension(file.getName()), null);
        return thumbImageConfig.getThumbImagePath(storePath.getFullPath());
    }

    /**
     * @param bytes         byte数组
     * @param fileExtension 文件扩展名
     * @return 返回文件地址
     * @author qbanxiaoli
     * @description 将byte数组生成一个文件上传
     */
    @SneakyThrows
    public static String uploadFile(byte[] bytes, String fileExtension) {
        @Cleanup ByteArrayInputStream stream = new ByteArrayInputStream(bytes);
        StorePath storePath = fastFileStorageClient.uploadFile(stream, bytes.length, fileExtension, null);
        return storePath.getFullPath();
    }

    /**
     * @param filePath 文件访问地址
     * @author qbanxiaoli
     * @description 下载文件
     */
    @SneakyThrows
    public static byte[] downloadFile(String filePath) {
        StorePath storePath = StorePath.parseFromUrl(filePath);
        return fastFileStorageClient.downloadFile(storePath.getGroup(), storePath.getPath(), new DownloadByteArray());
    }

    /**
     * @param filePath 文件访问地址
     * @author qbanxiaoli
     * @description 删除文件
     */
    @SneakyThrows
    public static void deleteFile(String filePath) {
        StorePath storePath = StorePath.parseFromUrl(filePath);
        fastFileStorageClient.deleteFile(storePath.getGroup(), storePath.getPath());
    }

    // 获取文件服务器地址
    public static String getWebServerUrl() {
        return fdfsWebServer.getWebServerUrl();
    }

}
