1.先设定动画机。
(已含添加的动画。右图三角形图标为动画:)
将动画赋予给人物:

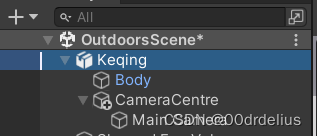

添加摄影人物中心的摄像头,用空物体与固定位置的摄像头,树级关系如下:

CameraCentre挂载ThirdPersonCamera.cs, Keqing挂载CharacterMovement.cs。
脚本如下:
ThirdPersonCamera.cs:
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class ThirdPersonCamera : MonoBehaviour
{
public float Pitch { get; private set; }
public float Yaw { get; private set; }
public Quaternion eulerAngle;
public float CameraSensitivity = 3;
// Start is called before the first frame update
void Start(){}
// Update is called once per frame
void Update()
{
CameraRotation();
}
private void CameraRotation()
{
Pitch += Input.GetAxis("Mouse Y") * CameraSensitivity;
Yaw += Input.GetAxis("Mouse X") * CameraSensitivity;
Pitch = Mathf.Clamp(Pitch, -90, 90);
eulerAngle = Quaternion.Euler(Pitch, Yaw, 0);
transform.eulerAngles = new Vector3(Pitch, Yaw, 0);
transform.rotation = eulerAngle;
}
}CharacterMovement.cs:
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
[RequireComponent(typeof(Rigidbody))]
[RequireComponent(typeof(CharacterController))]
public class CharacterMovement : MonoBehaviour
{
[SerializeField]
private ThirdPersonCamera _CameraCentre;
private Rigidbody _CharacterRigidBody;
private Animator _Animator;
private CharacterController _Controller;
public float Speed = 5.0f;
public float TurnSpeed = 10.0f;
public float turnSmoothTime = 0.1f;
private Vector3 SpeedVector;
private void Awake()
{
_CharacterRigidBody = GetComponent<Rigidbody>();
_Animator = GetComponent<Animator>();
_Controller = GetComponent<CharacterController>();
}
/// <summary>
/// Start is called before the first frame update;
/// Initialising every status in game.
/// </summary>
private void Start()
{
_CharacterRigidBody.rotation = Quaternion.Euler(0f, 0f, 0f);
}
/// <summary>
/// For Physical animation update simulation.
/// </summary>
private void FixedUpdate()
{
float xMove = Input.GetAxis("Horizontal");
float zMove = Input.GetAxis("Vertical");
SpeedVector = new Vector3(xMove, 0, zMove).normalized;
Debug.Log("SpeedVector:" + SpeedVector);
if (SpeedVector.magnitude >= 0.01f)
{
float targetAngle = Mathf.Atan2(SpeedVector.x, SpeedVector.z) * Mathf.Rad2Deg + _CameraCentre.transform.eulerAngles.y;
//Debug.Log("Mathf.Atan2:" + Mathf.Atan2(SpeedVector.x, SpeedVector.z));
//Debug.Log("Mathf.Atan2*Math.Rad2Deg:" + Mathf.Atan2(SpeedVector.x, SpeedVector.z) * Mathf.Rad2Deg);
//Debug.Log("CameraCentre.transform.eulerAngles.y:" + _CameraCentre.transform.eulerAngles.y);
//Debug.Log("targetAngle:" + targetAngle);
float angle = Mathf.SmoothDampAngle(transform.eulerAngles.y, targetAngle, ref TurnSpeed, turnSmoothTime);
//Debug.Log("transform.eulerAngles.y" + transform.eulerAngles.y);
//Debug.Log(angle);
//Debug.Log("RigidBody.rotation(Before rotating):" + _CharacterRigidBody.rotation.eulerAngles);
//_CharacterRigidBody.rotation = Quaternion.Euler(0f, angle, 0f);
//Not rotate smoothly
//_CharacterRigidBody.MoveRotation(_CharacterRigidBody.rotation * Quaternion.Euler(0f, angle, 0f));
//After the first mouseY moving, angle is changing all the time
//Camera.tramsform.eulerAngle.y returns a digit if the camera is not in its first place,
//which means once camera rotates, Camera.tramsform.eulerAngle.y returns a digit consistently
//if if statement is true, targetAngle keeps return value.
_CharacterRigidBody.MoveRotation(Quaternion.Euler(0f, angle, 0f));
//Debug.Log("RigidBody.rotation(After rotating):" + _CharacterRigidBody.rotation.eulerAngles);
Vector3 moveDir = Quaternion.Euler(0f, targetAngle, 0f) * Vector3.forward;
//Debug.Log("moveDir:" + moveDir);
_Controller.Move(moveDir.normalized * Speed * Time.fixedDeltaTime);
}
AnimatorUpdate();
}
private void AnimatorUpdate()
{
_Animator.SetFloat("Speed", SpeedVector.magnitude);
}
}
