WFP防火墙的作用

WFP防火墙是在Vista/Win2008之后的操作系统中才引入的一套流量管控平台。提供一套API接口供开发人员调用。应用层和驱动层都有不同的模块可以调用。用于取代之前的LSP过滤器、TDI过滤器、NDIS过滤器等。通过WFP API，可以实现防火墙、网络管控工具等流量管控服务。

使用WFP防火墙时注意的事项

WFP防火墙仅在Vista/Win 2008以后的系统中方可生效。
在Vista/Win 2008中，过滤器的添加不支持"或"策略。如果需求中包含对个IP段、多个端口号、多个协议或多个进程同时存在时，在Vista/Win2008中，需要依次进行较为复杂的交叉匹配，依次添加。这一点需要注意。只有在Win7/Win2008 R2系统中，WFP防火墙才能直接添加策略运行。

基本概念以及决策逻辑

Layer（层）：层是过滤器的容器，其功能是将过滤器组织成为集合，由层ID决定过滤器生效的位置。每一个层里面都包含一套内置的子层，用户可以添加自定义的子层。
SubLayer（子层）：过滤器的容器，在对应的层中生效。
Filter（过滤器）：过滤器是对出/入数据包进行匹配的规则。过滤器负责告诉过滤引擎如何处理数据包。添加过滤器时，使用FWPM_FILTER0结构体中的flags参数，可以指定过滤器的生效时间。

Layer（层）的过滤决策策略：

按照权重由高到低的顺序对每个子层进行决策匹配
即使有更高优先级的子层决定阻塞流量，下方的子层也会依次得到评估的机会。所以，每个子层都可以匹配到通过当前层的所有数据包
如果有一个子层明确返回阻断，当前层的决策即为阻断。（这里只谈应用层的决策策略，在Callout驱动层中，返回阻断，依然会被其它策略所修改，放在以后讨论。）

SubLayer（子层）的过滤决策策略：

按照权重从高到底的顺序对每个过滤器进行匹配
在匹配的过程中，如果有过滤器明确返回了"Permit"或"Block"，则马上中断匹配，权重更低的过滤器不会收到数据包的信息。如果所有过滤器都返回"Continue"，则会一直匹配到列表耗尽。
最后一个执行匹配的过滤器返回值，即为当前子层最终的过滤决策。

常用的随手便签

netsh wfp show state

该命令可以打印系统中当前存活的WFP防火墙层、子层、过滤器等。是在调试的过程中最实用的命令，也许没有之一。

调用流程

打开与关闭WFP防火墙

打开防火墙句柄

DWORD FwpmEngineOpen0(
                    const wchar_t *serverName,
                    UINT32 authnService,
                    SEC_WINNT_AUTH_IDENTITY_W *authIdentity,
                    const FWPM_SESSION0 *session,
                    HANDLE *engineHandle
                    );

输入参数
- serverName：必须为空。
- authnService：身份验证方式，可选为RPC_C_AUTHN_WINNT和RPC_C_AUTHN_DEFAULT。
- authIdentity：身份验证和授权凭证，可以为NULL。
- session：会话指针，不使用的话可以为NULL。
- engineHandle：用于输出防火墙引擎句柄，其它对防火墙操作的函数大都依赖此句柄。
输出参数
- ERROR_SUCCESS为成功，其它参考错误码

关闭防火墙句柄

DWORD FwpmEngineClose0(
                        HANDLE engineHandle
                        );

输入参数
- engineHandle：防火墙引擎句柄，由FwpmEngineOpen0参数返回
输出参数
- ERROR_SUCCESS为成功，其它参考错误码

枚举当前所有层

创建层枚举句柄

DWORD FwpmLayerCreateEnumHandle0(
                HANDLE engineHandle,
                const FWPM_LAYER_ENUM_TEMPLATE0 *enumTemplate,
                HANDLE *enumHandle
        );

输入参数
- engineHandle：引擎句柄，由FwpmEngineOpen0创建。
- enumTemplate：枚举参数，实际上内容保留使用，可以为NULL。
- enumHandle：输出参数，用于传出枚举句柄
输出参数
- ERROR_SUCCESS为成功，其它参考错误码

执行枚举操作

DWORD FwpmLayerEnum0(
                    HANDLE engineHandle,
                    HANDLE enumHandle,
                    UINT32 numEntriesRequested,
                    FWPM_LAYER0 ***entries,
                    UINT32 *numEntriesReturned
        );

输入参数
- engineHandle：引擎句柄
- enumHandle：枚举句柄，FwpmLayerCreateEnumHandle0创建
- numEntriesRequested：请求的数目
- entries：用于返回的层参数数组，需要FwpmFreeMemory0释放（这里需要注意，该参数定义为：FWPM_LAYER0** p=NULL，释放使用FwpmFreeMemory0((void**)&p)）
- numEntriesReturned：本次返回的结构体数目
输出参数
- ERROR_SUCCESS为成功

销毁层枚举句柄

DWORD FwpmLayerDestroyEnumHandle0(
                        HANDLE engineHandle,
                        HANDLE enumHandle
            );

输入参数
- engineHandle：引擎句柄，由FwpmEngineOpen0创建
- enumHandle：枚举句柄，由FwpmLayerCreateEnumHandle0创建
输出参数
- ERROR_SUCCESS为成功，其它参考错误码

参考代码

    #define SESSION_LAYER    L"session_layer";
    GUID SESSION_GUID = { 0x2ec66da9, 0x2ae4, 0x4f83, { 0x81, 0xc7, 0x34, 0x5d, 0x19,
0x6a, 0xe3, 0xd7 } };

int main()
{
    HANDLE engineHandle = NULL;
    DWORD result = ERROR_SUCCESS;
    FWPM_SESSION0 fwpmSession;
    memset(&fwpmSession, 0, sizeof(FWPM_SESSION0));
    fwpmSession.flags = FWPM_SESSION_FLAG_DYNAMIC;

    result = FwpmEngineOpen0(NULL, RPC_C_AUTHN_DEFAULT, NULL, &fwpmSession,
&engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineOpen0 failed;Return value:%d.\n", __FUNCTION__,
result);
        return 0;
    }

    HANDLE enumHandle = NULL;
    result = FwpmLayerCreateEnumHandle0(engineHandle, NULL, &enumHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmFilterCreateEnumHandle0, Return value:%d\n", __FUNCTION__,
result);
        FwpmEngineClose0(engineHandle);
        return 0;
    }

    UINT32 numEntriesReturned = 0;
    do
    {
        FWPM_LAYER0** fwpmLayerList = NULL;
        numEntriesReturned = 0;
        result = FwpmLayerEnum0(engineHandle, enumHandle, 1, &fwpmLayerList,
&numEntriesReturned);
        if (result != ERROR_SUCCESS || numEntriesReturned == 0)
        {
            break;
        }

        std::string strLayerName = boost::locale::conv::from_utf(fwpmLayerList[0]->displayData.name, "GBK");
        printf("layer name:%s\n", strLayerName.c_str());
        FwpmFreeMemory0((void**)&fwpmLayerList);
    } while (numEntriesReturned > 0);

    result = FwpmLayerDestroyEnumHandle0(engineHandle, enumHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmFilterDestroyEnumHandle0, Return value:%d\n", __FUNCTION__,
result);
    }

    result = FwpmEngineClose0(engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineClose0 failed; Return value:%d\n", __FUNCTION__,
result);
        return 0;
    }
    printf("[%s]result Success\n", __FUNCTION__);
}

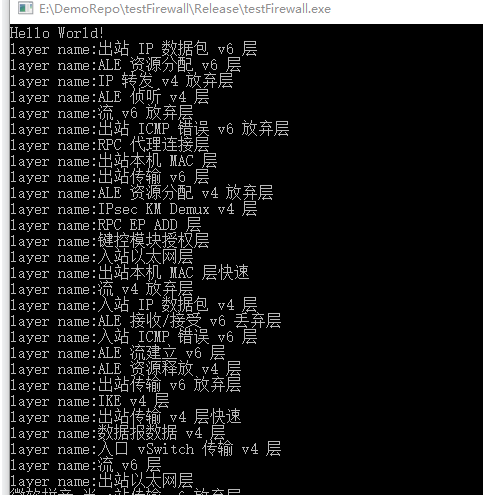

执行结果

在这里插入图片描述

枚举当前所有子层

创建子层枚举句柄

DWORD FwpmSubLayerCreateEnumHandle0(
                                HANDLE engineHandle,
                                const FWPM_SUBLAYER_ENUM_TEMPLATE0 *enumTemplate,
                                HANDLE *enumHandle
                );

输入参数
- engineHandle：防火墙引擎句柄，由FwpmEngineOpen0创建
- enumTemplate：选择参数，可以为NULL
- enumHandle：枚举句柄，用于输出
输出参数
- ERROR_SUCCESS为成功，其它为错误码

执行子层枚举

DWORD FwpmSubLayerEnum0(
                        HANDLE engineHandle,
                        HANDLE enumHandle,
                        UINT32 numEntriesRequested,
                        FWPM_SUBLAYER0 ***entries,
                        UINT32 *numEntriesReturned
                );

输入参数
- engineHandle：防火墙引擎，由FwpmEngineOpen0创建
- enumHandle：枚举句柄，由FwpmSubLayerCreateEnumHandle0创建
- numEntriesRequested：本次请求的个数
- entries：用于输出子层参数，需要FwpmFreeMemory0手动释放
- numEntriesReturned：本次返回的子层个数
输出参数
- ERROR_SUCCESS为成功，其它为错误码

销毁子层枚举句柄

DWORD FwpmSubLayerDestroyEnumHandle0(
                            HANDLE engineHandle,
                            HANDLE enumHandle
                );

输入参数
- engineHandle：防火墙引擎句柄，由FwpmEngingOpen0创建
- enumHandle：枚举句柄
输出参数
- ERROR_SUCCESS为成功，其它为错误码

参考代码

#define SESSION_LAYER    L"session_layer";
GUID SESSION_GUID = { 0x2ec66da9, 0x2ae4, 0x4f83, { 0x81, 0xc7, 0x34, 0x5d, 0x19,
0x6a, 0xe3, 0xd7 } };

int main()
{
    std::cout << "Hello World!\n";

    HANDLE engineHandle = NULL;
    DWORD result = ERROR_SUCCESS;
    FWPM_SESSION0 fwpmSession;
    memset(&fwpmSession, 0, sizeof(FWPM_SESSION0));
    fwpmSession.flags = FWPM_SESSION_FLAG_DYNAMIC;

    result = FwpmEngineOpen0(NULL, RPC_C_AUTHN_DEFAULT, NULL, &fwpmSession,
&engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineOpen0 failed;Return value:%d.\n", __FUNCTION__,
result);
        return 0;
    }

    HANDLE enumHandle = NULL;
    result = FwpmSubLayerCreateEnumHandle0(engineHandle, NULL, &enumHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmSubLayerCreateEnumHandle, Return value:%d\n", __FUNCTION__,
result);
        FwpmEngineClose0(engineHandle);
        return 0;
    }

    UINT32 numEntriesReturned = 0;
    do
    {
        FWPM_SUBLAYER0** fwpmSubLayerList = NULL;
        numEntriesReturned = 0;
        result = FwpmSubLayerEnum0(engineHandle, enumHandle, 1, &fwpmSubLayerList,
&numEntriesReturned);
        if (result != ERROR_SUCCESS || numEntriesReturned == 0)
        {
            break;
        }

        std::string subLayerName =
boost::locale::conv::from_utf(fwpmSubLayerList[0]->displayData.name, "GBK");
        printf("[%s]subLayer name:%s\n", __FUNCTION__, subLayerName.c_str());
        FwpmFreeMemory0((void**)&fwpmSubLayerList);
    } while (numEntriesReturned > 0);

    result = FwpmSubLayerDestroyEnumHandle0(engineHandle, enumHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmSubLayerDestroyEnumHandle, Return value:%d\n",
__FUNCTION__, result);
        FwpmEngineClose0(engineHandle);
        return 0;
    }

    result = FwpmEngineClose0(engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineClose0 failed; Return value:%d\n", __FUNCTION__,
result);
        return 0;
    }
    printf("[%s]result Success\n", __FUNCTION__);
    return 0;
}

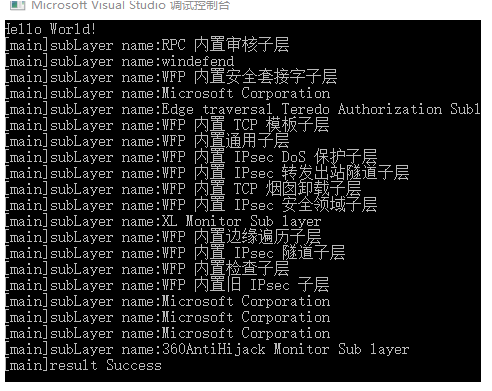

执行结果

在这里插入图片描述

枚举子层内所有过滤器

创建过滤器枚举器

DWORD FwpmFilterCreateEnumHandle0(
                                HANDLE engineHandle,
                                const FWPM_FILTER_ENUM_TEMPLATE0 *enumTemplate,
                                HANDLE *enumHandle
                    );

输入参数
- engineHandle：防火墙引擎句柄
- enumTemplate：过滤参数，可以为NULL
- enumHandle：枚举句柄，用于输出
输出参数
- ERROR_SUCCESS为成功

执行过滤器枚举

DWORD FwpmFilterEnum0(
                                HANDLE engineHandle,
                                HANDLE enumHandle,
                                UINT32 numEntriesRequested,
                                FWPM_FILTER0 ***entries,
                                UINT32 *numEntriesReturned
                    );

输入参数
- engineHandle：防火墙引擎句柄
- enumHandle：过滤器枚举句柄，FwpmFilterCreateEnumHandle0创建
- numEntriesRequested：本次请求过滤器个数
- entries：用于输出的过滤器数组，需要调用FwpmFreeMemory0释放
- numEntriesReturned：本次返回的过滤器个数
输出参数
- ERROR_SUCCESS为成功

销毁过滤器枚举器

DWORD FwpmFilterDestroyEnumHandle0(
                                HANDLE engineHandle,
                                HANDLE enumHandle
                );

输入参数
- engineHandle：防火墙引擎句柄
- enumHandle：过滤器枚举句柄，FwpmFilterCreateEnumHandle0创建
输出参数
- ERROR_SUCCESS为成功

参考代码

int main()
{
    std::cout << "Hello World!\n";

    HANDLE engineHandle = NULL;
    DWORD result = ERROR_SUCCESS;
    FWPM_SESSION0 fwpmSession;
    memset(&fwpmSession, 0, sizeof(FWPM_SESSION0));
    fwpmSession.flags = FWPM_SESSION_FLAG_DYNAMIC;

    result = FwpmEngineOpen0(NULL, RPC_C_AUTHN_DEFAULT, NULL, &fwpmSession,
&engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineOpen0 failed;Return value:%d.\n", __FUNCTION__,
result);
        return 0;
    }

    HANDLE enumHandle = NULL;
    result = FwpmFilterCreateEnumHandle0(engineHandle, NULL, &enumHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmFilterCreateEnumHandle0, Return value:%d\n", __FUNCTION__,
result);
        FwpmEngineClose0(engineHandle);
        return 0;
    }

    UINT32 numEntriesReturned = 0;
    do
    {
        FWPM_FILTER0** fwpmFilterList = NULL;
        numEntriesReturned = 0;
        result = FwpmFilterEnum0(engineHandle, enumHandle, 1, &fwpmFilterList,
&numEntriesReturned);
        if (result != ERROR_SUCCESS || numEntriesReturned == 0)
        {
            break;
        }
        std::string filterName =
boost::locale::conv::from_utf(fwpmFilterList[0]->displayData.name, "GBK");
        printf("[%s]filter name:%s\t filter count:%d\n", __FUNCTION__,
filterName.c_str(), fwpmFilterList[0]->numFilterConditions);
        FwpmFreeMemory0((void**)&fwpmFilterList);
    } while (numEntriesReturned > 0);

    result = FwpmFilterDestroyEnumHandle0(engineHandle, enumHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmFilterDestroyEnumHandle0, Return value:%d\n", __FUNCTION__,
result);
        FwpmEngineClose0(engineHandle);
        return 0;
    }

    result = FwpmEngineClose0(engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineClose0 failed; Return value:%d\n", __FUNCTION__,
result);
        return 0;
    }
    printf("[%s]result Success\n", __FUNCTION__);
    return 0;
}

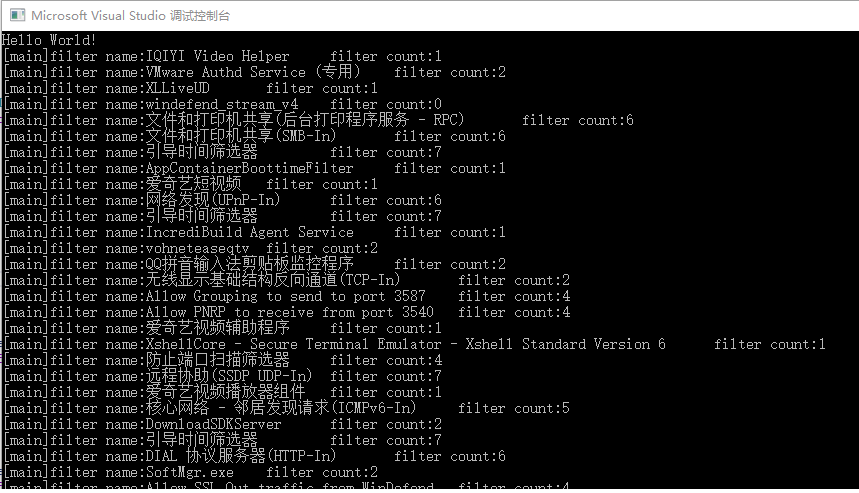

执行结果

添加和删除子层

添加子层

DWORD FwpmSubLayerAdd0(
                                HANDLE engineHandle,
                                const FWPM_SUBLAYER0 *subLayer,
                                PSECURITY_DESCRIPTOR sd
                );

输入参数
- engineHandle：防火墙引擎句柄
- subLayer：防火墙子层参数
- sd：安全描述符，可以为空
输出参数
- ERROR_SUCCESS为成功

删除子层

DWORD FwpmSubLayerDeleteByKey0(
                                            HANDLE engineHandle,
                                            const GUID *key
                        );

输入参数
- engineHandle：防火墙引擎
- key：防火墙要删除的GUID
输出参数
* ERROR_SUCCESS为成功

参考代码

int main()
{
    std::cout << "Hello World!\n";

    HANDLE engineHandle = NULL;
    DWORD result = ERROR_SUCCESS;
    FWPM_SESSION0 fwpmSession;
    memset(&fwpmSession, 0, sizeof(FWPM_SESSION0));
    fwpmSession.flags = FWPM_SESSION_FLAG_DYNAMIC;

    result = FwpmEngineOpen0(NULL, RPC_C_AUTHN_DEFAULT, NULL, &fwpmSession,
&engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineOpen0 failed;Return value:%d.\n", __FUNCTION__,
result);
        return 0;
    }

    FWPM_SUBLAYER0 insertSubLayer;
    memset(&insertSubLayer, 0, sizeof(FWPM_SUBLAYER0));
    insertSubLayer.subLayerKey = SUBLEYER_GUID;
    insertSubLayer.displayData.name = (wchar_t*)SUBLEYER_NAME;
    insertSubLayer.displayData.description = (wchar_t*)L"demo_sublayer_des";
    insertSubLayer.weight = 50;
    result = FwpmSubLayerAdd0(engineHandle, &insertSubLayer, NULL);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmSubLayerAdd0, Return value:%d\n", __FUNCTION__, result);
        FwpmEngineClose0(engineHandle);
        return 0;
    }
    printf("after
add\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\n");

    enumSubLayer(engineHandle);

    FwpmSubLayerDeleteByKey0(engineHandle, (const GUID*)&SUBLEYER_GUID);
    printf("after
del\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\n");

    enumSubLayer(engineHandle);
    result = FwpmEngineClose0(engineHandle);
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmEngineClose0 failed; Return value:%d\n", __FUNCTION__,
result);
        return 0;
    }

    printf("[%s]result Success\n", __FUNCTION__);
    return 0;
}

执行效果
添加之后

添加过滤器

过滤条件结构体

typedef struct FWPM_FILTER_CONDITION0_ {
                        GUID fieldKey;
                        FWP_MATCH_TYPE matchType;
                        FWP_CONDITION_VALUE0 conditionValue;
            } FWPM_FILTER_CONDITION0;

fieldKey：过滤器检测位置的GUID，参数定义与fwpmu.h，举例有如下几个，可以根据这几个值到对应头文件查看

GUID	含义
FWPM_CONDITION_ALE_APP_ID	全路径校验
FWPM_CONDITION_IP_LOCAL_PORT	本地传输端口号
FWPM_CONDITION_IP_REMOTE_PORT	远程传输端口号
FWPM_CONDITION_IP_LOCAL_ADDRESS	本地IP地址
FWPM_CONDITION_IP_REMOTE_ADDRESS	远程IP地址
FWPM_CONDITION_IP_PROTOCOL	协议类型

matchType：过滤器校验方式，常用的如下，其余的可以查FWP_MATCH_TYPE结构体。

TYPE	操作类型
FWP_MATCH_EQUAL	相等
FWP_MATCH_GREATER	大于
FWP_MATCH_LESS	小于
FWP_MATCH_GREATER_OR_EQUAL	大于等于
FWP_MATCH_LESS_OR_EQUAL	小于等于
FWP_MATCH_RANGE	范围内
FWP_MATCH_NOT_EQUAL	不等于

conditionValue：过滤器校验参数

过滤器结构体

typedef struct FWPM_FILTER0_ {
                        GUID filterKey;
                        FWPM_DISPLAY_DATA0 displayData;
                        UINT32 flags;
                        GUID *providerKey;
                        FWP_BYTE_BLOB providerData;
                        GUID layerKey;
                        GUID subLayerKey;
                        FWP_VALUE0 weight;
                        UINT32 numFilterConditions;
                        FWPM_FILTER_CONDITION0 *filterCondition;
                        FWPM_ACTION0 action;
                        union {
                            UINT64 rawContext;
                            GUID providerContextKey;
                        };
                        GUID *reserved;
                        UINT64 filterId;
                        FWP_VALUE0 effectiveWeight;
            } FWPM_FILTER0;

部分参数如下

filterKey：过滤器生效的位置GUID，如FWPM_LAYER_ALE_AUTH_CONNECT_V4，可以查看：Filter Layer Identifiers
layerKey：层GUID
subLayerKey：子层GUID
weight：过滤器权重
numFilterConditions：本次过滤器的数目
filterCondition：过滤器数组
action：过滤方式，FWP_ACTION_BLOCK：阻断，FWP_ACTION_PERMIT：放行。

开始防火墙操作事务

DWORD FwpmTransactionBegin0(
                            HANDLE engineHandle,
                            UINT32 flags
                );

输入参数
- engineHandle：过滤器句柄
- flags：读写标识。0为读写，FWPM_TXN_READ_ONLY为只读
输出参数
- ERROR_SUCCESS为成功，其它为错误码

添加过滤器

DWORD FwpmFilterAdd0(
                            HANDLE engineHandle,
                            const FWPM_FILTER0 *filter,
                            PSECURITY_DESCRIPTOR sd,
                            UINT64 *id
                );

输入参数
- engineHandle：过滤器句柄
- filter：过滤器参数结构体
- sd：安全句柄，可为空。
- id：输出参数，用于输出过滤器ID
输出参数
- ERROR_SUCCESS为成功，其它为错误码

提交防火墙操作事务

DWORD FwpmTransactionCommit0(
                                    HANDLE engineHandle
                        );

输入参数
- engineHandle：过滤器句柄
输出参数
- ERROR_SUCCESS为成功，其它为错误码

取消防火墙操作事务

DWORD FwpmTransactionAbort0(
                                    HANDLE engineHandle
                        );

输入参数
- engineHandle：过滤器句柄
输出参数
- ERROR_SUCCESS为成功，其它为错误码

参考代码

    const wchar_t* application_path = L"C:\\Program Files\\Internet
Explorer\\iexplore.exe";

    FWP_BYTE_BLOB* fwpApplicationBlob;
    result = FwpmGetAppIdFromFileName0(application_path, &fwpApplicationBlob);  //  fwpApplicationBlob需要FwpmFreeMemory释放
    if (result != ERROR_SUCCESS)
    {
        printf("[%s]FwpmGetAppIdFromFileName0, Return value:%d\n", __FUNCTION__,
result);
        FwpmEngineClose(engineHandle);
        return 0;
    }

    FWPM_FILTER0    fwpmFilter;
    FWPM_FILTER_CONDITION0 fwpmConditions[4] = {0};
    int conCount = 0;
    fwpmConditions[conCount].fieldKey = FWPM_CONDITION_ALE_APP_ID;
    fwpmConditions[conCount].matchType = FWP_MATCH_EQUAL;
    fwpmConditions[conCount].conditionValue.type = FWP_BYTE_BLOB_TYPE;
    fwpmConditions[conCount].conditionValue.byteBlob = fwpApplicationBlob;
    conCount++;

    memset(&fwpmFilter, 0, sizeof(FWPM_FILTER0));
    fwpmFilter.layerKey = FWPM_LAYER_ALE_AUTH_CONNECT_V4;
    fwpmFilter.subLayerKey = SUBLEYER_GUID;
    fwpmFilter.numFilterConditions = conCount;
    fwpmFilter.filterCondition = fwpmConditions;
    fwpmFilter.action.type = FWP_ACTION_BLOCK;
    fwpmFilter.weight.type = FWP_UINT64;

    UINT64 u64Weight = 80;
    fwpmFilter.weight.uint64 = &u64Weight;

    fwpmFilter.displayData.name = (wchar_t*)L"demo_filter";
    fwpmFilter.displayData.description = (wchar_t*)L"demo_filter";

    result = FwpmTransactionBegin0(engineHandle, 0);

    result = FwpmFilterAdd0(engineHandle, &fwpmFilter, NULL,
&(fwpmFilter.filterId));

    result = FwpmTransactionCommit0(engineHandle);

    enumFilter(engineHandle);

    FwpmFreeMemory0((void**)&fwpApplicationBlob);   //  释放

执行结果

在这里插入图片描述

原文链接：https://blog.csdn.net/QQ1113130712/article/details/116113910
