android测试命令,Android Instrument测试命令使用小记

1. Instrunent介绍

instrument为am命令的一个子命令。用于启动一个Instrumentation测试。首先连接手机或者模拟器,通过adb shell命令,进入shell层进行操作。

2. Instrument命令及参数

2.1 命令格式:

am instrument [-r][-e ][-p ] [-w] [--user|current] [--no-window-animation] [--abi ]

2.2 参数介绍:

-r :  打印原始结果(否则解码REPORT_KEY_STREAMRESULT)。使用[-e perf true]生成性能度量的原始输出。

-e :  设置参数。对于测试运行器常见的格式为:[-e [,...]]

-p :  将profiling性能数据写入到文件中。

-w:  等待测试完成。这是一个必选参数。

--user |current:  指定用户运行,如果不指定则使用当前用户运行。

--no-window-animation: 关掉运行时的窗口动画,e.g. 手机窗口滑动动画。

3 示例:

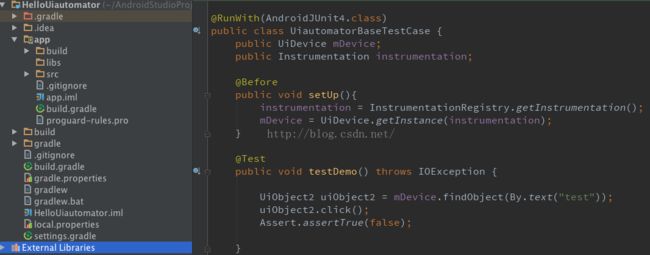

3.1 测试工程:


3.2 通过pm list instrumentation列出手机中安装的instrumentation:

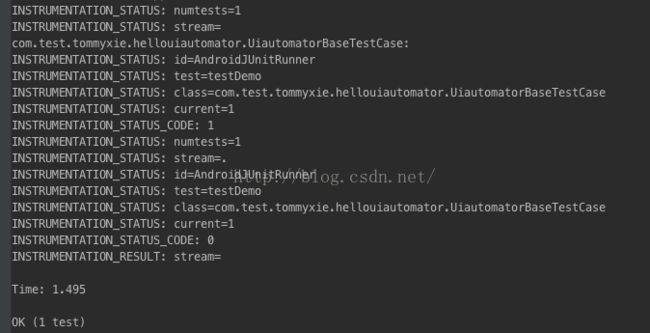

3.3 运行指定测试类,并输出详细结果,同时将profiling性能数据写到本地文件中:

am instrument -w -r -p /data/local/tmp/demo.trace -e class com.test.tommyxie.hellouiautomator.UiautomatorBaseTestCase com.test.tommyxie.hellouiautomator.test/android.support.test.runner.AndroidJUnitRunner

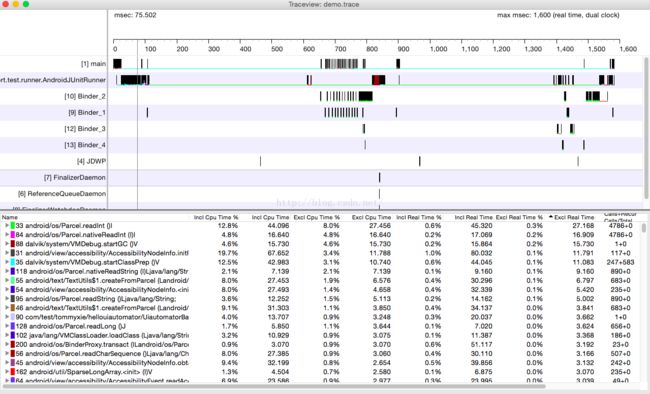

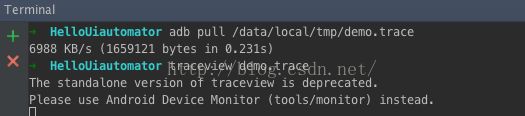

3.4 将trace文件拉取到本地,通过traceview工具打开:
