prometheus监控mysql

参考：使用exporter监控mysql，mysql预警指标，mysql预警指标2

安装及展示

主机配置

• 下载：https://prometheus.io/download/#mysqld_exporter

• 安装

  # 解压
  tar xf mysqld_exporter-0.12.1.linux-amd64.tar.gz -C /opt/apm/exporter/
  cd /opt/apm/exporter/
  # 整成软链接是为了方便后续升级软件
  ln -sv mysqld_exporter-0.12.1.linux-amd64/ mysqld_exporter


• mysql授权

  # 先生成一个随机密码
  [root@p1 ~]# openssl rand -base64 10
  tJmCRGczaLFaaw==		# 密码不要特殊字符

  # 登陆mariadb控制台
  MariaDB [(none)]> grant select,replication client,process ON *.* to 'mysql_monitor'@'127.0.0.1' identified by 'test';
  (注意:授权ip为localhost，因为不是prometheus服务器来直接找mariadb获取数据，而是prometheus服务器找mysql_exporter,mysql_exporter再找mariadb。所以这个localhost是指的mysql_exporter的IP)

  MariaDB [(none)]> flush privileges;
  Query OK, 0 rows affected (0.09 sec)


• mysql_exporter配置文件

  mysqld_exporter]# vim .my.cnf
  [client]
  hosts=127.0.0.1
  port=3306
  user=mysql_monitor
  password=test

  mysqld_exporter]# chmod 600 .mysql.cnf


• 启动脚本

  ]# cat mysql_exporter_script.sh
  #!/bin/bash
  #
  # Name: mysqld_exporter_start.sh
  # Version Number:1.01
  # Type: 用于启动mysqld_exporter
  # Language:bash shell
  # Date: 2021.06.10
  # Author: 梁正雄

  server_path=/opt/apm/exporter/mysqld_exporter

  start() {
      check_port=`ss -tnlp|grep 9104`
      [ $? -eq 0 ] && echo "alreadry start" && exit 0
      ${server_path}/mysqld_exporter --config.my-cnf=${server_path}/.mysql.cnf > ${server_path}/mysqld_exporter.log 2>&1
  }

  stop(){
      check_port=`ss -tnlp|grep 9104`
      [ $? -eq 0 ] && pkill mysqld_exporter && echo "mysqld_exporter stop" && exit 0
      echo "无操作，服务没有启动"
  }

  case $1 in
      start)
          start ;;
      stop)
          stop ;;
      *)
          echo "Inputs error";;
  esac


• systemctl脚本

  ]# cat mysqld-exporter.service
  [Unit]
  Description=mysqld_exporter
  # 这些服务必须在下面服务之后启动
  After=network.target

  [Service]
  Type=simple
  ExecStart=/opt/apm/exporter/mysqld_exporter/mysql_exporter_script.sh start
  ExecStop=/opt/apm/exporter/mysqld_exporter/mysql_exporter_script.sh stop

  [Install]
  WantedBy=multi-user.target

  ##########################################################
  # 自启目录
  cp mysqld-exporter.service /usr/lib/systemd/system/
  systemctl restart mysqld-exporter


• 检查启动状态

  mysqld_exporter]# tailf mysqld_exporter.log
  # 出现这行说明启动成功
  time="2021-06-10T10:00:25+08:00" level=info msg="Listening on :9104" source="mysqld_exporter.go:283"

  ]# ss -tnlp|grep 9104
  LISTEN 0 128 :::9104 :::* users:(("mysqld_exporter",pid=66688,fd=3))


prometheus

直接配置

prometheus]# vim prometheus.yml

  - job_name: 'mariadb'
    # 多久采集一次数据
    scrape_interval: 15s
    # 采集时的超时时间
    scrape_timeout: 10s
    static_configs:
    - targets: ['192.168.0.163:9104']

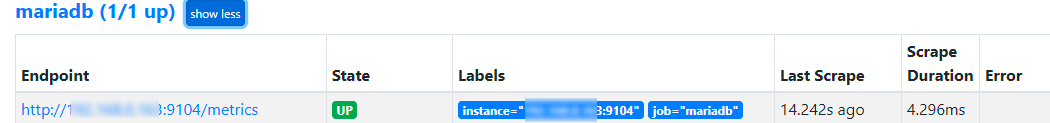

prometheus]# systemctl restart prometheus

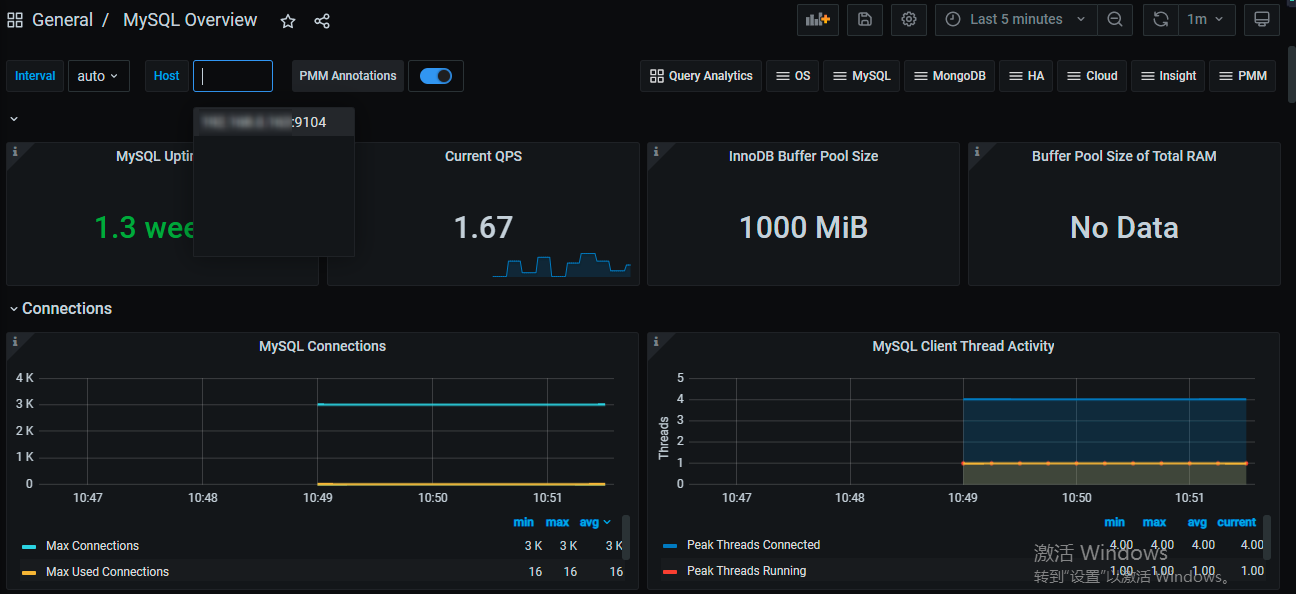

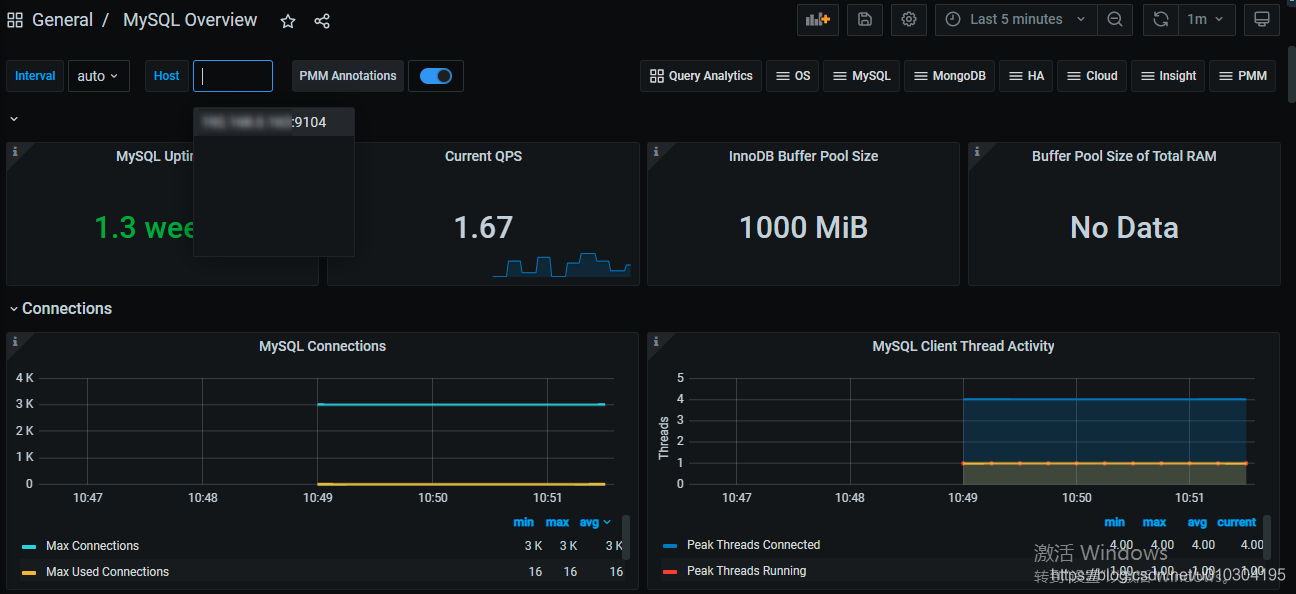

grafana

下载dashboard json文件,

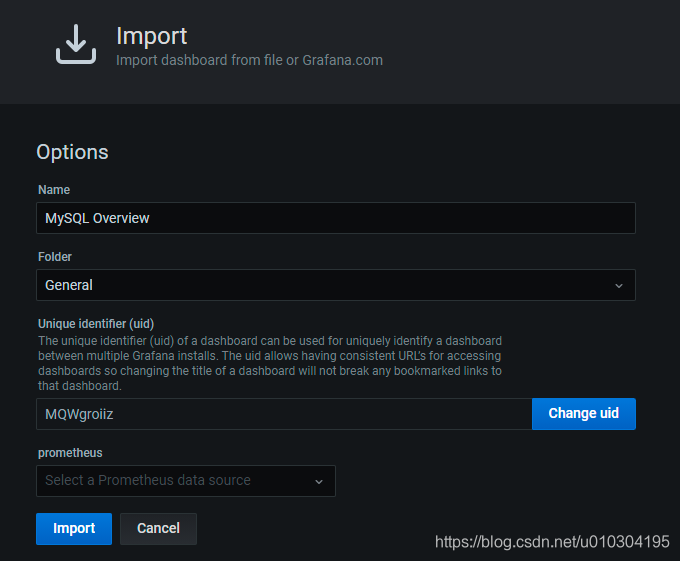

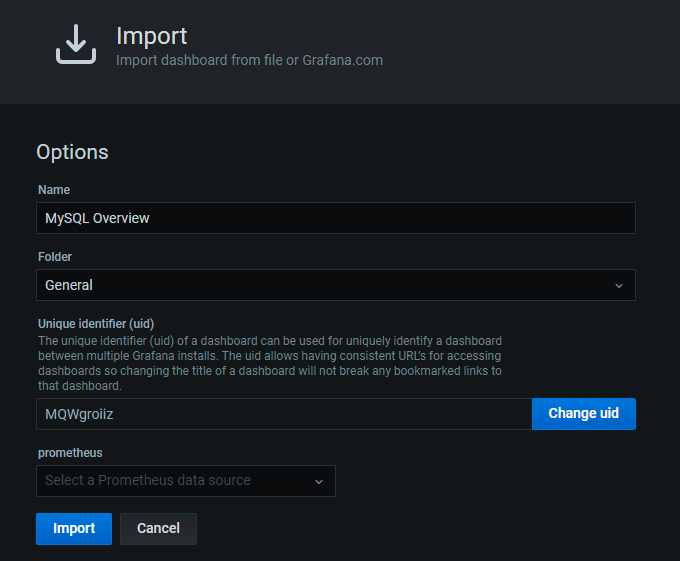

导入json文件

预警

MySQL报警规则

mysql_global_variables_max_connections： 允许的最大连接数；
mysql_global_status_threads_connected： 当前开放的连接；
mysql_global_status_threads_running：当前开放的连接；
mysql_global_status_aborted_connects：当前开放的连接；
mysql_global_status_connection_errors_total{error=”max_connections”}：由于超出最大连接数导致的错误；
mysql_global_status_connection_errors_total{error=”internal”}：由于系统内部导致的错误；

策略

groups:
- name: 数据库预警
  rules:
  - alert: "mysql下线"
    expr: mysql_up == 0
    for: 5m
    labels:
      severity: ERROR
      alert_host: "{{ reReplaceAll \":(.*)\" \"\" $labels.instance }}"
    annotations:
      description: "{{ $labels.alert_host }} 服务：mysql 已下线, 请立即处理"

  - alert: "打开文件数量偏高"
    expr: mysql_global_status_open_files > mysql_global_variables_open_files_limit * 0.95
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "{{ $labels.instance }} mysql服务打开文件数偏高"

  - alert: "缓冲区超过数据包最大限制"
    expr: mysql_global_variables_read_buffer_size > mysql_global_variables_slave_max_allowed_packet
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "{{ $labels.instance }} mysql服务读取缓存区超过数据包最大限制"

  - alert: "缓冲区配置错误"
    expr: mysql_global_variables_innodb_sort_buffer_size <256*1024 or mysql_global_variables_read_buffer_size > 4*1024*1024
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "{{ $labels.instance }} mysql服务排序缓冲区可能存在配置错误"

  - alert: "mysql连接数异常"
    expr: mysql_global_status_max_used_connections > mysql_global_variables_max_connections * 0.85
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "{{ $labels.instance }} mysql连接数已超过 85%"

  - alert: "mysql连接数异常"
    expr: mysql_global_status_max_used_connections > mysql_global_variables_max_connections * 0.95
    for: 5m
    labels:
      severity: ERROR
    annotations:
      description: "{{ $labels.instance }} mysql连接数已超过 95% 紧急请立即处理"

  - alert: "mysql流量预警"
    expr: rate(mysql_global_status_slow_queries[5m]) > 10
    for: 5m
    labels:
      severity: WARN
      alert_host: "{{ reReplaceAll \":(.*)\" \"\" $labels.instance }}"
    annotations:
      description: "节点 {{ $labels.instance }} mysql 5分钟内慢查询大于10秒"

  - alert: "mysql写入流量预警"
    expr: round(rate(mysql_global_status_bytes_received{job=~".*db"}[5m]) / 1024/1024*100)/100 > 200
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "{{ $labels.instance }} 流量5分钟内写入 平均值大于200MB"

  - alert: "mysql读查询预警"
    expr: round(rate(mysql_global_status_bytes_sent{job=~".*db"}[5m]) /1024/1024*100)/100 > 200
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "Mysql出口: {{ $labels.instance }}流量5分钟内平均值大于200MB, "

  - alert: "mysql事务CRUD预警"
    expr: sum(rate(mysql_global_status_commands_total{command=~"insert|update|delete",job=~".*db"}[5m])) without (command) > 200
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "{{ $labels.instance }} MySQL 写入提交速率，5分钟内平均大于200M, 当前: {{ $value }}M"

  - alert: "mysql查询预警"
    expr: rate(mysql_global_status_questions{job=~".*db"}[5m]) > 500
    for: 5m
    labels:
      severity: WARN
    annotations:
      description: "{{ $labels.instance }} MySQL 5分钟内查询速率大于500,当前 {{ $value }}M"
