DDR4 To DDR5
JEDEC DDR Generations
| DDR5 | DDR4 | DDR3 | LPDDR5 | |
|---|---|---|---|---|
| Max Die Density | 64Gb | 16Gb | 4Gb | 32Gb |
| Max UDIMM Size(DSDR) | 128GB | 32GB | 8GB | N/A |
| Max Data Rate | 6.4GT/s(8.4GT/s) | 3.2GT/s | 1.6GT/s | 6.4GT/s |
| Channels | 2 | 1 | 1 | 1 |
| Total Width(Non-ECC) | 32bits*2 | 64bits | 64bits | 16bits |
| Total Width(ECC) | 40bits*2 | 72bits | 72bits | - |
| Banks(Per Group) | 4 | 4 | 8 | 16 |
| Bank Groups | 8/4 | 4/2 | 1 | 4 |
| Burst Length | BL16(BL32) | BL8 | BL8 | BL16 |
| Voltage (Vdd) | 1.1v | 1.2v | 1.5v | 1.05v |
| Vddq | 1.1v | 1.2v | 1.5v | 0.5v |
| Vpp | 1.8v | 1.8v | - | - |

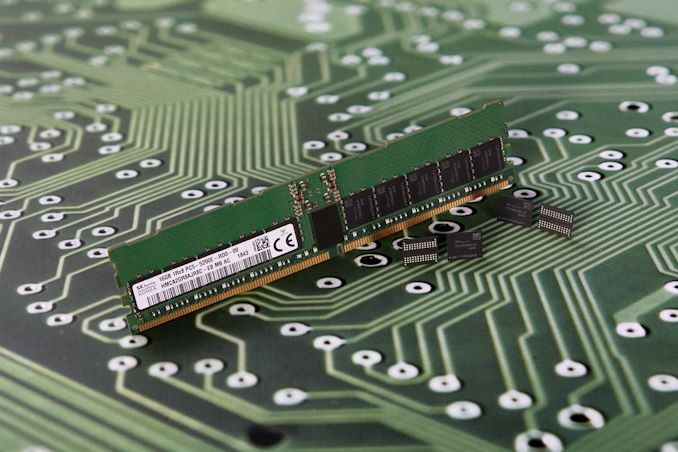

DDR5 At a Glance
Fewer CA pins - 14 pins now support 2 channels
7 CA pins per Channel to logical and 14 pins to DRAM
– Fully encoded Commands for DDR5 - CKE&ODT removed
1) New Command Truth Table 1&2 cycle commands
2) Module logic uses DDR and DRAM is always SDR
3) New High Speed sideband bus - I2C&I3C(12.5M)Two independent channels per DIMM - new for DDR5
– 2-40 bit Data paths per DIMM, each with 14 bits of Address&CommandHigher Density - Support for 8Gbit to 64Gbit Device
– TSV/3DS - 4H to 8H more memory address space than DDR4Higher Bandwidth - every generation doubles bits per second
– First reversion probably 4800Mbps
– 6400Mbps and possibly higher in later revisionsMore Reliable - On Die ECC

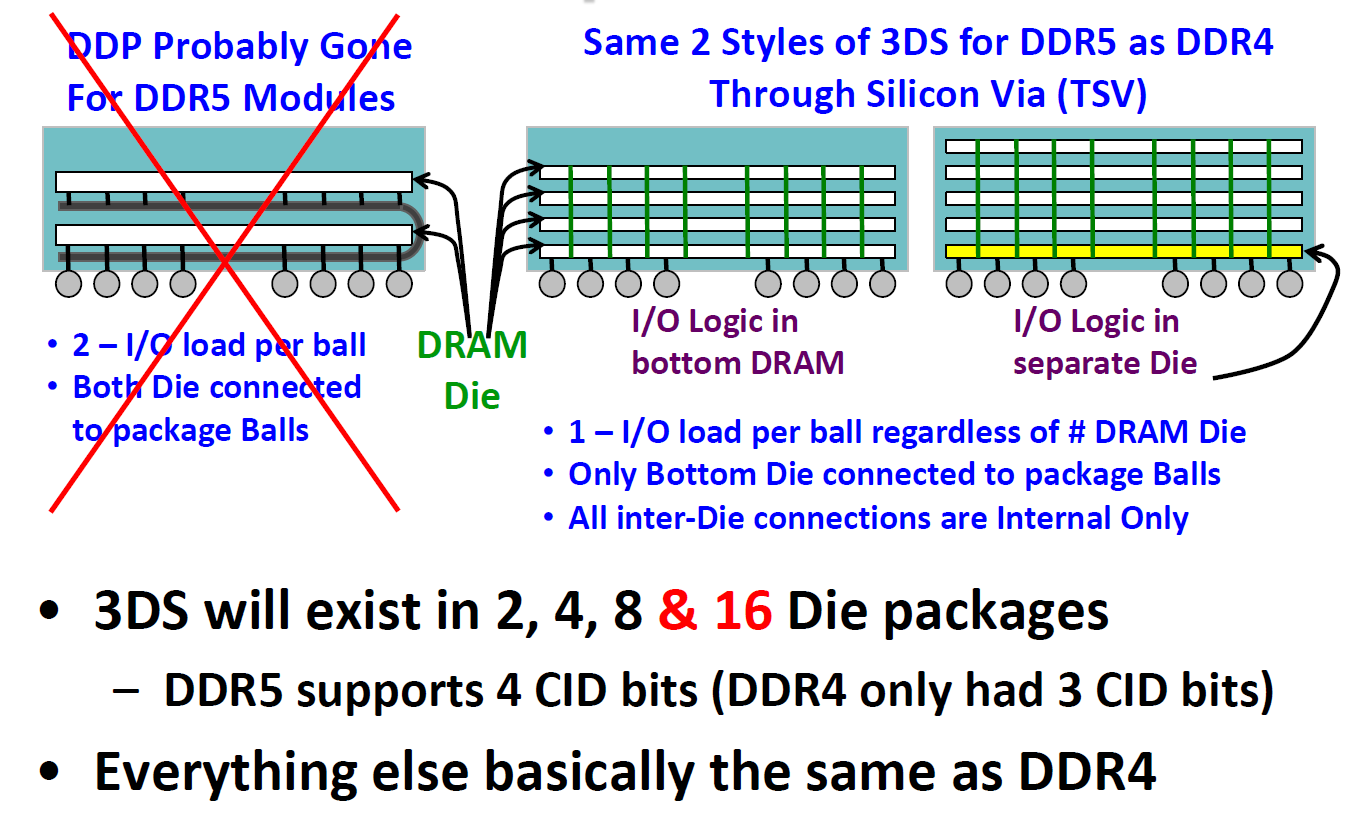

Multi-Die Options for DDR5
DDR5 will not have DDP Module
DDR5 and DDR4 LRDIMM Comparison
DDR5 DIMM Module have 288pins(no change from DDR4 to DDR5)

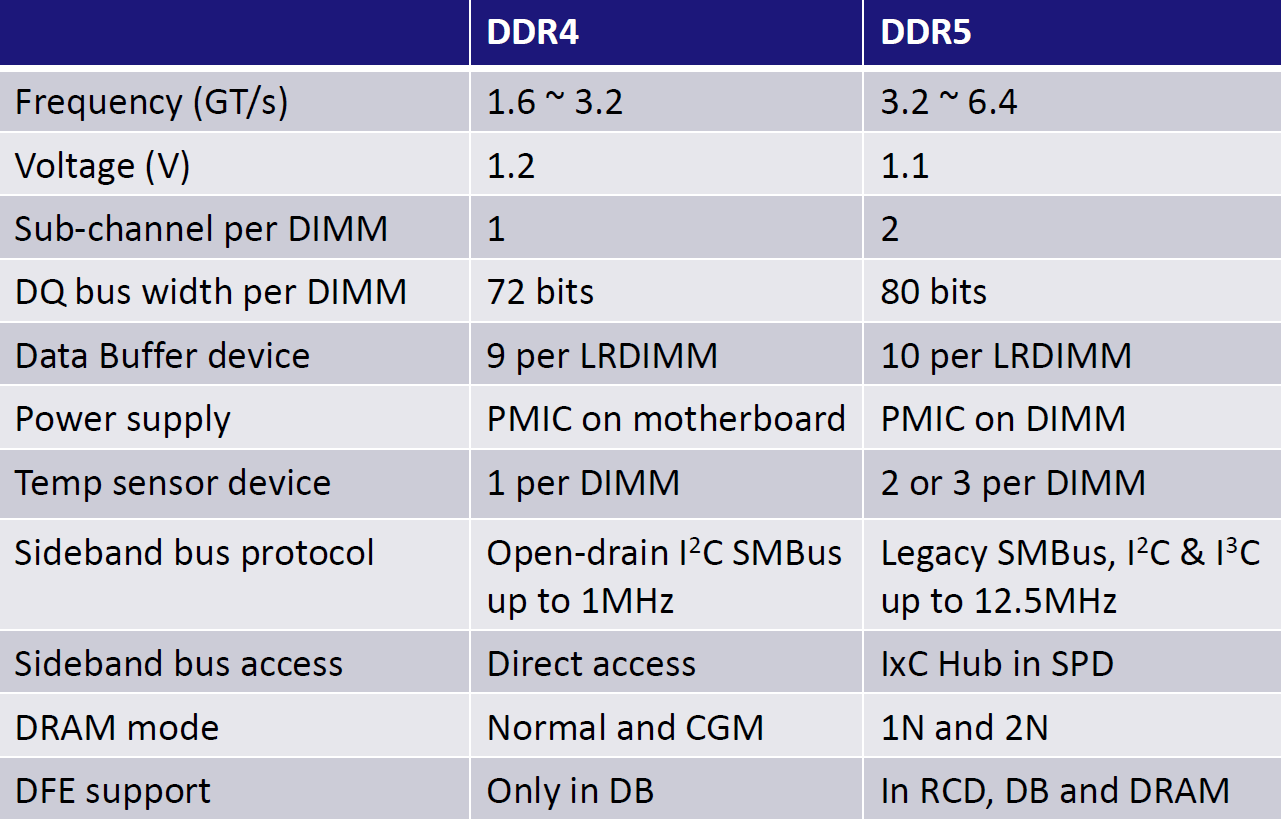

DIMM Changes from DDR4 to DDR5

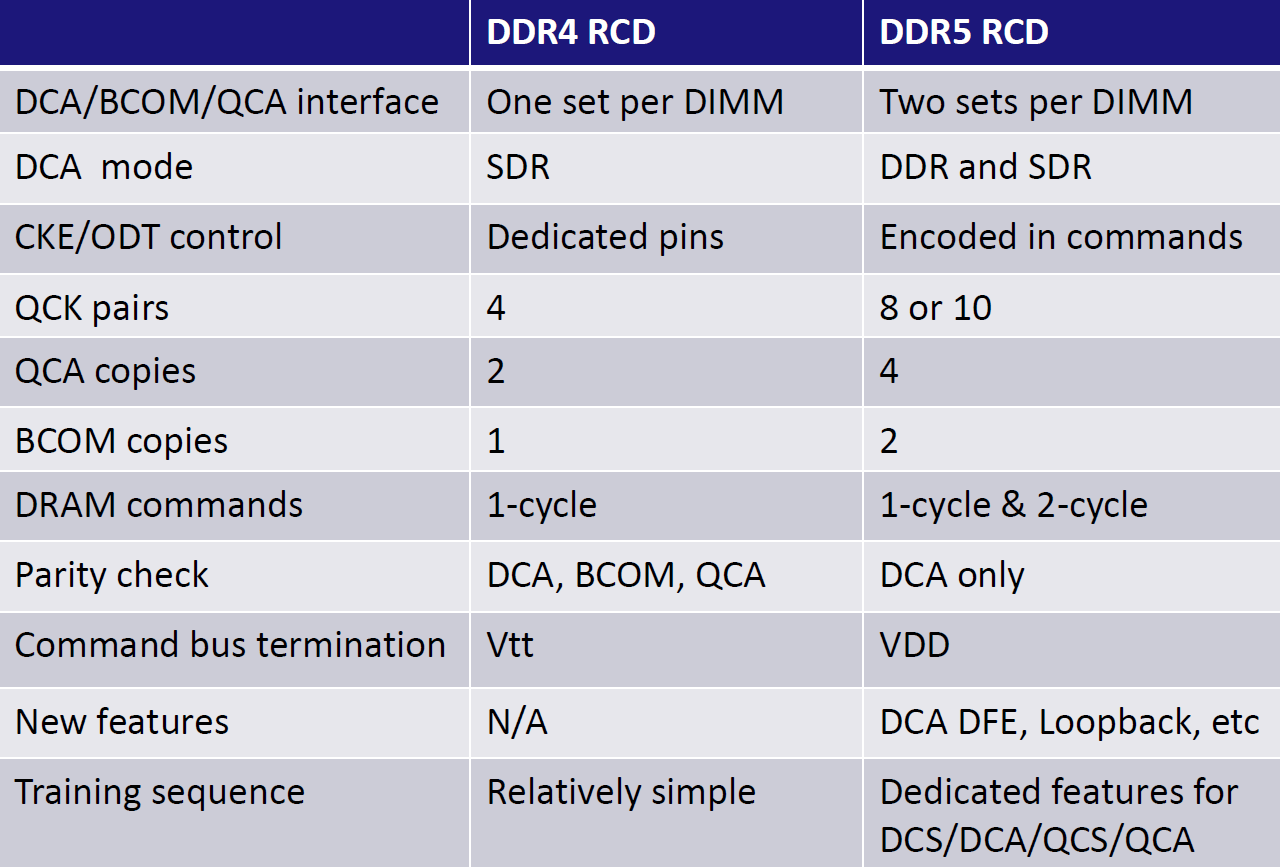

RCD Changes from DDR4 to DDR5
