springmvc atomikos mysql数据源_Spring多数据源分布式事务管理/springmvc+spring+atomikos[jta]+druid+mybatis...

项目进行读写分离及分库分表，在一个业务中，在一个事务中处理时候将切换多个数据源，需要保证同一事务多个数据源数据的一致性。此处使用atomikos来实现：最后附源码：

1：spring3.0之后不再支持jtom[jta]了，第三方开源软件atomikos(http://www.atomikos.com/)来实现．

2：org.springframework.transaction.jta.JotmFactoryBean类，spring-tx-2.5.6.jar中有此类，spring-tx-3.0.0.RELEASE.jar之后没有此类。

3：atomikos事务控制框架，其中看到有3种数据源，分别是，SimpleDataSourceBean,AtomikosDataSourceBean,AtomikosNonXADataSourceBean。

a:SimpleDataSourceBean: 这个是最简单地数据源配置,需要配置XA驱动。

b:AtomikosDataSourceBean: 分布式数据源,Atomikos实现的数据源，需要配置XA驱动，推荐此配置，可以配置连接池的信息。

c:AtomikosNonXADataSourceBean: 非分布式数据源,该数据源配置需要普通JDBC的驱动，可以配置连接池：

4：Atomikos支持XA(全局事务)和NON-XA(非全局事务)，NON-XA[nonxadatasource]效率高于XA.XA事务往往是包括多个数据源的全局事务，非XA是单个数据源的.

5：XA连接是一个JTA事务中的参与者。XA连接不支持JDBC的自动提交特性。也就是说应用程序不必在xadatasource[XA]连接上调用java.sql.Connection.commit()或java.sql.Connection.rollback()；而应用程序应该使用UserTransaction.begin(),UserTransaction.commit()和UserTransaction.rollback().

看看pom.xml依赖：

org.springframework

spring-tx

4.2.5.RELEASE

javax.transaction

jta

1.1

com.atomikos

atomikos-util

4.0.2

com.atomikos

transactions

4.0.2

com.atomikos

transactions-jta

4.0.2

com.atomikos

transactions-jdbc

4.0.2

com.atomikos

transactions-api

4.0.2

cglib

cglib-nodep

3.2.2

1：AtomikosDataSourceBean[XA(全局事务)]数据源配置datasource-context.xml：

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"

xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"

xmlns:aop="http://www.springframework.org/schema/aop"

xsi:schemaLocation="http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd

http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-4.0.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-4.0.xsd

http://www.springframework.org/schema/tx

http://www.springframework.org/schema/tx/spring-tx-4.0.xsd

http://www.springframework.org/schema/aop

http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true">

配置主-从数据源信息

${jdbc.driverClassName}

${master.jdbc.url}

${jdbc.password}

${jdbc.username}

60000

${validationQuery}

false

true

1800

true

mergeStat

${jdbc.driverClassName}

${slave.jdbc.url}

${jdbc.password}

${jdbc.username}

60000

${validationQuery}

false

true

1800

true

mergeStat

2：spring主配置文件spring-context.xml:

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"

xmlns:context="http://www.springframework.org/schema/context"

xmlns:aop="http://www.springframework.org/schema/aop"

xmlns:mvc="http://www.springframework.org/schema/mvc"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-3.2.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-3.2.xsd

http://www.springframework.org/schema/aop

http://www.springframework.org/schema/aop/spring-aop-3.2.xsd

http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">

3:数据源配置参数database.properties:

#mysql-Used to verify the effectiveness of the database connection

validationQuery=SELECT 1

jdbc.initialSize=5

jdbc.maxActive=20

jdbc.maxWait=60000

jdbc.poolPreparedStatements=false

jdbc.poolMaximumIdleConnections=0

jdbc.driverClassName=org.gjt.mm.mysql.Driver

jdbc.xaDataSourceClassName=com.alibaba.druid.pool.xa.DruidXADataSource

#jdbc.xaDataSourceClassName=com.mysql.jdbc.jdbc2.optional.MysqlXADataSource

#1.tms business. 2.The db level optimization,data concurrency,desirable.

master.jdbc.url=jdbc:mysql://your ip:3306/master?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull

slave.jdbc.url=jdbc:mysql://your ip:3306/slave?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull

jdbc.username=username

jdbc.password=password4:mybatis的配置mybatis-context.xml：

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:context="http://www.springframework.org/schema/context"

xmlns:mvc="http://www.springframework.org/schema/mvc"

xmlns:tx="http://www.springframework.org/schema/tx"

xmlns:aop="http://www.springframework.org/schema/aop"

xsi:schemaLocation="http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd

http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-4.0.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-4.0.xsd

http://www.springframework.org/schema/tx

http://www.springframework.org/schema/tx/spring-tx-4.0.xsd

http://www.springframework.org/schema/aop

http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true">

MyBatis的数据库持久层配置/配置主-从数据源

配置mybatis-config(此代码，只为测试分布式事务，并不涉及真实的业务！！！)：

mybatis-config-master.xml：

mybatis-config-slave.xml

5：Mapper的管理及注入，为mybatis的dao层mapper接口注入[绑定]sqlSessionFactory：

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:context="http://www.springframework.org/schema/context"

xmlns:mvc="http://www.springframework.org/schema/mvc"

xmlns:tx="http://www.springframework.org/schema/tx"

xmlns:aop="http://www.springframework.org/schema/aop"

xsi:schemaLocation="http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd

http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-4.0.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-4.0.xsd

http://www.springframework.org/schema/tx

http://www.springframework.org/schema/tx/spring-tx-4.0.xsd

http://www.springframework.org/schema/aop

http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true">

MyBatis为不同的mapper注入sqlSessionFactory

6：atomikos事务配置transaction-context.xml：

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"

xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"

xmlns:aop="http://www.springframework.org/schema/aop"

xsi:schemaLocation="http://www.springframework.org/schema/mvc

http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd

http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-4.0.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-4.0.xsd

http://www.springframework.org/schema/tx

http://www.springframework.org/schema/tx/spring-tx-4.0.xsd

http://www.springframework.org/schema/aop

http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true">

配置事物

true

7：配置jta启动参数在src下，最后追加详细：

com.atomikos.icatch.service=com.atomikos.icatch.standalone.UserTransactionServiceFactory

com.atomikos.icatch.console_file_name = /home/logs/tx/tx.out.log

com.atomikos.icatch.log_base_name = txlog

com.atomikos.icatch.tm_unique_name = com.atomikos.spring.jdbc.tm

com.atomikos.icatch.console_log_level=DEBUG8：代码(部分不涉及代码已删除)：

a:mybatis的mapper和dao接口[MemberMapper/MemberInfoMapper]：

package com.tx.dao;

import com.tx.entity.Member;

public interface MemberMapper {

int insert(Member record);

}

package com.tx.dao;

import com.tx.entity.MemberInfo;

public interface MemberInfoMapper {

int insert(MemberInfo record);

}

id, username, password, status

insert into member (id, username, password,

status)

values (#{id,jdbcType=INTEGER}, #{username,jdbcType=VARCHAR}, #{password,jdbcType=VARCHAR},

#{status,jdbcType=TINYINT})

id, nickname, realname, age

insert into member_info (id, nickname, realname,

age)

values (#{id,jdbcType=INTEGER}, #{nickname,jdbcType=VARCHAR}, #{realname,jdbcType=VARCHAR},

#{age,jdbcType=TINYINT})

b:服务层接口和实现：

package com.tx.sevice;

import com.tx.entity.Member;

import com.tx.entity.MemberInfo;

public interface MemberService {

boolean registerMember(Member member, MemberInfo memberInfo);

}

package com.tx.sevice.impl;

import org.slf4j.Logger;

import org.slf4j.LoggerFactory;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.stereotype.Service;

import com.tx.dao.MemberInfoMapper;

import com.tx.dao.MemberMapper;

import com.tx.entity.Member;

import com.tx.entity.MemberInfo;

import com.tx.sevice.MemberService;

@Service("memberService")

public class MemberServiceImpl implements MemberService {

//log

private static final Logger LOG = LoggerFactory.getLogger(MemberServiceImpl.class);

@Autowired

private MemberMapper memberMapper;

@Autowired

private MemberInfoMapper memberInfoMapper;

@Override

public boolean registerMember(Member member, MemberInfo memberInfo) {

boolean resRegister = false;

try {

if(memberMapper.insert(member) != 1){

throw new RuntimeException("注册用户:Member表数据插入不一致.");

}

if(memberInfoMapper.insert(memberInfo) != 1){

throw new RuntimeException("注册用户:MemberInfo表数据插入不一致.");

}

resRegister = true;

} catch (Exception e) {

LOG.info("注册用户:数据库保存异常." + e.getMessage(), e);

throw new RuntimeException("注册用户:数据库保存异常");

}

return resRegister;

}

}c：junit测试代码：

package com.tx.test;

import org.junit.Test;

import org.junit.runner.RunWith;

import org.slf4j.Logger;

import org.slf4j.LoggerFactory;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.test.context.ContextConfiguration;

import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import com.tx.entity.Member;

import com.tx.entity.MemberInfo;

import com.tx.sevice.MemberService;

@RunWith(SpringJUnit4ClassRunner.class)

@ContextConfiguration(locations = {"classpath:spring-context.xml","classpath:datasource-context.xml",

"classpath:mybatis-context.xml","classpath:mapper-context.xml","classpath:transaction-context.xml"})

public class JTATest {

//log

private static final Logger LOG = LoggerFactory.getLogger(JTATest.class);

@Autowired

private MemberService memberService;

@Test

public void testRegister(){

Member member = new Member();

member.setId(2);

member.setUsername("童可可");

member.setPassword("12345678");

member.setStatus((byte)0);

MemberInfo memberInfo = new MemberInfo();

memberInfo.setId(2);

memberInfo.setAge((byte)25);

memberInfo.setNickname("keke");

memberInfo.setRealname("童可可");

if(memberService.registerMember(member, memberInfo)){

LOG.info("##用户注册成功");

}else{

LOG.info("##用户注册失败");

}

}注：通过主键重复可以测试回滚，数据没问题，正常提交不同数据库！log4j和web.xml和sql,其他代码：Spring实现数据库读写分离/spring事务配置解释

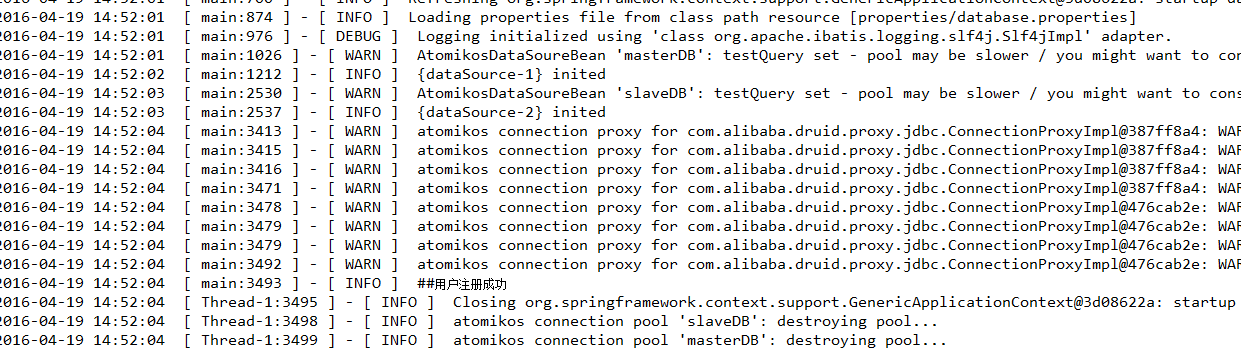

效果图：

执行前，master数据库：

执行前，slave数据库：

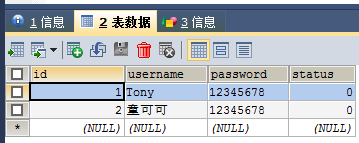

执行后，master数据库：

执行后，slave数据库：

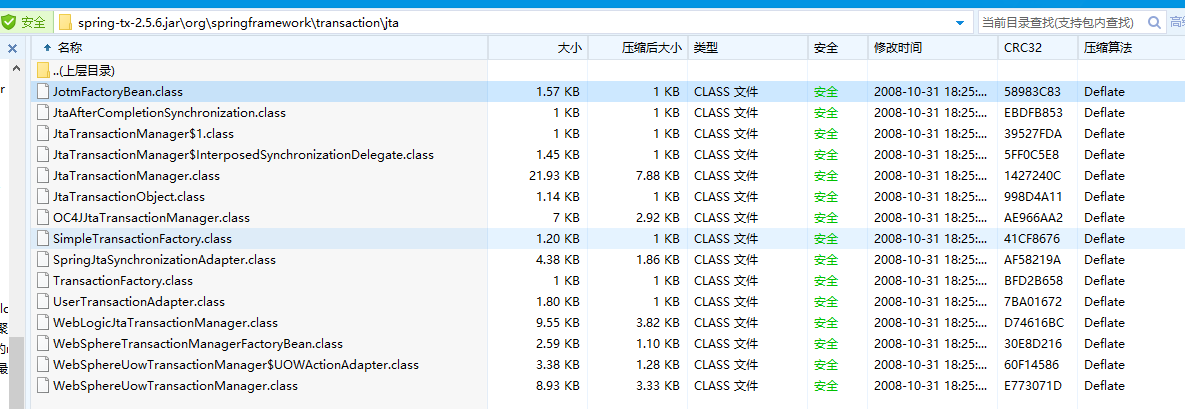

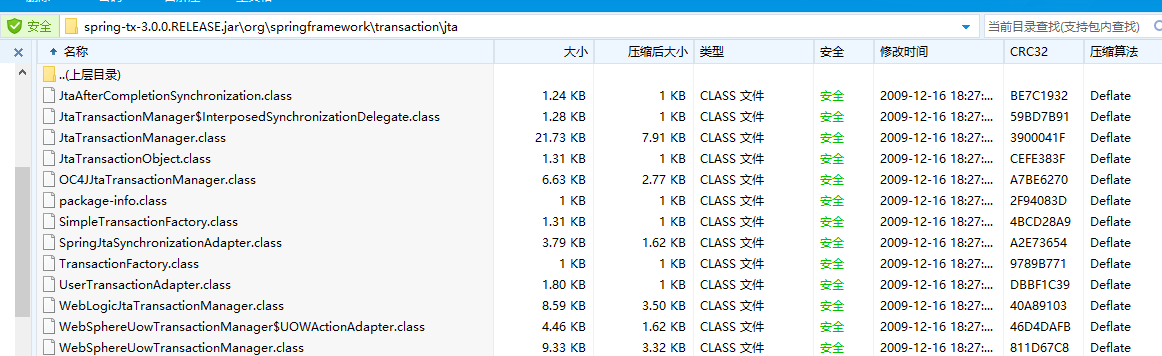

spring-tx-2.5.6.jar和spring-tx-3.0.0.RELEASE.jar目录：

jta.properties启动参数：

# SAMPLE PROPERTIES FILE FOR THE TRANSACTION SERVICE

# THIS FILE ILLUSTRATES THE DIFFERENT SETTINGS FOR THE TRANSACTION MANAGER

# UNCOMMENT THE ASSIGNMENTS TO OVERRIDE DEFAULT VALUES;

# Required: factory implementation class of the transaction core.

# NOTE: there is no default for this, so it MUST be specified!

com.atomikos.icatch.service=com.atomikos.icatch.standalone.UserTransactionServiceFactory

# Set base name of file where messages are output

# (also known as the 'console file').

com.atomikos.icatch.console_file_name = tm.out

# Size limit (in bytes) for the console file;

# negative means unlimited.

# com.atomikos.icatch.console_file_limit=-1

# For size-limited console files, this option

# specifies a number of rotating files to

# maintain.

# com.atomikos.icatch.console_file_count=1

# Set the number of log writes between checkpoints

# com.atomikos.icatch.checkpoint_interval=500

# Set output directory where console file and other files are to be put

# make sure this directory exists!

# com.atomikos.icatch.output_dir = ./

# Set directory of log files; make sure this directory exists!

# com.atomikos.icatch.log_base_dir = ./

# Set base name of log file

# this name will be used as the first part of

# the system-generated log file name

com.atomikos.icatch.log_base_name = tmlog

# Set the max number of active local transactions

# or -1 for unlimited.

# com.atomikos.icatch.max_actives = 50

# Set the default timeout (in milliseconds) for local transactions

# com.atomikos.icatch.default_jta_timeout = 10000

# Set the max timeout (in milliseconds) for local transactions

# com.atomikos.icatch.max_timeout = 300000

# The globally unique name of this transaction manager process

# override this value with a globally unique name

com.atomikos.icatch.tm_unique_name = tm

# Do we want to use parallel subtransactions? JTA's default

# is NO for J2EE compatibility

# com.atomikos.icatch.serial_jta_transactions=true

# If you want to do explicit resource registration then

# you need to set this value to false.

# com.atomikos.icatch.automatic_resource_registration=true

# Set this to WARN, INFO or DEBUG to control the granularity

# of output to the console file.

com.atomikos.icatch.console_log_level=INFO

# Do you want transaction logging to be enabled or not?

# If set to false, then no logging overhead will be done

# at the risk of losing data after restart or crash.

# com.atomikos.icatch.enable_logging=true

# Should two-phase commit be done in (multi-)threaded mode or not?

# Set this to false if you want commits to be ordered according

# to the order in which resources are added to the transaction.

# NOTE: threads are reused on JDK 1.5 or higher.

# For JDK 1.4, thread reuse is enabled as soon as the

# concurrent backport is in the classpath - see

# http://mirrors.ibiblio.org/pub/mirrors/maven2/backport-util-concurrent/backport-util-concurrent/

# com.atomikos.icatch.threaded_2pc=false

# Should shutdown of the VM trigger shutdown of the transaction core too?

# com.atomikos.icatch.force_shutdown_on_vm_exit=false

分布式事务操作之Spring+JTA可参照: http://www..com/wangyong/p/4174326.html

Atomikos 中文说明文档：http://blog..net/sun8288/article/details/8674016

源代码：Spring多数据源分布式事务管理

原文链接：https://blog.csdn.net/weixin_35651471/article/details/113542098
