8.跨域 虚拟专用网 Option-A方案配置案例

跨域 虚拟专用网 Option-A方案配置案例

一、实验规划

如下方拓扑所示，共分为4个AS。PE1、P1和ASBR1属于AS100，PE2、P2和ASBR2属于AS200。CE1和CE2属于同一个VPN，CE1通过AS100的PE1接入，CE2通过AS200 的PE2接入，其分别属于AS65001与AS65002。

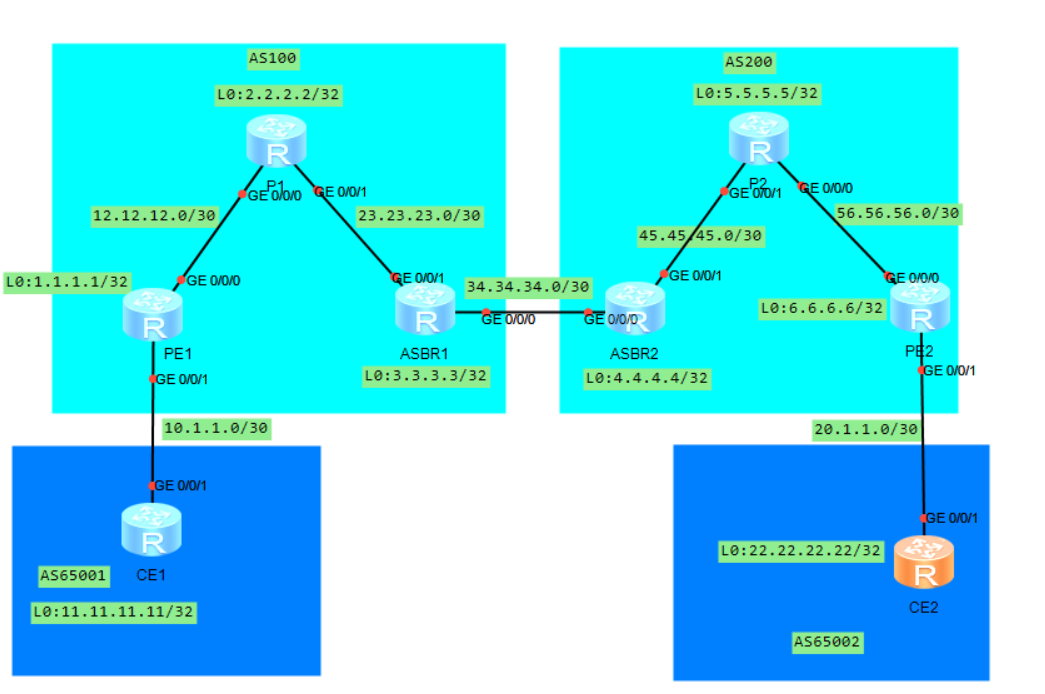

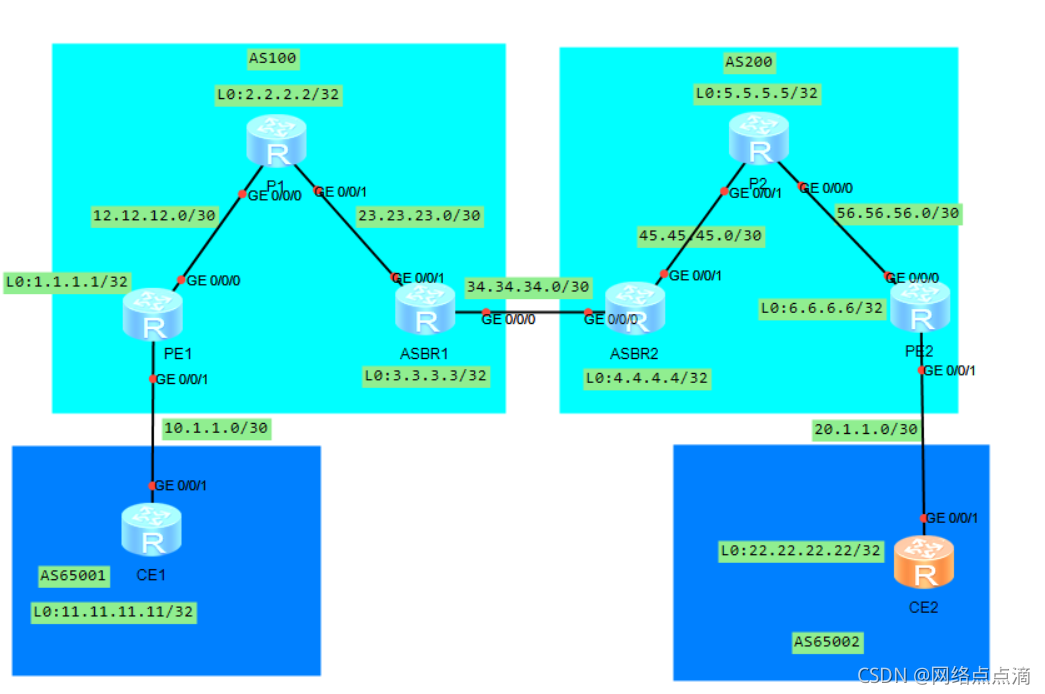

二、拓扑图

在这里插入图片描述

三、配置各接口IP地址

1.配置CE1

 sysname CE1 #配置主机名

interface GigabitEthernet0/0/1
 ip address 10.1.1.1 255.255.255.252
#
interface LoopBack0
 ip address 11.11.11.11 255.255.255.255



2.配置PE1

#
interface GigabitEthernet0/0/0
 ip address 12.12.12.1 255.255.255.252
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255



3.配置P1

interface GigabitEthernet0/0/0
 ip address 12.12.12.2 255.255.255.252
#
interface GigabitEthernet0/0/1
 ip address 23.23.23.1 255.255.255.252
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255



4.配置ASBR1

interface GigabitEthernet0/0/1
 ip address 23.23.23.2 255.255.255.252
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255



5.配置ASBR2

interface GigabitEthernet0/0/1
 ip address 45.45.45.1 255.255.255.252
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255



6.配置P2

interface GigabitEthernet0/0/0
 ip address 56.56.56.1 255.255.255.252

interface GigabitEthernet0/0/1
 ip address 45.45.45.2 255.255.255.252
#
interface LoopBack0
 ip address 5.5.5.5 255.255.255.255



7.配置PE2

interface GigabitEthernet0/0/0
 ip address 56.56.56.2 255.255.255.252
#
interface LoopBack0
 ip address 6.6.6.6 255.255.255.255



8.配置CE2

interface GigabitEthernet0/0/1
 ip address 20.1.1.2 255.255.255.252
#
interface LoopBack0
 ip address 22.22.22.22 255.255.255.255




四、配置OSPF

1.PE1配置

ospf 1 router-id 1.1.1.1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 12.12.12.0 0.0.0.3



2.P1配置

ospf 1 router-id 2.2.2.2
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 12.12.12.0 0.0.0.3
  network 23.23.23.0 0.0.0.3



3.ASBR1配置

ospf 1 router-id 3.3.3.3
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 23.23.23.0 0.0.0.3



4.ASBR2配置

ospf 1 router-id 4.4.4.4
 area 0.0.0.0
  network 4.4.4.4 0.0.0.0
  network 45.45.45.0 0.0.0.3



5.P2配置

ospf 1 router-id 5.5.5.5
 area 0.0.0.0
  network 5.5.5.5 0.0.0.0
  network 45.45.45.0 0.0.0.3
  network 56.56.56.0 0.0.0.3



6.PE2配置

ospf 1 router-id 6.6.6.6
 area 0.0.0.0
  network 6.6.6.6 0.0.0.0
  network 56.56.56.0 0.0.0.3




五、使能MPLS/MPLS LDP

1.配置PE1

mpls lsr-id 1.1.1.1
mpls
#
mpls ldp

interface GigabitEthernet0/0/0
 mpls
 mpls ldp



2.配置P1

mpls lsr-id 2.2.2.2
mpls
#
mpls ldp
#
interface GigabitEthernet0/0/0
 ip address 12.12.12.2 255.255.255.252
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 ip address 23.23.23.1 255.255.255.252
 mpls
 mpls ldp



3.配置ASBR1

mpls lsr-id 3.3.3.3
mpls
#
mpls ldp
#
interface GigabitEthernet0/0/1
 ip address 23.23.23.2 255.255.255.252
 mpls
 mpls ldp
#



4.配置ASBR2

mpls lsr-id 4.4.4.4
mpls
#
mpls ldp
#
interface GigabitEthernet0/0/0
 ip binding vpn-instance huawei
 ip address 34.34.34.2 255.255.255.252
#
interface GigabitEthernet0/0/1
 ip address 45.45.45.1 255.255.255.252
 mpls
 mpls ldp



5.配置P2

mpls lsr-id 5.5.5.5
mpls
#
mpls ldp
#
interface GigabitEthernet0/0/0
 ip address 56.56.56.1 255.255.255.252
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 ip address 45.45.45.2 255.255.255.252
 mpls
 mpls ldp



6.配置PE2

mpls lsr-id 6.6.6.6
mpls
#
mpls ldp
#
interface GigabitEthernet0/0/0
 ip address 56.56.56.2 255.255.255.252
 mpls
 mpls ldp




六、配置IBGP/MP-BGP

1.PE1配置

bgp 100
 peer 3.3.3.3 as-number 100 #配置PE1与ASBR1之间的IBGP邻居关系
 peer 3.3.3.3 connect-interface LoopBack0 #配置建立对等体的接口为looback 0；
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
 #
 ipv4-family vpnv4 #进入BGP的VPNv4视图
  policy vpn-target
  peer 3.3.3.3 enable #使能PE1与ASBR1的MP-IBGP邻居



2.ASBR1配置

bgp 100
 peer 1.1.1.1 as-number 100
 peer 1.1.1.1 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.1 enable
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 1.1.1.1 enable



3.PE2配置

bgp 200
 peer 4.4.4.4 as-number 200
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 4.4.4.4 enable
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 4.4.4.4 enable



4.ASBR2配置

bgp 200
 peer 6.6.6.6 as-number 200
 peer 6.6.6.6 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 6.6.6.6 enable
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 6.6.6.6 enable




七、配置VPN实例

1.PE1配置

ip vpn-instance huawei #创建VPN实例
 ipv4-family
  route-distinguisher 100:1 #配置RD属性
  vpn-target 100:1 export-extcommunity #配置RT属性
  vpn-target 100:1 import-extcommunity

interface GigabitEthernet0/0/1 #接口绑定VPN实例，注意绑定VPN实例后，接口的所有配置都将被清空
 ip binding vpn-instance huawei
 ip address 10.1.1.2 255.255.255.252

&nsbp;

2.ASBR1配置

ip vpn-instance huawei
 ipv4-family
  route-distinguisher 100:1
  vpn-target 100:1 export-extcommunity
  vpn-target 100:1 import-extcommunity

interface GigabitEthernet0/0/0
 ip binding vpn-instance huawei
 ip address 34.34.34.1 255.255.255.252

&nsbp;

3.ASBR2配置

#
ip vpn-instance huawei
 ipv4-family
  route-distinguisher 100:1
  vpn-target 100:1 export-extcommunity
  vpn-target 100:1 import-extcommunity

interface GigabitEthernet0/0/0
 ip binding vpn-instance huawei
 ip address 34.34.34.2 255.255.255.252

&nsbp;

4.PE2配置

ip vpn-instance huawei
 ipv4-family
  route-distinguisher 100:1
  vpn-target 100:1 export-extcommunity
  vpn-target 100:1 import-extcommunity

interface GigabitEthernet0/0/1
 ip binding vpn-instance huawei
 ip address 20.1.1.1 255.255.255.252




八、VPN实例配置EBGP

1.PE1配置

bgp 100
 #
 ipv4-family vpn-instance huawei
  peer 10.1.1.1 as-number 65001 #配置PE1与CE1的BGP邻居关系
#



2.CE1配置

bgp 65001
 peer 10.1.1.2 as-number 100
 #
 ipv4-family unicast
  undo synchronization
  network 11.11.11.11 255.255.255.255
  peer 10.1.1.2 enable



3.ASBR1配置

bgp 100 #配置ASBR1与ASBR2的BGP邻居关系
 ipv4-family vpn-instance huawei
  peer 34.34.34.2 as-number 200



4.ASBR2配置

bgp 200
 ipv4-family vpn-instance huawei
  peer 34.34.34.1 as-number 100



5.PE2配置

bgp 200
 ipv4-family vpn-instance huawei
  peer 20.1.1.2 as-number 65002



6.CE2配置

bgp 65002
 peer 20.1.1.1 as-number 200
 #
 ipv4-family unicast
  undo synchronization
  network 22.22.22.22 255.255.255.255
  peer 20.1.1.1 enable




九、结果验证

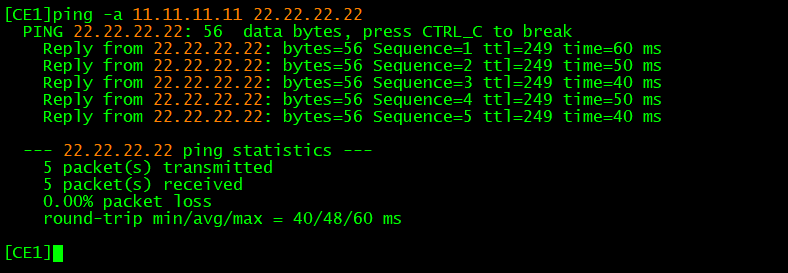

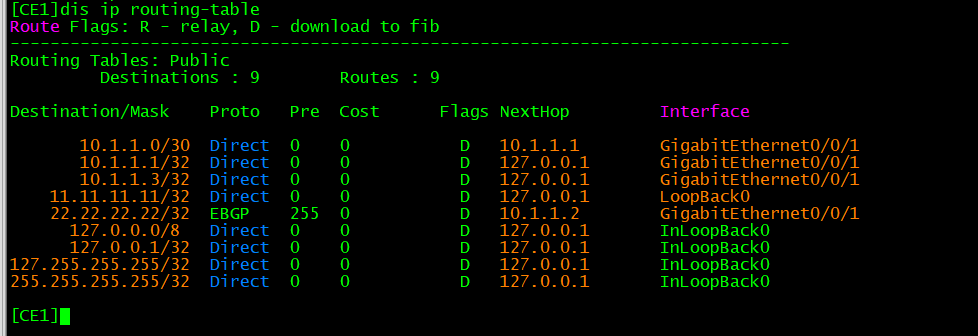

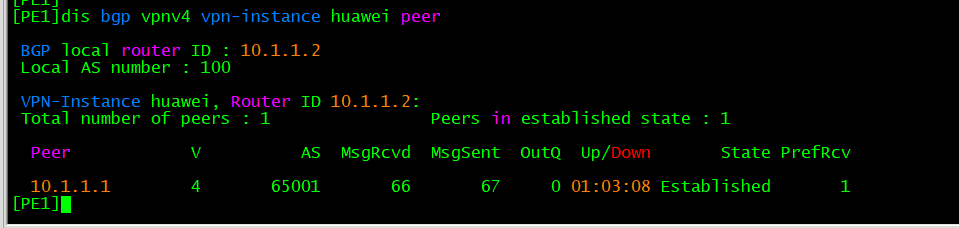

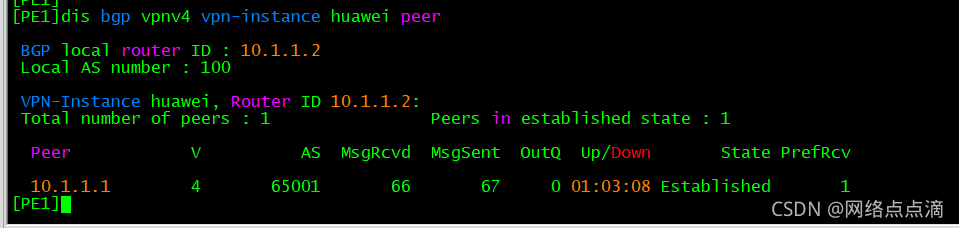

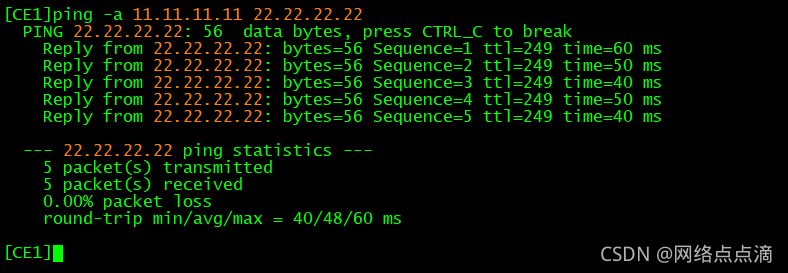

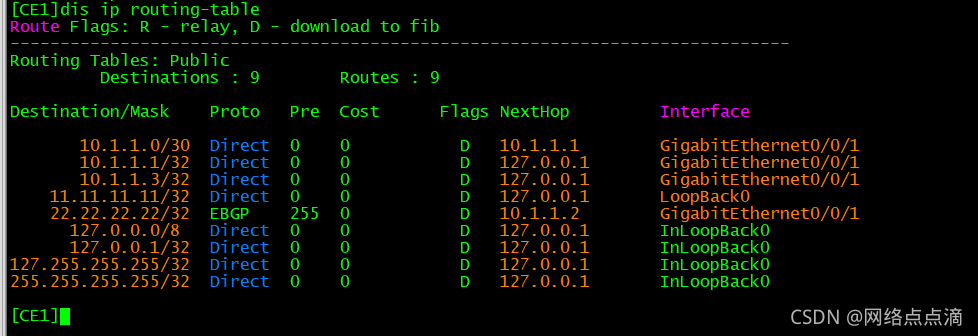

1.检查配置结果

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
