k8s安装及搭建仪表盘

准备环境：

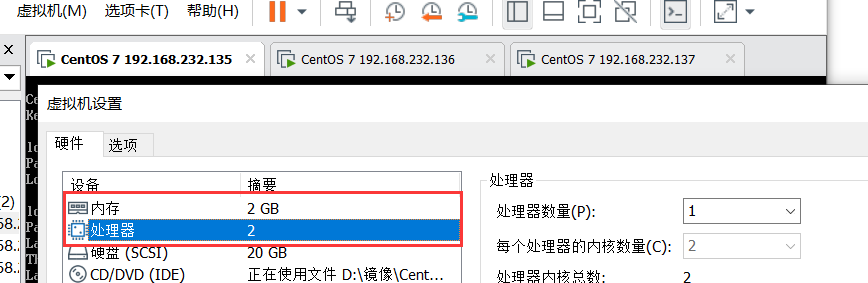

3台2核2G的centos7虚拟机

说明：下面初始化环境工作master节点和node节点都需要执行
1.关闭防火墙

systemctl stop firewalld
setenforce  0

2.时间同步

[root@localhost ~]# yum -y install ntpdate
[root@localhost ~]# ntpdate pool.ntp.org
16 Nov 18:22:38 ntpdate[1985]: adjust time server 185.255.55.20 offset 0.003975 sec

3.修改主机名（一台master节点，两台node节点）

[root@localhost ~]# hostnamectl set-hostname k8s-master
[root@localhost ~]# hostnamectl set-hostname k8s-node1
[root@localhost ~]# hostnamectl set-hostname k8s-node2
切换为修改好的主机名：使用su -
[root@localhost ~]# su -
[root@k8s-master ~]#
[root@k8s-node1 ~]#
[root@k8s-node2 ~]#

4.编辑hosts文件

vim /etc/hosts
192.168.232.135 k8s-master
192.168.232.136 k8s-node1
192.168.232.137 k8s-node2

5.安装指定版本的docker
master节点和所有node节点都需要执行

[root@k8s-master ~]# yum -y install wget
[root@k8s-master ~]# wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
[root@k8s-master ~]# yum -y install docker-ce-18.06.3.ce-3.el7

6.运行docker

[root@k8s-master ~]# systemctl enable docker
[root@k8s-master ~]# systemctl start docker

7.docker镜像加速

[root@k8s-master ~]# cd /etc/docker/
[root@k8s-master docker]# vim daemon.json
{
    "exec-opts": ["native.cgroupdriver=systemd"],
    "log-driver": "json-file",
    "log-opts": {
    "max-size": "100m"
    },
    "storage-driver": "overlay2",
    "registry-mirrors":[
        "https://kfwkfulq.mirror.aliyuncs.com",
        "https://2lqq34jg.mirror.aliyuncs.com",
        "https://pee6w651.mirror.aliyuncs.com",
        "http://hub-mirror.c.163.com",
        "https://docker.mirrors.ustc.edu.cn",
        "https://registry.docker-cn.com"
    ]
}

7.1.重启docker

[root@k8s-master docker]# systemctl restart docker

8.上传k8s的yum源并安装

[root@k8s-master yum.repos.d]# yum -y install kubelet-1.17.0 kubeadm-1.17.0 kubectl-1.17.0

9.设置kubelet 开机自启

[root@k8s-master yum.repos.d]# systemctl enable kubelet

先不要启动它！！
10.初始化集群
在master节点上执行：

[root@k8s-master yum.repos.d]# kubeadm init --apiserver-advertise-address=192.168.232.135 --image-repository registry.aliyuncs.com/google_containers --kubernetes-version v1.17.0 --service-cidr=10.1.0.0/16 --pod-network-cidr=10.244.0.0/16
报错处理：
[ERROR FileContent--proc-sys-net-bridge-bridge-nf-call-iptables]: /proc/sys/net/bridge/bridge-nf-call-iptables contents are not set to 1
[root@k8s-master yum.repos.d]# echo "1" > /proc/sys/net/bridge/bridge-nf-call-iptables
[root@k8s-master yum.repos.d]# swapoff -a（3个节点都要执行）
再次执行：

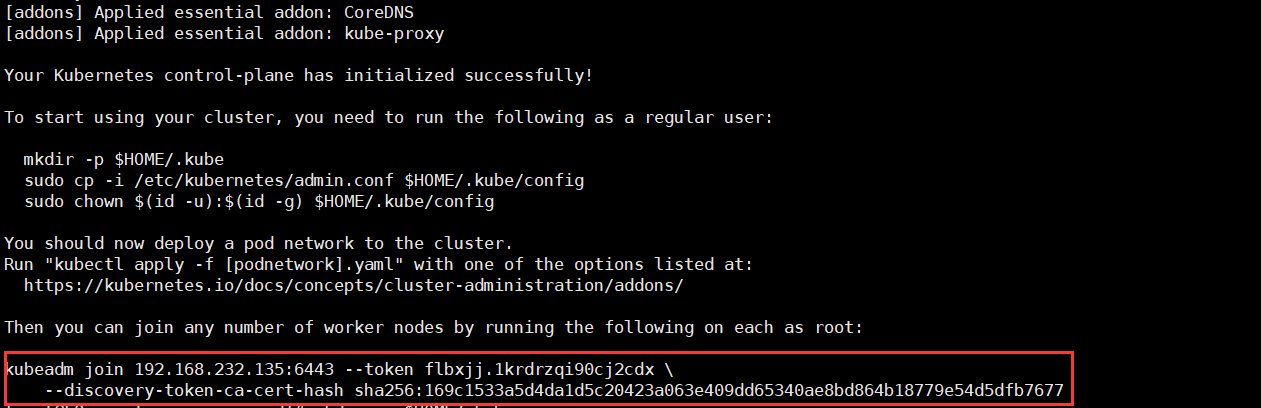

[root@k8s-master yum.repos.d]# kubeadm init --apiserver-advertise-address=192.168.232.135 --image-repository registry.aliyuncs.com/google_containers --kubernetes-version v1.17.0 --service-cidr=10.1.0.0/16 --pod-network-cidr=10.244.0.0/16
master上执行：
[root@k8s-master yum.repos.d]# mkdir -p $HOME/.kube
[root@k8s-master yum.repos.d]# sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@k8s-master yum.repos.d]# sudo chown $(id -u):$(id -g) $HOME/.kube/config

11.将node节点加入到集群中：（在两个node节点执行）

[root@k8s-node1 yum.repos.d]# kubeadm join 192.168.232.135:6443 --token flbxjj.1krdrzqi90cj2cdx     --discovery-token-ca-cert-hash sha256:169c1533a5d4da1d5c20423a063e409dd65340ae8bd864b18779e54d5dfb7677

11.1.验证：

[root@k8s-master yum.repos.d]# kubectl get nodes
NAME         STATUS     ROLES    AGE   VERSION
k8s-master   NotReady   master   60m   v1.17.0
k8s-node1    NotReady   <none>   51m   v1.17.0
k8s-node2    NotReady   <none>   50m   v1.17.0

12.安装k8s的网络组件falneel
上传k8s的网络组件包

[root@k8s-master ~]# ls
anaconda-ks.cfg  k8s-v1.17.0.zip
[root@k8s-master ~]# yum -y install unzip
[root@k8s-master ~]# unzip k8s-v1.17.0.zip
[root@k8s-master ~]# cd k8s-v1.17.0
[root@k8s-master k8s-v1.17.0]# ls
images  kube-flannel.yml
[root@k8s-master k8s-v1.17.0]# kubectl apply -f kube-flannel.yml

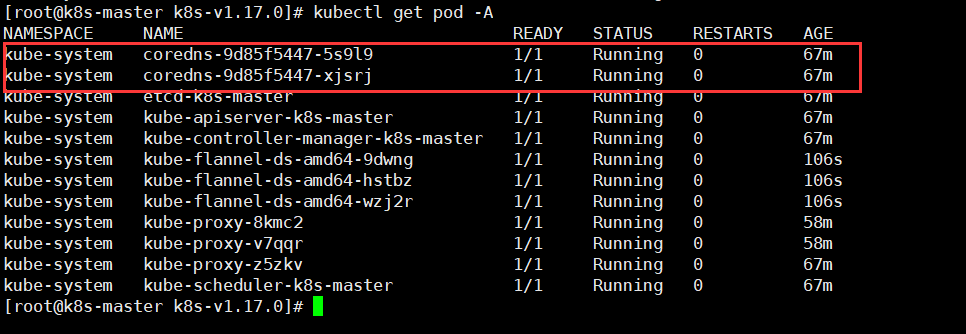

13.查看pod转态

[root@k8s-master k8s-v1.17.0]# kubectl get pod -A

这里稍等1分钟就会变成Running

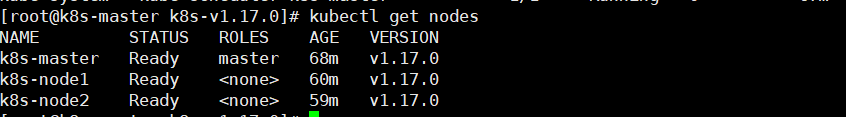

14.再次查看node状态

[root@k8s-master k8s-v1.17.0]# kubectl get nodes

已经由NotReady变为Ready！！
至此，k8s安装部署完成，接下来我们做仪表盘编写yaml文件！

15.编写dash_board.yaml文件

[root@k8s-master ~]# vim dash_board.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: dashboard-admin
  namespace: kubernetes-dashboard
---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30002
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: dashboard-admin
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: dashboard-admin
  namespace: kubernetes-dashboard
---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.0.0-rc7
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "beta.kubernetes.io/os": linux
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.4
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "beta.kubernetes.io/os": linux
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

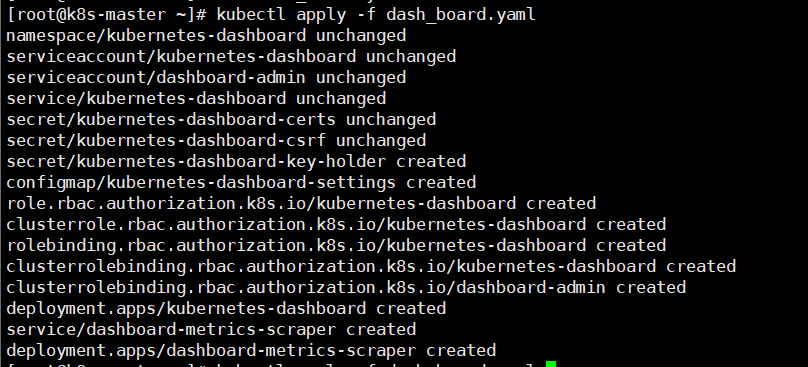

16.执行创建

[root@k8s-master ~]# kubectl apply -f dash_board.yaml

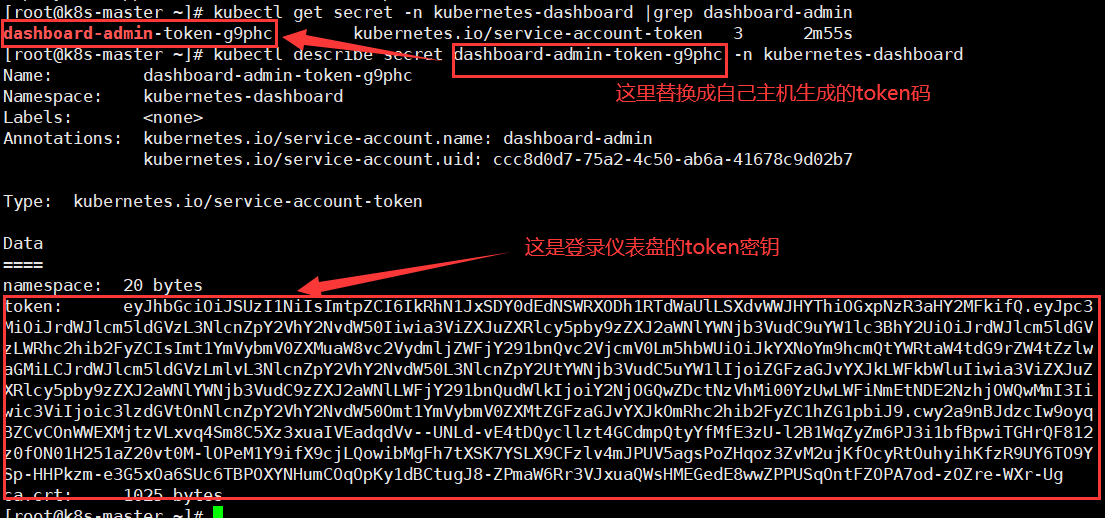

17.获取登录仪表盘的密钥

[root@k8s-master ~]# kubectl get secret -n kubernetes-dashboard |grep dashboard-admin
dashboard-admin-token-g9phc        kubernetes.io/service-account-token   3      2m55s
[root@k8s-master ~]# kubectl describe secret dashboard-admin-token-g9phc -n kubernetes-dashboard

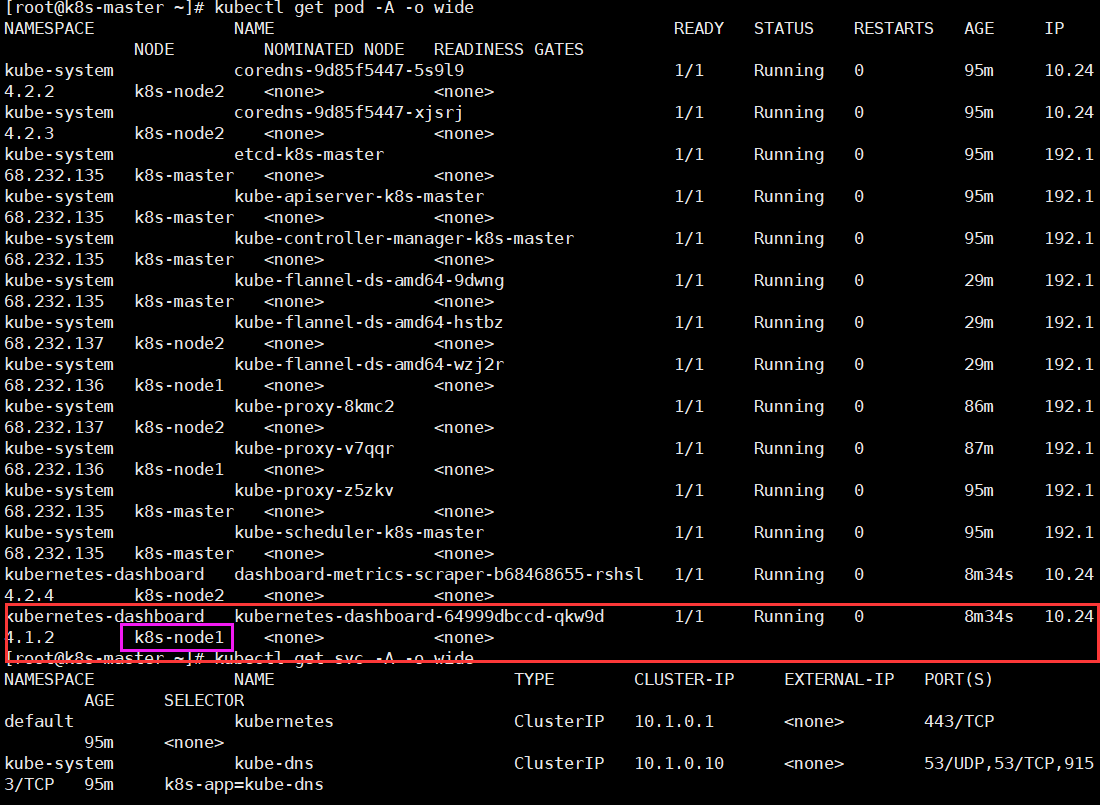

18.查看仪表盘在哪个节点生成

[root@k8s-master ~]# kubectl get pod -A -o wide

可以看出在node1节点生成

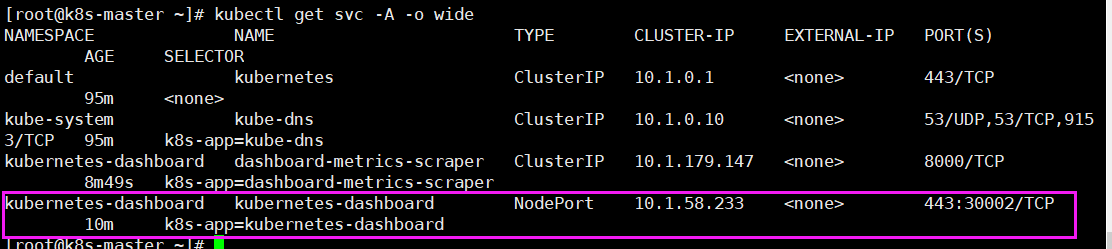

19.查看端口

[root@k8s-master ~]# kubectl get svc -A -o wide

端口:30002

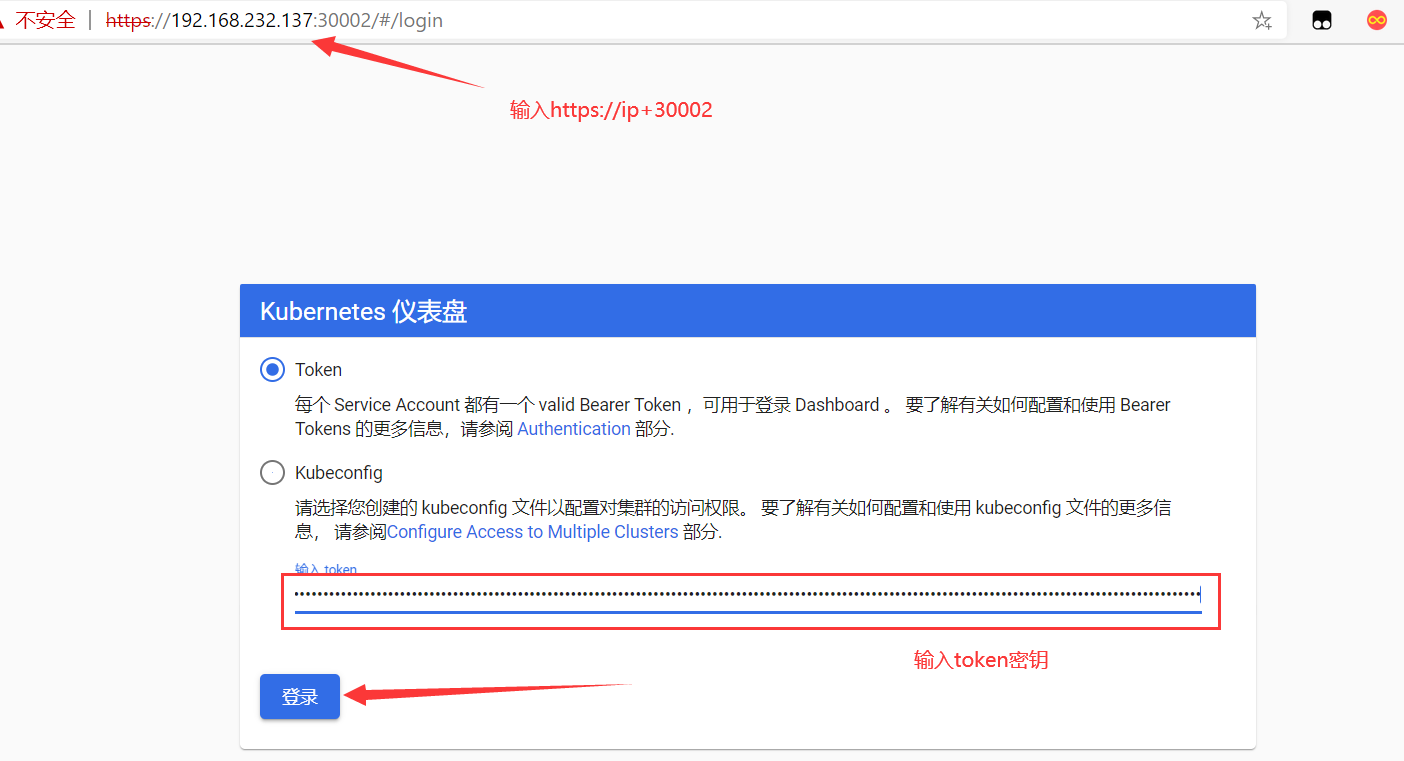

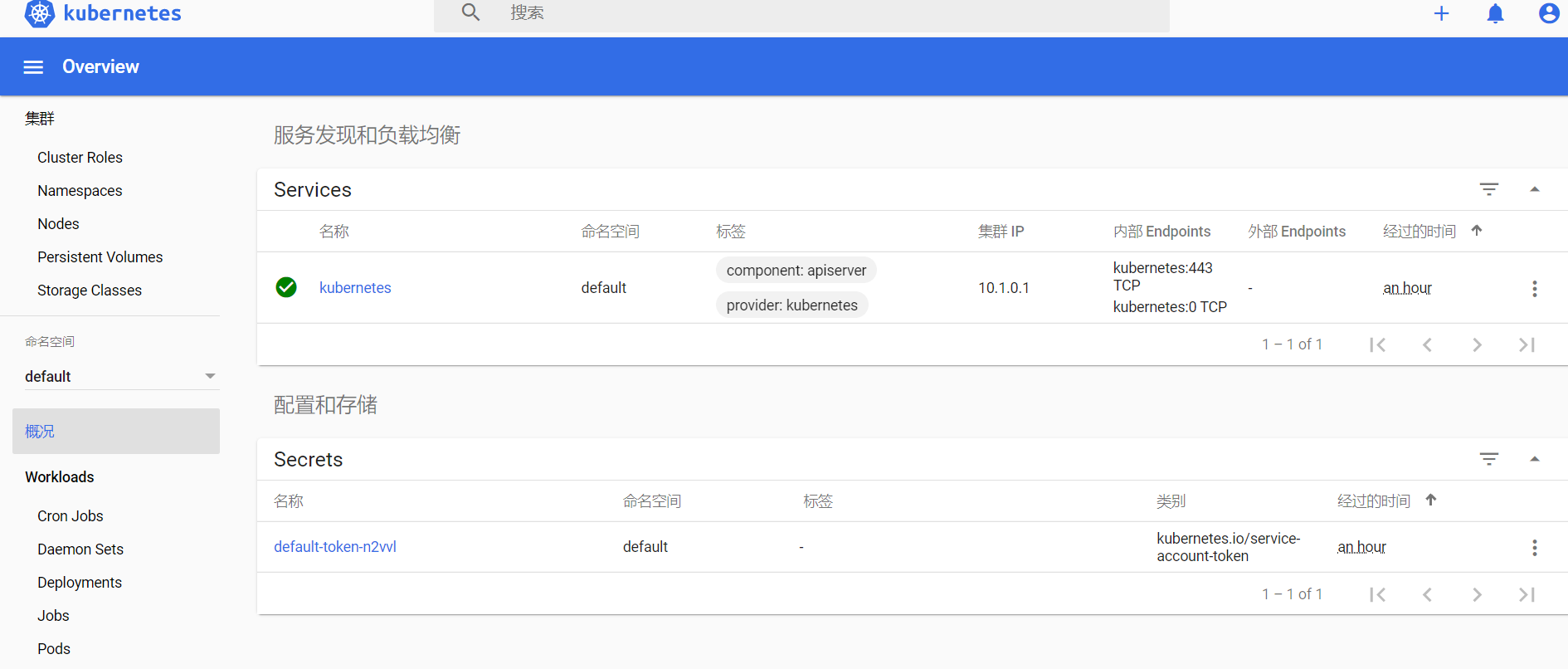

20.登录仪表盘


仪表盘搭建完成！
