Quartz结合线程池的动态管理
Quartz是一个非常强大的任务调度框架，可以启动，暂停，恢复，删除，更新，在重启时错过执行时间，可设置misfire规则，也就是设置错过了执行时机怎么办，可以跳过这次执行，等待下一个周期再执行，也可以马上重新执行错过的任务等，具体下面再讲。使用方法比schedule稍微麻烦一点，因为动态控制肯定涉及到前端的，这里不讨论前端如何实现，会从简单的一个demo，到一个具体的动态控制demo，记录一下后端如何设计与实现。
项目下载地址：quartz-demo
Quartz几个重要的接口和类
- Job ：接口，表示一个任务，要执行的具体内容。此接口中只有一个方法，
void execute(JobExecutionContext var1);我们需要自己实现execute方法，Quartz也自带一个Job的实现类：QuartzJobBean，我们也可以去继承QuartzJobBean，然后重写executeInternal这个方法。 - JobDetail：quartz框架自己的一个类，其实就是一个包装类，一个Wrapper，用来包装一个job的描述信息，唯一id（JobKey)，还有如果这个job定时去调用程序中另一个方法需要传递参数时，可以设置JobDataMap,把参数保存在这个map里。用JobBuilder链式创建JobDetail。
// 创建JobDetail实例，并与MyJob类绑定(Job执行内容)
JobDetail jobDetail = JobBuilder.newJob(MyJob.class).withIdentity("job1", "group1").build();
- Trigger：接口，翻译过来就是触发器的意思，也可以翻译为扳机，Quartz最常用的两种trigger，SimpleTrigger和CronTrigger这两个接口，都是继承自Trigger，他们都是用来设置你的job何时触发，间隔多久重复触发，重复多少次，何时停止，多个trigger同时触发的优先级，错过触发了怎么处理。SimpleTrigger字面意思就是比较简单的Trigger，适用于简单的设置，CronTrigger可以配置corn表达式，更灵活，需要再控台展示和编辑的时候这个就更适合。Trigger也和JobDetail一样有一个TriggerBuilder，也是链式构造的方式构造Trigger
//构建Trigger实例,每隔1s执行一次 重复两次，一共执行三次
Trigger trigger = TriggerBuilder.newTrigger().withIdentity("trigger1", "triggerGroup1")
.startNow().withSchedule(SimpleScheduleBuilder.simpleSchedule()
.withIntervalInSeconds(1)
.withRepeatCount(2)).build();
- Scheduler：接口，英文翻译为计划，可以理解为总指挥，最终的调度都得靠它，我们一般在设置完JobDetail和Trigger的时候，就可以调用scheduler接口的实现类StdScheduler中的
public Date scheduleJob(JobDetail jobDetail, Trigger trigger)这样就添加好了一条任务，当时间到了trigger中设定的时间时，任务开始执行，如果要立即执行就调用void triggerJob(JobKey jobKey, JobDataMap data);如果是暂停任务就调用void pauseJob(JobKey jobKey)，如果是恢复任务，就调用void resumeJob(JobKey jobKey),如果要删除任务就调用boolean deleteJob(JobKey jobKey)如果要更新任务，就调用public Date rescheduleJob(TriggerKey triggerKey, Trigger newTrigger) - jobStore: quartz框架存储内部执行逻辑的内容，有两种存储方式，1：RAMJobStore，将数据存储于内存中，重启就数据消失。2：JDBCJobSTore，也就是将数据存储于数据库中，如果web项目肯定是用这个了，一共有11张表需要新建，程序中也需要进行配置，这个直接用我下面的sql文件执行就行了，配置下面也会说。
SchedulerFactory schedulerFactory = new StdSchedulerFactory();
Scheduler scheduler = schedulerFactory.getScheduler();
//创建job
scheduler.scheduleJob(jobDetail, trigger);
//启动job
scheduler.start();
- JobKey与TriggerKey：先看一下他们的源码
public final class JobKey extends Key<JobKey> {
private static final long serialVersionUID = -6073883950062574010L;
public JobKey(String name) {
super(name, (String)null);
}
public JobKey(String name, String group) {
super(name, group);
}
public static JobKey jobKey(String name) {
return new JobKey(name, (String)null);
}
public static JobKey jobKey(String name, String group) {
return new JobKey(name, group);
}
}
public final class TriggerKey extends Key<TriggerKey> {
private static final long serialVersionUID = 8070357886703449660L;
public TriggerKey(String name) {
super(name, (String)null);
}
public TriggerKey(String name, String group) {
super(name, group);
}
public static TriggerKey triggerKey(String name) {
return new TriggerKey(name, (String)null);
}
public static TriggerKey triggerKey(String name, String group) {
return new TriggerKey(name, group);
}
}
是表明Job或者Trigger身份的一个对象，里面封装了Job的name和group，TriggerKey同理。就像上面说JobDetail链式构造的时候，要指定.withIdentity(“trigger1”, “triggerGroup1”)，参数可以是两个String，也可以是一个JobKey，看一下JobBuilder和TriggerBuilder的源码片段就知道了
public JobBuilder withIdentity(String name) {
this.key = new JobKey(name, (String)null);
return this;
}
public JobBuilder withIdentity(String name, String group) {
this.key = new JobKey(name, group);
return this;
}
public JobBuilder withIdentity(JobKey jobKey) {
this.key = jobKey;
return this;
}
public TriggerBuilder<T> withIdentity(String name) {
this.key = new TriggerKey(name, (String)null);
return this;
}
public TriggerBuilder<T> withIdentity(String name, String group) {
this.key = new TriggerKey(name, group);
return this;
}
public TriggerBuilder<T> withIdentity(TriggerKey triggerKey) {
this.key = triggerKey;
return this;
}
demo1
main方法中使用
package com.lichong.quartz.job;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Random;
public class PrintWordsJob implements Job {
@Override
public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
String printTime = new SimpleDateFormat("yy-MM-dd HH-mm-ss").format(new Date());
System.out.println("PrintWordsJob start at:" + printTime + ", prints: Hello Job-" + new Random().nextInt(100));
}
}
package com.lichong.quartz.job;
import org.quartz.*;
import org.quartz.impl.StdSchedulerFactory;
import java.util.concurrent.TimeUnit;
public class MyScheduler {
public static void main(String[] args) throws SchedulerException, InterruptedException {
// 1、创建调度器Scheduler 如果在spring环境中，可以直接注入Scheduler，@Autowired private Scheduler scheduler; 不需要SchedulerFactory创建
SchedulerFactory schedulerFactory = new StdSchedulerFactory();
Scheduler scheduler = schedulerFactory.getScheduler();
// 2、创建JobDetail实例，并与PrintWordsJob类绑定(Job执行内容)
JobDetail jobDetail = JobBuilder.newJob(PrintWordsJob.class).withIdentity("job1", "group1").build();
// 3、构建Trigger实例,每隔1s执行一次 重复两次，一共执行三次
Trigger trigger = TriggerBuilder.newTrigger().withIdentity("trigger1", "triggerGroup1")
.startNow().withSchedule(SimpleScheduleBuilder.simpleSchedule()
.withIntervalInSeconds(1)
.withRepeatCount(2)).build();
//4、执行
scheduler.scheduleJob(jobDetail, trigger);
System.out.println("--------scheduler start ! ------------");
scheduler.start();
//睡眠
TimeUnit.SECONDS.sleep(10);
scheduler.shutdown();
System.out.println("--------scheduler shutdown ! ------------");
}
}
输出结果
--------scheduler start ! ------------
17:40:07.478 [main] INFO org.quartz.core.QuartzScheduler - Scheduler DefaultQuartzScheduler_KaTeX parse error: Expected group after '_' at position 1796: …QuartzScheduler_̲NON_CLUSTERED shutting down.
17:40:17.480 [main] INFO org.quartz.core.QuartzScheduler - Scheduler DefaultQuartzSchedulerKaTeX parse error: Expected group after '_' at position 300: …QuartzScheduler_̲_NON_CLUSTERED shutdown complete.
--------scheduler shutdown ! ------------
17:40:17.493 [DefaultQuartzScheduler_Worker-4] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.493 [DefaultQuartzScheduler_Worker-7] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.493 [DefaultQuartzScheduler_Worker-5] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.493 [DefaultQuartzScheduler_Worker-8] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.497 [DefaultQuartzScheduler_Worker-6] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.497 [DefaultQuartzScheduler_Worker-9] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.497 [DefaultQuartzScheduler_Worker-10] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.524 [DefaultQuartzScheduler_Worker-3] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.524 [DefaultQuartzScheduler_Worker-2] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
17:40:17.530 [DefaultQuartzScheduler_Worker-1] DEBUG org.quartz.simpl.SimpleThreadPool - WorkerThread is shut down.
demo2
有了main方法后，如果我们要再spring中使用如何使用呢，在控台中想展示出来实现创建，暂停，恢复，删除，立即执行定时任务该如何做呢。

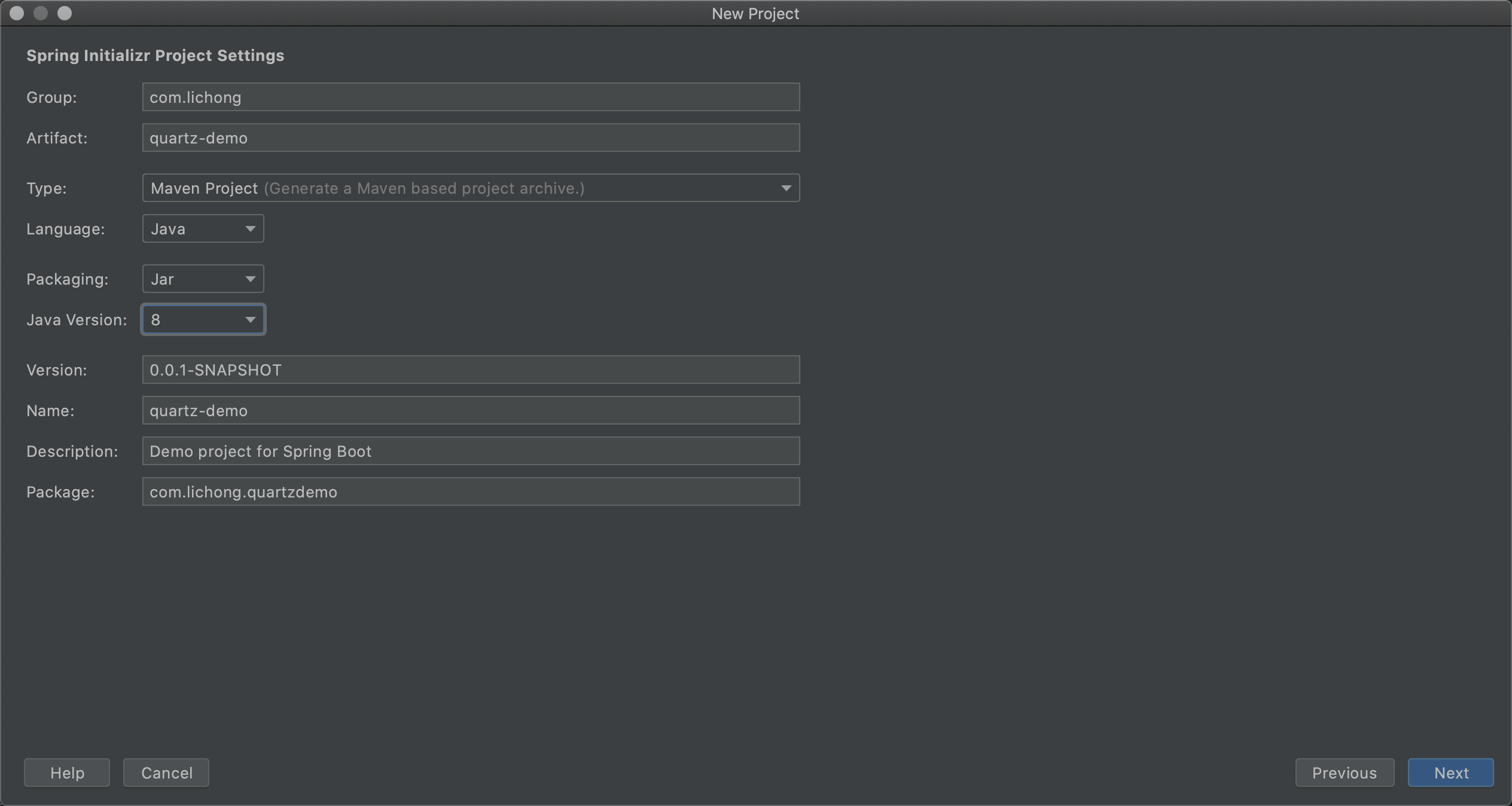

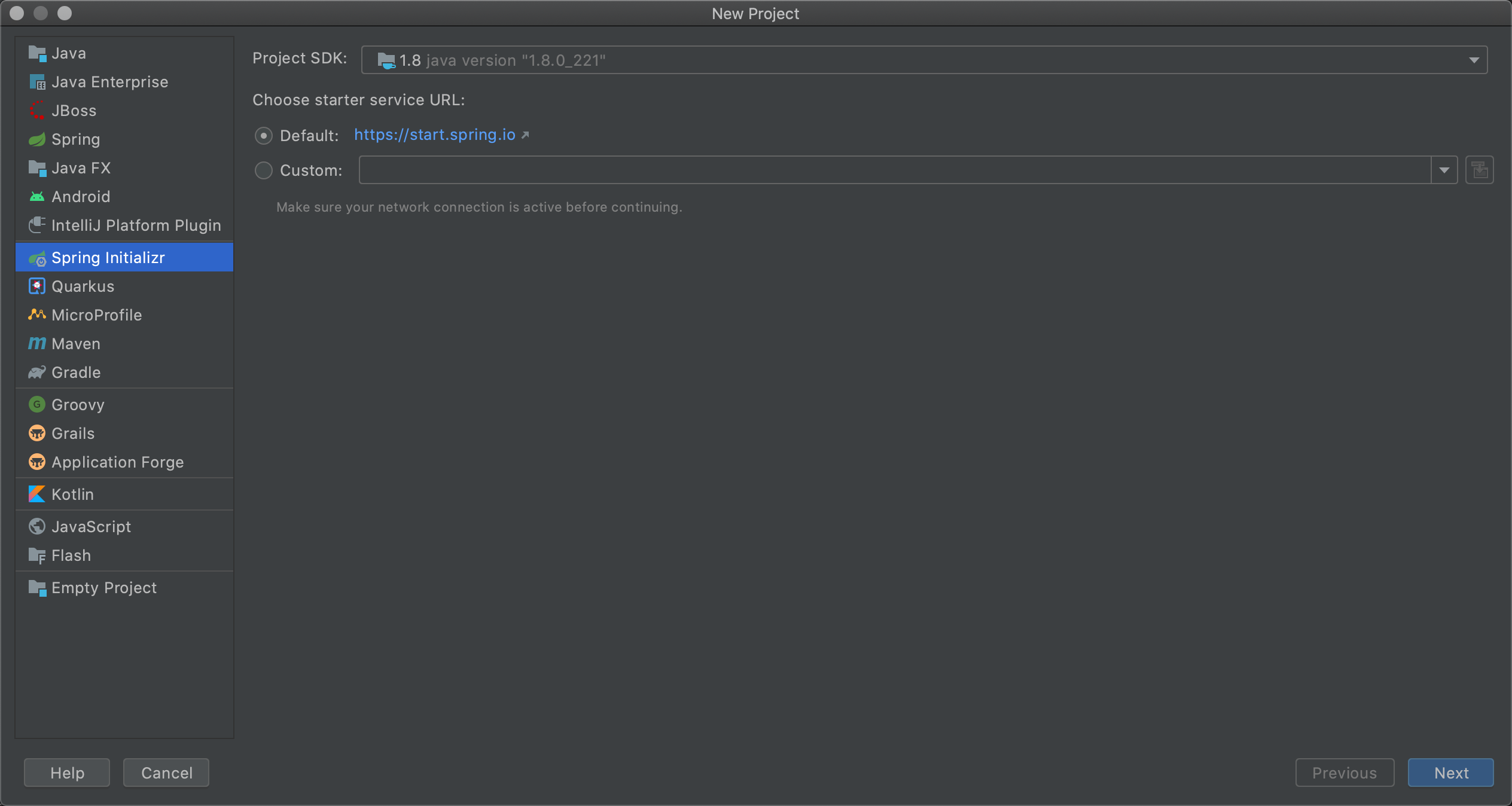

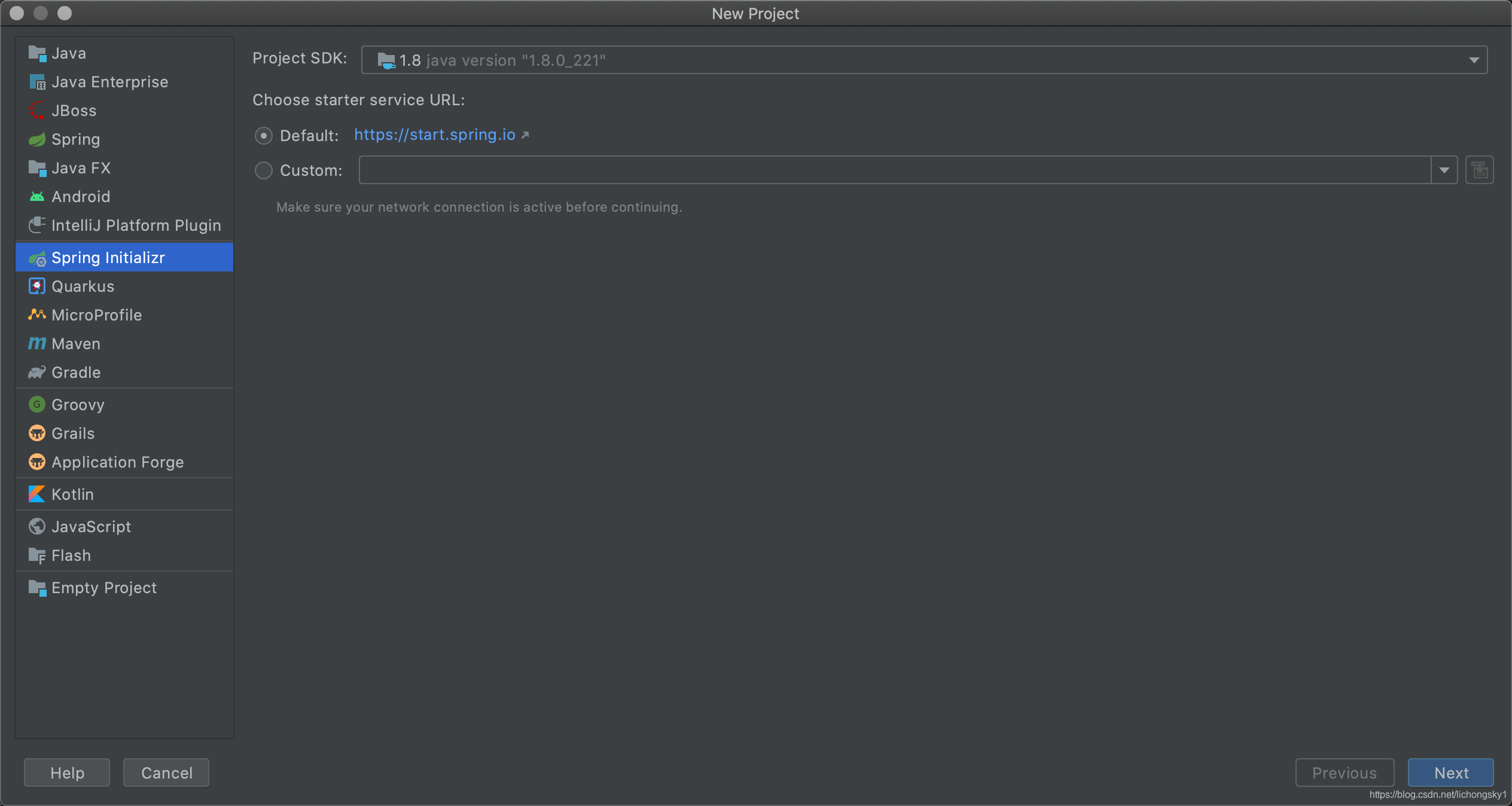

- 首先我们要创建一个springboot的工程，下面给出创建过程截图
这里可以提前选择添加依赖，也可以后面在pom文件里添加，下面会给出具体的依赖信息
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-quartz</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<!-- 任务调度 -->
<dependency>
<groupId>org.quartz-scheduler</groupId>
<artifactId>quartz</artifactId>
<version>2.3.2</version>
</dependency>
<!-- MyBatis增强插件 -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.2.0</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-generator</artifactId>
<version>3.2.0</version>
</dependency>
<!-- freemaker模板引擎，用于定义代码生成模板 -->
<dependency>
<groupId>org.freemarker</groupId>
<artifactId>freemarker</artifactId>
<version>2.3.28</version>
</dependency>
<!-- commons工具 -->
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
</dependency>
</dependencies>

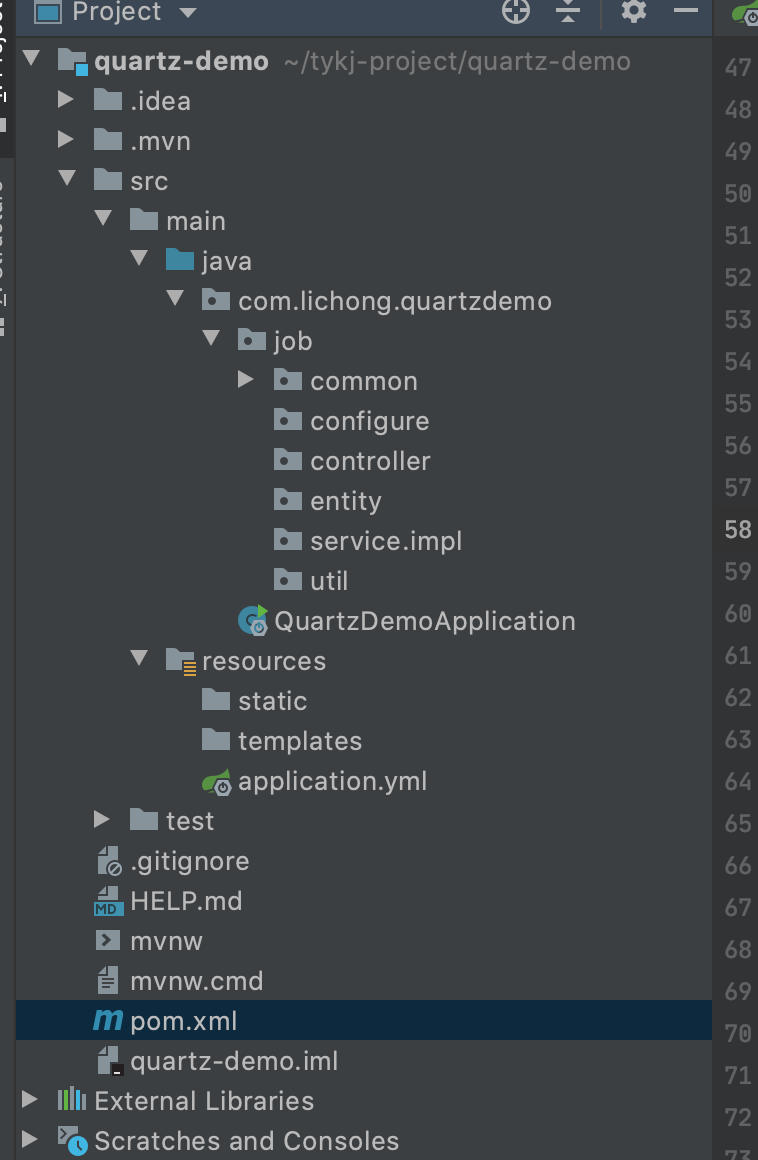

等待依赖自动引入完成后，我们先新建这几个包和文件夹
- 接下来肯定是去配置数据库相关内容，我这里用的是mybatis-plus，我已经离不开它了，下面是job表的建表语句，在这里大家可以先思考一下这个表中相关的一下字段，比如bean_name，method_name,param, 为什么要建这三个字段呢，你应该看出来了这个和反射有关，如果我们在定时任务中创建了一个任务，去定时调用程序中另一个任务该如何做呢，我这里第一反应是反射去实现，所以这里我们建了这三个字段。

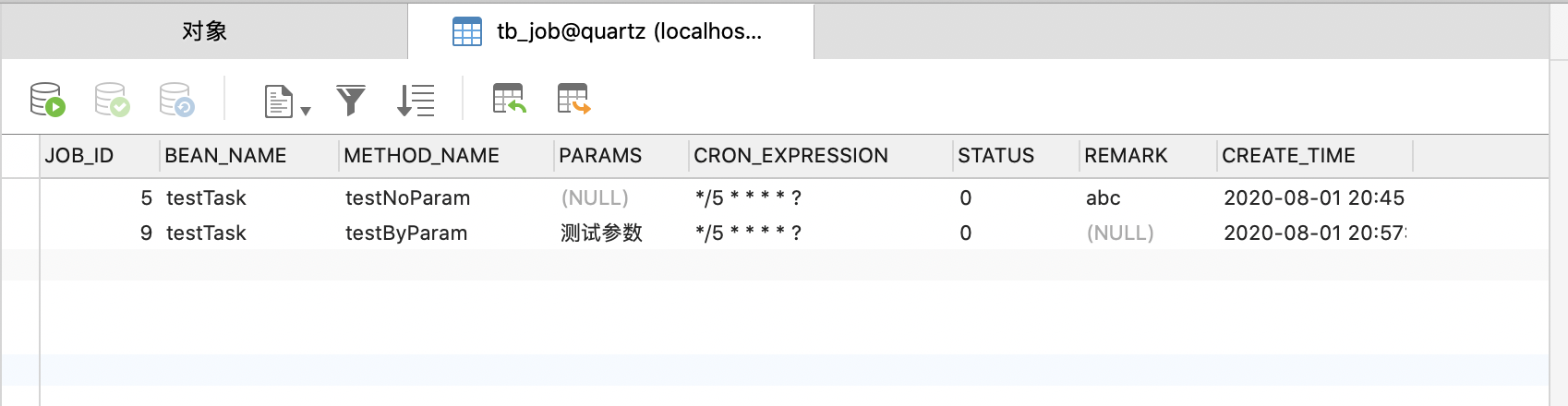

CREATE TABLE `tb_job` (
`JOB_ID` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '任务id',
`BEAN_NAME` varchar(50) NOT NULL COMMENT 'spring bean名称',
`METHOD_NAME` varchar(50) NOT NULL COMMENT '方法名',
`PARAMS` text COMMENT '参数',
`CRON_EXPRESSION` varchar(50) NOT NULL COMMENT 'cron表达式',
`STATUS` char(2) NOT NULL COMMENT '任务状态 0：正常 1：暂停',
`REMARK` varchar(50) DEFAULT NULL COMMENT '备注',
`CREATE_TIME` datetime DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`JOB_ID`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='定时任务表';
- 建好了表后，我们需要配置一下application.yml
server:
port: 80
tomcat:
uri-encoding: utf-8
spring:
datasource:
username: root
password: 7546026.li
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://localhost:3306/quartz?characterEncoding=UTF-8&autoReconnect=true&autoReconnectForPools=true&useSSL=false&serverTimezone=Asia/Shanghai

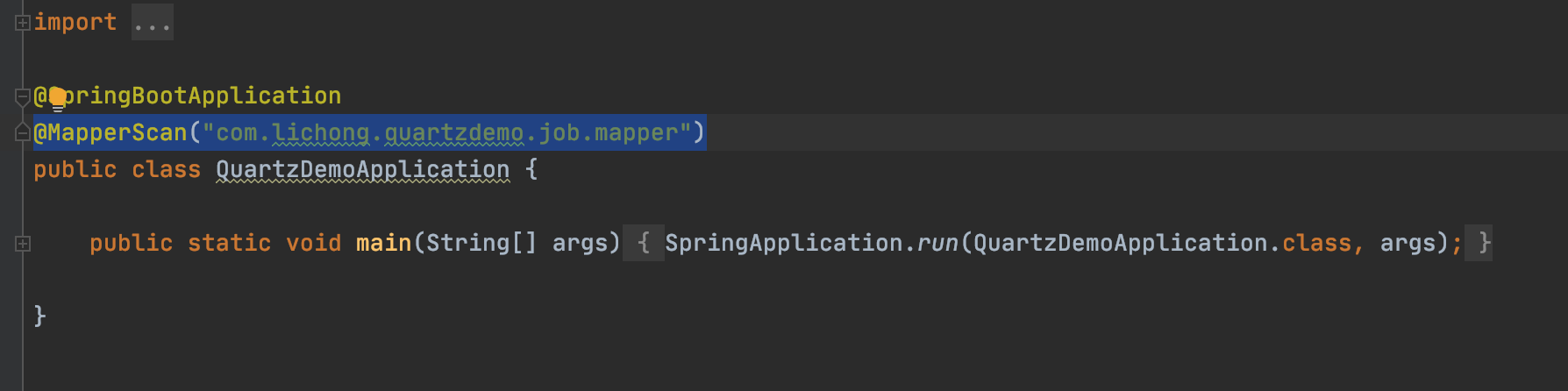

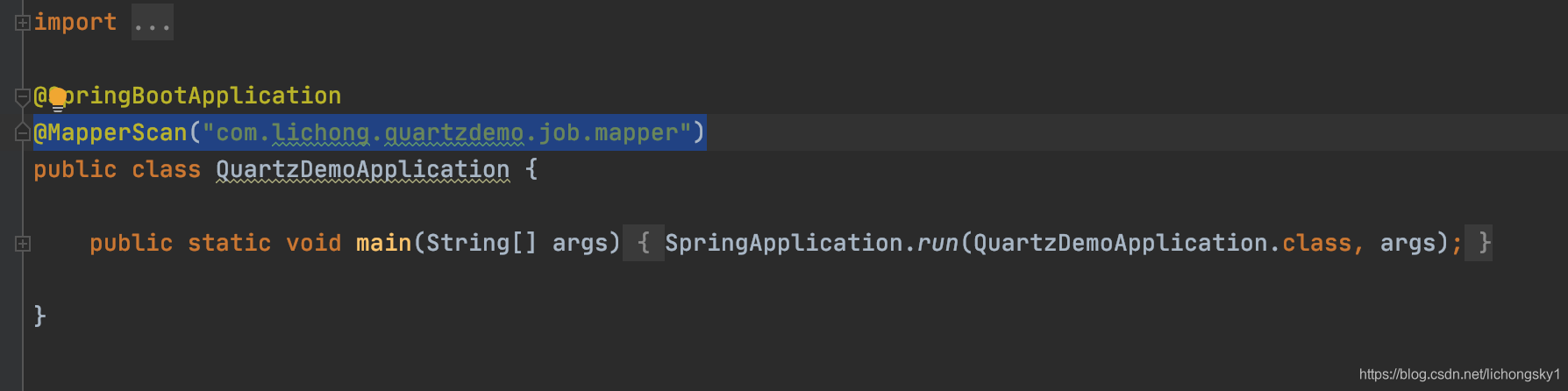

4.在启动类上加上这个注解@MapperScan(“com.lichong.quartzdemo.job.mapper”)或者在Mapper文件上加上@Mapper这个注解

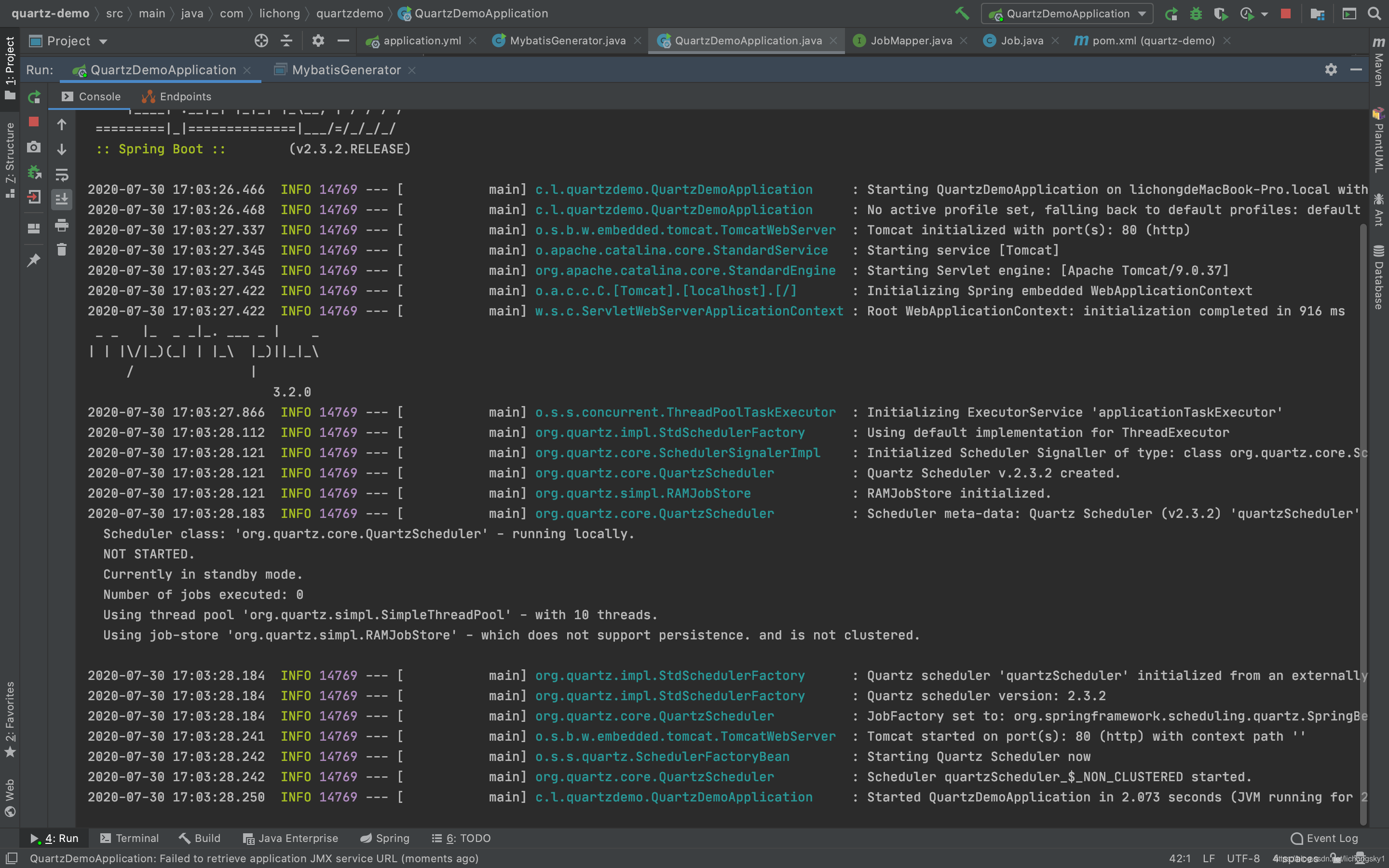

启动一下
启动成功

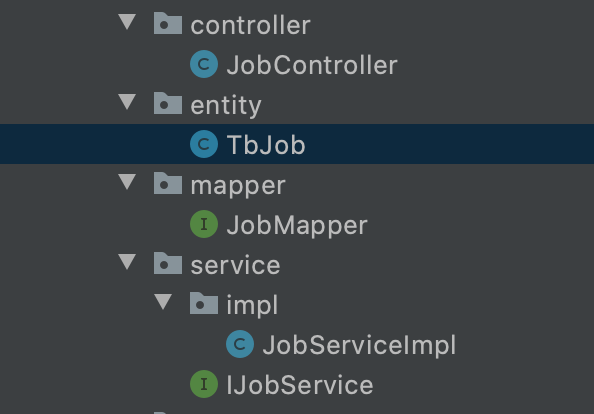

5.接下来大家都知道需要做什么，当然是去映射实体与数据库表相关的一些内容了，使用mybatis-plus的自动生成代码，下面给出生成过后的结果，使用过mybatisplus的朋友应该知道怎么生成吧。
下面给出具体的代码
实体
package com.lichong.quartzdemo.job.entity;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import java.time.LocalDateTime;
import com.baomidou.mybatisplus.annotation.TableField;
import java.io.Serializable;
import java.util.Date;
import lombok.Data;
import lombok.EqualsAndHashCode;
import lombok.experimental.Accessors;
/**
* <p>
* 定时任务表
* </p>
*
* @author lichong
* @since 2020-07-30
*/
@Data
@EqualsAndHashCode(callSuper = false)
@Accessors(chain = true)
public class TbJob implements Serializable {
private static final long serialVersionUID = 400066840871805700L;
/**
* 任务调度参数 key
*/
public static final String JOB_PARAM_KEY = "JOB_PARAM_KEY";
/**
* 调度状态枚举
*/
public enum ScheduleStatus {
/**
* 正常
*/
NORMAL("0"),
/**
* 暂停
*/
PAUSE("1");
private String value;
ScheduleStatus(String value) {
this.value = value;
}
public String getValue() {
return value;
}
}
/**
* 任务id
*/
@TableId(value = "JOB_ID", type = IdType.AUTO)
private Long jobId;
/**
* spring bean名称
*/
@TableField("BEAN_NAME")
private String beanName;
/**
* 方法名
*/
@TableField("METHOD_NAME")
private String methodName;
/**
* 参数
*/
@TableField("PARAMS")
private String params;
/**
* cron表达式
*/
@TableField("CRON_EXPRESSION")
private String cronExpression;
/**
* 任务状态 0：正常 1：暂停
*/
@TableField("STATUS")
private String status;
/**
* 备注
*/
@TableField("REMARK")
private String remark;
/**
* 创建时间
*/
@TableField("CREATE_TIME")
private Date createTime;
}
controller
package com.lichong.quartzdemo.job.controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.stereotype.Controller;
/**
* <p>
* 定时任务表 前端控制器
* </p>
*
* @author lichong
* @since 2020-07-30
*/
@Controller
@RequestMapping("/job")
public class JobController {
}
service
package com.lichong.quartzdemo.job.service;
import com.lichong.quartzdemo.job.entity.TbJob;
import com.baomidou.mybatisplus.extension.service.IService;
/**
* <p>
* 定时任务表 服务类
* </p>
*
* @author lichong
* @since 2020-07-30
*/
public interface IJobService extends IService<TbJob> {
}
impl
package com.lichong.quartzdemo.job.service.impl;
import com.lichong.quartzdemo.job.entity.TbJob;
import com.lichong.quartzdemo.job.mapper.JobMapper;
import com.lichong.quartzdemo.job.service.IJobService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.springframework.stereotype.Service;
/**
* <p>
* 定时任务表 服务实现类
* </p>
*
* @author lichong
* @since 2020-07-30
*/
@Service
public class JobServiceImpl extends ServiceImpl<JobMapper, TbJob> implements IJobService {
}
mapper
package com.lichong.quartzdemo.job.mapper;
import com.lichong.quartzdemo.job.entity.TbJob;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
/**
* <p>
* 定时任务表 Mapper 接口
* </p>
*
* @author lichong
* @since 2020-07-30
*/
public interface JobMapper extends BaseMapper<TbJob> {
}
- 到这里需要创建quartz的框架所需要的表与配置
/*
Navicat Premium Data Transfer
Source Server : localhostMysql
Source Server Type : MySQL
Source Server Version : 80017
Source Host : localhost:3306
Source Schema : quartz
Target Server Type : MySQL
Target Server Version : 80017
File Encoding : 65001
Date: 02/08/2020 16:09:30
*/
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for qrtz_blob_triggers
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_blob_triggers`;
CREATE TABLE `qrtz_blob_triggers` (
`SCHED_NAME` varchar(120) NOT NULL,
`TRIGGER_NAME` varchar(200) NOT NULL,
`TRIGGER_GROUP` varchar(200) NOT NULL,
`BLOB_DATA` blob,
PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`),
CONSTRAINT `qrtz_blob_triggers_ibfk_1` FOREIGN KEY (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`) REFERENCES `qrtz_triggers` (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_calendars
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_calendars`;
CREATE TABLE `qrtz_calendars` (
`SCHED_NAME` varchar(120) NOT NULL,
`CALENDAR_NAME` varchar(200) NOT NULL,
`CALENDAR` blob NOT NULL,
PRIMARY KEY (`SCHED_NAME`,`CALENDAR_NAME`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_cron_triggers
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_cron_triggers`;
CREATE TABLE `qrtz_cron_triggers` (
`SCHED_NAME` varchar(120) NOT NULL,
`TRIGGER_NAME` varchar(200) NOT NULL,
`TRIGGER_GROUP` varchar(200) NOT NULL,
`CRON_EXPRESSION` varchar(200) NOT NULL,
`TIME_ZONE_ID` varchar(80) DEFAULT NULL,
PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`),
CONSTRAINT `qrtz_cron_triggers_ibfk_1` FOREIGN KEY (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`) REFERENCES `qrtz_triggers` (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_fired_triggers
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_fired_triggers`;
CREATE TABLE `qrtz_fired_triggers` (
`SCHED_NAME` varchar(120) NOT NULL,
`ENTRY_ID` varchar(95) NOT NULL,
`TRIGGER_NAME` varchar(200) NOT NULL,
`TRIGGER_GROUP` varchar(200) NOT NULL,
`INSTANCE_NAME` varchar(200) NOT NULL,
`FIRED_TIME` bigint(13) NOT NULL,
`SCHED_TIME` bigint(13) NOT NULL,
`PRIORITY` int(11) NOT NULL,
`STATE` varchar(16) NOT NULL,
`JOB_NAME` varchar(200) DEFAULT NULL,
`JOB_GROUP` varchar(200) DEFAULT NULL,
`IS_NONCONCURRENT` varchar(1) DEFAULT NULL,
`REQUESTS_RECOVERY` varchar(1) DEFAULT NULL,
PRIMARY KEY (`SCHED_NAME`,`ENTRY_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_job_details
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_job_details`;
CREATE TABLE `qrtz_job_details` (
`SCHED_NAME` varchar(120) NOT NULL,
`JOB_NAME` varchar(200) NOT NULL,
`JOB_GROUP` varchar(200) NOT NULL,
`DESCRIPTION` varchar(250) DEFAULT NULL,
`JOB_CLASS_NAME` varchar(250) NOT NULL,
`IS_DURABLE` varchar(1) NOT NULL,
`IS_NONCONCURRENT` varchar(1) NOT NULL,
`IS_UPDATE_DATA` varchar(1) NOT NULL,
`REQUESTS_RECOVERY` varchar(1) NOT NULL,
`JOB_DATA` blob,
PRIMARY KEY (`SCHED_NAME`,`JOB_NAME`,`JOB_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_locks
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_locks`;
CREATE TABLE `qrtz_locks` (
`SCHED_NAME` varchar(120) NOT NULL,
`LOCK_NAME` varchar(40) NOT NULL,
PRIMARY KEY (`SCHED_NAME`,`LOCK_NAME`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_paused_trigger_grps
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_paused_trigger_grps`;
CREATE TABLE `qrtz_paused_trigger_grps` (
`SCHED_NAME` varchar(120) NOT NULL,
`TRIGGER_GROUP` varchar(200) NOT NULL,
PRIMARY KEY (`SCHED_NAME`,`TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_scheduler_state
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_scheduler_state`;
CREATE TABLE `qrtz_scheduler_state` (
`SCHED_NAME` varchar(120) NOT NULL,
`INSTANCE_NAME` varchar(200) NOT NULL,
`LAST_CHECKIN_TIME` bigint(13) NOT NULL,
`CHECKIN_INTERVAL` bigint(13) NOT NULL,
PRIMARY KEY (`SCHED_NAME`,`INSTANCE_NAME`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_simple_triggers
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_simple_triggers`;
CREATE TABLE `qrtz_simple_triggers` (
`SCHED_NAME` varchar(120) NOT NULL,
`TRIGGER_NAME` varchar(200) NOT NULL,
`TRIGGER_GROUP` varchar(200) NOT NULL,
`REPEAT_COUNT` bigint(7) NOT NULL,
`REPEAT_INTERVAL` bigint(12) NOT NULL,
`TIMES_TRIGGERED` bigint(10) NOT NULL,
PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`),
CONSTRAINT `qrtz_simple_triggers_ibfk_1` FOREIGN KEY (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`) REFERENCES `qrtz_triggers` (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_simprop_triggers
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_simprop_triggers`;
CREATE TABLE `qrtz_simprop_triggers` (
`SCHED_NAME` varchar(120) NOT NULL,
`TRIGGER_NAME` varchar(200) NOT NULL,
`TRIGGER_GROUP` varchar(200) NOT NULL,
`STR_PROP_1` varchar(512) DEFAULT NULL,
`STR_PROP_2` varchar(512) DEFAULT NULL,
`STR_PROP_3` varchar(512) DEFAULT NULL,
`INT_PROP_1` int(11) DEFAULT NULL,
`INT_PROP_2` int(11) DEFAULT NULL,
`LONG_PROP_1` bigint(20) DEFAULT NULL,
`LONG_PROP_2` bigint(20) DEFAULT NULL,
`DEC_PROP_1` decimal(13,4) DEFAULT NULL,
`DEC_PROP_2` decimal(13,4) DEFAULT NULL,
`BOOL_PROP_1` varchar(1) DEFAULT NULL,
`BOOL_PROP_2` varchar(1) DEFAULT NULL,
PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`),
CONSTRAINT `qrtz_simprop_triggers_ibfk_1` FOREIGN KEY (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`) REFERENCES `qrtz_triggers` (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
-- ----------------------------
-- Table structure for qrtz_triggers
-- ----------------------------
DROP TABLE IF EXISTS `qrtz_triggers`;
CREATE TABLE `qrtz_triggers` (
`SCHED_NAME` varchar(120) NOT NULL,
`TRIGGER_NAME` varchar(200) NOT NULL,
`TRIGGER_GROUP` varchar(200) NOT NULL,
`JOB_NAME` varchar(200) NOT NULL,
`JOB_GROUP` varchar(200) NOT NULL,
`DESCRIPTION` varchar(250) DEFAULT NULL,
`NEXT_FIRE_TIME` bigint(13) DEFAULT NULL,
`PREV_FIRE_TIME` bigint(13) DEFAULT NULL,
`PRIORITY` int(11) DEFAULT NULL,
`TRIGGER_STATE` varchar(16) NOT NULL,
`TRIGGER_TYPE` varchar(8) NOT NULL,
`START_TIME` bigint(13) NOT NULL,
`END_TIME` bigint(13) DEFAULT NULL,
`CALENDAR_NAME` varchar(200) DEFAULT NULL,
`MISFIRE_INSTR` smallint(2) DEFAULT NULL,
`JOB_DATA` blob,
PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`),
KEY `SCHED_NAME` (`SCHED_NAME`,`JOB_NAME`,`JOB_GROUP`),
CONSTRAINT `qrtz_triggers_ibfk_1` FOREIGN KEY (`SCHED_NAME`, `JOB_NAME`, `JOB_GROUP`) REFERENCES `qrtz_job_details` (`SCHED_NAME`, `JOB_NAME`, `JOB_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
创建好表后在configure包中创建配置文件ScheduleConfig
package com.lichong.quartzdemo.job.configure;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.quartz.SchedulerFactoryBean;
import javax.sql.DataSource;
import java.util.Properties;
@Configuration
public class ScheduleConfig {
@Value("${spring.datasource.driver-class-name}")
private String driver;
@Value("${spring.datasource.username}")
private String username;
@Value("${spring.datasource.password}")
private String password;
@Value("${spring.datasource.url}")
private String url;
@Bean
public DataSource getDataSource() {
DataSourceBuilder dataSourceBuilder = DataSourceBuilder.create();
dataSourceBuilder.driverClassName(driver);
dataSourceBuilder.url(url);
dataSourceBuilder.username(username);
dataSourceBuilder.password(password);
return dataSourceBuilder.build();
}
@Bean
public SchedulerFactoryBean schedulerFactoryBean() {
SchedulerFactoryBean factory = new SchedulerFactoryBean();
factory.setDataSource(getDataSource());
// quartz参数
Properties prop = new Properties();
prop.put("org.quartz.scheduler.instanceName", "MyScheduler");
prop.put("org.quartz.scheduler.instanceId", "AUTO");
// 线程池配置
prop.put("org.quartz.threadPool.class", "org.quartz.simpl.SimpleThreadPool");
prop.put("org.quartz.threadPool.threadCount", "20");
prop.put("org.quartz.threadPool.threadPriority", "5");
// JobStore配置
prop.put("org.quartz.jobStore.class", "org.quartz.impl.jdbcjobstore.JobStoreTX");
// 集群配置
prop.put("org.quartz.jobStore.isClustered", "true");
prop.put("org.quartz.jobStore.clusterCheckinInterval", "15000");
prop.put("org.quartz.jobStore.maxMisfiresToHandleAtATime", "1");
prop.put("org.quartz.jobStore.misfireThreshold", "12000");
prop.put("org.quartz.jobStore.tablePrefix", "QRTZ_");
factory.setQuartzProperties(prop);
factory.setSchedulerName("FEBS_Scheduler");
// 延时启动
factory.setStartupDelay(1);
factory.setApplicationContextSchedulerContextKey("applicationContextKey");
// 启动时更新己存在的 Job
factory.setOverwriteExistingJobs(true);
// 设置自动启动，默认为 true
factory.setAutoStartup(true);
return factory;
}
}
- 接下来是重点，在spring环境中，使用quartz定时去使用反射执行一个方法，我们应该有一个ScheduleUtils，先在service里面的方法里先注入Scheduler，每个方法中再具体去调用这个ScheduleUtils创建更新暂停等方法，每一个job都应该是有一个jobId可以在数据库查找到的，创建人物、更新任务、立即执行任务、有可能需要构建JobDetail、Trigger等信息，所以参数里需要有TbJob,也就是数据库映射的实体表，而暂停、删除、恢复任务，不需要重新构建JobDetail、Trigger,只需要jobId就能直接更新schedule。根据上面讲的Scheduler接口的方法，在这个工具类里面定义
- 创建定时任务 createScheduleJob(Scheduler scheduler, TbJob scheduleJob)
- 更新定时任务 updateScheduleJob(Scheduler scheduler, TbJob scheduleJob)
- 立即执行任务 run(Scheduler scheduler, TbJob scheduleJob)
- 暂停任务 pauseJob(Scheduler scheduler, Long jobId)
- 删除定时任务 deleteScheduleJob(Scheduler scheduler, Long jobId)
- 恢复任务 resumeJob(Scheduler scheduler, Long jobId)
具体实现：
package com.lichong.quartzdemo.job.configure;
import com.lichong.quartzdemo.job.entity.TbJob;
import lombok.extern.slf4j.Slf4j;
import org.quartz.*;
/**
* 定时任务工具类
*
* @author lichong
*/
@Slf4j
public class ScheduleUtils {
protected ScheduleUtils() {
}
private static final String JOB_NAME_PREFIX = "TASK_";
/**
* 获取触发器 key
*/
private static TriggerKey getTriggerKey(Long jobId) {
return TriggerKey.triggerKey(JOB_NAME_PREFIX + jobId);
}
/**
* 获取jobKey
*/
private static JobKey getJobKey(Long jobId) {
return JobKey.jobKey(JOB_NAME_PREFIX + jobId);
}
/**
* 获取表达式触发器
*/
public static CronTrigger getCronTrigger(Scheduler scheduler, Long jobId) {
try {
return (CronTrigger) scheduler.getTrigger(getTriggerKey(jobId));
} catch (SchedulerException e) {
log.error("获取Cron表达式失败", e);
}
return null;
}
/**
* 创建定时任务
*/
public static void createScheduleJob(Scheduler scheduler, TbJob scheduleJob) {
try {
// 构建job信息
JobDetail jobDetail = JobBuilder.newJob(ScheduleJob.class).withIdentity(getJobKey(scheduleJob.getJobId()))
.build();
// 表达式调度构建器
CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(scheduleJob.getCronExpression())
.withMisfireHandlingInstructionDoNothing();
// 按新的cronExpression表达式构建一个新的trigger
CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(getTriggerKey(scheduleJob.getJobId()))
.withSchedule(scheduleBuilder).build();
// 放入参数，运行时的方法可以获取
jobDetail.getJobDataMap().put(TbJob.JOB_PARAM_KEY, scheduleJob);
scheduler.scheduleJob(jobDetail, trigger);
// 暂停任务
if (scheduleJob.getStatus().equals(TbJob.ScheduleStatus.PAUSE.getValue())) {
pauseJob(scheduler, scheduleJob.getJobId());
}
} catch (SchedulerException e) {
log.error("创建定时任务失败", e);
}
}
/**
* 更新定时任务
*/
public static void updateScheduleJob(Scheduler scheduler, TbJob scheduleJob) {
try {
TriggerKey triggerKey = getTriggerKey(scheduleJob.getJobId());
// 表达式调度构建器
CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(scheduleJob.getCronExpression())
.withMisfireHandlingInstructionDoNothing();
CronTrigger trigger = getCronTrigger(scheduler, scheduleJob.getJobId());
if (trigger == null) {
throw new SchedulerException("获取Cron表达式失败");
} else {
// 按新的 cronExpression表达式重新构建 trigger
trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();
// 参数
trigger.getJobDataMap().put(TbJob.JOB_PARAM_KEY, scheduleJob);
}
scheduler.rescheduleJob(triggerKey, trigger);
// 暂停任务
if (scheduleJob.getStatus().equals(TbJob.ScheduleStatus.PAUSE.getValue())) {
pauseJob(scheduler, scheduleJob.getJobId());
}
} catch (SchedulerException e) {
log.error("更新定时任务失败", e);
}
}
/**
* 立即执行任务
*/
public static void run(Scheduler scheduler, TbJob scheduleJob) {
try {
// 参数
JobDataMap dataMap = new JobDataMap();
dataMap.put(TbJob.JOB_PARAM_KEY, scheduleJob);
scheduler.triggerJob(getJobKey(scheduleJob.getJobId()), dataMap);
} catch (SchedulerException e) {
log.error("执行定时任务失败", e);
}
}
/**
* 暂停任务
*/
public static void pauseJob(Scheduler scheduler, Long jobId) {
try {
scheduler.pauseJob(getJobKey(jobId));
} catch (SchedulerException e) {
log.error("暂停定时任务失败", e);
}
}
/**
* 恢复任务
*/
public static void resumeJob(Scheduler scheduler, Long jobId) {
try {
scheduler.resumeJob(getJobKey(jobId));
} catch (SchedulerException e) {
log.error("恢复定时任务失败", e);
}
}
/**
* 删除定时任务
*/
public static void deleteScheduleJob(Scheduler scheduler, Long jobId) {
try {
scheduler.deleteJob(getJobKey(jobId));
} catch (SchedulerException e) {
log.error("删除定时任务失败", e);
}
}
}
TbJob这个实体类是用来传递数据和映射数据库，ScheduleJob是用来真正实现Job接口中execute方法的，下面是ScheduleJob的代码
package com.lichong.quartzdemo.job.configure;
import com.lichong.quartzdemo.job.entity.TbJob;
import lombok.extern.slf4j.Slf4j;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;
/**
* 定时任务
*
* @author lichong
*/
@Slf4j
public class ScheduleJob implements Job {
private ExecutorService service = Executors.newSingleThreadExecutor();
@Override
public void execute(JobExecutionContext context) {
TbJob scheduleJob = (TbJob) context.getJobDetail().getJobDataMap().get(TbJob.JOB_PARAM_KEY);
long startTime = System.currentTimeMillis();
try {
// 执行任务
log.info("任务准备执行，任务ID：{}", scheduleJob.getJobId());
ScheduleRunnable task = new ScheduleRunnable(scheduleJob.getBeanName(), scheduleJob.getMethodName(),
scheduleJob.getParams());
Future<?> future = service.submit(task);
future.get();
long times = System.currentTimeMillis() - startTime;
log.info("任务执行完毕，任务ID：{} 总共耗时：{} 毫秒", scheduleJob.getJobId(), times);
} catch (Exception e) {
log.error("任务执行失败，任务ID：" + scheduleJob.getJobId(), e);
}
}
}
JobExecutionContext是quartz框架的上下文，我们创建一个单线程的线程池去执行任务，所以需要写一个ScheduleRunnable实现Runnable，在ScheduleRunnable中重写run方法去调用反射去invoke具体的Object中的method。上面代码中熟悉线程池的朋友都知道线程池的submit方法返回的是一个Future<?>，Future用在线程又返回结果的地方，future.get();获得计算结果或者异常，表示执行完成。
package com.lichong.quartzdemo.job.configure;
import com.lichong.quartzdemo.job.util.SpringContextUtil;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.util.ReflectionUtils;
import java.lang.reflect.Method;
/**
* 执行定时任务
*
* @author lichong
*/
@Slf4j
public class ScheduleRunnable implements Runnable {
private Object target;
private Method method;
private String params;
ScheduleRunnable(String beanName, String methodName, String params) throws NoSuchMethodException, SecurityException {
this.target = SpringContextUtil.getBean(beanName);
this.params = params;
if (StringUtils.isNotBlank(params)) {
this.method = target.getClass().getDeclaredMethod(methodName, String.class);
} else {
this.method = target.getClass().getDeclaredMethod(methodName);
}
}
@Override
public void fafa() {
try {
ReflectionUtils.makeAccessible(method);
if (StringUtils.isNotBlank(params)) {
method.invoke(target, params);
} else {
method.invoke(target);
}
} catch (Exception e) {
log.error("执行定时任务失败", e);
}
}
}
package com.lichong.quartzdemo.job.util;
import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;
/**
* Spring Context 工具类
*
* @author lichong
*
*/
@Component
public class SpringContextUtil implements ApplicationContextAware {
private static ApplicationContext applicationContext;
@Override
public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
SpringContextUtil.applicationContext = applicationContext;
}
public static Object getBean(String name) {
return applicationContext.getBean(name);
}
}
- 到这里就基础的内容完成，接下来就是增删改查了，现在回过头去补充controller中的增删改查内容，首先定义一个@RestController的返回通用返回实体Response
package com.lichong.quartzdemo.job.entity;
import org.springframework.http.HttpStatus;
import java.util.HashMap;
public class Response extends HashMap<String, Object> {
private static final long serialVersionUID = -8713837118340960775L;
public Response code(HttpStatus status) {
this.put("code", status.value());
return this;
}
public Response code(String status) {
this.put("code", status);
return this;
}
public Response message(String message) {
this.put("message", message);
return this;
}
public Response data(Object data) {
this.put("data", data);
return this;
}
public Response success() {
this.code(HttpStatus.OK);
return this;
}
public Response fail() {
this.code(HttpStatus.INTERNAL_SERVER_ERROR);
return this;
}
}
补充Controller中的Restful 方法
package com.lichong.quartzdemo.job.controller;
import com.lichong.quartzdemo.job.entity.Response;
import com.lichong.quartzdemo.job.entity.TbJob;
import com.lichong.quartzdemo.job.service.IJobService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
/**
* <p>
* 定时任务表 前端控制器
* </p>
*
* @author lichong
* @since 2020-07-30
*/
@RestController
@RequestMapping("/job")
public class JobController {
@Autowired
private IJobService jobService;
@PostMapping
public Response addJob(TbJob job) {
this.jobService.createJob(job);
return new Response().success();
}
@GetMapping("delete/{jobId}")
public Response deleteJob(@PathVariable String jobId) {
this.jobService.deleteJobs(jobId);
return new Response().success();
}
@PostMapping("update")
public Response updateJob(TbJob job) {
this.jobService.updateJob(job);
return new Response().success();
}
/**
* 立即执行一次任务
*/
@GetMapping("run/{jobId}")
public Response runJob(@PathVariable String jobId) {
this.jobService.run(jobId);
return new Response().success();
}
@GetMapping("pause/{jobId}")
public Response pauseJob(@PathVariable String jobId) {
this.jobService.pause(jobId);
return new Response().success();
}
@GetMapping("resume/{jobId}")
public Response resumeJob(@PathVariable String jobId) {
this.jobService.resume(jobId);
return new Response().success();
}
}
补充service
package com.lichong.quartzdemo.job.service;
import com.lichong.quartzdemo.job.entity.TbJob;
import com.baomidou.mybatisplus.extension.service.IService;
/**
* <p>
* 定时任务表 服务类
* </p>
*
* @author lichong
* @since 2020-07-30
*/
public interface IJobService extends IService<TbJob> {
void createJob(TbJob job);
void deleteJobs(String jobId);
void updateJob(TbJob job);
void run(String jobId);
void pause(String jobId);
void resume(String jobId);
}
补充impl，在impl里面调用ScheduleUtils中的那些方法，需要注入Scheduler,并且还需要注意一点，如果我们手动改了数据库tb_job表中的数据，那我们也希望启动的时候能更新，所以加入一个@PostConstruct，来更新scheduler
package com.lichong.quartzdemo.job.service.impl;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.lichong.quartzdemo.job.configure.ScheduleUtils;
import com.lichong.quartzdemo.job.entity.TbJob;
import com.lichong.quartzdemo.job.mapper.JobMapper;
import com.lichong.quartzdemo.job.service.IJobService;
import org.quartz.CronTrigger;
import org.quartz.Scheduler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import javax.annotation.PostConstruct;
import java.util.Date;
import java.util.List;
/**
* <p>
* 定时任务表 服务实现类
* </p>
*
* @author lichong
* @since 2020-07-30
*/
@Service
public class JobServiceImpl extends ServiceImpl<JobMapper, TbJob> implements IJobService {
@Autowired
private Scheduler scheduler;
/**
* 项目启动时，初始化定时器
*/
@PostConstruct
public void init() {
List<TbJob> scheduleJobList = this.list();
// 如果不存在，则创建
scheduleJobList.forEach(scheduleJob -> {
CronTrigger cronTrigger = ScheduleUtils.getCronTrigger(scheduler, scheduleJob.getJobId());
if (cronTrigger == null) {
ScheduleUtils.createScheduleJob(scheduler, scheduleJob);
} else {
ScheduleUtils.updateScheduleJob(scheduler, scheduleJob);
}
});
}
@Override
public void createJob(TbJob job) {
job.setCreateTime(new Date());
this.save(job);
ScheduleUtils.createScheduleJob(scheduler, job);
}
@Override
public void deleteJobs(String jobId) {
ScheduleUtils.deleteScheduleJob(scheduler, Long.valueOf(jobId));
this.baseMapper.deleteById(jobId);
}
@Override
public void updateJob(TbJob job) {
ScheduleUtils.updateScheduleJob(scheduler, job);
this.baseMapper.updateById(job);
}
@Override
public void run(String jobId) {
ScheduleUtils.run(scheduler, this.getById(jobId));
}
@Override
public void pause(String jobId) {
ScheduleUtils.pauseJob(scheduler, Long.valueOf(jobId));
TbJob job = new TbJob();
job.setJobId(Long.valueOf(jobId));
job.setStatus(TbJob.ScheduleStatus.PAUSE.getValue());
this.baseMapper.updateById(job);
}
@Override
public void resume(String jobId) {
ScheduleUtils.resumeJob(scheduler, Long.valueOf(jobId));
TbJob job = new TbJob();
job.setJobId(Long.valueOf(jobId));
job.setStatus(TbJob.ScheduleStatus.NORMAL.getValue());
this.baseMapper.updateById(job);
}
}
最后，我们在写一个测试用的最终被定时任务调用的类，新建一个task包，在这个包里面新建一个TestTask.class
package com.lichong.quartzdemo.job.task;
import lombok.extern.slf4j.Slf4j;
@Slf4j
@Component
public class TestTask {
public void testByParam(String params) {
log.info("我是带参数的test方法，正在被执行，参数为：{}" , params);
}
public void testNoParam() {
log.info("我是不带参数的test1方法，正在被执行");
}
}
到此所有代码就写完了，下面用postman进行一下测试

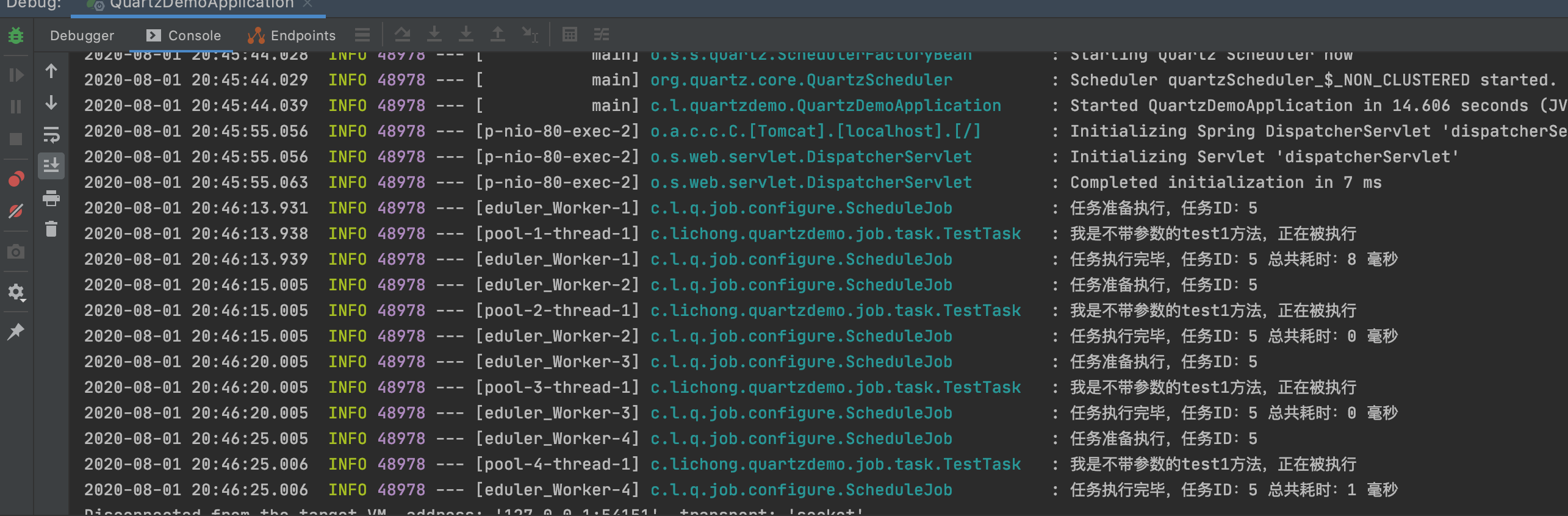

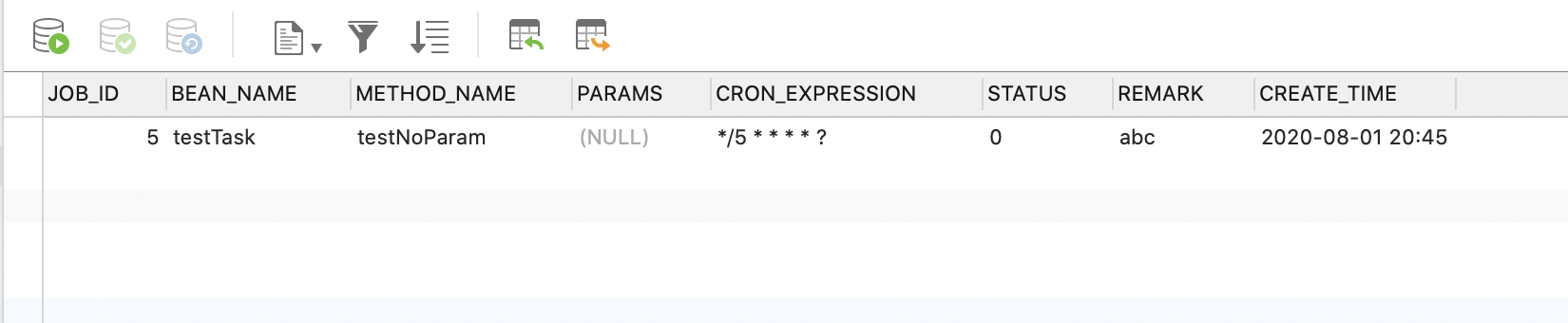

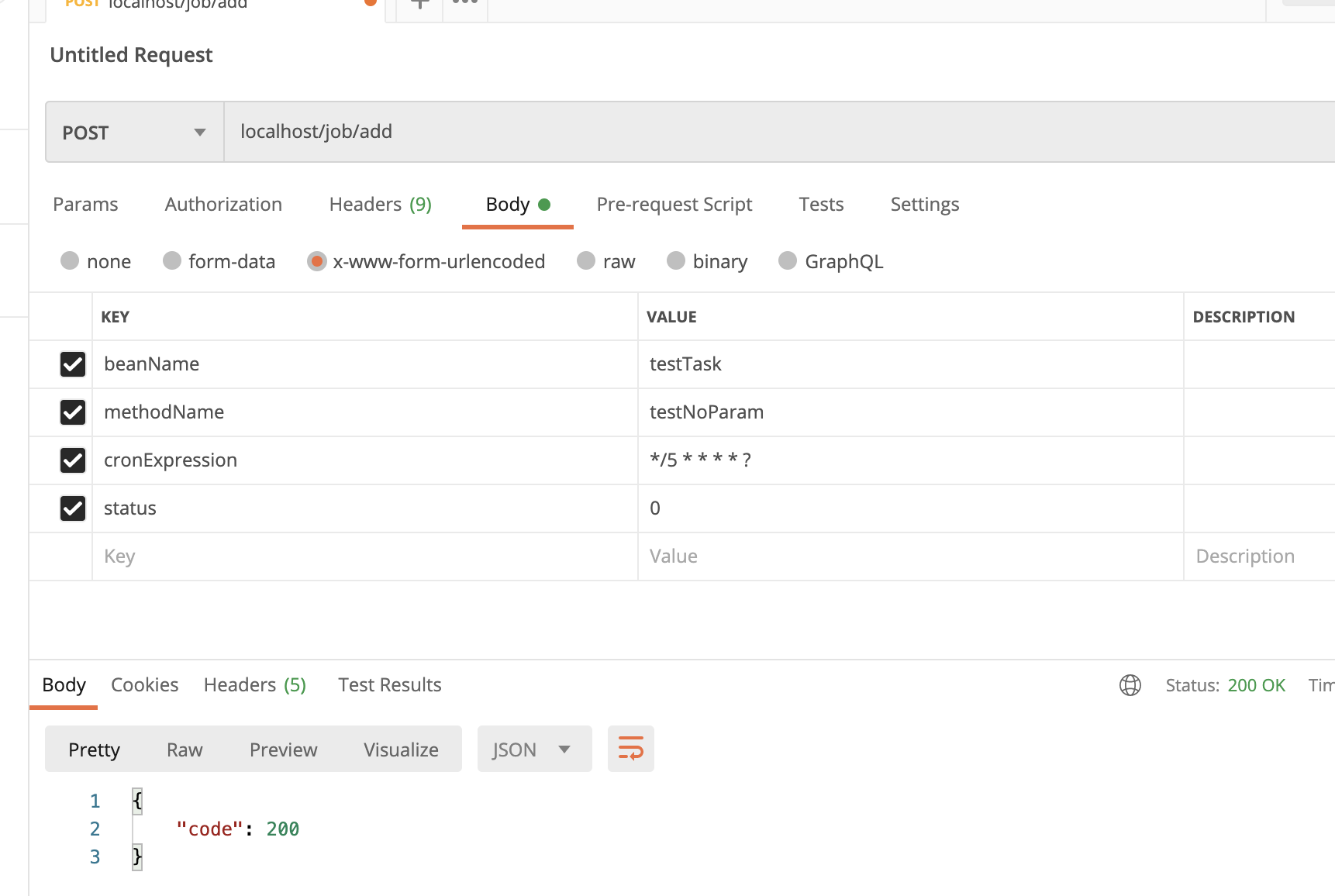

1.添加一个定时任务执行TestTask类中的testNoParam方法

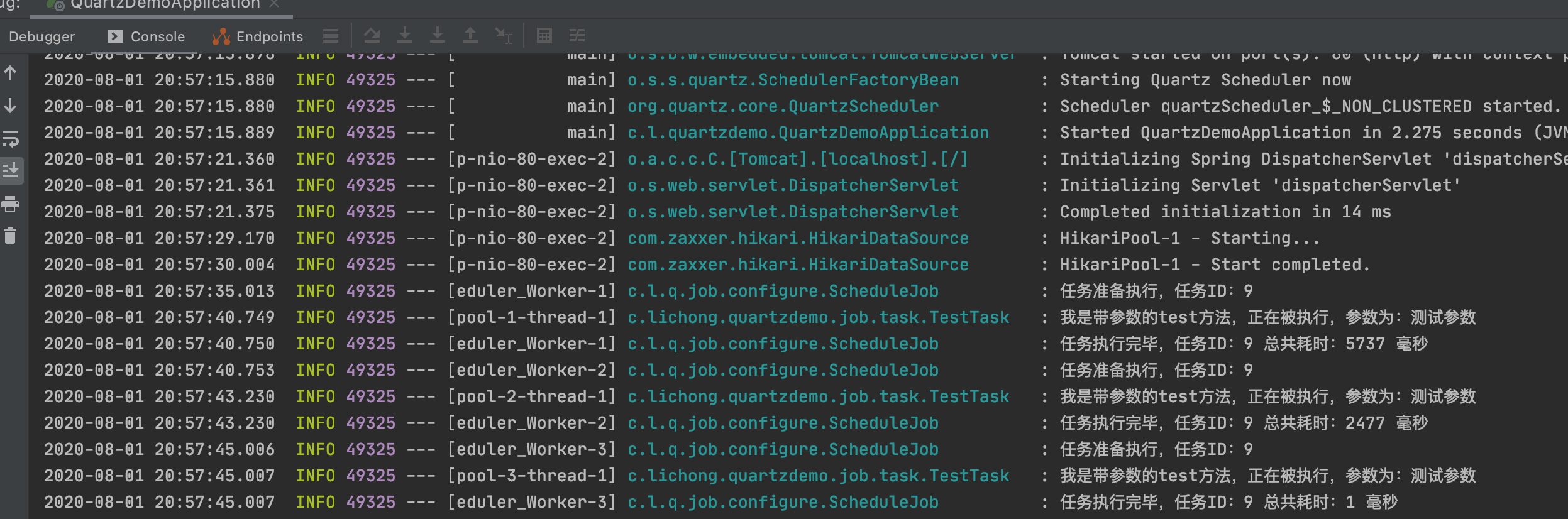

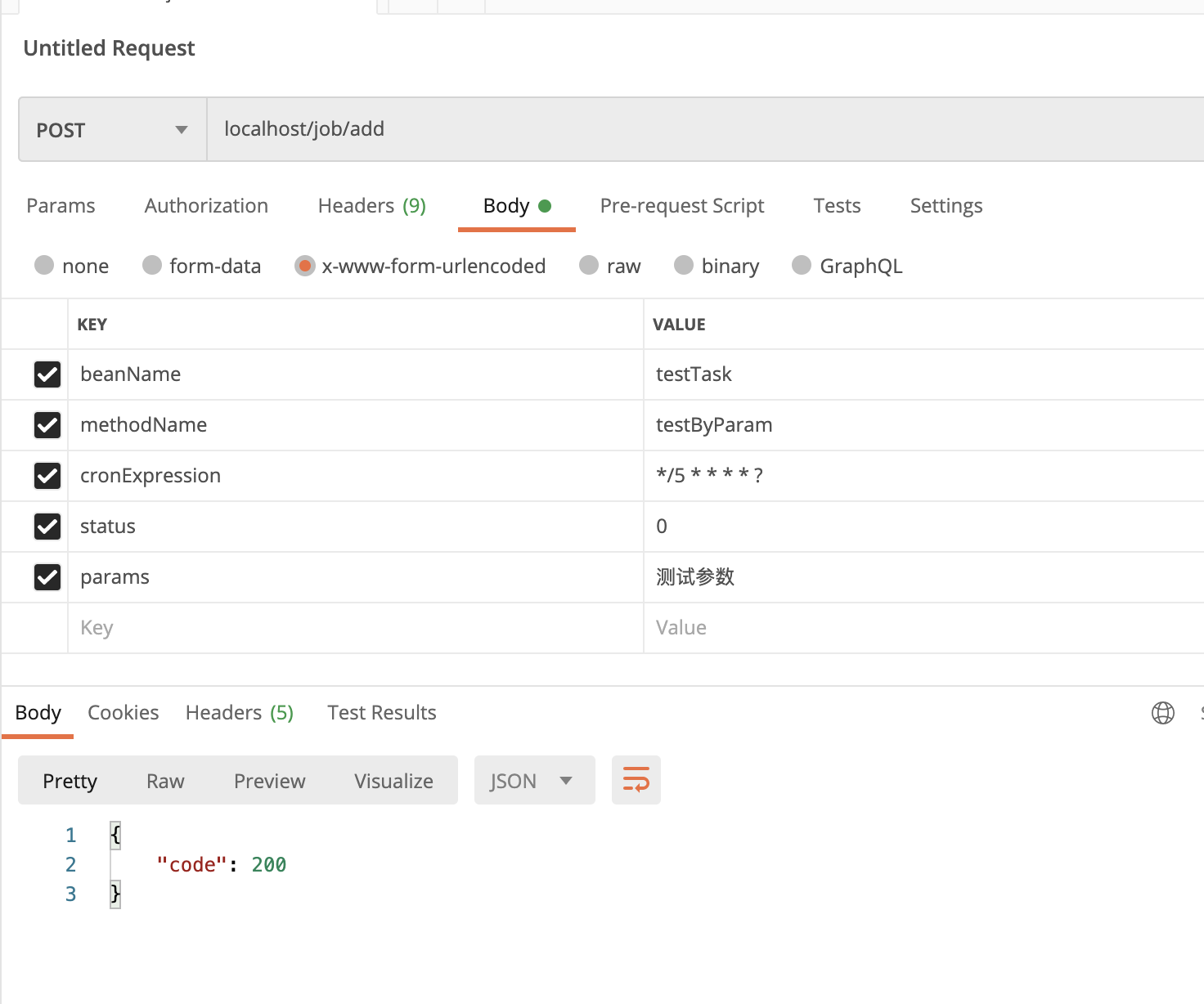

2.测试添加一条定时任务执行TestTask类中testByParam方法
3.测试删除任务，就是简单的数据库删除
剩下的几个就不展示了，我测试过没问题，到此全篇结束。。。。感谢大家阅读。
写在最后
这是我第一篇博客，前前后后写了好几天才写完，有很多地方可能没说的很清楚，请大家见谅，现在回过头看，篇幅有点太长了，但我觉得写博客是一种回顾所学知识很好的一种方式，以后也会坚持下去。
项目下载地址：quartz-demo
版权声明：本文为lichongsky1原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接和本声明。
