网络模型（DCGAN-深度卷积 GAN）

概念

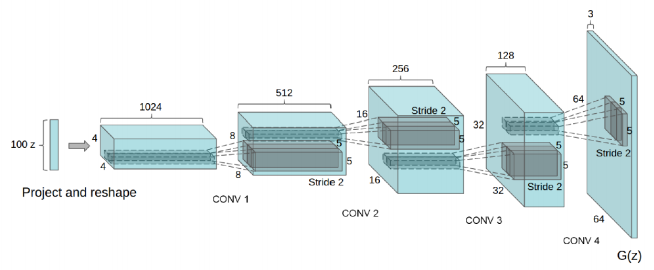

生成网络
尺寸变大（1 → 图片尺寸）。
通道数变大，再逐渐变小（in → max → …… → 3）。
输出用 Tanh 激活。
输出层不用 BN。

判别网络
尺寸变小（图片尺寸 → 1）。
通道数逐渐变大，再变小（3 → …… → max → 1）。
输出用 Sigmoid 激活。
输入层不用 BN。

实验（生成卡通人脸）

数据集：96×96 的卡通人脸。（5 万）

网络结构：

• 判别器：卷积 + 标准化（BN）+ 激活（LeakyReLU）+ Sigmoid。
• 生成器：转置卷积 + 标准化（BN）+ 激活（ReLU）+ Tanh。

优化器：Adam(lr=0.0002, betas=(0.5, 0.999))。

损失函数：二进制交叉熵（BCELoss）。

输出：

• 判别网络：图片为真的概率。
• 生成网络：图片。

数据集

from torch.utils.data import Dataset
from torchvision import transforms
from PIL import Image
import os


class MyDataset(Dataset):
    def __init__(self, path):
        self.path = path
        self.imgs = os.listdir(path)
        self.transform = transforms.Compose([transforms.ToTensor(), transforms.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5])])

    def __len__(self):
        return len(self.imgs)

    def __getitem__(self, index):
        img = Image.open(os.path.join(self.path, self.imgs[index]))
        return self.transform(img)

网络

import torch
from torch import nn


# 判别器
class D_Net(nn.Module):
    def __init__(self):
        super().__init__()
        self.conv = nn.Sequential(
            nn.Conv2d(3, 64, 5, 3, 1, bias=False), nn.LeakyReLU(0.2, inplace=True),
            nn.Conv2d(64, 128, 4, 2, 1, bias=False), nn.BatchNorm2d(128), nn.LeakyReLU(0.2, inplace=True),
            nn.Conv2d(128, 256, 4, 2, 1, bias=False), nn.BatchNorm2d(256), nn.LeakyReLU(0.2, inplace=True),
            nn.Conv2d(256, 512, 4, 2, 1, bias=False), nn.BatchNorm2d(512), nn.LeakyReLU(0.2, inplace=True),
            nn.Conv2d(512, 1, 4, 1, 0, bias=False), nn.Sigmoid()
        )

    def forward(self, x):
        return self.conv(x)


# 生成器
class G_Net(nn.Module):
    def __init__(self):
        super().__init__()
        self.convT = nn.Sequential(
            nn.ConvTranspose2d(128, 512, 4, 1, 0, bias=False), nn.BatchNorm2d(512), nn.ReLU(inplace=True),
            nn.ConvTranspose2d(512, 256, 4, 2, 1, bias=False), nn.BatchNorm2d(256), nn.ReLU(inplace=True),
            nn.ConvTranspose2d(256, 128, 4, 2, 1, bias=False), nn.BatchNorm2d(128), nn.ReLU(inplace=True),
            nn.ConvTranspose2d(128, 64, 4, 2, 1, bias=False), nn.BatchNorm2d(64), nn.ReLU(inplace=True),
            nn.ConvTranspose2d(64, 3, 5, 3, 1, bias=False), nn.Tanh()
        )

    def forward(self, x):
        return self.convT(x)

训练

import torch
from torch import nn
from torch.utils.data import DataLoader
from torchvision.utils import save_image
import os

from dataset import MyDataset
from net import D_Net, G_Net


batch_size = 100

data_path = r"D:\data\faces"
img_path = r"img"
net_path = r"modules"
d_net_path = r"modules/d_net.pth"
g_net_path = r"modules/g_net.pth"

# 创建文件夹
if not os.path.exists(net_path):
    os.makedirs(net_path)
if not os.path.exists(data_path):
    os.makedirs(data_path)
if not os.path.exists(img_path):
    os.makedirs(img_path)

# 数据集
dataset = MyDataset(data_path)
dataloader = DataLoader(dataset, batch_size=batch_size, shuffle=True, num_workers=8, drop_last=True)

# 设备
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")


if __name__ == '__main__':
    # 加载网络
    d_net = D_Net().to(device)
    g_net = G_Net().to(device)
    if os.path.isfile(d_net_path):
        d_net.load_state_dict(torch.load(d_net_path))
    if os.path.isfile(g_net_path):
        g_net.load_state_dict(torch.load(g_net_path))
    d_opt = torch.optim.Adam(d_net.parameters(), lr=0.0002, betas=(0.5, 0.999))
    g_opt = torch.optim.Adam(g_net.parameters(), lr=0.0002, betas=(0.5, 0.999))
    loss_fn = nn.BCELoss()

    d_net.train()
    g_net.train()

    while True:
        for i, x in enumerate(dataloader):
            # 训练判别器
            real_img = x.to(device)
            real_out = d_net(real_img)
            real_label = torch.ones(batch_size, 1, 1, 1).to(device)
            # 判别真损失：真实图片和 1 标签
            real_loss = loss_fn(real_out, real_label)

            z = torch.randn(batch_size, 128, 1, 1).to(device)
            fake_img = g_net(z)
            fake_out = d_net(fake_img)
            fake_label = torch.zeros(batch_size, 1, 1, 1).to(device)
            # 判别假损失：生成图片和 0 标签
            fake_loss = loss_fn(fake_out, fake_label)

            d_loss = real_loss + fake_loss
            d_opt.zero_grad()
            d_loss.backward()
            d_opt.step()

            # 训练生成器
            z = torch.randn(batch_size, 128, 1, 1).to(device)
            g_img = g_net(z)
            g_out = d_net(g_img)
            # 生成损失：生成图片和 1 标签
            g_loss = loss_fn(g_out, real_label)
            g_opt.zero_grad()
            g_loss.backward()
            g_opt.step()

            if i % 50 == 0:
                print("i:{},d_loss:{:.5},g_loss:{:.5}".format(i, d_loss, g_loss))
                torch.save(d_net.state_dict(), d_net_path)
                torch.save(g_net.state_dict(), g_net_path)
                save_image(real_img, "{}/{}_real.jpg".format(img_path, i), nrow=10, padding=2, normalize=True, scale_each=True)
                save_image(fake_img, "{}/{}_fake.jpg".format(img_path, i), nrow=10, padding=2, normalize=True, scale_each=True)

测试

import torch
from torchvision.utils import save_image
import os

from net import G_Net


batch_size = 100

net_path = r"modules/g_net.pth"
result_path = r"result"

# 设备
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")


if __name__ == '__main__':
    # 加载网络
    net = G_Net().to(device)
    if os.path.isfile(net_path):
        net.load_state_dict(torch.load(net_path))
    net.eval()

    for i in range(10):
        z = torch.randn(batch_size, 128, 1, 1)
        img = net(z)
        save_image(img, "{}/{}.jpg".format(result_path, i), nrow=10, padding=2, normalize=True, scale_each=True)
