t中有重复的数据 没法插值运算，你可以剔除重复数据，在运行一次。
t=[0.0132 0.0210 0.0256 0.0286 0.0316 0.0353 0.0386 0.0401 0.0401 0.0401 0.0407 0.0425 0.0448 0.0472 0.0492 0.0507 0.0524 0.0546 0.0567 0.0585 0.0604 0.0628 0.0654 0.0689 0.0728 0.0760 0.0793 0.0832 0.0873 0.0914 0.0962 0.1024 0.1100 0.1185 0.1278 0.1386 0.1512 0.1650 0.1800 0.1954 0.2107 0.2263 0.2417 0.2560 0.2692 0.2822 0.2952 0.3076 0.3186 0.3281 0.3357 0.3409 0.3457 0.3507 0.3546 0.3576 0.3600 0.3624 0.3643 0.3663 0.3689 0.3723 0.3762 0.3862 0.3909 0.4035 0.4189 0.4334 0.4470 0.4605 0.4737 0.4860 0.4973 0.5081 0.5198 0.5319 0.5436 0.5553 0.5679 0.5815 0.5952 0.6082 0.6207 0.6327 0.6444 0.6567 0.6697 0.6833 0.6966 0.7096 0.7230 0.7373 0.7520 0.7661 0.7795 0.7925 0.8053 0.8176 0.8293 0.8404 0.8516 0.8640 0.8774 0.8911 0.9023 0.9092 0.9134 0.9166 0.9194 0.9214 0.9229 0.9244 0.9259 0.9274 0.9290 0.9298 0.9305 0.9316 0.933 3 0.9348 0.9359 0.9372 0.9383 0.9394 0.9413 0.9441 0.9474 0.9506 0.9541 0.9575 0.9610 0.9649 0.9695 0.9742 0.9794 0.9855 0.9924 1.0011 1.0123];
q=[ 71.4082 72.3927 73.4094 74.6165 75.8582 77.1000 78.3071 79.5144 80.7219 81.9468 83.1891 84.4140 85.6559 86.8805 88.1052 89.3471 90.5718 91.8138 93.0385 94.2631 95.4878 96.7297 97.9544 99.1789 100.3861 101.5933 102.8177 104.0422 105.2493 106.4392 107.6463 108.8533 109.9910 111.0423 112.0762 113.0754 113.9536 114.6936 115.1918 115.4482 115.5839 115.7540 115.9241 115.8872 115.5055 114.8995 114.2074 113.4980 112.7369 111.8898 110.9221 109.8340 108.6772 107.5033 106.3465 105.1727 103.9472 102.7219 101.4965 100.2712 99.0460 97.8206 96.6123 95.4040 95.3679 96.5404 96.8145 96.5016 95.9127 95.3067 94.7008 94.0603 93.2993 92.4349 91.5533 90.7578 89.9968 89.2013 88.3886 87.6620 87.0560 86.4500 85.7751 85.0313 84.2185 83.3886 82.6275 81.9871 81.3811 80.7234 80.0486 79.4599 78.9918 78.5927 78.1419 77.5360 76.8438 76.1172 75.3734 74.5607 73.6790 72.7974 71.9845 71.4304 71.3937 72.0131 73.1335 74.3923 75.6168 76.8414 78.0660 79.2908 80.5328 81.7748 83.0168 84.2415 85.4836 86.7258 87.9506 89.1753 90.4173 91.6594 92.8841 94.1262 95.3683 96.5930 97.8175 99.0247 100.2320 101.4392 102.6463 103.8708 105.0607 106.2504 107.4402 108.6126 109.7504 110.8535 111.8873 112.7483];
[t1,I,J]=unique(t);
[t1,I,J]=unique(t);
q1=0*t1;
for i=1:length(I)
q1(i)=q(I(i));
end
t11=linspace(t1(1),t1(105),256);
q11=interp1(t1,q1,t11,'spline');

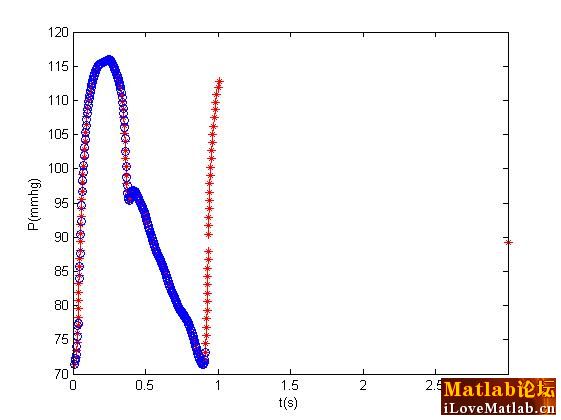

plot(t,q,'r*',t11,q11,'bo');
%axis([-0.25,1.25,50,150]);
xlabel('t(s)');ylabel('P(mmhg)');
[本帖最后由 dbb627 于 2011-3-22 15:42 编辑]
(25.39 KB, 下载次数: 0)
2011-3-22 15:42 上传
