mybatis自动生成mapper.xml文件

编写配置文件：config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN" "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
 	<classPathEntry location="mysql-connector-java-8.0.13.jar"/>
	<context id="context1"  targetRuntime="MyBatis3">
		<property name="javaFileEncoding" value="UTF-8"/>
		<commentGenerator>
			<property name="suppressDate" value="true"/>
			<property name="suppressAllComments" value="true"/>
		</commentGenerator>
		<!-- 数据库连接信息 -->
		<jdbcConnection driverClass="com.mysql.cj.jdbc.Driver" userId="root" password=""
			connectionURL="jdbc:mysql://localhost/bookshop?useSSL=false"/>
		<javaTypeResolver>
			<property name="forceBigDecimals" value="false"/>
		</javaTypeResolver>
		<!-- java bean -->
		<javaModelGenerator targetPackage="com.demos.pojo" targetProject="src">
			<property name="trimStrings" value="false"/>
		</javaModelGenerator>
		<!-- mapper映射文件 -->
		<sqlMapGenerator targetPackage="com.demos.mapper" targetProject="src">
		</sqlMapGenerator>
		<!-- 配置dao接口 -->
		<javaClientGenerator type="XMLMAPPER" targetPackage="com.demos.dao" targetProject="src">
		</javaClientGenerator>
<!--
		<table tableName="mnt_rule" domainObjectName="Rule" enableCountByExample="false"
			enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false" >
			<generatedKey column="id" sqlStatement="JDBC" identity="true"/>
		</table>
-->
		<table tableName="book" domainObjectName="Book" enableCountByExample="false"
			enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false" >
			<generatedKey column="id" sqlStatement="JDBC" identity="true"/>
		</table>

	</context>
</generatorConfiguration>

使用时只需要修改

1. classPathEntry的connector包，
2. 数据库连接信息，
3. java bean位置，
4. mapper映射文件位置，
5. dao接口位置，
6. 表名 改成自己的即可

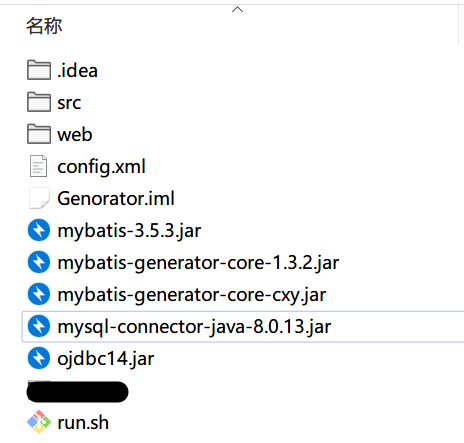

把 以下文件复制到genorator项目根目录下

• mybatis-3.5.3.jar,
• mybatis-generator-core-1.3.2.jar,
• mybatis-generator-core-cxy.jar,
• mysql-connector-java-8.0.13.jar

  [外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-dyyUJuaM-1582555257991)(D:\截图\网课\Genorator.png)]

运行脚本：run.sh

#!/bin/bash
java -jar mybatis-generator-core-cxy.jar -configfile config.xml -overwrite

这个和mybatis逆向工程差不多，可以了解一下。
