创建 kubernetes-dashboard

官方仓库
https://github.com/kubernetes/dashboard

下载

 wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.4.0/aio/deploy/recommended.yaml

也可以直接使用 url

  kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.4.0/aio/deploy/recommended.yaml

但是，因为后续需要修改，而且 raw.githubusercontent.com 域名不一定总能打开，所以，下载下来比较放心！

改用 NodePort 方式访问
vim recommended.yaml

找到 k8s-app: kubernetes-dashboard ，增加 type: NodePort 和 nodePort: 30001

 ---
 kind: Service
 apiVersion: v1
 metadata:
   labels:
     k8s-app: kubernetes-dashboard
   name: kubernetes-dashboard
   namespace: kubernetes-dashboard
 spec:
   type: NodePort #使用 NodePort方式，方便外网访问
   ports:
     - port: 443
       targetPort: 8443
       nodePort: 30001 #映射到host的30001端口
   selector:
     k8s-app: kubernetes-dashboard

 ---

后来配置了本地 LoadBalancer
k8s学习: 使用 MetalLB 给测试环境配置LoadBalancer 服务
所以，改成了这样

 kind: Service
 apiVersion: v1
 metadata:
   labels:
     k8s-app: kubernetes-dashboard
   name: kubernetes-dashboard
   namespace: kubernetes-dashboard
 spec:
   type: LoadBalancer # NodePort
   ports:
     - port: 443
       targetPort: 8443
       # nodePort: 30001
   selector:
     k8s-app: kubernetes-dashboard

 ---

kubectl apply -f recommended.yaml

 namespace/kubernetes-dashboard created
 serviceaccount/kubernetes-dashboard created
 service/kubernetes-dashboard created
 secret/kubernetes-dashboard-certs created
 secret/kubernetes-dashboard-csrf created
 secret/kubernetes-dashboard-key-holder created
 configmap/kubernetes-dashboard-settings created
 role.rbac.authorization.k8s.io/kubernetes-dashboard created
 clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
 rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
 clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
 deployment.apps/kubernetes-dashboard created
 service/dashboard-metrics-scraper created
 deployment.apps/dashboard-metrics-scraper created

确认
kubectl get pods --all-namespaces

 NAMESPACE              NAME                                        READY   STATUS    RESTARTS       AGE
 ...
 kubernetes-dashboard   dashboard-metrics-scraper-c45b7869d-nxbct   1/1     Running   5 (53m ago)    6d
 kubernetes-dashboard   kubernetes-dashboard-576cb95f94-jtz58       1/1     Running   5 (53m ago)    6d

创建访问用户

官方仓库文档
Creating sample user
镜像仓库文档
Creating sample user
创建一个 adminuser（Creating a Service Account）
vim dashboard-adminuser.yaml
```
 apiVersion: v1
 kind: ServiceAccount
 metadata:
   name: admin-user
   namespace: kubernetes-dashboard
```
生成
kubectl apply -f dashboard-adminuser.yaml

创建一个ClusterRole（Creating a ClusterRoleBinding）
vim dashboard-ClusterRoleBinding.yaml

 apiVersion: rbac.authorization.k8s.io/v1
 kind: ClusterRoleBinding
 metadata:
   name: admin-user
 roleRef:
   apiGroup: rbac.authorization.k8s.io
   kind: ClusterRole
   name: cluster-admin
 subjects:
 - kind: ServiceAccount
   name: admin-user
   namespace: kubernetes-dashboard

生成
kubectl apply -f dashboard-ClusterRoleBinding.yaml

获取访问令牌（Getting a Bearer Token）

从仓库文档中找到 Getting a Bearer Token 命令样本

 kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"

结果如下

	eyJhbGciOiJSUzI1NiIsImtpZCI6IkhRVkxadFBlblNkbGYtZ05obUNDWmxkNzhEazFsbWoxOGNCSkRST25VY28ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWpzc3BwIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI4NmJkZGQwZS1lODE0LTQ4MjItODAyYS0wZGVlZWU1YzQ2ZjAiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.OivIRkS11wQMNTztVeokL63qYSl3-Cb9UnHHa3yFhiVBuDz_92F7gy3C1etX2MEE1l-1zAFnmiAypum1T-PjCVSodvgvUKv_N3KTDSUdW0JIpDxymK_cIoU6H6aqL5F5FvYgodYNKc05wuKVH2Jc1udZthADoD5RRpo1S_ttwLfjJgiSOa-Bz-4A_jv4EzJqcBqVZtusacosT6x9JxcukoWq9bmuSZ8Lp99dVFzsCHgD1XicBYSm6RQ8tXAYioEHa0tk3SJrC6rLrLBa5_NIO9ZkwGWpumj35yC-SkD8uDjuwPFtn1DE7EmOEut8N1Rg5kZ9izV4_7oY9CK1nQDcb[root@c[root@centos7-189 working]# [root@centos7-[root@c[root@centos7-[root@centos7-[root@centos7-[root@c[root@centos7-

或者

这个指令样本忘记从哪里 cp 来的了

 kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"

返回结果样本：

eyJhbGciOiJSUzI1NiIsImtpZCI6IkhRVkxadFBlblNkbGYtZ05obUNDWmxkNzhEazFsbWoxOGNCSkRST25VY28ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWpzc3BwIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI4NmJkZGQwZS1lODE0LTQ4MjItODAyYS0wZGVlZWU1YzQ2ZjAiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.OivIRkS11wQMNTztVeokL63qYSl3-Cb9UnHHa3yFhiVBuDz_92F7gy3C1etX2MEE1l-1zAFnmiAypum1T-PjCVSodvgvUKv_N3KTDSUdW0JIpDxymK_cIoU6H6aqL5F5FvYgodYNKc05wuKVH2Jc1udZthADoD5RRpo1S_ttwLfjJgiSOa-Bz-4A_jv4EzJqcBqVZtusacosT6x9JxcukoWq9bmuSZ8Lp99dVFzsCHgD1XicBYSm6RQ8tXAYioEHa0tk3SJrC6rLrLBa5_NIO9ZkwGWpumj35yC-SkD8uDjuwPFtn1DE7EmOEut8N1Rg5kZ9izV4_7oY9CK1nQDcbQ

打开Dashboard

浏览器打开 https://192.168.1.189:30001/#/login

后来使用了 LoadBalancer ，url 变成了这个
https://192.168.1.242/#/ingress?namespace=default
ip 地址是这样子获取的

kubectl get svc -n kubernetes-dashboard

 NAME                        TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)         AGE
 dashboard-metrics-scraper   ClusterIP      10.96.77.141    <none>          8000/TCP        7m35s
 kubernetes-dashboard        LoadBalancer   10.101.232.27   192.168.1.242   443:30332/TCP   7m36s

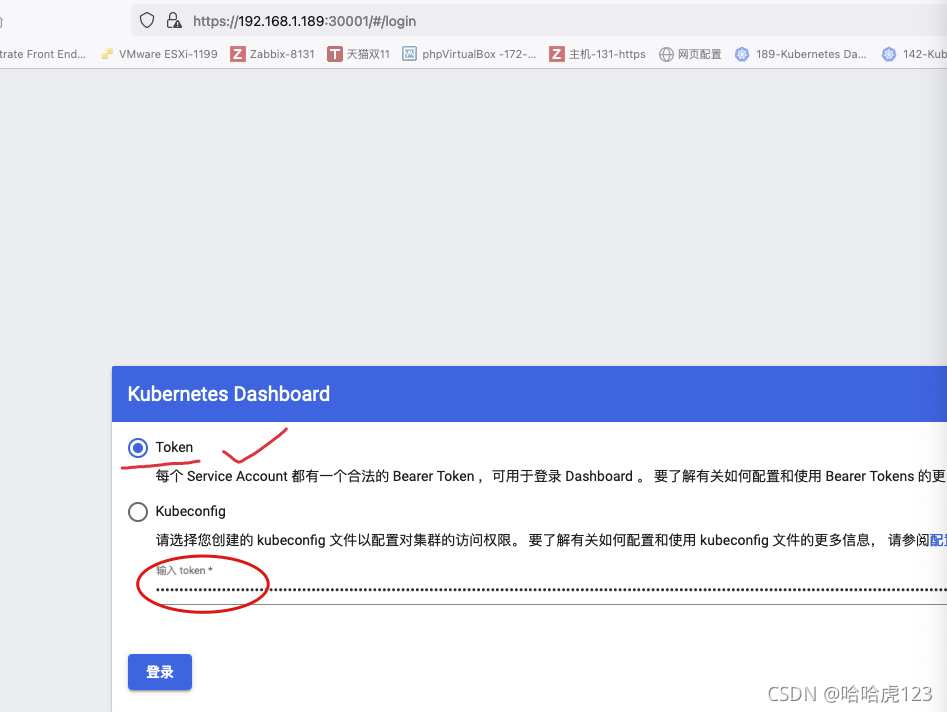

在这里插入图片描述

使用前一步保存的 token 登录
在这里插入图片描述
