jenkins实现一键部署docker项目

一、在服务器上搭建Gitlab

本人阿里的服务器因配置有限，就直接使用Gitee作为代码仓库了

二、搭建Jenkins服务

集成Jenkins-1

1.安装JDK

Jenkins需要依赖JDK，所以先安装JDK1.8
yum install java-1.8.0-openjdk* -y
#默认安装目录为（后面配置环境变量会用到）：/usr/lib/jvm

2.安装Jenkins

获取jenkins安装包
把安装包上传到服务器A，进行安装
```
rpm -ivh jenkins-2.190.3-1.1.noarch.rpm
```

修改Jenkins配置

vi /etc/syscoﬁg/jenkins
#修改内容如下(修改访问Jenkins的端口)：
JENKINS_USER=“root” JENKINS_PORT=“3344”

启动Jenkins
```
systemctl start jenkins
```
打开浏览器访问 http://ip:3344
注意：本服务器把防火墙关闭了，如果开启防火墙，需要在防火墙添加端口

获取并输入admin账户密码

cat /var/lib/jenkins/secrets/initialAdminPassword

跳过插件安装(官方的安装比较慢，甚至失败，进去后配置阿里的加速地址)

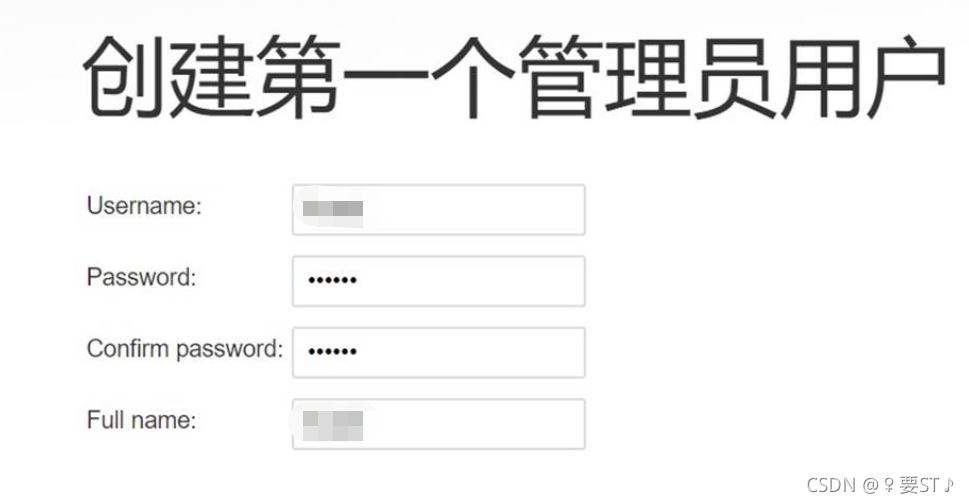

添加一个管理员账户，并进入Jenkins后台

集成Jenkins-2

1.修改Jenkins插件下载地址

Jenkins国外官方插件地址下载速度非常慢，所以可以修改为国内插件地址： Jenkins->Manage Jenkins->Manage Plugins，点击Available

这样做是为了把Jenkins官方的插件列表下载到本地，接着修改地址文件，替换为国内插件地址

cd /var/lib/jenkins/updates

 sed -i 's/http:\/\/updates.jenkinsci.org\/download/https:\/\/mirrors.tuna.tsinghua.edu.cn\/jenkins/g' default.json &&   sed -i 's/http:\/\/www.google.com/https:\/\/www.baidu.com/g' default.json

最后，Manage Plugins点击Advanced，把Update Site改为国内插件下载地址 https://mirrors.tuna.tsinghua.edu.cn/jenkins/updates/update-center.json

Sumbit后，在浏览器输入：http://192.168.66.101:8888/restart ，重启Jenkins。

2.下载中文汉化插件

Jenkins->Manage Jenkins->Manage Plugins，点击Available，搜索"Chinese"
在这里插入图片描述

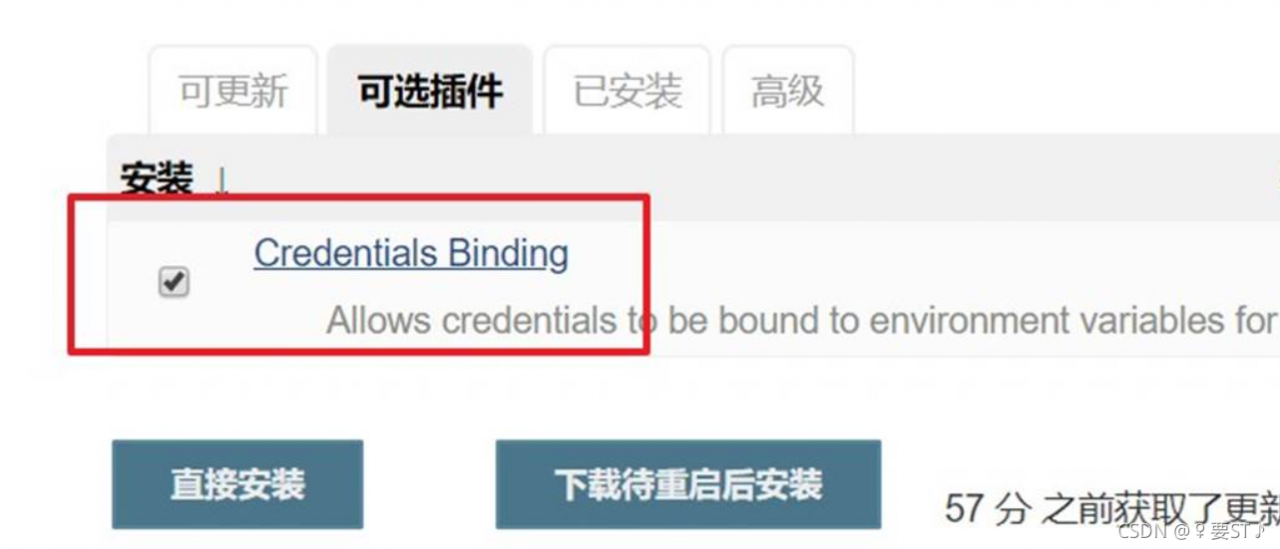

3.安装Credentials Binding插件

要在Jenkins使用凭证管理功能，需要安装Credentials Binding插件
在这里插入图片描述

可以添加的凭证有5种：

Username with password：用户名和密码
SSH Username with private key：使用SSH用户和密钥
Secret ﬁle：需要保密的文本文件，使用时Jenkins会将文件复制到一个临时目录中，再将文件路径设置到一个变量中，等构建结束后，所复制的Secret ﬁle就会被删除。
Secret text：需要保存的一个加密的文本串，如钉钉机器人或Github的api token
Certiﬁcate：通过上传证书文件的方式
常用的凭证类型有：Username with password（用户密码）和SSH Username with private key（SSH密钥）

4.安装Git插件和Git工具

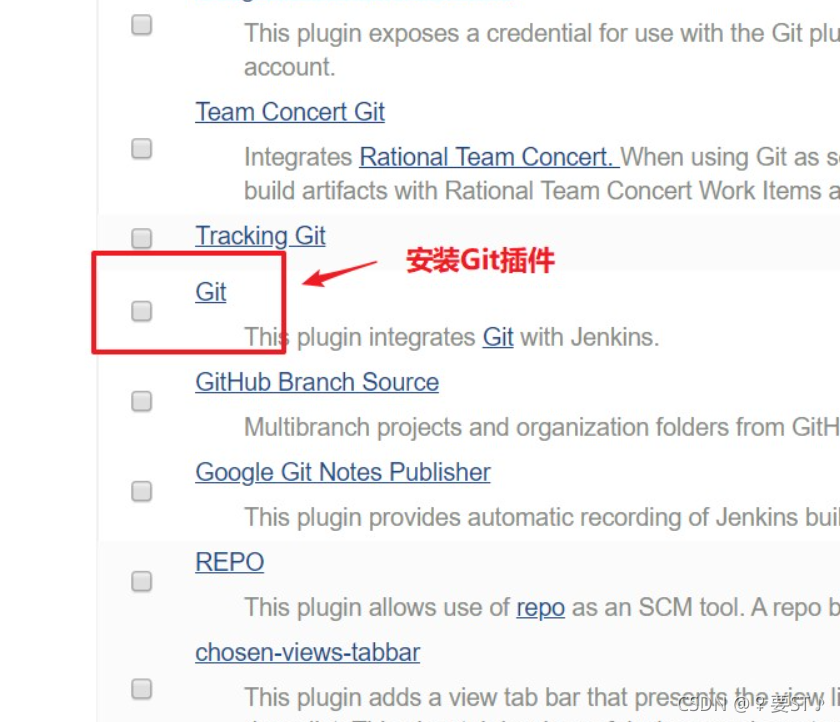

在Jenkins上的插件中安装Git插件

在服务器上也安装git

yum install git -y 安装
git --version 安装后查看版本

创建凭证（用户密码类型）

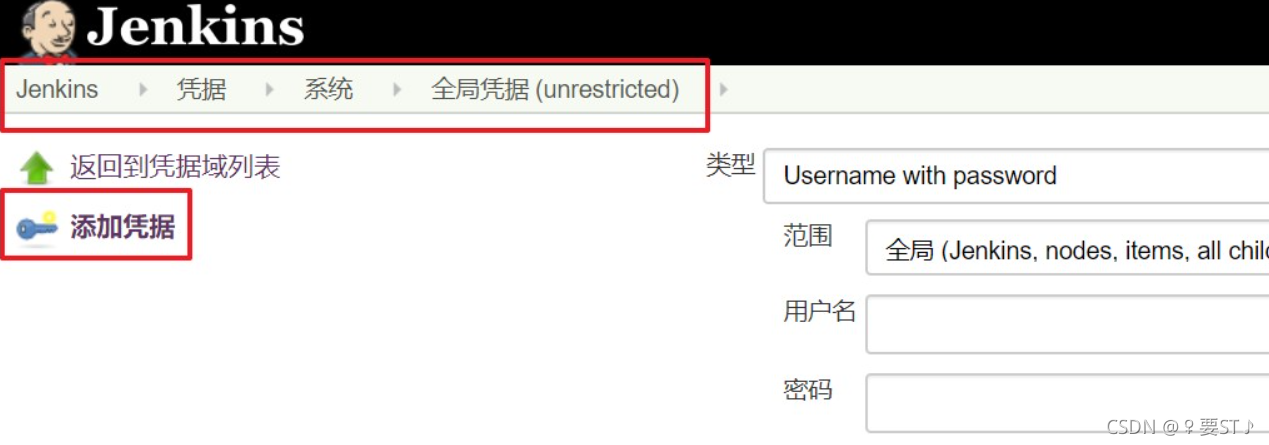

Jenkins->凭证->系统->全局凭证->添加凭证

选择"Username with password"，输入Gitlab的用户名和密码，点击"确定"。之后在项目中就可以用该凭证了
创建凭证（SSH密钥类型）
在服务器A使用root用户生成公钥和私钥
```
ssh-keygen -t rsa
在`/root/.ssh/`目录保存了公钥和私钥
把生成的公钥放在Gitlab中
```

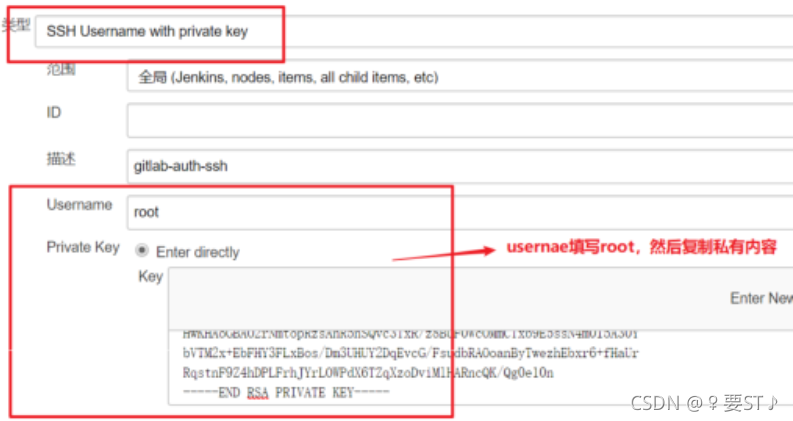

在Jenkins添加一个新的凭证，类型为"SSH Username with private key"，把刚才生成私钥文件内容复制过来

集成Jenkins-3

1.安装 mavan

在Jenkins集成服务器上，我们需要安装Maven来编译和打包项目。安装Maven

先上传Maven软件到服务器

tar -xzf apache-maven-3.6.2-bin.tar.gz #解压

mkdir -p /opt/maven # 创建目录

mv apache-maven-3.6.2/* /opt/maven # 移动文件

#**配置环境变量**
vim /etc/proﬁle
export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk
export MAVEN_HOME=/opt/maven
export PATH=$PATH:$JAVA_HOME/bin:$MAVEN_HOME/bin

source /etc/proﬁle #配置生效
mvn -v #查找Maven版本

2.JK关联JDK和Maven

全局工具配置

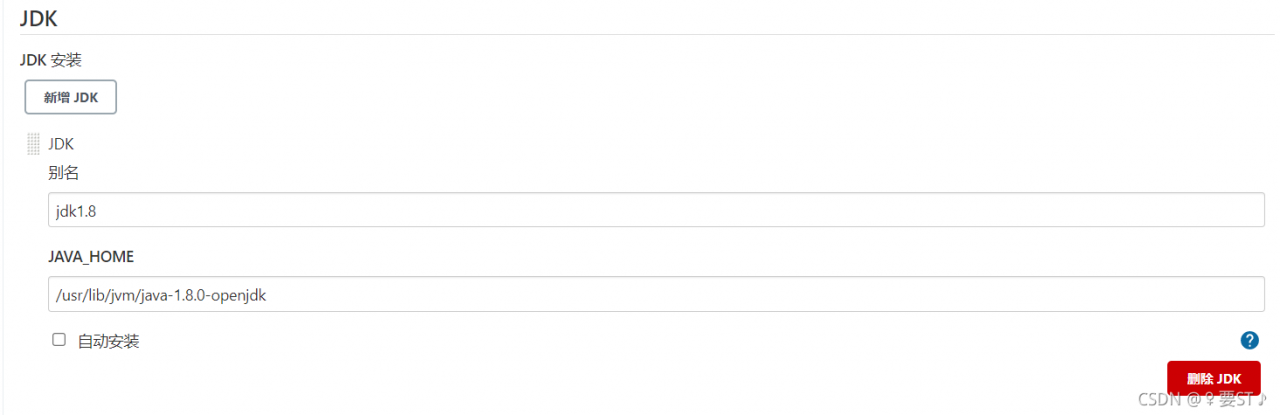

Jenkins->Global Tool Conﬁguration->JDK->新增JDK，配置如下：
指定JDK的JAVA_HOME即可

同理指定MAVEN的MAVEM_HOME

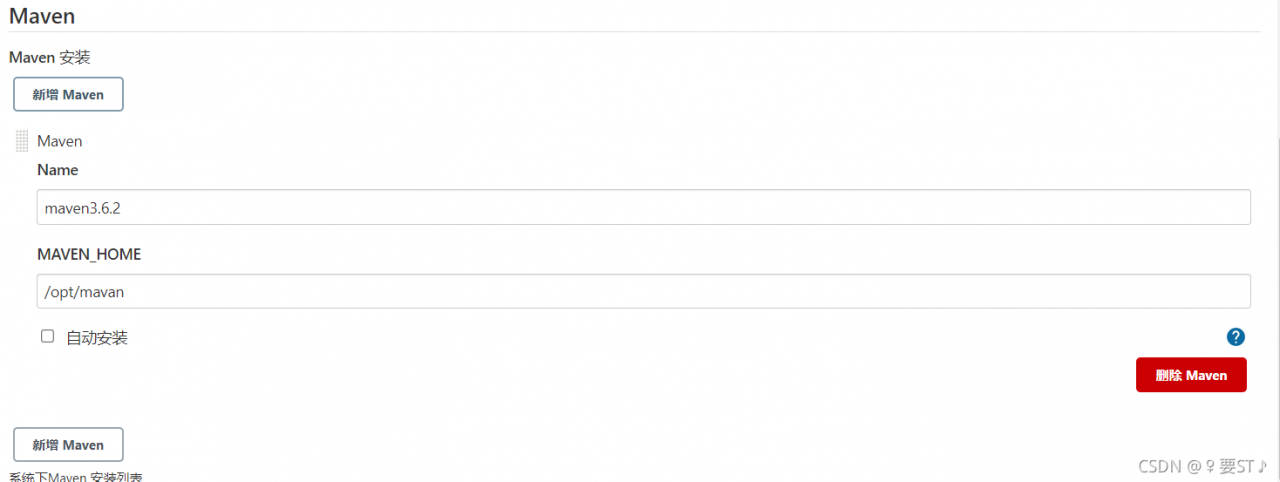

Jenkins->Global Tool Conﬁguration->Maven->新增Maven，配置如下：

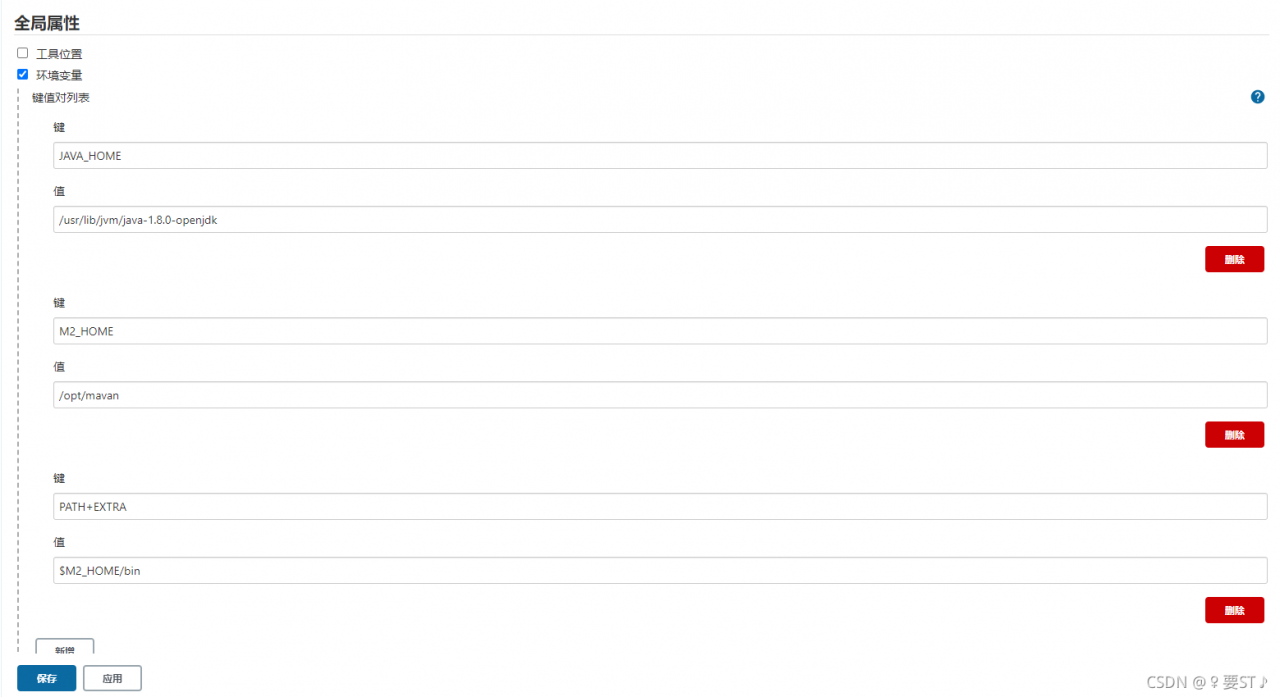

添加Jenkins全局变量

Manage Jenkins->Conﬁgure System->Global Properties ，添加三个全局变量JAVA_HOME、M2_HOME、PATH+EXTRA
在这里插入图片描述

修改Maven的settings.xml------（修改仓库存放的地址以及下载依赖的地址）

mkdir /root/repo # 创建本地仓库目录

vi /opt/maven/conf/settings.xml

# 本地仓库目录改为：/root/repo/

#添加阿里云私服地址：
<mirror>

     <id>alimaven</id>

     <name>aliyun maven</name>

     <url>http://maven.aliyun.com/nexus/content/groups/public/</url>

     <mirrorOf>central</mirrorOf>

 </mirror>

3.安装Pipeline、Maven Integration插件

Manage Jenkins->Manage Plugins->可选插件–>安装Pipeline、Maven Integration

三、Harbor安装

Harbor镜像服务器，安装在服务B器上

1.安装Docker并启动Docker，参考网上的安装过程

2.安装`docker-compose`

sudo curl -L https://github.com/docker/compose/releases/download/1.21.2/dockercompose-$(uname -s)-$(uname -m) -o /usr/local/bin/docker-compose

3.给`docker-compose`添加执行权限

sudo chmod +x /usr/local/bin/docker-compose

4.查看docker-compose是否安装成功

docker-compose -version
# 如果是centos8百度网上的安装教程，否则会失败

5.下载Harbor的压缩包 https://github.com/goharbor/harbor/releases

6.上传压缩包到linux，并解压

tar -xzf harbor-oﬄine-installer-v1.9.2.tgz mkdir /opt/harbor
mv harbor/* /opt/harbor
cd /opt/harbor

7. 修改Harbor的配置

vi harbor.yml

修改hostname和port

hostname: 192.168.66.102
port: 85

8. 安装Harbor

# 进入Harbor文件夹下面分别执行
./prepare

./install.sh

9.启动Harbor

docker-compose up -d 启动

docker-compose stop 停止

docker-compose restart 重新启动

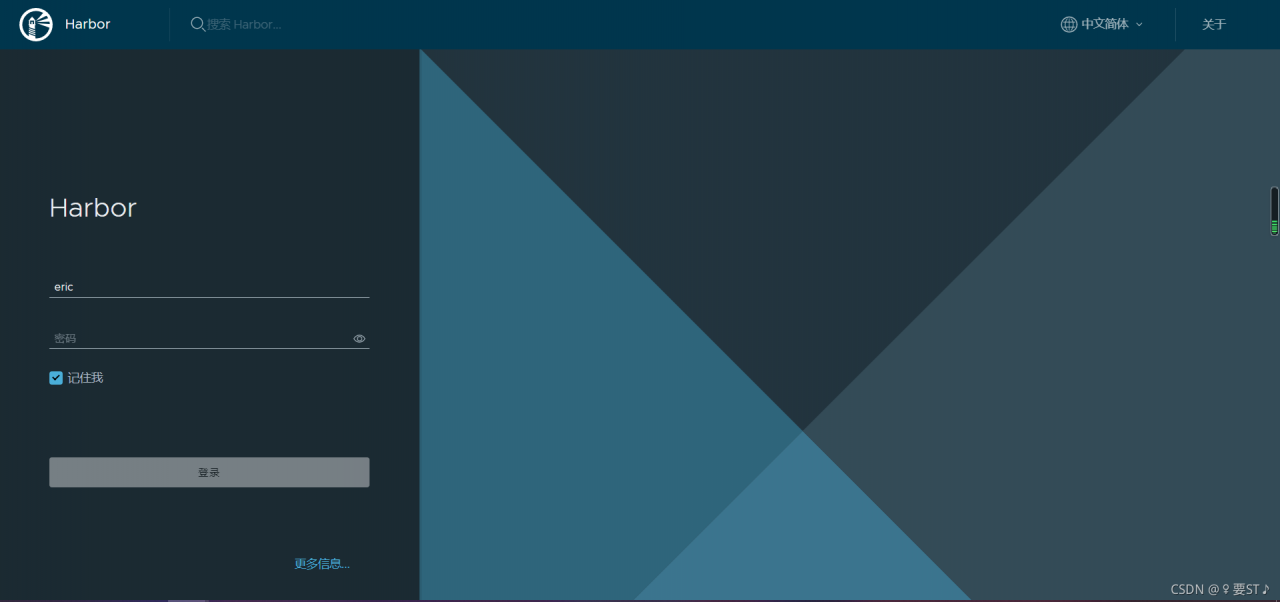

10.访问Harbor http://ip:85

默认账户密码：admin/Harbor12345
在这里插入图片描述

11.把Harbor地址加入到Docker信任列表（服务器A）

vi /etc/docker/daemon.json

{
    "registry-mirrors": ["https://zydiol88.mirror.aliyuncs.com"],
    "insecure-registries": ["192.168.66.102:85"]
}

需要重启Docker，同理，在部署的项目的服务器C中也要加入信任列表

四、创建流水线项目

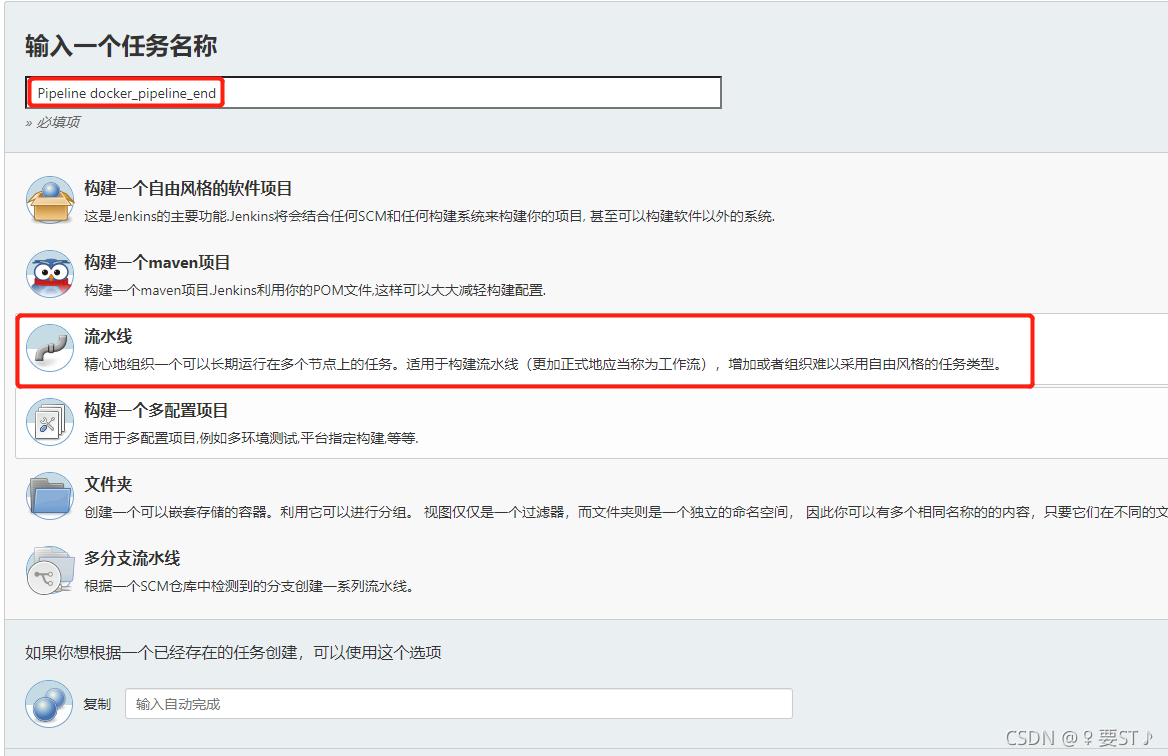

1.创建任务，输入项目`名称`并选着`流水线`

在这里插入图片描述

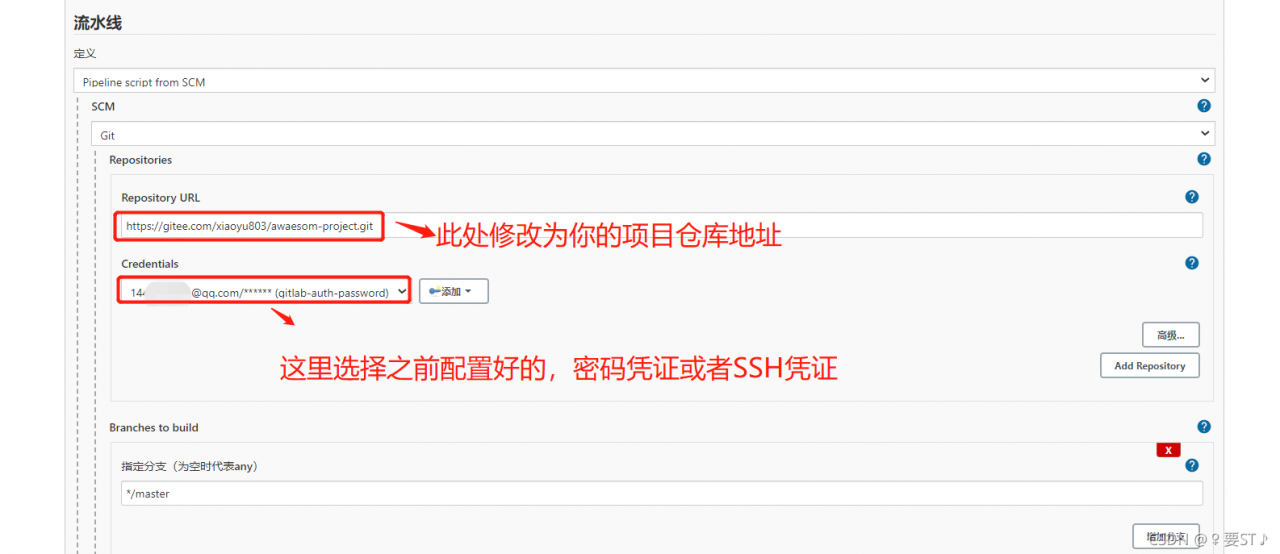

2.配置Git

配置->高级项目选项->流水香->Git
在这里插入图片描述

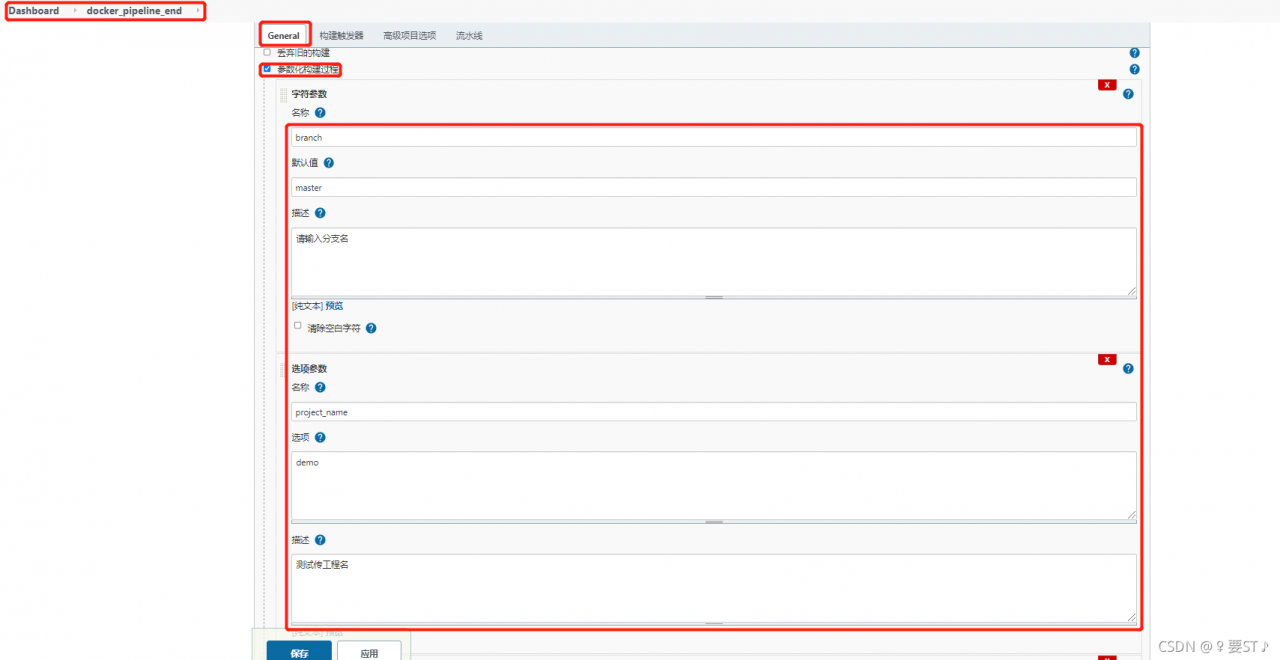

3.配置构建参数

在这里插入图片描述

4.编写Jenkins脚本


// git凭证id(在jenkins的全局凭证配置中可获取)
def  git_auth = 'a3e0fe22-1263-4e56-8648-0xxx6642e'

// git仓库地址
def git_url = 'git@gitlab.xxxx.com:ha/sense-platform/xxxx.git'

// 项目运行的端口
def port = 3005

// docker镜像对外暴露的端口
def containerport = 8080

//构建版本的名
def tag = 'latest'

//Harbor私服地址
def harbor_url = '10.240.xxx.xxx:1180'

//Harbor的项目名称
def harbor_project_name = 'sense'

//Harbor的凭证
def harbor_auth = '2008c9e0-2f8d-4f39-a9d7-980685xxxxxcab'

//定义镜像名称（构建成功的镜像名）
def imageName = "${project_name}:${tag}"


pipeline {
    agent any
    environment {
        //根据自己的Jenkinssonarqube-scanner环境修改 （全局工具配置SonarQube Scanner）
        scannerHome=tool 'SonarQubeScanner'
    }
    stages{
        stage('Pull the source code') {
            steps{
                checkout([$class: 'GitSCM',
                branches: [[name: "*/${branch}"]],
                extensions: [],
                userRemoteConfigs: [[
                            credentialsId: "${git_auth}",
                            url: "${git_url}"
                        ]]
                    ])
                echo '拉取代码成功'
           }
        }
        stage('Check the source code') {
            steps{
                //引入Jenkinssonarqube环境 （全局工具管理SonarQube servers）
                withSonarQubeEnv('SonarQubeServer'){
                    sh """
                        ${scannerHome}/bin/sonar-scanner
                    """
                }
                echo '源码审查完毕'
            }
        }

        stage('Quality Gate') {
            steps {
              script {
                  Integer waitSeconds = 10
                  Integer timeOutMinutes = 10
                  Integer maxRetry = (timeOutMinutes * 60) / waitSeconds as Integer
                  for (Integer i = 0; i < maxRetry; i++) {
                    try {
                      timeout(time: waitSeconds, unit: 'SECONDS') {
                        def qg = waitForQualityGate()
                        if (qg.status != 'OK') {
                          error "Sonar quality gate status: ${qg.status}"
                        } else {
                          i = maxRetry
                        }
                      }
                    } catch (Throwable e) {
                      if (i == maxRetry - 1) {
                        throw e
                      }
                    }
                }
              }
               echo '成功获取扫描结果'
            }

        }
        stage('Compile and build the image') {
            steps{
                // 多了个dockerfile:build，就是激活插件生成镜像
                sh 'cd Code && mvn clean package dockerfile:build'
                echo '编译，构建镜像成功'
            }
        }
        stage('Label the image') {
            steps{
                //给镜像打标签
                sh "docker tag ${imageName}  ${harbor_url}/${harbor_project_name}/${imageName}"
            }
        }
        stage('Upload the image to the warehouse') {
            steps{

                //登录Harbor，并上传镜像
                withCredentials([usernamePassword(
                        credentialsId: "${harbor_auth}",
                        passwordVariable: 'password',  // 就是这样的，不用替换，在jk中配置的
                        usernameVariable: 'username')])
                {
                    //登录
                    sh "docker login -u ${username} -p ${password} ${harbor_url}"
                    //上传镜像
                    sh "docker push ${harbor_url}/${harbor_project_name}/${imageName}"
                    echo '镜像上传成功'
                }
            }
        }
        stage('Remove the mirror') {
            steps{
                //删除本地镜像
                sh "docker rmi -f ${imageName}"
                // 刪除打标签的镜像
                sh "docker rmi -f ${harbor_url}/${harbor_project_name}/${imageName}"
            }
        }
        stage("Remote deployment"){
            steps{
            //=====以下为远程调用进行项目部署========
                sshPublisher(
                        publishers: [
                            sshPublisherDesc(
                                configName: '10.240.131.123',
                                transfers: [
                                    sshTransfer(
                                        cleanRemote: false,
                                        excludes: '',
                                        // 参数说明  harbor仓库的url、harbor服务暴露的端口、项目名、容器标签、主机端口、容器端口、占位参
                                        execCommand: "/opt/jenkins_shell/deploy.sh $harbor_url $harbor_project_name $project_name $tag $port $containerport placeholderparameter",
                                        execTimeout: 360000,
                                        flatten: false,
                                        makeEmptyDirs: false,
                                        noDefaultExcludes: false,
                                        patternSeparator: '[, ]+',
                                        remoteDirectory: '',
                                        remoteDirectorySDF: false,
                                        removePrefix: '',
                                        sourceFiles: ''
                                )],
                                usePromotionTimestamp: false,
                                useWorkspaceInPromotion: false,
                                verbose: false
                            )])
                }
        }
    }

    post {
        always {
            emailext(
                subject: '构建通知：${PROJECT_NAME} - Build # ${BUILD_NUMBER} -${BUILD_STATUS}!',
                body: '${FILE,path="./Code/Email.html"}',
                to: 'Timli@apjcorp.com'
            )
        }
    }
}

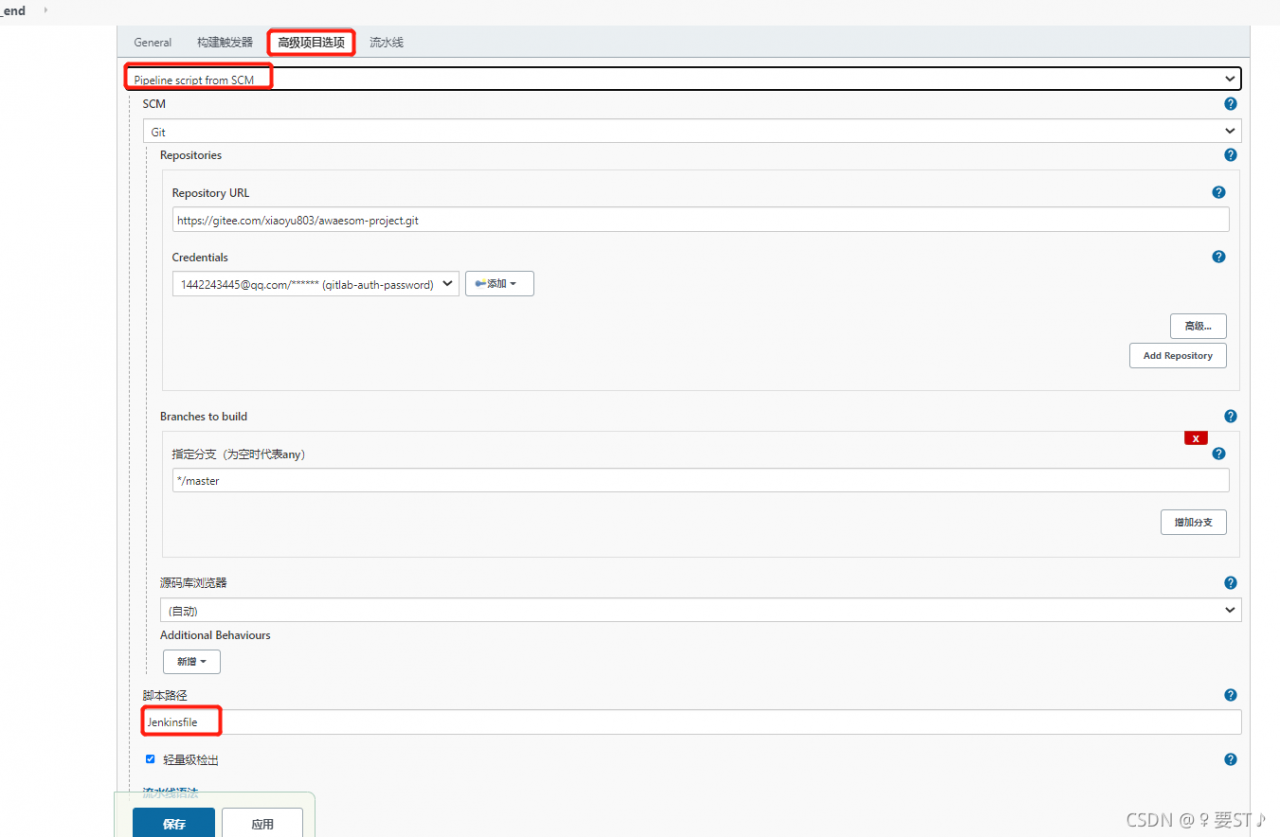

5. 选择脚本的位置所在

在这里插入图片描述

6.编写Dockerfiles文件

FROM openjdk:8-jdk-alpine
ARG JAR_FILE
COPY ${JAR_FILE} app.jar
EXPOSE 8080
ENTRYPOINT ["java","-jar","/app.jar"]

7.编写第四部中配置的`deploy.sh`

#! /bin/sh
#接收外部参数
harbor_url=$1
harbor_project_name=$2
project_name=$3
tag=$4
port=$5

imageName=$harbor_url/$harbor_project_name/$project_name:$tag

echo "$imageName"

#查询容器是否存在，存在则删除
containerId=`docker ps -a | grep -w ${project_name}:${tag}  | awk '{print $1}'`
if [ "$containerId" !=  "" ] ; then
    #停掉容器
    docker stop $containerId

    #删除容器
    docker rm $containerId

	echo "成功删除容器"
fi

#查询镜像是否存在，存在则删除
imageId=`docker images | grep -w $project_name  | awk '{print $3}'`

if [ "$imageId" !=  "" ] ; then

    #删除镜像
    docker rmi -f $imageId

	echo "成功删除镜像"
fi

# 登录Harbor
docker login -u eric -p Eric123456 $harbor_url

# 下载镜像
docker pull $imageName

# 启动容器
docker run -di -p $port:$port $imageName

echo "容器启动成功"

注意：需要给该文件执行权限

chmod +x deploy.sh

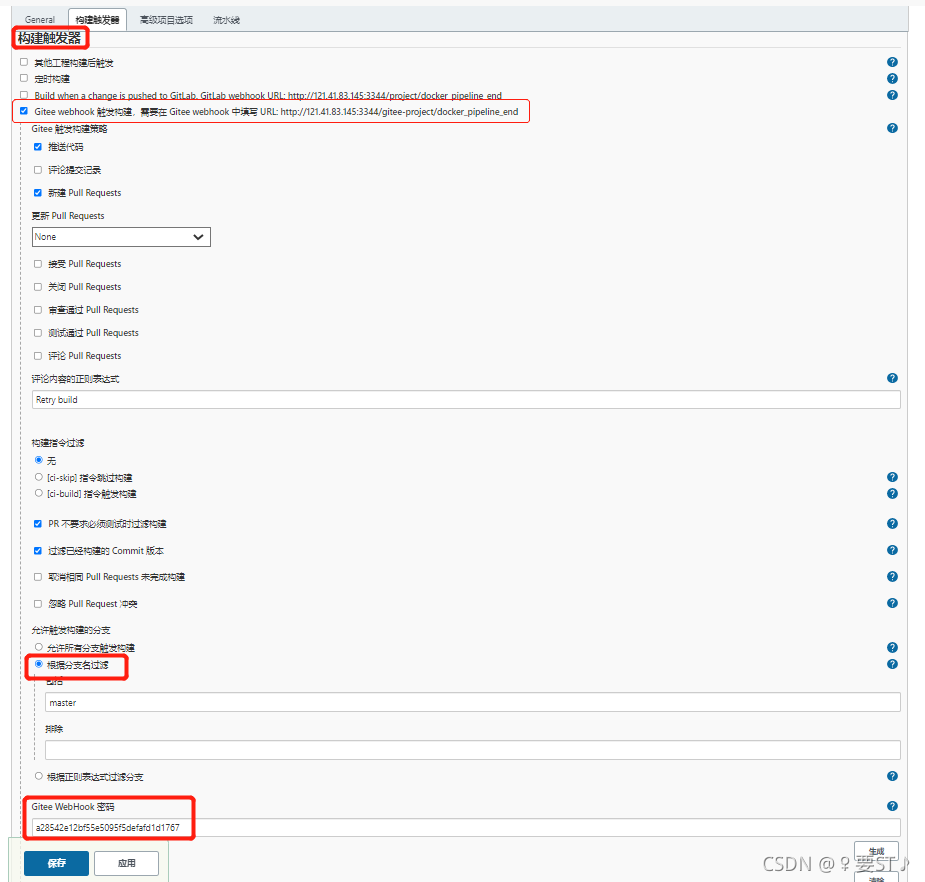

8.配置构建触发器

因为我用的是Giee，所以额外安装了Gitee Plugin插件
在这里插入图片描述
随后将上图的url和Gitee WebHook 密码配置到码云的**webHook**中即可

9. 配置服务器B跟服务器C免密连接

上面所述的远程调用（jk调用部署服务器）是需要公钥私钥的

1）从服务器A拷贝公钥到远程服务器C（部署服务器）

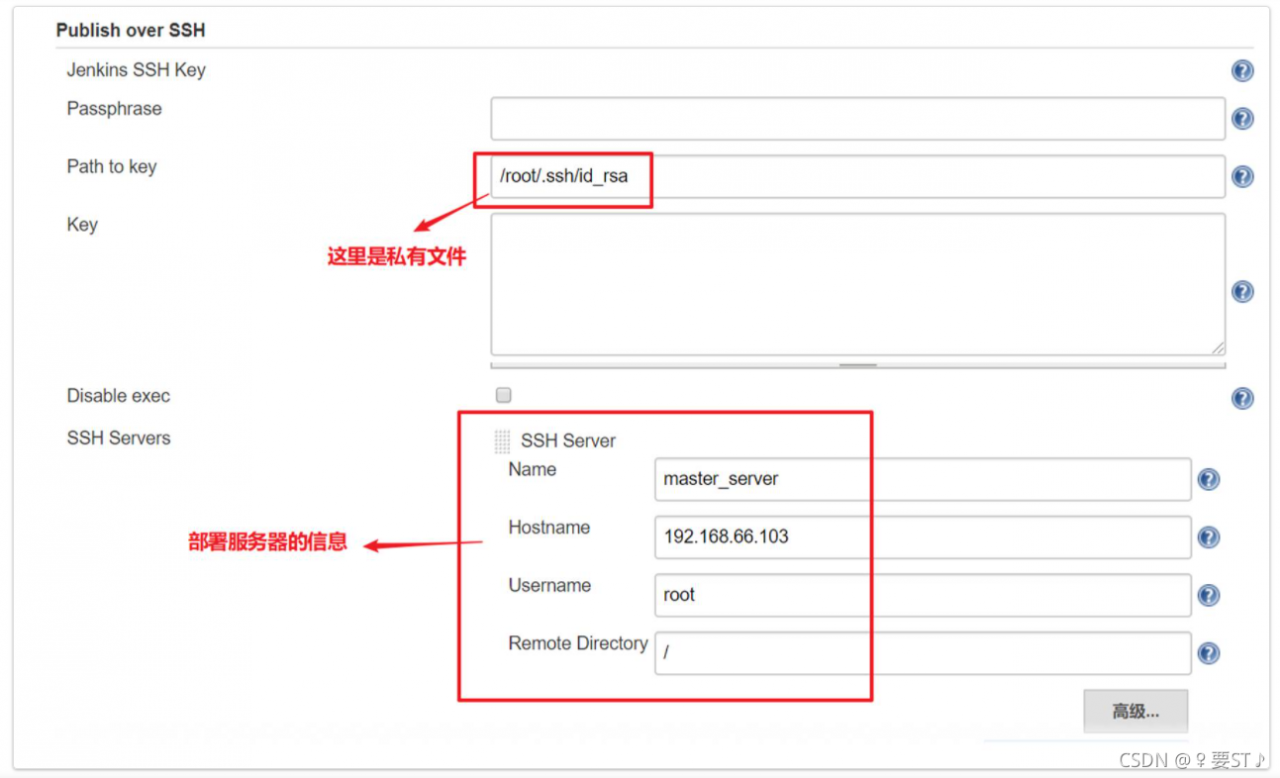

2）系统配置->添加远程服务器
在这里插入图片描述

以上整个流程没毛病，但是连不上250服务器就很让人困惑了，最后在jenkins官网的issue上看到解决方案
先说明问题原因，因为新版本的生成秘钥方式插件暂时还不支持，所以就用老方式来生成秘钥吧：
修改Jenkinsﬁle构建脚本生成远程调用模板代码

# 删除之前的秘钥, 同时在两台服务器执行该命令
rm -rf /root/.ssh/*
# 重新生成秘钥对 一路狂按enter即可
ssh-keygen -t rsa -b 4096 -m PEM
# 重复
ssh-copy-id 192.168.88.250

10.大体流程配置结束

五、创建流水线项目(前端)

1.正常创建好任务（流水线）

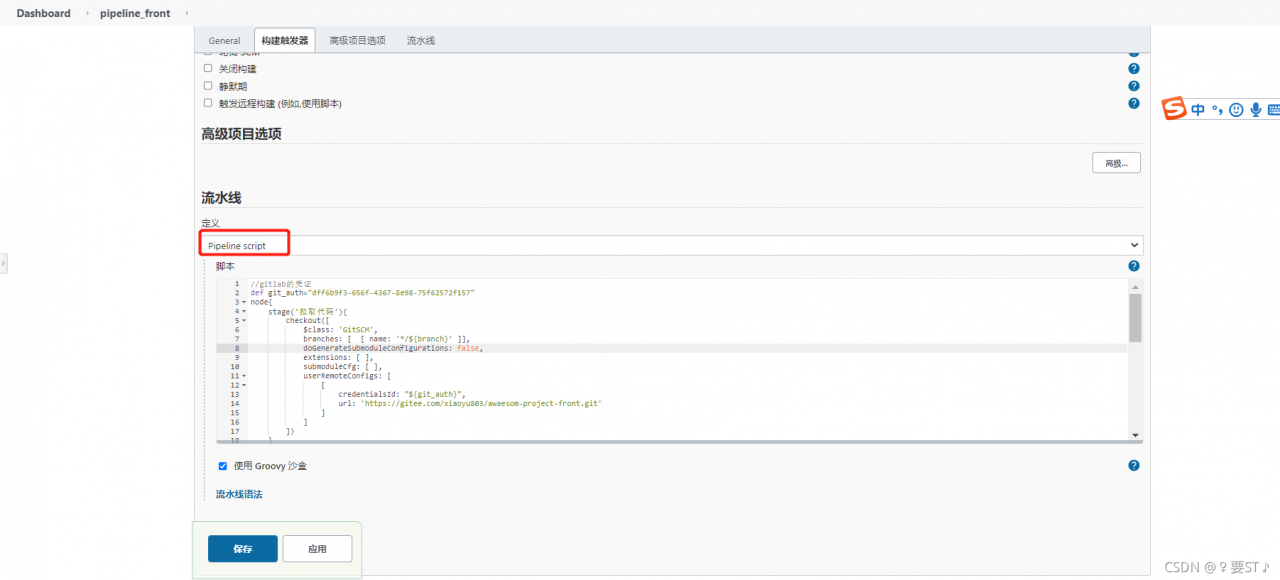

2. 直接写脚本

在这里插入图片描述

3. 在项目中编写Jenkins文件

// git凭证id(在jenkins的全局凭证配置中可获取)
def  git_auth = 'a3e0fe22-1263-4e56-8648-0e7xxxxx2e'

// git 地址
def git_url = 'git@gitlab.apjcorp.com:ha/sense-platform/xxxxxdx.git'

//Harbor私服地址
def harbor_url = '10.240.xxxxx1.xxx:1180'

//前端项目名称
def project_name = 'sense-frontend'

//构建版本的名称
def tag = 'latest'

//Harbor的项目名称
def harbor_project_name = 'sense'

//Harbor的凭证
def harbor_auth = '2008c9e0-2f8d-4f39-a9d7-980xxxxxxb'

//定义镜像名称
def imageName = "${project_name}:${tag}"


// 项目运行的端口
def port = 80

// docker镜像对外暴露的端口
def containerport = 80

pipeline {
    agent any
    environment {
        //根据自己的Jenkinssonarqube-scanner环境修改 （全局工具配置SonarQube Scanner）
        scannerHome=tool 'SonarQubeScanner'
    }
    stages{
        stage('Pull the code'){
            steps{
                checkout([
                        $class: 'GitSCM',
                        branches: [  [ name: '*/${branch}' ]],
                        doGenerateSubmoduleConfigurations: false,
                        extensions: [ ],
                        submoduleCfg: [ ],
                        userRemoteConfigs: [
                            [
                                credentialsId: "${git_auth}",
                                url: "${git_url}"
                            ]
                        ]
                    ])
            }
        }

        stage('Check the source code') {
            steps{
                 nodejs('NodeJS 14.17.0') {
                    //引入Jenkinssonarqube环境 （全局工具管理SonarQube servers）
                    withSonarQubeEnv('SonarQubeServer'){
                        sh """
                            ${scannerHome}/bin/sonar-scanner
                        """
                    }
                }
                echo '源码检查完毕'
            }
        }
        stage('Quality Gate') {
            steps {
              script {
                  Integer waitSeconds = 10
                  Integer timeOutMinutes = 10
                  Integer maxRetry = (timeOutMinutes * 60) / waitSeconds as Integer
                  for (Integer i = 0; i < maxRetry; i++) {
                    try {
                      timeout(time: waitSeconds, unit: 'SECONDS') {
                        def qg = waitForQualityGate()
                        if (qg.status != 'OK') {
                          error "Sonar quality gate status: ${qg.status}"
                        } else {
                          i = maxRetry
                        }
                      }
                    } catch (Throwable e) {
                      if (i == maxRetry - 1) {
                        throw e
                      }
                    }
                }
              }
               echo '成功获取扫描结果'
            }
        }
        stage('Download dependencies and compile'){
            steps{
                nodejs('NodeJS 14.17.0') {
                     sh '''
                            cd Code
                            npm install --registry=https://registry.npm.taobao.org
                            npm run build
                        '''
                }
            }
        }
        stage('Build the mirror'){
            steps{
                sh "docker build -t ${project_name} ./Code "
            }
        }
        stage('Label the image') {
            steps{
                //给镜像打标签
                sh "docker tag ${imageName}  ${harbor_url}/${harbor_project_name}/${imageName}"
            }
        }
        stage('Upload the image to the warehouse') {
            steps{
                //登录Harbor，并上传镜像
                withCredentials([usernamePassword(
                        credentialsId: "${harbor_auth}",
                        passwordVariable: 'password',
                        usernameVariable: 'username')])
                {
                    //登录
                    sh "docker login -u ${username} -p ${password} ${harbor_url}"
                    //上传镜像
                    sh "docker push ${harbor_url}/${harbor_project_name}/${imageName}"
                    echo '镜像上传成功'
                }
            }
        }

        stage('Remove the mirror') {
            steps{
                //删除本地镜像
                sh "docker rmi -f ${imageName}"
                // 刪除打标签的镜像
                sh "docker rmi -f ${harbor_url}/${harbor_project_name}/${imageName}"
            }
        }
        stage('Remote deployment'){
            steps{
                       //=====以下为远程调用进行项目部署========
                sshPublisher(
                    publishers: [
                        sshPublisherDesc(
                            configName: '10.240.131.123',
                                transfers: [
                                sshTransfer(
                                    cleanRemote: false,
                                    excludes: '',
                                    // 参数说明  harbor仓库的url、harbor服务暴露的端口、项目名、容器标签、主机端口、容器端口
                                    execCommand: "/opt/jenkins_shell/sense-frontend-deploy.sh $harbor_url $harbor_project_name $project_name $tag $port $containerport",
                                    execTimeout: 360000,
                                    flatten: false,
                                    makeEmptyDirs: false,
                                    noDefaultExcludes: false,
                                    patternSeparator: '[, ]+',
                                    remoteDirectory: '',
                                    remoteDirectorySDF: false,
                                    removePrefix: '',
                                    sourceFiles: ''
                                )],
                                usePromotionTimestamp: false,
                                useWorkspaceInPromotion: false,
                                verbose: false
                        )])
            }
        }

    }
}

4.项目中编写Dockerfile文件

# 设置基础镜像,如果本地没有该镜像，会从Docker.io服务器pull镜像
FROM nginx

ADD ./dist  /usr/share/nginx/html/

COPY nginx.conf /etc/nginx/conf.d/

EXPOSE 9000

# CMD /usr/share/nginx/sense/env.sh
RUN echo 'build ok'
# CMD ["/bin/bash", "-c", "envsubst < /etc/nginx/conf.d/nginx.conf > /etc/nginx/conf.d/default.conf && exec nginx -g 'daemon off;'"]

5.步骤4中的d`deployfront.sh`

#! /bin/sh
#接收外部参数
harbor_url=$1
harbor_project_name=$2
project_name=$3
tag=$4
port=$5

imageName=$harbor_url/$harbor_project_name/$project_name:$tag

echo "$imageName"

#查询容器是否存在，存在则删除
containerId=`docker ps -a | grep -w ${project_name}:${tag}  | awk '{print $1}'`
if [ "$containerId" !=  "" ] ; then
    #停掉容器
    docker stop $containerId

    #删除容器
    docker rm $containerId

	echo "成功删除容器"
fi

#查询镜像是否存在，存在则删除
imageId=`docker images | grep -w $project_name  | awk '{print $3}'`

if [ "$imageId" !=  "" ] ; then

    #删除镜像
    docker rmi -f $imageId

	echo "成功删除镜像"
fi

# 登录Harbor
docker login -u eric -p Eric123456 $harbor_url

# 下载镜像
docker pull $imageName

# 启动容器
docker run -di -p $port:80 $imageName

echo "容器启动成功"

6. sonar-project.properties

sonar.scm.disabled=true

sonar.projectName=web-dp-service

sonar.projectKey=web-dp-service

sonar.projectVersion=1.0.0

sonar.sources=src/main/java

sonar.java.binaries=target/classes

sonar.language=java

sonar.java.source=1.8
sonar.java.target=1.8

sonar.sourceEncoding=UTF-8

7. 其他场景的jenkins

后端


String git_auth = 'ae220c94-222033a392b'


String git_url = 'http://xxxxxx.git'

String tag = 'latest'

String branch

String oc_url

String oc_url2

String  oc_auth

String imageName

String imageName2

String docker_url

String docker_url2

pipeline {
    agent {
        node {
            label "master"
        }
    }
    stages{
        stage('Set environment variable') {
            steps{
                script{
                    if(environment == 'DEV'){
                        branch = 'dev'
                        oc_auth  = 'XXXXXXXXXXXXX'
                        oc_url =  'https://XXXXXXXXXXXXXXXX'
                        docker_url = 'docker-regXXXXXXXXXXXXXXXXXXXXXX'
                        imageName = "${docker_url}/sense-dev/${project_name}:${tag}"
                    }else if(environment == 'ST'){
                        branch = 'test'
                        oc_auth  = 'XXXXXXXXXXXXX'
                        oc_url =  'https://XXXXXXXXXXXXXXXX'
                        docker_url = 'docker-regXXXXXXXXXXXXXXXXXXXXXX'
                        imageName = "${docker_url}/sense-dev-2/${project_name}:${tag}"
                    }else if(environment == 'SIT'){
                        branch = 'test'
                        oc_auth  = '5b188653-e9fe-42b3-a122-2087401f0f9b'

                        oc_url =  'https://XXXXXXXXXXXXXXXXXXXXX'
                        oc_url2 =  'https://XXXXXXXXXXXXXXXXXXX'

                        docker_url = 'docker-registXXXXXXXXXXXXXXXXXXX'
                        docker_url2 = 'docker-registry-XXXXXXXXXXXXXXXXXXX'

                        imageName = "${docker_url}/XXXXXXXXXXXXXXXXXXX-prd-2/${project_name}:${tag}"
                        imageName2 = "${docker_url2}/XXXXXXXXXXXXXXXXXXX-prd-2/${project_name}:${tag}"
                    }
               }
           }
        }
        stage('Pull the source code') {
            steps{
                echo "branch-----/${branch},environment-----${environment}"
                checkout([$class: 'GitSCM',
                branches: [[name: "*/${branch}"]],
                extensions: [],
                userRemoteConfigs: [[
                            credentialsId: "${git_auth}",
                            url: "${git_url}"
                        ]]
                    ])
                echo 'Pull code successful'
           }
        }
        stage('Check the source code') {
            environment {
                scannerHome=tool 'SonarQubeScanner4.6.2'
             }
            steps{
                 script{
                    node('salve_1'){
                        sh 'cd  /XXXXXXX/XXXXXXXXXXXX && mvn clean package && chmod 777 -R target/'
                    }
                }
                withSonarQubeEnv('SonarQubeServer'){
                    sh """
                        cd Code
                        ${scannerHome}/bin/sonar-scanner
                    """
                }
                echo 'Source code checked completed'
            }
        }
        stage('Quality Gate') {
            steps {
              script {
                  Integer waitSeconds = 10
                  Integer timeOutMinutes = 10
                  Integer maxRetry = (timeOutMinutes * 60) / waitSeconds as Integer
                  for (Integer i = 0; i < maxRetry; i++) {
                    try {
                      timeout(time: waitSeconds, unit: 'SECONDS') {
                        def qg = waitForQualityGate()
                        if (qg.status != 'OK') {
                          error "Sonar quality gate status: ${qg.status}"
                        } else {
                          i = maxRetry
                        }
                      }
                    } catch (Throwable e) {
                      if (i == maxRetry - 1) {
                        throw e
                      }
                    }
                }
              }
               echo 'The scan result is obtained successfully'
            }
        }
        stage('Remove the mirror') {
            when{
                expression{
                    return  (environment == 'DEV' || environment == 'ST')
                }

            }
            steps{
                script{
                    node('salve_1'){
                        catchError(buildResult: 'SUCCESS', message: 'Failed to remove the mirror') {
                            sh "docker rmi -f ${imageName}"
                        }
                    }
                }
            }
        }
        stage('Compile and build the image') {
            steps{
                script{
                    node('salve_1'){
                        sh "cd  /XXXXXXXXXXX/XXXXXXXX&& docker build -t ${imageName} ."
                    }
                }
                    echo 'Build the image successful'
            }
        }
        stage('Compression image') {
            when{
                expression{
                    return  (environment == 'SIT')
                }

            }
            steps{
                script{
                    node('salve_1'){
                        sh "cd  /XXXXXXXX/XXXXXXXXXXXs && docker save -o ${project_name}.tar  ${imageName}"
                    }
                    echo 'Build the image successful'
               }
            }
        }
        stage('Upload the image to OPenshift') {
            when{
                expression{
                    return  (environment == 'DEV' || environment == 'ST')
                }

            }
            steps{
               script{
                    node('salve_1A'){
                        withCredentials([usernamePassword(
                            credentialsId: "${oc_auth}",
                            passwordVariable: 'password',
                            usernameVariable: 'username')])
                        {
                            sh 'cd  /XXXXXXXX/XXXXXXXXXXXs && ./oc login  -u ${username} -p """${password}""" ${oc_url}'
                            sh "cd /XXXXXXXX/XXXXXXXXXXXs && docker login -u `./oc whoami` -p `./oc whoami -t` ${docker_url}"
                            sh "docker push ${imageName}"
                        }
                    }
               }
            }
        }
        stage('Copy zip to pro salve') {
            when{
                expression{
                    return  (environment == 'SIT')
                }

            }
            steps{
               script{
                    node('slave_pro_window'){
                        withCredentials([usernamePassword(
                            credentialsId: "09fb338eed9",
                            passwordVariable: 'password',
                            usernameVariable: 'username')])
                        {
                            bat "pscp  -l  ${username} -pw ${password} senadm@10.100.500.00:/XXXXXXXX/XXXXXXXXXXXs/${project_name}.tar C:/xxx/xx"
                        }
                    }
                    node('salve_1A'){
                        catchError(buildResult: 'SUCCESS', message: 'Failed to remove the mirror') {
                            sh "docker rmi -f ${imageName}"
                            sh "docker rmi -f ${imageName2}"
                        }
                    }
               }
            }
        }
        stage('Remove the mirror and decompression package at pro salve') {
            when{
                expression{
                    return  (environment == 'SIT')
                }

            }
            steps{
               script{
                    node('slave_pro_window'){
                        catchError(buildResult: 'SUCCESS', message: 'Failed to remove the mirror') {
                            bat "docker rmi -f ${imageName}"
                            bat "docker rmi -f ${imageName2}"
                        }
                        bat "cd  C:/xxxx/xxxxxx && docker load -i ${project_name}.tar"
                    }
               }
            }
        }
        stage('Upload the image to Openshift at pro salve') {
            when{
                expression{
                    return  (environment == 'SIT')
                }

            }
            steps{
               script{
                    node('slave_pro_window'){
                        withCredentials([usernamePassword(
                            credentialsId: "${oc_auth}",
                            passwordVariable: 'password',
                            usernameVariable: 'username')])
                        {
                            def stdout
                            String tokenx1
                            bat "cd  C:/xxx && oc login  -u ${username} -p ${password} ${oc_url}"
                            stdout = bat returnStdout: true ,script: "cd  C:/xxx && oc whoami -t"
                            tokenx1 = stdout.readLines()[2]
                            bat "docker login -u xxxx  -p ${token61} ${docker_url}"
                            bat "docker push ${imageName}"
                            bat "cd  C:/xxx && oc logout"
                            bat "docker logout ${docker_url}"

                            def stdout2
                            String tokenx2
                            bat "cd  C:/xxx && oc login  -u ${username} -p ${password} ${oc_url2}"
                            stdout2 = bat returnStdout: true ,script: "cd  C:/xxx && oc whoami -t"
                            tokenx2 = stdout2.readLines()[2]
                            bat "docker login -u xxxxx  -p ${token71} ${docker_url2}"
                            bat "docker tag ${imageName} ${imageName2}"
                            bat "docker push ${imageName2}"
                        }
                    }
               }
            }
        }
        stage('Fortify scan code') {
            steps{
                script{
                    node('slave_window'){
                        checkout([$class: 'GitSCM',
                        branches: [[name: "*/${branch}"]],
                        extensions: [],
                        userRemoteConfigs: [[
                                    credentialsId: "${git_auth}",
                                    url: "${git_url}"
                                ]]
                            ])
                        catchError(buildResult: 'SUCCESS', message: 'Failed to scan') {
                            bat '''
                                cd C:/xxxxx/src
                                Fortifysrc.bat
                            '''
                        }
                        echo 'Fortify scan completed'
                    }
                }
            }
        }
    // post {
    //     always {
    //         emailext(
    //             subject: 'Info：${PROJECT_NAME} - Build # ${BUILD_NUMBER} -${BUILD_STATUS}!',
    //             body: '${FILE,path="./xxxx/Email.html"}',
    //             to: 'hardenhe@apjcorp.com'
    //         )
    //     }
    }
}

8. 其他场景的jenkins

前端

String  git_auth = 'ae220cxxxxxxx3a392b'

String git_url = 'http://xxxxxx.git'

String tag = 'latest'

String branch

String oc_url

String oc_url2

String  oc_auth

String imageName

String imageName2

String docker_url

String docker_url2


pipeline {
    agent {
        node {
            label "master"
        }
    }
    environment {
        scannerHome=tool 'SonarQubeScanner4.6.2'
    }
    stages{
        stage('Set environment variable') {
			stage('Set environment variable') {
				steps{
					script{
						if(environment == 'DEV'){
							branch = 'dev'
							oc_auth  = 'XXXXXXXXXXXXX'
							oc_url =  'https://XXXXXXXXXXXXXXXX'
							docker_url = 'docker-regXXXXXXXXXXXXXXXXXXXXXX'
							imageName = "${docker_url}/sense-dev/${project_name}:${tag}"
						}else if(environment == 'ST'){
							branch = 'test'
							oc_auth  = 'XXXXXXXXXXXXX'
							oc_url =  'https://XXXXXXXXXXXXXXXX'
							docker_url = 'docker-regXXXXXXXXXXXXXXXXXXXXXX'
							imageName = "${docker_url}/sense-dev-2/${project_name}:${tag}"
						}else if(environment == 'SIT'){
							branch = 'test'
							oc_auth  = '5b188653-e9fe-42b3-a122-2087401f0f9b'

							oc_url =  'https://XXXXXXXXXXXXXXXXXXXXX'
							oc_url2 =  'https://XXXXXXXXXXXXXXXXXXX'

							docker_url = 'docker-registXXXXXXXXXXXXXXXXXXX'
							docker_url2 = 'docker-registry-XXXXXXXXXXXXXXXXXXX'

							imageName = "${docker_url}/XXXXXXXXXXXXXXXXXXX-prd-2/${project_name}:${tag}"
							imageName2 = "${docker_url2}/XXXXXXXXXXXXXXXXXXX-prd-2/${project_name}:${tag}"
						}
				   }
			   }
			}
        stage('Pull the code'){
            steps{
                echo "branch-----/${branch},environment-----${environment}"
                checkout([
                        $class: 'GitSCM',
                        branches: [  [ name: "*/${branch}" ]],
                        doGenerateSubmoduleConfigurations: false,
                        extensions: [ ],
                        submoduleCfg: [ ],
                        userRemoteConfigs: [
                            [
                                credentialsId: "${git_auth}",
                                url: "${git_url}"
                            ]
                        ]
                    ])
            }
        }
         stage('Check the source code') {
            steps{
                 nodejs('NodeJS 14.18.1') {
                    withSonarQubeEnv('SonarQubeServer'){
                        sh """
                            cd Code
                            ${scannerHome}/bin/sonar-scanner
                        """
                    }
                 }
                echo 'Source code checked completed'
            }
        }
        stage('Quality Gate') {
            steps {
              script {
                  Integer waitSeconds = 10
                  Integer timeOutMinutes = 10
                  Integer maxRetry = (timeOutMinutes * 60) / waitSeconds as Integer
                  for (Integer i = 0; i < maxRetry; i++) {
                    try {
                      timeout(time: waitSeconds, unit: 'SECONDS') {
                        def qg = waitForQualityGate()
                        if (qg.status != 'OK') {
                          error "Sonar quality gate status: ${qg.status}"
                        } else {
                          i = maxRetry
                        }
                      }
                    } catch (Throwable e) {
                      if (i == maxRetry - 1) {
                        throw e
                      }
                    }
                }
              }
               echo 'The scan result is obtained successfully'
            }
        }
        stage('Download dependencies'){
            steps{
                script{
                    node('salve_1'){
                        catchError(buildResult: 'SUCCESS', message: 'Failed to download dependencies') {
                            sh "cd  /xxxx && npm install"
                        }
                    }
                }
            }
        }
        stage('Build the project'){
            steps{
                script{
                    node('salve_1'){
                        sh "cd  /xxxxxxx &&  npm run build"
                    }
                }
            }
        }
        stage('Remove the mirror') {
            when{
                expression{
                    return  (environment == 'DEV' || environment == 'ST')
                }

            }
            steps{
                script{
                    node('salve_1'){
                        catchError(buildResult: 'SUCCESS', message: 'Failed to remove the mirror') {
                            sh "docker rmi -f ${imageName}"
                        }
                    }
                }
            }
        }
        stage('Build the mirror'){
            steps{
                script{
                    node('salve_1'){
                        sh "cd  /xxxxxxxx&& docker build -t ${imageName} ."
                    }
                }
            }
        }
        stage('Compression image') {
            steps{
                script{
                    if(environment == 'SIT')
                    node('salve_1A'){
                        sh "cd  /xxxxxxxxx && docker save -o ${project_name}.tar  ${imageName}"
                    }
                }
                    echo 'Build the image successful'
            }
        }
        stage('Upload the image to Openshift') {
            when{
                expression{
                    return  (environment == 'DEV' || environment == 'ST')
                }

            }
            steps{
               script{
                    node('salve_1A'){
                        withCredentials([usernamePassword(
                            credentialsId: "${oc_auth}",
                            passwordVariable: 'password',
                            usernameVariable: 'username')])
                        {
                            sh 'cd /xxxxxxx && ./oc login  -u ${username} -p """${password}""" ${oc_url}'
                            sh "cd /xxxxxxxx && docker login -u `./oc whoami` -p `./oc whoami -t` ${docker_url}"
                            sh "docker push ${imageName}"
                        }
                    }
               }
            }
        }
        stage('Copy zip to pro salve') {
            when{
                expression{
                    return  (environment == 'SIT')
                }

            }
            steps{
               script{
                    node('slave_pro_window'){
                        withCredentials([usernamePassword(
                            credentialsId: "09fb338eed9",
                            passwordVariable: 'password',
                            usernameVariable: 'username')])
                        {
                            bat "pscp  -l  ${username} -pw ${password} senadm@10.100.500.00:/XXXXXXXX/XXXXXXXXXXXs/${project_name}.tar C:/xxx/xx"
                        }
                    }
                    node('salve_1A'){
                        catchError(buildResult: 'SUCCESS', message: 'Failed to remove the mirror') {
                            sh "docker rmi -f ${imageName}"
                            sh "docker rmi -f ${imageName2}"
                        }
                    }
               }
            }
        }
        stage('Remove the mirror and decompression package at pro salve') {
            when{
                expression{
                    return  (environment == 'SIT')
                }

            }
            steps{
               script{
                    node('slave_pro_window'){
                        catchError(buildResult: 'SUCCESS', message: 'Failed to remove the mirror') {
                            bat "docker rmi -f ${imageName}"
                            bat "docker rmi -f ${imageName2}"
                        }
                        bat "cd  C:/xxxx/xxxxxx && docker load -i ${project_name}.tar"
                    }
               }
            }
        }
        stage('Upload the image to Openshift at pro salve') {
            when{
                expression{
                    return  (environment == 'SIT')
                }

            }
            steps{
               script{
                    node('slave_pro_window'){
                        withCredentials([usernamePassword(
                            credentialsId: "${oc_auth}",
                            passwordVariable: 'password',
                            usernameVariable: 'username')])
                        {
                            def stdout
                            String tokenx1
                            bat "cd  C:/xxx && oc login  -u ${username} -p ${password} ${oc_url}"
                            stdout = bat returnStdout: true ,script: "cd  C:/xxx && oc whoami -t"
                            tokenx1 = stdout.readLines()[2]
                            bat "docker login -u xxxx  -p ${token61} ${docker_url}"
                            bat "docker push ${imageName}"
                            bat "cd  C:/xxx && oc logout"
                            bat "docker logout ${docker_url}"

                            def stdout2
                            String tokenx2
                            bat "cd  C:/xxx && oc login  -u ${username} -p ${password} ${oc_url2}"
                            stdout2 = bat returnStdout: true ,script: "cd  C:/xxx && oc whoami -t"
                            tokenx2 = stdout2.readLines()[2]
                            bat "docker login -u xxxxx  -p ${token71} ${docker_url2}"
                            bat "docker tag ${imageName} ${imageName2}"
                            bat "docker push ${imageName2}"
                        }
                    }
               }
            }
        }
        stage('Fortify scan code') {
            steps{
                script{
                    node('slave_window'){
                        checkout([$class: 'GitSCM',
                        branches: [[name: "*/${branch}"]],
                        extensions: [],
                        userRemoteConfigs: [[
                                    credentialsId: "${git_auth}",
                                    url: "${git_url}"
                                ]]
                            ])
                        catchError(buildResult: 'SUCCESS', message: 'Failed to scan') {
                            bat '''
                                cd C:/xxxxx/src
                                Fortifysrc.bat
                            '''
                        }
                        echo 'Fortify scan completed'
                    }
                }
            }
        }
    }
}

9.大体流程配置结束

原文链接：https://blog.csdn.net/qq_43817164/article/details/120248516

一、在服务器上搭建Gitlab

二、搭建Jenkins服务

集成Jenkins-1

1.安装JDK

2.安装Jenkins

集成Jenkins-2

1.修改Jenkins插件下载地址

2.下载中文汉化插件

3.安装Credentials Binding插件

可以添加的凭证有5种：

4.安装Git插件和Git工具

集成Jenkins-3

1.安装 mavan

2.JK关联JDK和Maven

全局工具配置

添加Jenkins全局变量

修改Maven的settings.xml------（修改仓库存放的地址以及下载依赖的地址）

3.安装Pipeline、Maven Integration插件

三、Harbor安装

1.安装Docker并启动Docker，参考网上的安装过程

2.安装docker-compose

3.给docker-compose添加执行权限

4.查看docker-compose是否安装成功

5.下载Harbor的压缩包 https://github.com/goharbor/harbor/releases

6.上传压缩包到linux，并解压

7. 修改Harbor的配置

8. 安装Harbor

9.启动Harbor

10.访问Harbor http://ip:85

11.把Harbor地址加入到Docker信任列表（服务器A）

四、创建流水线项目

1.创建任务，输入项目名称并选着流水线

2.配置Git

3.配置构建参数

4.编写Jenkins脚本

5. 选择脚本的位置所在

6.编写Dockerfiles文件

7.编写第四部中配置的deploy.sh

8.配置构建触发器

9. 配置服务器B跟服务器C免密连接

10.大体流程配置结束

五、创建流水线项目(前端)

1.正常创建好任务（流水线）

2. 直接写脚本

3. 在项目中编写Jenkins文件

4.项目中编写Dockerfile文件

5.步骤4中的ddeployfront.sh

6. sonar-project.properties

7. 其他场景的jenkins

8. 其他场景的jenkins

9.大体流程配置结束

2.安装`docker-compose`

3.给`docker-compose`添加执行权限

1.创建任务，输入项目`名称`并选着`流水线`

7.编写第四部中配置的`deploy.sh`

5.步骤4中的d`deployfront.sh`
