使用IDEA搭建springcloud微服务（一）----父工程的搭建

csuzxm2000 2019-01-16 17:41:24

13666

            </div>
            </div>
                            <div class="up-time" style="left: 129.969px; display: none;"><span>最后发布:2019-01-16 17:41:24</span><span>首发:2019-01-16 17:41:24</span></div>
            <div class="slide-content-box" style="display: block;">
            <div class="all-tags-box">
                                </div>
                                                                <div class="article-copyright">
                        <div class="creativecommons">
                            <a rel="license" href="http://creativecommons.org/licenses/by-sa/4.0/"></a>
                        </div>
                        <div class="creativecommons">
                            版权声明：本文为博主原创文章，遵循<a href="http://creativecommons.org/licenses/by-sa/4.0/" target="_blank" rel="noopener"> CC 4.0 BY-SA </a>版权协议，转载请附上原文出处链接和本声明。                            </div>
                        <div class="article-source-link">
                            本文链接：<a href="https://blog.csdn.net/csuzxm2000/article/details/86511847">https://blog.csdn.net/csuzxm2000/article/details/86511847</a>
                        </div>
                    </div>
                                                                            </div>
            <div class="operating">
                                                            <a class="href-article-edit slide-toggle">收起</a>
                                </div>
        </div>
    </div>
</div>
<!--python安装手册结束-->
                <article class="baidu_pl">
             <div id="article_content" class="article_content clearfix">
        <link rel="stylesheet" href="https://csdnimg.cn/release/phoenix/template/css/ck_htmledit_views-211130ba7a.css">
                        <div id="content_views" class="markdown_views prism-atom-one-dark">
                <!-- flowchart 箭头图标 勿删 -->
                <svg xmlns="http://www.w3.org/2000/svg" style="display: none;">
                    <path stroke-linecap="round" d="M5,0 0,2.5 5,5z" id="raphael-marker-block" style="-webkit-tap-highlight-color: rgba(0, 0, 0, 0);"></path>
                </svg>
                                        <p><strong>一、工具及说明</strong><br>

开发工具：IntelliJ IDEA 2018.2.2 (Ultimate Edition)

框架：spring boot 2.0.8、spring cloud Finchley.SR2

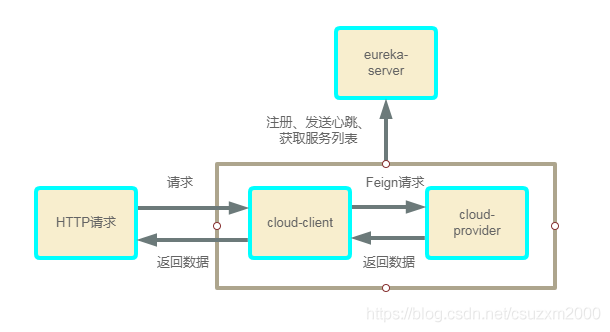

以通用户ID获取用户信息为例，搭建一套spring cloud微服务系统。
需要搭建一个父工程spring-cloud，一个服务注册中心eureka-server，两个微服务cloud-client,cloud-provider。
两个微服务均注册到服务注册中心。
在这里插入图片描述

二、父工程搭建

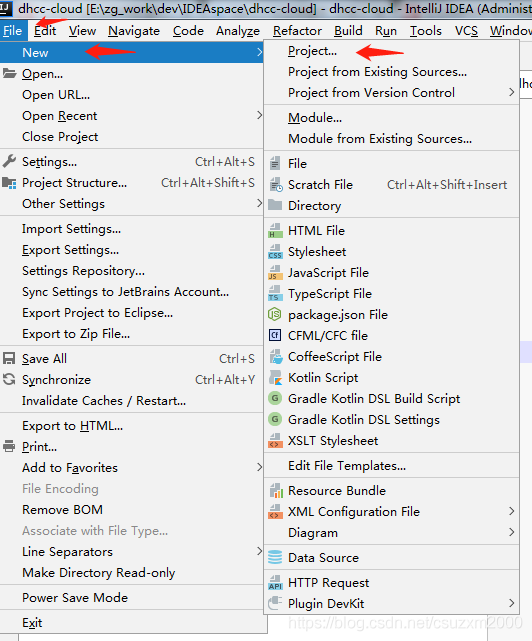

File—>New—>Project

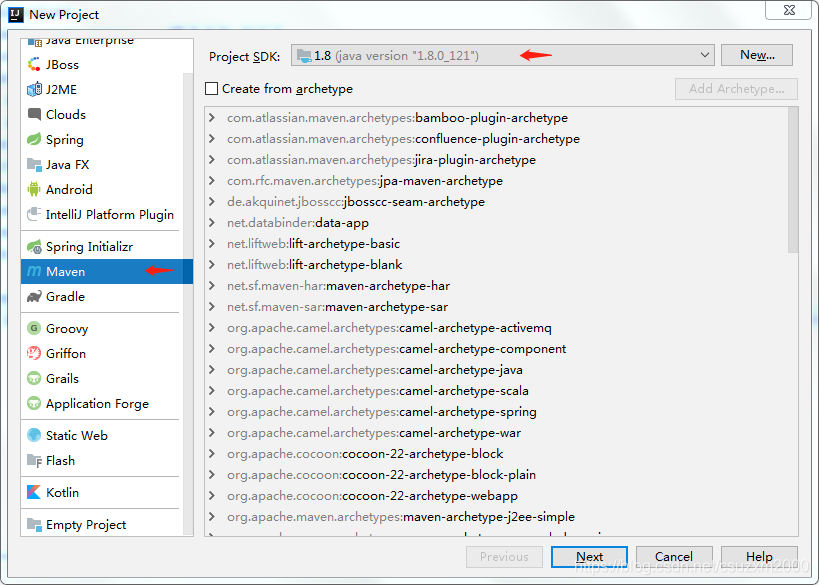

选择Maven,选择对应的JDK，不选择模板。
Next。

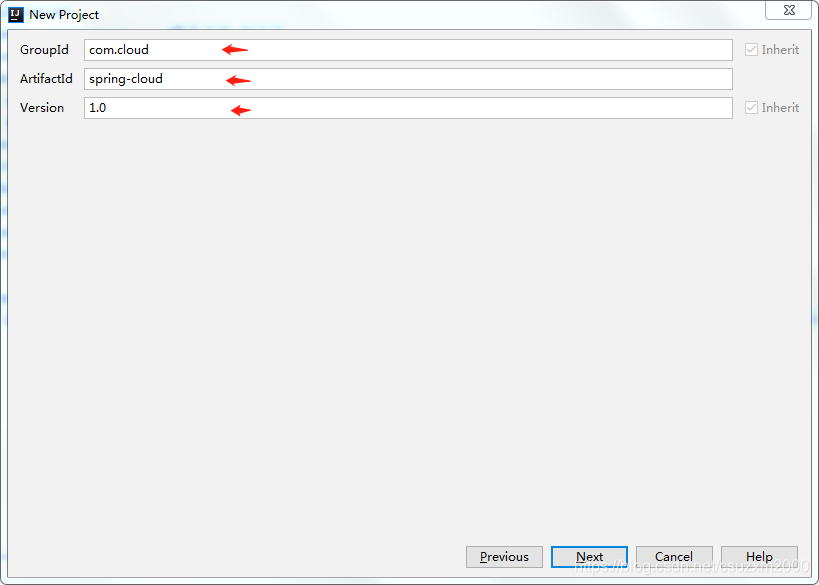

输入项目组Group:com.cloud。
组件名称Artifact:spring-cloud。
version:1.0。
Next。

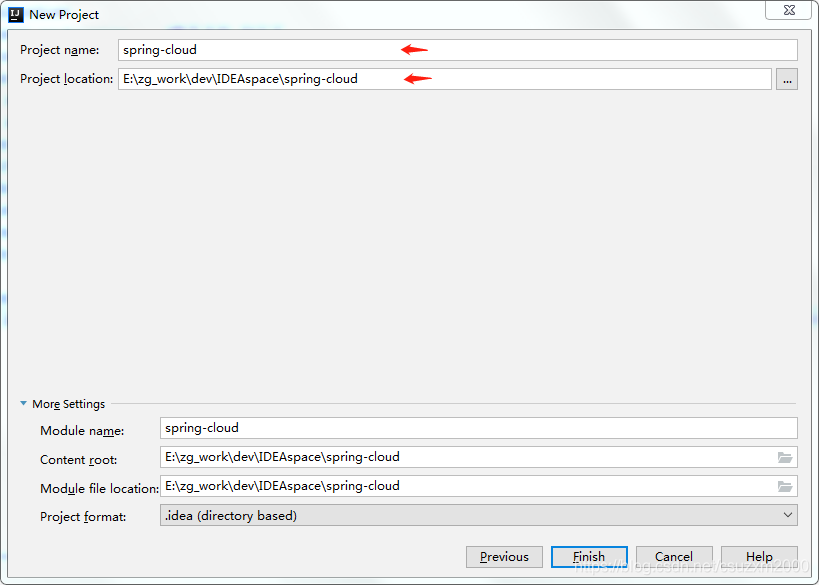

Project Name工程名称，和组件名称Artifact一样。
Project location:设置项目文件存放目录。
Finish。

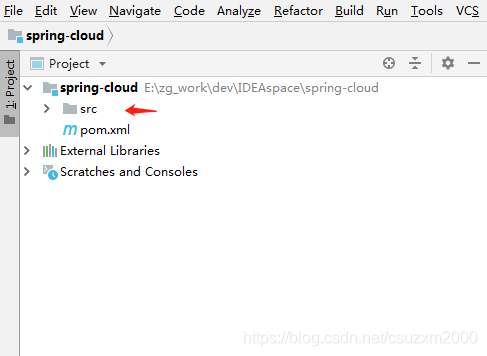

删除src目录。

修改pom文件。
加入spring boot 2.0.8的父依赖。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
<span class="token generics function"><span class="token punctuation">&lt;</span>groupId<span class="token punctuation">&gt;</span></span>com<span class="token punctuation">.</span>cloud<span class="token operator">&lt;</span><span class="token operator">/</span>groupId<span class="token operator">&gt;</span>
<span class="token generics function"><span class="token punctuation">&lt;</span>artifactId<span class="token punctuation">&gt;</span></span>spring<span class="token operator">-</span>cloud<span class="token operator">&lt;</span><span class="token operator">/</span>artifactId<span class="token operator">&gt;</span>
<span class="token generics function"><span class="token punctuation">&lt;</span>version<span class="token punctuation">&gt;</span></span><span class="token number">1.0</span><span class="token operator">&lt;</span><span class="token operator">/</span>version<span class="token operator">&gt;</span>

<span class="token generics function"><span class="token punctuation">&lt;</span>properties<span class="token punctuation">&gt;</span></span>
    <span class="token operator">&lt;</span>project<span class="token punctuation">.</span>build<span class="token punctuation">.</span>sourceEncoding<span class="token operator">&gt;</span>UTF<span class="token operator">-</span><span class="token number">8</span><span class="token operator">&lt;</span><span class="token operator">/</span>project<span class="token punctuation">.</span>build<span class="token punctuation">.</span>sourceEncoding<span class="token operator">&gt;</span>
    <span class="token operator">&lt;</span>project<span class="token punctuation">.</span>reporting<span class="token punctuation">.</span>outputEncoding<span class="token operator">&gt;</span>UTF<span class="token operator">-</span><span class="token number">8</span><span class="token operator">&lt;</span><span class="token operator">/</span>project<span class="token punctuation">.</span>reporting<span class="token punctuation">.</span>outputEncoding<span class="token operator">&gt;</span>
    <span class="token generics function"><span class="token punctuation">&lt;</span>java<span class="token punctuation">.</span>version<span class="token punctuation">&gt;</span></span><span class="token number">1.8</span><span class="token operator">&lt;</span><span class="token operator">/</span>java<span class="token punctuation">.</span>version<span class="token operator">&gt;</span>
<span class="token operator">&lt;</span><span class="token operator">/</span>properties<span class="token operator">&gt;</span>

<span class="token generics function"><span class="token punctuation">&lt;</span>modules<span class="token punctuation">&gt;</span></span>
    <span class="token generics function"><span class="token punctuation">&lt;</span>module<span class="token punctuation">&gt;</span></span>cloud<span class="token operator">-</span>client<span class="token operator">&lt;</span><span class="token operator">/</span>module<span class="token operator">&gt;</span>
    <span class="token generics function"><span class="token punctuation">&lt;</span>module<span class="token punctuation">&gt;</span></span>cloud<span class="token operator">-</span>provider<span class="token operator">&lt;</span><span class="token operator">/</span>module<span class="token operator">&gt;</span>
    <span class="token generics function"><span class="token punctuation">&lt;</span>module<span class="token punctuation">&gt;</span></span>cloud<span class="token operator">-</span>discovery<span class="token operator">&lt;</span><span class="token operator">/</span>module<span class="token operator">&gt;</span>
<span class="token operator">&lt;</span><span class="token operator">/</span>modules<span class="token operator">&gt;</span>

<span class="token generics function"><span class="token punctuation">&lt;</span>parent<span class="token punctuation">&gt;</span></span>
    <span class="token generics function"><span class="token punctuation">&lt;</span>groupId<span class="token punctuation">&gt;</span></span>org<span class="token punctuation">.</span>springframework<span class="token punctuation">.</span>boot<span class="token operator">&lt;</span><span class="token operator">/</span>groupId<span class="token operator">&gt;</span>
    <span class="token generics function"><span class="token punctuation">&lt;</span>artifactId<span class="token punctuation">&gt;</span></span>spring<span class="token operator">-</span>boot<span class="token operator">-</span>starter<span class="token operator">-</span>parent<span class="token operator">&lt;</span><span class="token operator">/</span>artifactId<span class="token operator">&gt;</span>
    <span class="token generics function"><span class="token punctuation">&lt;</span>version<span class="token punctuation">&gt;</span></span><span class="token number">2.0</span><span class="token number">.8</span><span class="token punctuation">.</span>RELEASE<span class="token operator">&lt;</span><span class="token operator">/</span>version<span class="token operator">&gt;</span>
    <span class="token operator">&lt;</span>relativePath<span class="token operator">/</span><span class="token operator">&gt;</span> <span class="token operator">&lt;</span><span class="token operator">!</span><span class="token operator">--</span> lookup parent from repository <span class="token operator">--</span><span class="token operator">&gt;</span>
<span class="token operator">&lt;</span><span class="token operator">/</span>parent<span class="token operator">&gt;</span>

</project>
