一. 引入依赖
<dependency>
<groupId>com.lowagie</groupId>
<artifactId>itext</artifactId>
<version>2.1.7</version>
</dependency>
<dependency>
<groupId>com.lowagie</groupId>
<artifactId>itext-rtf</artifactId>
<version>2.1.7</version>
</dependency>
二. 生成说明文档
package dispatch.service;
import java.awt.Color;
import java.io.FileOutputStream;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.List;
import java.util.Map;
import com.lowagie.text.Cell;
import com.lowagie.text.Document;
import com.lowagie.text.PageSize;
import com.lowagie.text.Paragraph;
import com.lowagie.text.Table;
import com.lowagie.text.rtf.RtfWriter2;
/**
* 数据字典生成器 Mysql
*
*/
public class Test {
//键类型字典
private static Map<String,String> keyType = new HashMap<String,String>();
//初始化jdbc
static{
try {
keyType.put("PRI", "主键");
keyType.put("UNI", "唯一键");
Class.forName("com.mysql.jdbc.Driver");
} catch (ClassNotFoundException e) {
e.printStackTrace();
}
}
private static String url = "jdbc:mysql://127.0.0.1:3306/schema_name?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&allowMultiQueries=true&useSSL=true&verifyServerCertificate=false";//链接url
private static String username = "xxx"; //用户名
private static String password = "xxx"; //密码
private static String schema = "schema_name"; //目标数据库 名
//查询所有表的sql语句
private static String sql_get_all_tables = "select table_name,TABLE_COMMENT from INFORMATION_SCHEMA.tables where TABLE_SCHEMA='"+schema+"' and TABLE_TYPE='BASE TABLE'";
//查询所有字段的sql语句
private static String sql_get_all_columns = "select column_name,data_type,character_octet_length,COLUMN_COMMENT,is_nullable,COLUMN_key from information_schema.`COLUMNS` where TABLE_NAME='{table_name}' and TABLE_SCHEMA='"+schema+"'";
public static void main(String[] args) throws Exception {
//初始化word文档
Document document = new Document(PageSize.A4);
RtfWriter2.getInstance(document,new FileOutputStream("/Users/xxx/work/word.doc"));
document.open();
//查询开始
Connection conn = getConnection();
//获取所有表
List tables = getDataBySQL(sql_get_all_tables,conn);
int i=1;
for (Iterator iterator = tables.iterator(); iterator.hasNext();) {
String [] arr = (String []) iterator.next();
//循环获取字段信息
System.out.print(i+".正在处理数据表-----------"+arr[0]);
addTableMetaData(document,arr,i);
List columns = getDataBySQL(sql_get_all_columns.replace("{table_name}", arr[0]),conn);
addTableDetail(document,columns);
addBlank(document);
System.out.println("...done");
i++;
}
document.close();
conn.close();
}
/**
* 添加一个空行
* @param document
* @throws Exception
*/
public static void addBlank(Document document)throws Exception{
Paragraph ph = new Paragraph("");
ph.setAlignment(Paragraph.ALIGN_LEFT);
document.add(ph);
}
/**
* 添加包含字段详细信息的表格
* @param document
* @param arr1
* @param columns
* @throws Exception
*/
public static void addTableDetail(Document document,List columns)throws Exception{
Table table = new Table(6);
table.setWidth(100f);//表格 宽度100%
table.setBorderWidth(1);
table.setBorderColor(Color.BLACK);
table.setPadding(0);
table.setSpacing(0);
Cell cell1 = new Cell("序号");// 单元格
cell1.setHeader(true);
Cell cell2 = new Cell("列名");// 单元格
cell2.setHeader(true);
Cell cell3 = new Cell("类型");// 单元格
cell3.setHeader(true);
Cell cell4 = new Cell("长度");// 单元格
cell4.setHeader(true);
Cell cell5 = new Cell("键");// 单元格
cell5.setHeader(true);
Cell cell6 = new Cell("说明");// 单元格
cell6.setHeader(true);
//设置表头格式
table.setWidths(new float[]{8f,30f,15f,8f,10f,29f});
cell1.setHorizontalAlignment(Cell.ALIGN_CENTER);
cell1.setBackgroundColor(Color.gray);
cell2.setHorizontalAlignment(Cell.ALIGN_CENTER);
cell2.setBackgroundColor(Color.gray);
cell3.setHorizontalAlignment(Cell.ALIGN_CENTER);
cell3.setBackgroundColor(Color.gray);
cell4.setHorizontalAlignment(Cell.ALIGN_CENTER);
cell4.setBackgroundColor(Color.gray);
cell5.setHorizontalAlignment(Cell.ALIGN_CENTER);
cell5.setBackgroundColor(Color.gray);
cell6.setHorizontalAlignment(Cell.ALIGN_CENTER);
cell6.setBackgroundColor(Color.gray);
table.addCell(cell1);
table.addCell(cell2);
table.addCell(cell3);
table.addCell(cell4);
table.addCell(cell5);
table.addCell(cell6);
table.endHeaders();// 表头结束
int x = 1;
for (Iterator iterator = columns.iterator(); iterator.hasNext();) {
String [] arr2 = (String []) iterator.next();
Cell c1 = new Cell(x+"");
Cell c2 = new Cell(arr2[0]);
Cell c3 = new Cell(arr2[1]);
Cell c4 = new Cell(arr2[2]);
String key = keyType.get(arr2[5]);
if(key==null)key = "";
Cell c5 = new Cell(key);
Cell c6 = new Cell(arr2[3]);
c1.setHorizontalAlignment(Cell.ALIGN_CENTER);
c2.setHorizontalAlignment(Cell.ALIGN_CENTER);
c3.setHorizontalAlignment(Cell.ALIGN_CENTER);
c4.setHorizontalAlignment(Cell.ALIGN_CENTER);
c5.setHorizontalAlignment(Cell.ALIGN_CENTER);
c6.setHorizontalAlignment(Cell.ALIGN_CENTER);
table.addCell(c1);
table.addCell(c2);
table.addCell(c3);
table.addCell(c4);
table.addCell(c5);
table.addCell(c6);
x++;
}
document.add(table);
}
/**
* 增加表概要信息
* @param dcument
* @param arr
* @param i
* @throws Exception
*/
public static void addTableMetaData(Document dcument,String [] arr,int i) throws Exception{
Paragraph ph = new Paragraph(i+". 表名: "+arr[0]+" 说明: "+(arr[1]==null?"":arr[1]));
ph.setAlignment(Paragraph.ALIGN_LEFT);
dcument.add(ph);
}
/**
* 把SQL语句查询出列表
* @param sql
* @param conn
* @return
*/
public static List getDataBySQL(String sql,Connection conn){
Statement stmt = null;
ResultSet rs = null;
List list = new ArrayList();
try {
stmt = conn.createStatement();
rs = stmt.executeQuery(sql);
while(rs.next()){
String [] arr = new String[rs.getMetaData().getColumnCount()];
for(int i=0;i<arr.length;i++){
arr[i] = rs.getString(i+1);
}
list.add(arr);
}
} catch (SQLException e) {
e.printStackTrace();
}finally{
try {
if(rs!=null)rs.close();
if(stmt!=null)stmt.close();
} catch (SQLException e) {
e.printStackTrace();
}
}
return list;
}
/**
* 获取数据库连接
* @return
*/
public static Connection getConnection(){
try {
return DriverManager.getConnection(url, username, password);
} catch (SQLException e) {
e.printStackTrace();
}
return null;
}
}

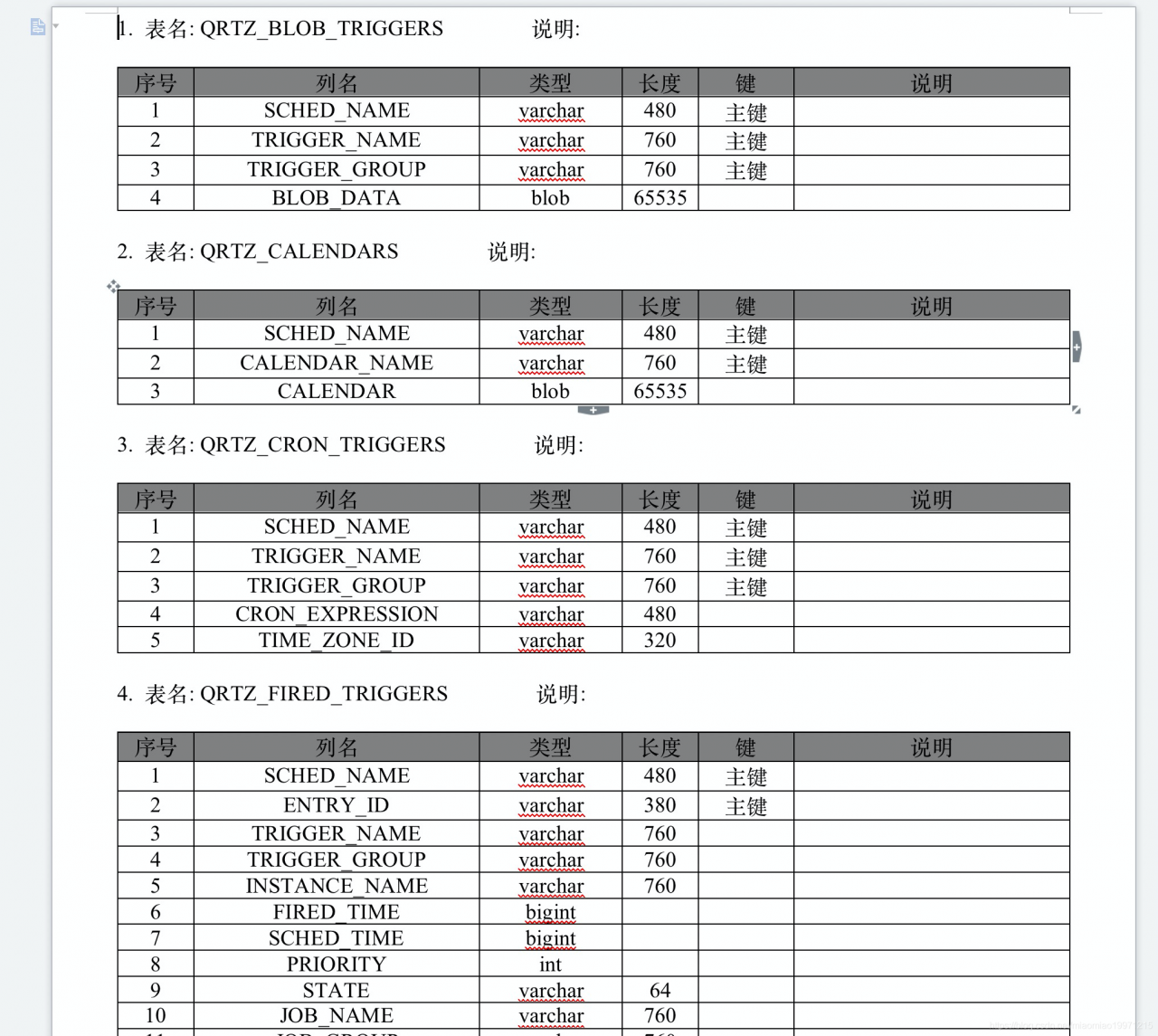

三. 文档效果
