Flink Table API读写Iceberg表代码案例

以下记录Flink Table API批量写入Iceberg表，批量和实时读取表，以及和Hive表打通的一个小案例。借助Iceberg提供的ACID能力，我们可以间接完成对Hive表的细粒度数据变更操作（当然还有许多其他方面的良好支持）。

在本案例中，个人认为相对于Stream API，使用Table API读写Iceberg会更加方便。（当然Flink也可以实时读取Kafka表，而后实时写入到Iceberg表中，整条数据线是可以流批一体串通的。）

环境
Flink 1.13.6， Iceberg 0.13.1，Hadoop 3.2.2，Hive 3.1.2

写数据案例
注意：

需要开启checkpoint
为了方便后续整合，这里采用的是Hadoop catalog

import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.TableEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;

public class TableAPIWriteIceberg {
    public static void main(String[] args) {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tabenv = StreamTableEnvironment.create(env);
        env.enableCheckpointing(1000);

        //1 create catalog
        tabenv.executeSql("" +
                "create catalog hadoop_iceberg_dev with " +
                "('type'='iceberg'," +
                "'catalog-type'='hadoop'," +
                "'warehouse'='hdfs://chdp01:9000/iceberg/flink'" +
                ")");

        //2 using catalog
        tabenv.useCatalog("hadoop_iceberg_dev");

        //3 create database under the above hadooop catalog
        tabenv.executeSql("create database if not exists iceberg ");

        //4 using iceberg db
        tabenv.useDatabase("iceberg");

        //5 create iceberg table
        //tabenv.executeSql("drop table if exists hadoop_iceberg_dev.iceberg.userAddr");
        tabenv.executeSql("" +
                "create table  hadoop_iceberg_dev.iceberg.userAddr( userId int, city string, dt string) partitioned by (dt)");

        //6 insert data
        tabenv.executeSql("insert into  hadoop_iceberg_dev.iceberg.userAddr values(1,'SH','2022-12-12'),(2,'SH','2022-12-12'),(3,'BJ','2022-12-13')");
    }
}

测试
可以在hive中创建location_based_table，然后就可以通过hive结构直观的看到上面写入到Iceberg表中的数据了。

注意：

将Iceberg-hive-runtime-0.12.1.jar添加到Hive lib目录下，某些版本的hive可能没有libfb303-0.9.3.jar，也需要从网上下载添加。

create table iceberg_user_addr(
id int,
name string,
dt string
)
stored by 'org.apache.iceberg.mr.hive.HiveIcebergStorageHandler'
location 'hdfs://chdp01:9000/iceberg/flink/iceberg/userAddr'
tblproperties ('iceberg.catalog'='location_based_table');


select *from iceberg_user2 ;

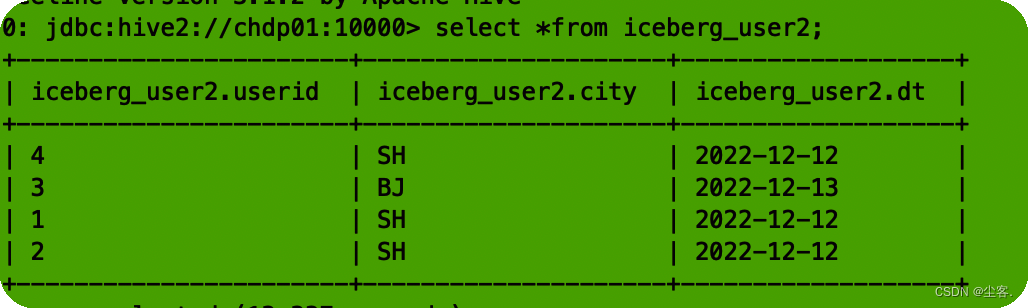

结果截图：（多出来的4号数据是后续从hive表中插入的，可以忽视哈）
在这里插入图片描述

读数据案例

import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;

public class TableAPIReadIceberg {
    public static void main(String[] args) {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tabenv = StreamTableEnvironment.create(env);
        Configuration conf = tabenv.getConfig().getConfiguration();
        //conf for streaming read
        conf.setBoolean("table.dynamic-table-options.enabled",true);

        env.enableCheckpointing(1000);
        //1 create catalog
        tabenv.executeSql("" +
                "create catalog hadoop_iceberg_dev with " +
                "('type'='iceberg'," +
                "'catalog-type'='hadoop'," +
                "'warehouse'='hdfs://chdp01:9000/iceberg/flink'" +
                ")");

        //2 batch read
      //  tabenv.executeSql(" select *from hadoop_iceberg_dev.iceberg.userAddr").print();

        //3 streaming read
        tabenv.executeSql(" select *from hadoop_iceberg_dev.iceberg.userAddr /*+ OPTIONS('streaming'='true', 'monitor-interval'='1s')*/ ").print();

    }
}

测试

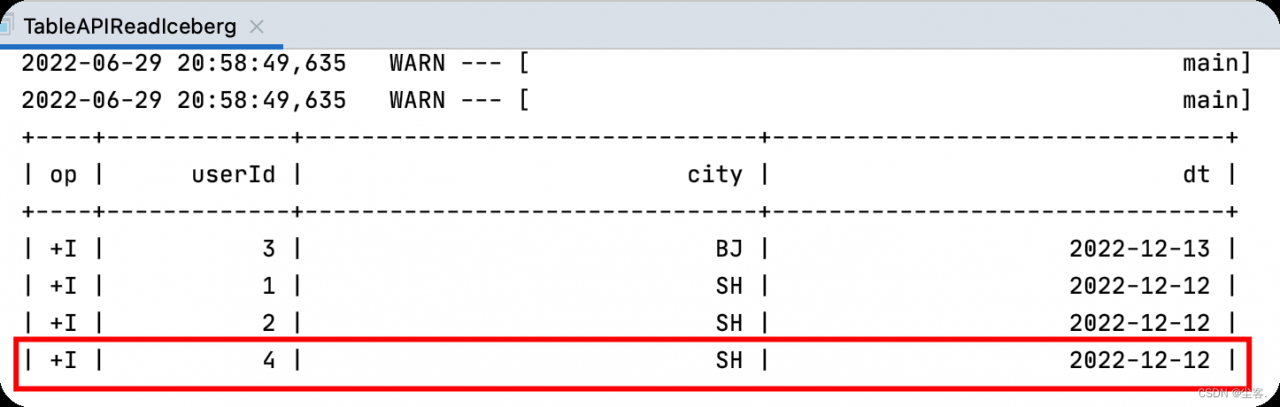

批量读取现象和常规数据查询一致。以下记录实时读取测试，其实就是Flink Sql的动态查询表。启动程序后从Hive表中插入数据，而后可从控制台中实时刷出的新增数据，其延迟时间和程序中设置的checkpoint时长正相关。

insert into  table iceberg_user_addr values(4,'SH','2022-12-12');

在这里插入图片描述

依赖导入

 <properties>
        <flink.version>1.13.6</flink.version>
        <scala.version>2.12.10</scala.version>
        <scala.binary.version>2.12</scala.binary.version>
        <log4j.version>1.2.17</log4j.version>
        <slf4j.version>1.7.22</slf4j.version>
        <hive.version>3.1.2</hive.version>
        <!--<iceberg.version>0.11.1</iceberg.version>-->
        <iceberg.version>0.13.1</iceberg.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>${flink.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>log4j</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>log4j</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>${scala.version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-table -->

        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-table-common -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-common</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-table-api-java -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-api-java</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-table-api-java-bridge -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-api-java-bridge_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-table-planner -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-table-planner-blink -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner-blink_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

       <!-- <dependency>
            <groupId>org.apache.iceberg</groupId>
            <artifactId>iceberg-flink-runtime</artifactId>
            <version>${iceberg.version}</version>
        </dependency>-->

        <dependency>
            <groupId>org.apache.iceberg</groupId>
            <artifactId>iceberg-flink-runtime-1.13</artifactId>
            <version>${iceberg.version}</version>
        </dependency>
        <!--added for 0.12 iceberg version, with class not found bug -->
        <dependency>
            <groupId>org.apache.iceberg</groupId>
            <artifactId>iceberg-core</artifactId>
            <version>${iceberg.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.hadoop/hadoop-common -->
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>3.1.3</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-clients -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.76</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka-0.10_${scala.binary.version}</artifactId>
            <version>1.11.6</version>
        </dependency>

        <!-- Flink Dependency -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-hive_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- Hive Dependency -->
        <dependency>
            <groupId>org.apache.hive</groupId>
            <artifactId>hive-exec</artifactId>
            <version>${hive.version}</version>
            <scope>provided</scope>
        </dependency>

        <!--CDC-->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_2.12</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.49</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner-blink_2.12</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
             <groupId>com.ververica</groupId>
            <artifactId>flink-connector-mysql-cdc</artifactId>
            <version>2.0.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-clients</artifactId>
            <version>2.4.1</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>
