Android仿今日头条的视频播放控件实现教程（几行代码快速实现）

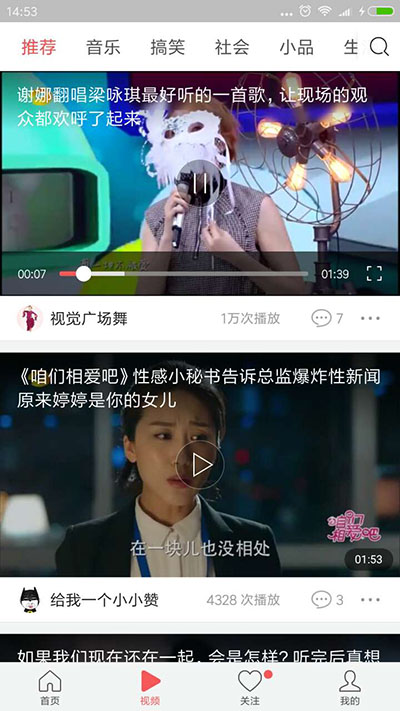

前段时间由于项目需要用到类似于今日头条的视频播放器，实现在线播放，边缓存边播放，当然也可以播放本地文件，如下图：

这里写图片描述

这里我推荐大家使用的是jiecaovideoplayer开源库，这个库的播放引擎是ijkplayer，它调用ffmpeg， 原项目GitHub地址：https://github.com/lipangit/JieCaoVideoPlayer

一、项目引入：

1、添加类库

?
1
2
compile 'fm.jiecao:jiecaovideoplayer:4.8.3'
compile 'com.github.bumptech.glide:glide:3.7.0'

2、添加布局

?
1
<fm.jiecao.jcvideoplayer_lib.jcvideoplayerstandard android:id= "@+id/player_list_video" android:layout_width= "match_parent" android:layout_height= "220dp" ></fm.jiecao.jcvideoplayer_lib.jcvideoplayerstandard>

3、下面就是我所说的通过设置视频地址、缩略图地址、标题等几行代码快速实现视频的播放啦

?
1
2
3
4
5
JCVideoPlayerStandard player = (JCVideoPlayerStandard) findViewById(R.id.player_list_video);
        boolean setUp = player.setUp( "https://gslb.miaopai.com/stream/ed5HCfnhovu3tyIQAiv60Q__.mp4" , JCVideoPlayer.SCREEN_LAYOUT_LIST, "" );
        if (setUp) {
            Glide.with(MainActivity. this ).load( "https://a4.att.hudong.com/05/71/01300000057455120185716259013.jpg" ).into(player.thumbImageView);
        }

4、在Activity中

?
1
2
3
4
5
6
7
8
9
10
11
12
13
@Override
     public void onBackPressed() {
         if (JCVideoPlayer.backPress()) {
             return ;
         }
         super .onBackPressed();
     }

     @Override
     protected void onPause() {
         super .onPause();
         JCVideoPlayer.releaseAllVideos();
     }

5、还有一点不要忘记哦，要添加权限滴：

?
1
2
<!--联网权限-->
     <uses-permission android:name= "android.permission.INTERNET" ></uses-permission>

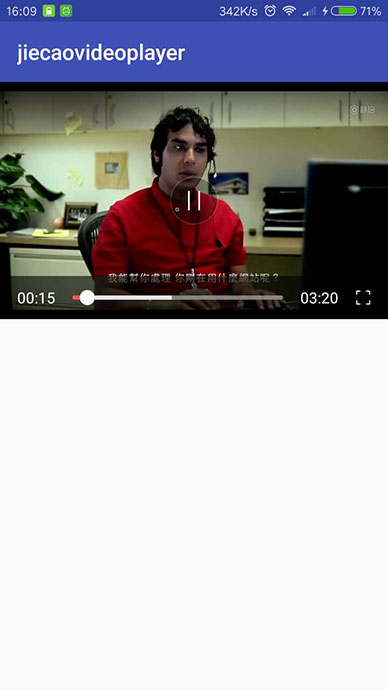

下面我们来看看我们运行效果：

这里写图片描述

二、如何使用jiecaovideoplayer播放本地视频

注意：jiecaovideoplayer支持file:///开头的文件播放，但是不支持assets或者raw目录下的视频，assets下的视频要先复制到本地路径才能播放，至于怎么监听播放完全呢，要继承JCvideoPlayerStandard 复写onAutoCOmplete函数

三、模拟用户点击开始按钮，直接进入全屏

?
1
2
3
4
//直接进入全屏
        player.startFullscreen( this , JCVideoPlayerStandard. class , videoUrl, "" );
        //模拟用户点击开始按钮，NORMAL状态下点击开始播放视频，播放中点击暂停视频
        player.startButton.performClick();

我把代码都贴出来吧：

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
package la.trytry.jiecaovideoplayer;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;

import com.bumptech.glide.Glide;

import fm.jiecao.jcvideoplayer_lib.JCVideoPlayer;
import fm.jiecao.jcvideoplayer_lib.JCVideoPlayerStandard;

public class MainActivity extends AppCompatActivity {
     private String videoUrl = "https://gslb.miaopai.com/stream/ed5HCfnhovu3tyIQAiv60Q__.mp4" ;
     private JCVideoPlayerStandard player;

     @Override
     protected void onCreate(Bundle savedInstanceState) {
         super .onCreate(savedInstanceState);
         setContentView(R.layout.activity_main);

         player = (JCVideoPlayerStandard) findViewById(R.id.player_list_video);
         boolean setUp = player.setUp(videoUrl, JCVideoPlayer.SCREEN_LAYOUT_LIST, "" );
         if (setUp) {
             Glide.with(MainActivity. this ).load( "https://a4.att.hudong.com/05/71/01300000057455120185716259013.jpg" ).into(player.thumbImageView);
         }

         //直接进入全屏
         player.startFullscreen( this , JCVideoPlayerStandard. class , videoUrl, "" );
         //模拟用户点击开始按钮，NORMAL状态下点击开始播放视频，播放中点击暂停视频
         player.startButton.performClick();
     }

     @Override
     public void onBackPressed() {
         if (JCVideoPlayer.backPress()) {
             return ;
         }
         super .onBackPressed();
     }

     @Override
     protected void onPause() {
         super .onPause();
         JCVideoPlayer.releaseAllVideos();
     }

}<ul class = "pre-numbering" ><img src= "/uploadfile/Collfiles/20170721/20170721093008222.png" style= "width: 105px; height: 60px;" ><ul class = "pre-numbering" ></ul></ul>

四、下面回到我们的主题上，实现仿今日头条的视频播放

1、VideoActivity.Java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
package la.trytry.jiecaovideoplayer;

import android.graphics.Rect;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.widget.AbsListView;
import android.widget.ListView;

import java.util.ArrayList;

import fm.jiecao.jcvideoplayer_lib.JCVideoPlayer;
import fm.jiecao.jcvideoplayer_lib.JCVideoPlayerStandard;

public class VideoActivity extends AppCompatActivity {
     private String videoUrl = "https://gslb.miaopai.com/stream/ed5HCfnhovu3tyIQAiv60Q__.mp4" ;
     private ListView listView;
     private ArrayList<string> datas;
     private JCVideoPlayerStandard currPlayer;
     private VideoAdapter adapter;
     private AbsListView.OnScrollListener onScrollListener;
     private int firstVisible; //当前第一个可见的item
     private int visibleCount; //当前可见的item个数

     @Override
     protected void onCreate(Bundle savedInstanceState) {
         super .onCreate(savedInstanceState);
         setContentView(R.layout.activity_video);
         listView = (ListView) findViewById(R.id.listview);
         initDatas();
         initListener();
     }

     private void initDatas() {
         datas = new ArrayList<string>();
         for ( int i = 0 ; i < 20 ; i++) {
             datas.add(videoUrl);
         }
         adapter = new VideoAdapter(VideoActivity. this , datas, R.layout.item_video);
         listView.setAdapter(adapter);
     }

     /**
      * 滑动监听
      */
     private void initListener() {
         onScrollListener = new AbsListView.OnScrollListener() {
             @Override
             public void onScrollStateChanged(AbsListView view, int scrollState) {

                 switch (scrollState) {
                     case AbsListView.OnScrollListener.SCROLL_STATE_FLING:
                         break ;

                     case AbsListView.OnScrollListener.SCROLL_STATE_IDLE:
                         //滑动停止自动播放视频
                         autoPlayVideo(view);
                         break ;

                     case AbsListView.OnScrollListener.SCROLL_STATE_TOUCH_SCROLL:
                         break ;
                 }
             }

             @Override
             public void onScroll(AbsListView view, int firstVisibleItem, int visibleItemCount, int totalItemCount) {
                 if (firstVisible == firstVisibleItem) {
                     return ;
                 }

                 firstVisible = firstVisibleItem;
                 visibleCount = visibleItemCount;
             }
         };

         listView.setOnScrollListener(onScrollListener);
     }

     /**
      * 滑动停止自动播放视频
      */
     private void autoPlayVideo(AbsListView view) {

         for ( int i = 0 ; i < visibleCount; i++) {
             if (view != null && view.getChildAt(i) != null && view.getChildAt(i).findViewById(R.id.player_list_video) != null ) {
                 currPlayer = (JCVideoPlayerStandard) view.getChildAt(i).findViewById(R.id.player_list_video);
                 Rect rect = new Rect();
                 //获取当前view 的 位置
                 currPlayer.getLocalVisibleRect(rect);
                 int videoheight = currPlayer.getHeight();
                 if (rect.top == 0 && rect.bottom == videoheight) {
                     if (currPlayer.currentState == JCVideoPlayer.CURRENT_STATE_NORMAL
                             || currPlayer.currentState == JCVideoPlayer.CURRENT_STATE_ERROR) {
                         currPlayer.startButton.performClick();
                     }
                     return ;
                 }
             }
         }
         //释放其他视频资源
         JCVideoPlayer.releaseAllVideos();
     }

     @Override
     public void onBackPressed() {
         if (JCVideoPlayer.backPress()) {
             return ;
         }
         super .onBackPressed();
     }

     @Override
     protected void onPause() {
         super .onPause();
         JCVideoPlayer.releaseAllVideos();
     }
}<img src= "/uploadfile/Collfiles/20170721/20170721093008222.png" style= "width: 105px; height: 60px;" ></string></string>

在我们滑动的时候，jiecaovideoplayer会自动停止正在播放的视频，这里面我还添加了一个功能，就是监听当滑动停止的时候自动播放下一个视频

2、VideoAdapter.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
package la.trytry.jiecaovideoplayer;

import android.content.Context;

import com.bumptech.glide.Glide;
import com.zhy.adapter.abslistview.CommonAdapter;
import com.zhy.adapter.abslistview.ViewHolder;

import java.util.List;

import fm.jiecao.jcvideoplayer_lib.JCVideoPlayer;
import fm.jiecao.jcvideoplayer_lib.JCVideoPlayerStandard;

/**
  * @author: lijuan
  * @description: 适配器
  * @date: 2016-12-04
  * @time: 17:04
  */
public class VideoAdapter extends CommonAdapter<string> {
     private Context mContext;

     public VideoAdapter(Context context, List<string> datas, int layoutId) {
         super (context, layoutId, datas);
         this .mContext = context;
     }

     @Override
     protected void convert(ViewHolder viewHolder, String url, int position) {
         JCVideoPlayerStandard player = viewHolder.getView(R.id.player_list_video);
         if (player != null ) {
             player.release();
         }
         boolean setUp = player.setUp(url, JCVideoPlayer.SCREEN_LAYOUT_LIST, "" );
         if (setUp) {
             Glide.with(mContext).load( "https://a4.att.hudong.com/05/71/01300000057455120185716259013.jpg" ).into(player.thumbImageView);
         }
     }
}<img src= "/uploadfile/Collfiles/20170721/20170721093008222.png" style= "width: 105px; height: 60px;" ></string></string>


这里的适配器，我继承了鸿洋大神写的万能的Adapter，所以我们还需添加这个库的引用

?
1
compile 'com.zhy:base-adapter:3.0.3' <ul class = "pre-numbering" > 1 <img src= "/uploadfile/Collfiles/20170721/20170721093008222.png" style= "width: 105px; height: 60px;" ><ul class = "pre-numbering" > 1 </ul></ul>

3、item_video.xml

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<!--?xml version= "1.0" encoding= "utf-8" ?-->
<linearlayout xmlns:android= "https://schemas.android.com/apk/res/android" android:layout_width= "match_parent" android:layout_height= "wrap_content" android:orientation= "vertical" >

     <fm.jiecao.jcvideoplayer_lib.jcvideoplayerstandard android:id= "@+id/player_list_video" android:layout_width= "match_parent" android:layout_height= "190dp" >

     <relativelayout android:layout_width= "match_parent" android:layout_height= "wrap_content" android:paddingbottom= "8dp" android:paddingtop= "8dp" >

         <imageview android:id= "@+id/img_video_icon" android:layout_width= "30dp" android:layout_height= "30dp" android:layout_marginleft= "12dp" android:src= "@mipmap/icon_default_head" >

         <textview android:id= "@+id/tv_video_userName" android:layout_width= "wrap_content" android:layout_height= "wrap_content" android:layout_centervertical= "true" android:layout_marginleft= "12dp" android:layout_torightof= "@id/img_video_icon" android:text= "空城旧梦" >

         <textview android:id= "@+id/tv_video_comment" android:layout_width= "wrap_content" android:layout_height= "wrap_content" android:layout_alignparentright= "true" android:layout_centervertical= "true" android:layout_marginright= "12dp" android:drawablepadding= "4dp" android:drawableleft= "@mipmap/icon_comment" android:text= "21" android:textsize= "12sp" >

         <textview android:layout_width= "wrap_content" android:layout_height= "wrap_content" android:layout_centervertical= "true" android:layout_marginright= "12dp" android:layout_toleftof= "@id/tv_video_comment" android:text= "3万次播放" >
     </textview></textview></textview></imageview></relativelayout>
</fm.jiecao.jcvideoplayer_lib.jcvideoplayerstandard></linearlayout><img src= "/uploadfile/Collfiles/20170721/20170721093008222.png" style= "width: 105px; height: 60px;" >

4、activity_video.xml

?
1
2
<!--?xml version= "1.0" encoding= "utf-8" ?-->
<listview xmlns:android= "https://schemas.android.com/apk/res/android" android:id= "@+id/listview" android:layout_width= "match_parent" android:layout_height= "match_parent" android:orientation= "vertical" ><ul class = "pre-numbering" > 123456 <img src= "/uploadfile/Collfiles/20170721/20170721093008222.png" style= "width: 105px; height: 60px;" ><ul class = "pre-numbering" > 123456 </ul></ul></listview>

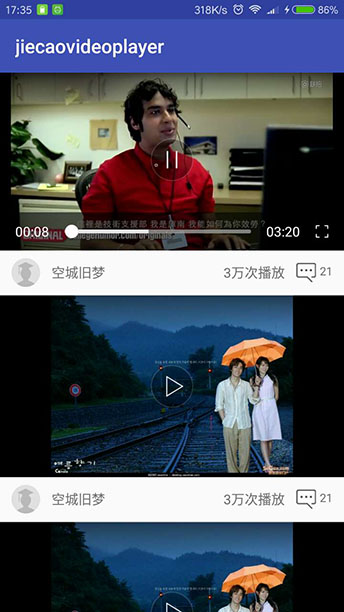

下面我们看看最终的效果

这里写图片描述

好了，本篇文章已经全部写完但是当在fragment中加载视屏时无法全屏播放，不知道为啥
