SpringBoot整合servlet两种方式

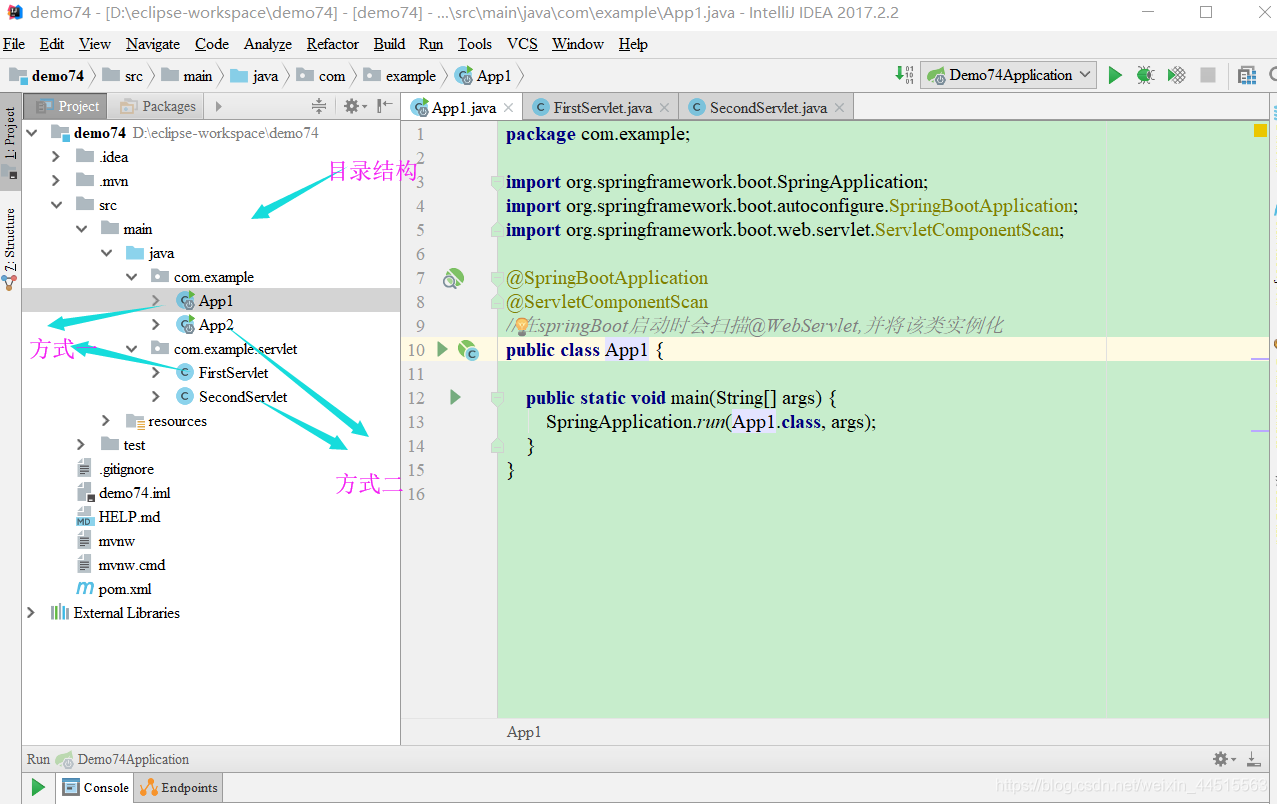

目录结构



pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.6.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.example</groupId>
	<artifactId>demo74</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>demo74</name>
	<description>Demo project for Spring Boot</description>

<properties>
	<java.version>1.8</java.version>
</properties>

<dependencies>
	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-web</artifactId>
	</dependency>

	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-test</artifactId>
		<scope>test</scope>
	</dependency>
</dependencies>

<build>
	<plugins>
		<plugin>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-maven-plugin</artifactId>
		</plugin>
	</plugins>
</build>
</project>

APP1 代码

package com.example;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletComponentScan;

@SpringBootApplication
@ServletComponentScan
//在springBoot启动时会扫描@WebServlet,并将该类实例化
public class App1 {

	public static void main(String[] args) {
		SpringApplication.run(App1.class, args);
	}
}

FirstServlet代码

package com.example.servlet;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/*
* SpringBoot整合Servlet方式一
*
* <servlet>
*      <servlet-name>FirstServlet</servlet_name>
*      <servlet-class></servlet-class>
* </servlet>
* <servlet-mapping>
*       <servlet-name>FirstServlet</servlet_name>
*     <url-patten>/first</url-patten>
* </servlet-mapping>
*
*
* */
@WebServlet(name="FirstServlet",urlPatterns="/first")
public class FirstServlet extends HttpServlet {
//ali+insert   重写doget方法
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        System.out.println("FirstServlet.........");
    }
}

第二种方式

APP2代码

package com.example;

import com.example.servlet.SecondServlet;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;

/*
* SpringBoot整合Servlet方式二
* */
@SpringBootApplication
public class App2 {
    public static void main (String[] args){
        SpringApplication.run(App2.class,args);
    }
    @Bean
    public ServletRegistrationBean getServletRegistrationBean(){
        ServletRegistrationBean bean = new ServletRegistrationBean(new SecondServlet());
        bean.addUrlMappings("/second");
        return bean;
    }
}

SecondServlet代码

package com.example.servlet;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

public class SecondServlet extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        System.out.println("SecondServlet...........");
    }
}
