在开始ARoute源码分析之前需要先了解Javapoet和APT分别是什么？
JavaPoet
官方链接：https://github.com/square/javapoet
A Java API for generating .java source files.
Source file generation can be useful when doing things such as annotation processing or interacting with metadata files (e.g., database schemas, protocol formats). By generating code, you eliminate the need to write boilerplate while also keeping a single source of truth for the metadata.
以上是JavaPoet的官方定义，大概总结如下：
- JavaPoet是一款可以自动生成Java文件的第三方依赖；
- 简洁易懂的API，上手快；
- 自动化生成繁杂、重复的Java文件，提高工作效率，简化流程。
APT
是一种处理注解的工具，确切的说它是javac的一个工具，它用来在编译时扫描和处理注解。注解处理器以Java代码(或者编译过的字节码)作为输入，生成.java文件作为输出。

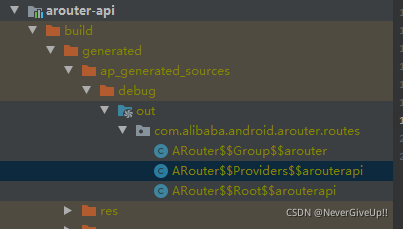

ARouter通过APT在编译期扫描和处理注解，使用JavaPoet生成模板代码，最终生成相关路由信息类。例如下面3个类：
接下来就从ARoute源码中分析这三个文件具体是如何生成的。
首先从使用上开始入手，在项目中使用ARoute时，需要在每个使用到ARoute的module下的build.gradle文件中添加如下依赖就是为了满足ARoute通过APT在编译期扫描并处理带有指定注解的地方：
android {
javaCompileOptions {
annotationProcessorOptions {
arguments = [AROUTER_MODULE_NAME: project.getName(), AROUTER_GENERATE_DOC: "enable"]
}
}
}
dependencies {
annotationProcessor'com.alibaba:arouter-compiler:1.1.4'
}

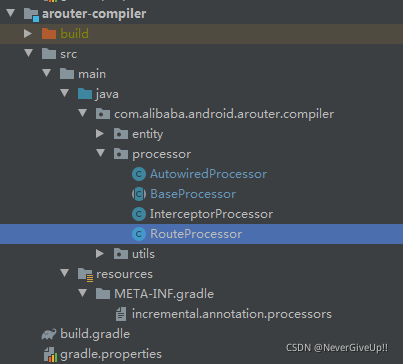

源码所在位置在aroute-compiler中：
首先看一下BaseProcessor：
public abstract class BaseProcessor extends AbstractProcessor {
Filer mFiler;
Logger logger;
Types types;
Elements elementUtils;
TypeUtils typeUtils;
// Module name, maybe its 'app' or others
String moduleName = null;
// If need generate router doc
boolean generateDoc;
@Override
public synchronized void init(ProcessingEnvironment processingEnv) {
super.init(processingEnv);
//ProcessingEnvironment 提供写文件、报告错误、查找工具类等功能
mFiler = processingEnv.getFiler();
types = processingEnv.getTypeUtils();
elementUtils = processingEnv.getElementUtils();
typeUtils = new TypeUtils(types, elementUtils);
logger = new Logger(processingEnv.getMessager());
// Attempt to get user configuration [moduleName]
Map<String, String> options = processingEnv.getOptions();
if (MapUtils.isNotEmpty(options)) {
moduleName = options.get(KEY_MODULE_NAME);
generateDoc = VALUE_ENABLE.equals(options.get(KEY_GENERATE_DOC_NAME));
}
if (StringUtils.isNotEmpty(moduleName)) {
moduleName = moduleName.replaceAll("[^0-9a-zA-Z_]+", "");
logger.info("The user has configuration the module name, it was [" + moduleName + "]");
} else {
logger.error(NO_MODULE_NAME_TIPS);
//使用ARouter框架时，出现异常，可以基于源码发现问题所在。
throw new RuntimeException("ARouter::Compiler >>> No module name, for more information, look at gradle log.");
}
}
@Override
public SourceVersion getSupportedSourceVersion() {
//返回所支持的Java版本为最新所支持的版本
return SourceVersion.latestSupported();
}
@Override
public Set<String> getSupportedOptions() {
return new HashSet<String>() {{
this.add(KEY_MODULE_NAME);
this.add(KEY_GENERATE_DOC_NAME);
}};
}
}
定义BaseProcessor继承自AbstractProcessor，初始化了一些变量，获取并检查模块名。
生产模板代码：RouteProcessor的源码实现
RouteProcessor继承BaseProcessor，重写了关键的方法process()，在此方法内使用JavaPoet实现了模板代码的编写：
@Override
public boolean process(Set<? extends TypeElement> annotations, RoundEnvironment roundEnv) {
if (CollectionUtils.isNotEmpty(annotations)) {
Set<? extends Element> routeElements = roundEnv.getElementsAnnotatedWith(Route.class);
try {
logger.info(">>> Found routes, start... <<<");
this.parseRoutes(routeElements);
} catch (Exception e) {
logger.error(e);
}
return true;
}
return false;
}
private void parseRoutes(Set<? extends Element> routeElements) throws IOException {
if (CollectionUtils.isNotEmpty(routeElements)) {
// prepare the type an so on.
logger.info(">>> Found routes, size is " + routeElements.size() + " <<<");
rootMap.clear();
TypeMirror type_Activity = elementUtils.getTypeElement(ACTIVITY).asType();
TypeMirror type_Service = elementUtils.getTypeElement(SERVICE).asType();
TypeMirror fragmentTm = elementUtils.getTypeElement(FRAGMENT).asType();
TypeMirror fragmentTmV4 = elementUtils.getTypeElement(Consts.FRAGMENT_V4).asType();
// Interface of ARouter
TypeElement type_IRouteGroup = elementUtils.getTypeElement(IROUTE_GROUP);
TypeElement type_IProviderGroup = elementUtils.getTypeElement(IPROVIDER_GROUP);
ClassName routeMetaCn = ClassName.get(RouteMeta.class);
ClassName routeTypeCn = ClassName.get(RouteType.class);
/*
Build input type, format as :
```Map<String, Class<? extends IRouteGroup>>```
*/
ParameterizedTypeName inputMapTypeOfRoot = ParameterizedTypeName.get(
ClassName.get(Map.class),
ClassName.get(String.class),
ParameterizedTypeName.get(
ClassName.get(Class.class),
WildcardTypeName.subtypeOf(ClassName.get(type_IRouteGroup))
)
);
/*
```Map<String, RouteMeta>```
*/
ParameterizedTypeName inputMapTypeOfGroup = ParameterizedTypeName.get(
ClassName.get(Map.class),
ClassName.get(String.class),
ClassName.get(RouteMeta.class)
);
/*
Build input param name.
*/
ParameterSpec rootParamSpec = ParameterSpec.builder(inputMapTypeOfRoot, "routes").build();
ParameterSpec groupParamSpec = ParameterSpec.builder(inputMapTypeOfGroup, "atlas").build();
ParameterSpec providerParamSpec = ParameterSpec.builder(inputMapTypeOfGroup, "providers").build(); // Ps. its param type same as groupParamSpec!
/*
Build method : 'loadInto'
*/
MethodSpec.Builder loadIntoMethodOfRootBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)
.addAnnotation(Override.class)
.addModifiers(PUBLIC)
.addParameter(rootParamSpec);
// Follow a sequence, find out metas of group first, generate java file, then statistics them as root.
for (Element element : routeElements) {
TypeMirror tm = element.asType();
Route route = element.getAnnotation(Route.class);
RouteMeta routeMeta;
// Activity or Fragment
if (types.isSubtype(tm, type_Activity) || types.isSubtype(tm, fragmentTm) || types.isSubtype(tm, fragmentTmV4)) {
// Get all fields annotation by @Autowired
Map<String, Integer> paramsType = new HashMap<>();
Map<String, Autowired> injectConfig = new HashMap<>();
injectParamCollector(element, paramsType, injectConfig);
if (types.isSubtype(tm, type_Activity)) {
// Activity
logger.info(">>> Found activity route: " + tm.toString() + " <<<");
routeMeta = new RouteMeta(route, element, RouteType.ACTIVITY, paramsType);
} else {
// Fragment
logger.info(">>> Found fragment route: " + tm.toString() + " <<<");
routeMeta = new RouteMeta(route, element, RouteType.parse(FRAGMENT), paramsType);
}
routeMeta.setInjectConfig(injectConfig);
} else if (types.isSubtype(tm, iProvider)) { // IProvider
logger.info(">>> Found provider route: " + tm.toString() + " <<<");
routeMeta = new RouteMeta(route, element, RouteType.PROVIDER, null);
} else if (types.isSubtype(tm, type_Service)) { // Service
logger.info(">>> Found service route: " + tm.toString() + " <<<");
routeMeta = new RouteMeta(route, element, RouteType.parse(SERVICE), null);
} else {
throw new RuntimeException("The @Route is marked on unsupported class, look at [" + tm.toString() + "].");
}
categories(routeMeta);
}
MethodSpec.Builder loadIntoMethodOfProviderBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)
.addAnnotation(Override.class)
.addModifiers(PUBLIC)
.addParameter(providerParamSpec);
Map<String, List<RouteDoc>> docSource = new HashMap<>();
// Start generate java source, structure is divided into upper and lower levels, used for demand initialization.
for (Map.Entry<String, Set<RouteMeta>> entry : groupMap.entrySet()) {
String groupName = entry.getKey();
MethodSpec.Builder loadIntoMethodOfGroupBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)
.addAnnotation(Override.class)
.addModifiers(PUBLIC)
.addParameter(groupParamSpec);
List<RouteDoc> routeDocList = new ArrayList<>();
// Build group method body
Set<RouteMeta> groupData = entry.getValue();
for (RouteMeta routeMeta : groupData) {
RouteDoc routeDoc = extractDocInfo(routeMeta);
ClassName className = ClassName.get((TypeElement) routeMeta.getRawType());
switch (routeMeta.getType()) {
case PROVIDER: // Need cache provider's super class
List<? extends TypeMirror> interfaces = ((TypeElement) routeMeta.getRawType()).getInterfaces();
for (TypeMirror tm : interfaces) {
routeDoc.addPrototype(tm.toString());
if (types.isSameType(tm, iProvider)) { // Its implements iProvider interface himself.
// This interface extend the IProvider, so it can be used for mark provider
loadIntoMethodOfProviderBuilder.addStatement(
"providers.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, null, " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",
(routeMeta.getRawType()).toString(),
routeMetaCn,
routeTypeCn,
className,
routeMeta.getPath(),
routeMeta.getGroup());
} else if (types.isSubtype(tm, iProvider)) {
// This interface extend the IProvider, so it can be used for mark provider
loadIntoMethodOfProviderBuilder.addStatement(
"providers.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, null, " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",
tm.toString(), // So stupid, will duplicate only save class name.
routeMetaCn,
routeTypeCn,
className,
routeMeta.getPath(),
routeMeta.getGroup());
}
}
break;
default:
break;
}
// Make map body for paramsType
StringBuilder mapBodyBuilder = new StringBuilder();
Map<String, Integer> paramsType = routeMeta.getParamsType();
Map<String, Autowired> injectConfigs = routeMeta.getInjectConfig();
if (MapUtils.isNotEmpty(paramsType)) {
List<RouteDoc.Param> paramList = new ArrayList<>();
for (Map.Entry<String, Integer> types : paramsType.entrySet()) {
mapBodyBuilder.append("put(\"").append(types.getKey()).append("\", ").append(types.getValue()).append("); ");
RouteDoc.Param param = new RouteDoc.Param();
Autowired injectConfig = injectConfigs.get(types.getKey());
param.setKey(types.getKey());
param.setType(TypeKind.values()[types.getValue()].name().toLowerCase());
param.setDescription(injectConfig.desc());
param.setRequired(injectConfig.required());
paramList.add(param);
}
routeDoc.setParams(paramList);
}
String mapBody = mapBodyBuilder.toString();
loadIntoMethodOfGroupBuilder.addStatement(
"atlas.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, " + (StringUtils.isEmpty(mapBody) ? null : ("new java.util.HashMap<String, Integer>(){{" + mapBodyBuilder.toString() + "}}")) + ", " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",
routeMeta.getPath(),
routeMetaCn,
routeTypeCn,
className,
routeMeta.getPath().toLowerCase(),
routeMeta.getGroup().toLowerCase());
routeDoc.setClassName(className.toString());
routeDocList.add(routeDoc);
}
// Generate groups
String groupFileName = NAME_OF_GROUP + groupName;
JavaFile.builder(PACKAGE_OF_GENERATE_FILE,
TypeSpec.classBuilder(groupFileName)
.addJavadoc(WARNING_TIPS)
.addSuperinterface(ClassName.get(type_IRouteGroup))
.addModifiers(PUBLIC)
.addMethod(loadIntoMethodOfGroupBuilder.build())
.build()
).build().writeTo(mFiler);
logger.info(">>> Generated group: " + groupName + "<<<");
rootMap.put(groupName, groupFileName);
docSource.put(groupName, routeDocList);
}
if (MapUtils.isNotEmpty(rootMap)) {
// Generate root meta by group name, it must be generated before root, then I can find out the class of group.
for (Map.Entry<String, String> entry : rootMap.entrySet()) {
loadIntoMethodOfRootBuilder.addStatement("routes.put($S, $T.class)", entry.getKey(), ClassName.get(PACKAGE_OF_GENERATE_FILE, entry.getValue()));
}
}
// Output route doc
if (generateDoc) {
docWriter.append(JSON.toJSONString(docSource, SerializerFeature.PrettyFormat));
docWriter.flush();
docWriter.close();
}
// Write provider into disk
String providerMapFileName = NAME_OF_PROVIDER + SEPARATOR + moduleName;
JavaFile.builder(PACKAGE_OF_GENERATE_FILE,
TypeSpec.classBuilder(providerMapFileName)
.addJavadoc(WARNING_TIPS)
.addSuperinterface(ClassName.get(type_IProviderGroup))
.addModifiers(PUBLIC)
.addMethod(loadIntoMethodOfProviderBuilder.build())
.build()
).build().writeTo(mFiler);
logger.info(">>> Generated provider map, name is " + providerMapFileName + " <<<");
// Write root meta into disk.
String rootFileName = NAME_OF_ROOT + SEPARATOR + moduleName;
JavaFile.builder(PACKAGE_OF_GENERATE_FILE,
TypeSpec.classBuilder(rootFileName)
.addJavadoc(WARNING_TIPS)
.addSuperinterface(ClassName.get(elementUtils.getTypeElement(ITROUTE_ROOT)))
.addModifiers(PUBLIC)
.addMethod(loadIntoMethodOfRootBuilder.build())
.build()
).build().writeTo(mFiler);
logger.info(">>> Generated root, name is " + rootFileName + " <<<");
}
}

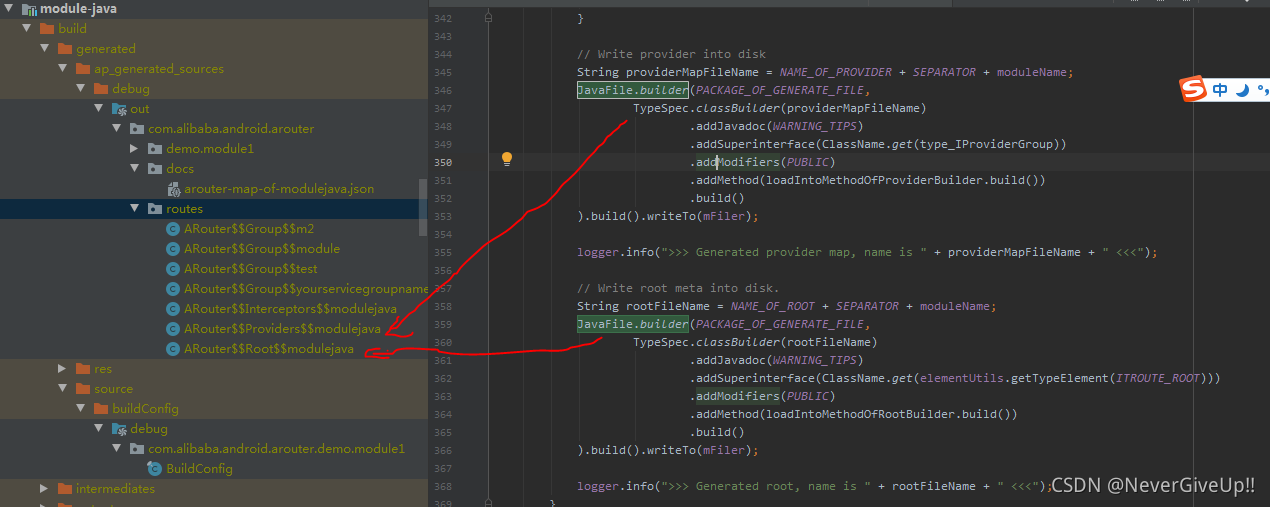

生成的文件对应位置如下图：

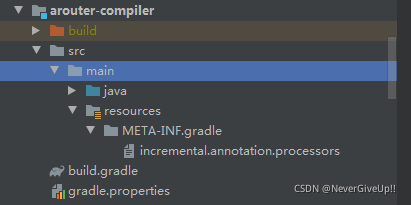

注册注解处理器
resources目录下新建META-INF/gradle，然后新建incremental.annotation.processors
总结：以上对routes类型文件生成流程做了简单分析，每个文件具体生成方法对应的意思需要建立在对JavaPoet API熟悉的基础上具体分析，可参考此博客。
