分享一下我的基于vue的百度地图围栏管理源码实现

之前，公司需要我来开发项目中的围栏管理功能。业务需求也不是太难，就是实现在百度地图上使用百度地图工具来绘制一块区域，给该区域添加项目相关的区域信息，然后保存到数据库，另外实现对保存到数据库的围栏的增删改查功能。
因为公司的项目是一个基于vue的前后端分离的项目。所以开发这一功能时，我一开始想到尝试网上有没有关于百度地图的插件可以使用的。我找到了
vue-baidu-map 这一插件。由于没有太多时间来了解这一插件，便pass了。但是开发者们可以去了解一下。
使用百度地图插件的案例 ： https://www.cnblogs.com/WorkingBoy/p/15424905.html 可以点击看看这位博主的案例。

为了学习百度地图引入vue项目，我选择了最原始的方法，通过手动js引入。
下面是js代码 ： 可以命名为 bmpjl.js。

const ak = '你的密钥' // 百度的地图密钥
/**
 * 异步加载百度地图
 * @returns {Promise}
 * @constructor
 */
function loadBaiDuMap() {
  return new Promise(function (resolve, reject) {
    try {
      console.log('BMap is defined:', BMapGL === undefined || BMapGL)
      resolve(BMapGL)
    } catch (err) {
      window.init = function () {
        resolve(BMapGL)
      }
      let script = document.createElement('script')
      script.type = 'text/javascript'
      script.src = `http://api.map.baidu.com/api?v=1.0&type=webgl&ak=${ak}&callback=init`
      script.onerror = reject
      document.body.appendChild(script)
    }
  })
}
export { loadBaiDuMap }
/**
 * 异步加载百度地图,以及绘制工具
 * @returns {Promise}
 * @constructor
 */
function loadBaiDuDrawMap() {
  return loadBaiDuMap().then(BMapGL => {
    let loaded = false
    try {
      loaded = (BMapGLLib && BMapGLLib.DrawingManager)
    } catch (err) {
      loaded = false
    }
    if (!loaded) {
      console.log('BMapLib.DrawingManager loading!')
      let script = document.createElement('script')
      script.type = 'text/javascript'
      script.src = 'http://mapopen.cdn.bcebos.com/github/BMapGLLib/DrawingManager/src/DrawingManager.min.js'
      document.body.appendChild(script)
      let link = document.createElement('link')
      link.rel = 'stylesheet'
      link.href = 'http://mapopen.cdn.bcebos.com/github/BMapGLLib/DrawingManager/src/DrawingManager.min.css'
      document.body.appendChild(link)
    } else {
      console.log('BMapLib.DrawingManager is loaded!')
    }
    return BMapGL
  })
}
export { loadBaiDuDrawMap }

引入百度地图前，你需要去网上搜索百度地图官方文档 ，即 百度地图开发者平台 链接地址是 https://www.baidu.com/link?url=hY2nl1O5PMifStkUFQsDmEbycTTly1JfAarPlyzFc7ICq-Mn4oWR8JWsQp0Wy3dL&wd=&eqid=f47ede5a0003ee7600000006629185d0

进入官网后，选择控制台菜单 -> 应用管理 -> 我的应用 .

点击创建应用 输入应用名称 选择安排ap[服务等，提交即可获得一个自己的密钥。
开发者们也可以通过官方开发文档一步步学习，来创建自己的地图。文档里面除了 js方向，还有小程序，android方向等开发文档。

下面是在页面中引入之前的js文件，展示地图以及围栏管理功能的源码：这里我命名为weilan.vue。

<template>
  <div class="home" style="width: 100%; height: 100%">
    <!-- BMapGLLib 控件，这里自己去优化一下吧，写成循环吧 ，，懒得写了 -->
    <!-- <ul class="drawing-panel">
      <li class="bmap-btn bmap-marker" @click="draw('marker')" :style="{ 'background-position-y': actNav === 'marker' ? '-52px' : '0px'}"></li>
      <li class="bmap-btn bmap-polyline" @click="draw('polyline')" :style="{ 'background-position-y': actNav === 'polyline' ? '-52px' : '0px' }"></li>
      <li class="bmap-btn bmap-rectangle" @click="draw('rectangle')" :style="{ 'background-position-y': actNav === 'rectangle' ? '-52px' : '0px' }"></li>
      <li class="bmap-btn bmap-polygon" @click="draw('polygon')" :style="{'background-position-y': actNav === 'polygon' ? '-52px' : '0px'}"></li>
      <li class="bmap-btn bmap-circle" @click="draw('circle')" :style="{'background-position-y': actNav === 'circle' ? '-52px' : '0px'}"></li>
    </ul> -->
    <div class="search">
      <a-input
        v-model="queryParams.unitname"
        maxlength="250"
        :allowClear="true"
        style="width: 60%"
        placeholder="请输入单位名称"
      ></a-input>
      <a-button
        style="width: 30px; margin-left: 20px"
        type="primary"
        shape="circle"
        icon="search"
        @click="search()"
      />
    </div>
    <ul class="drawing-panel">
      <li :key="item.id" v-for="item in mapToolbar">
        <a href="javascript:;">
          <my-icon
            :type="item.icon"
            class="tool-icon"
            @click="item.action === 'polygon' ? draw(item.action) : ''"
          ></my-icon>
        </a>
      </li>
      <!-- <li>
        <a href="javascript:;"><my-icon type="icon-sousuo" class="tool-icon" @click="search"></my-icon></a>
      </li> -->
    </ul>

    <!-- 地图容器 -->
    <div id="container" class="mymap" @ready="handler"></div>

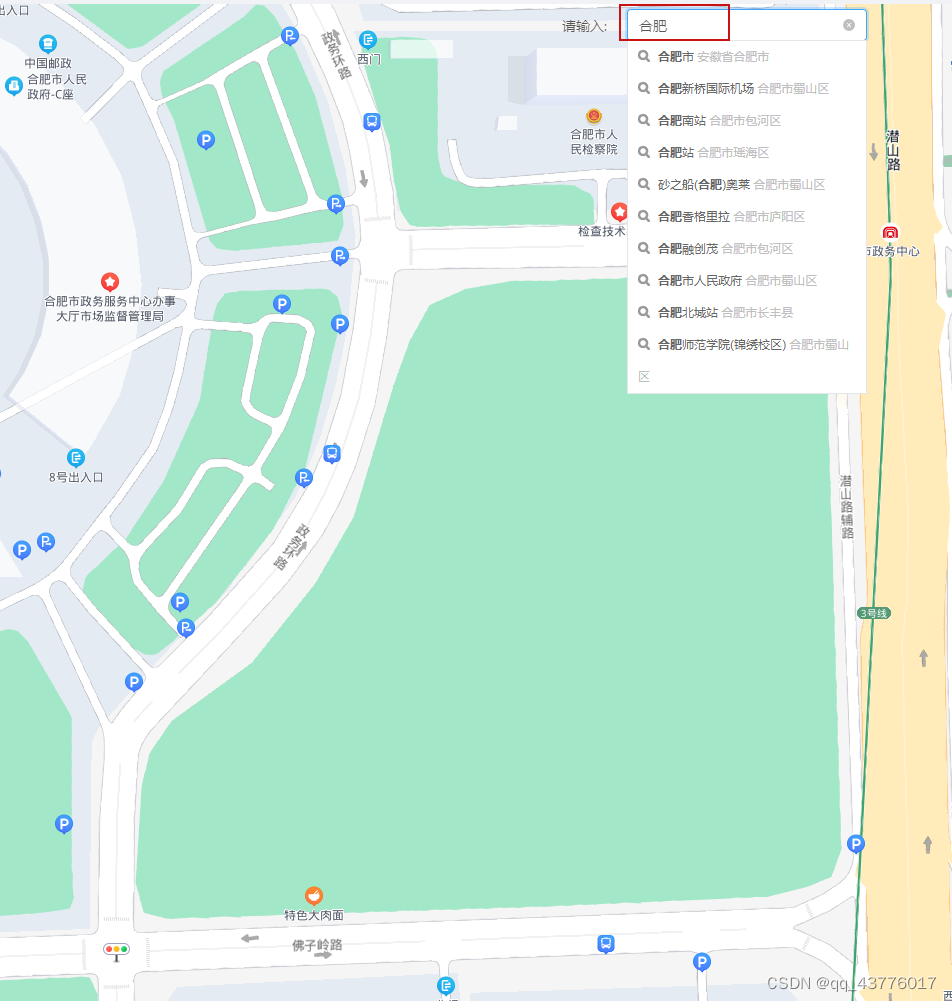

    <div id="r-result" class="minput">
      <label for="">请输入:</label>
      <a-input
        id="suggestCity"
        v-model="address"
        maxlength="250"
        :allowClear="true"
        style="width: 60%; margin-left: 20px"
        placeholder="请输入你想搜索的地点"
      />
    </div>
    <div
      id="searchResultPanel"
      style="
        border: 1px solid #c0c0c0;
        width: 150px;
        height: auto;
        display: none;
      "
    ></div>

    <!-- 新增覆盖物 -->
    <add-overlay
      ref="addoverlay"
      @addoverlay="addLocalOverlay"
      @canceloverlay="cancelOverlay"
    ></add-overlay>
  </div>
</template>

<script>
import { i, log } from "mathjs";
// 引入异步引入地图的方法
import { loadBaiDuDrawMap } from "./bmpgl";
import AddOverlay from "./Modals/AddOverlay.vue";
//围栏管理后台接口
import { sysAreaApi as Sapi } from "@/api";
//地图工具栏
const mapToolbar = [
  {
    id: 0,
    title: "正方形",
    icon: "icon-checkbox",
    action: "rectangle",
  },
  {
    id: 1,
    title: "多边形",
    icon: "icon-duobianxing",
    action: "polygon",
  },
  {
    id: 2,
    title: "圆圈",
    icon: "icon-big-circle",
    action: "circle",
  },
];
export default {
  name: "mapCom",
  components: {
    AddOverlay,
  },
  data() {
    return {
      map: null,
      actNav: "",
      myValue: "",
      mapToolbar,
      //绘制对象
      _drawingManager: null,
      //页面存储覆盖物的数组
      overlays: [],
      //查询地点
      address: "",
      //查询参数
      queryParams: {},
      //列表中获取到的点数组
      localOverlays: [],
      loadData: (parameter) => {
        var _this = this;
        let searchArr = [],
          queryRules = {
            unitname: "eq",
          },
          defaultOperator = "eq";
        for (let [key, value] of Object.entries(this.queryParams)) {
          if (value || value == 0) {
            searchArr.push({
              column: key,
              value: value,
              type: queryRules[key] || defaultOperator,
            });
          }
        }
        searchArr.length && (parameter.search = JSON.stringify(searchArr));
        return this.$api
          .get(Sapi.list, parameter)
          .then((res) => {
            if (res.success) {
              _this.$nextTick(() => {
                _this.localOverlays = res.data.records;
                _this.$forceUpdate();
                if (_this.localOverlays.length > 2) {
                  return;
                } else {
                  _this.drawSearchResult();
                }
              });
              // return res.data;
            } else {
              return this.getListError(res.msg);
            }
          })
          .catch((err) => {
            return this.getListError(err);
          });
      },
    };
  },
  mounted() {
    this.initMap();
  },
  methods: {
    handler({ BMapGL, map }) {
      this.map = map;
    },
    getListError(msg) {
      this.$message.warning(msg);

      this.localOverlays = [];
    },

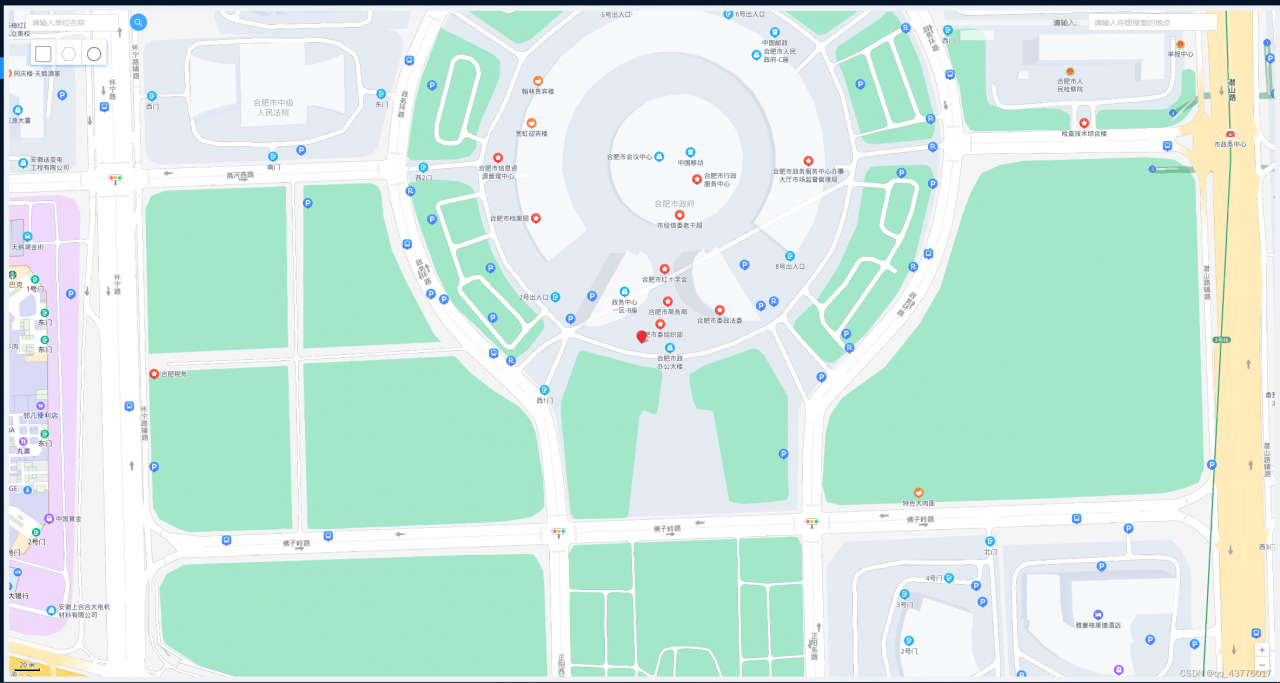

    initMap() {
      // 初始化地图
      loadBaiDuDrawMap().then((BMapGL) => {
        // 创建地图实例
        var _this = this;
        let map = new BMapGL.Map("container", { minZoom: 4, maxZoom: 22 });
        //添加地图平移缩放控件
        // map.addControl(new BMapGL.NavigationControl());
        // 添加比例尺控件
        map.addControl(
          new BMapGL.ScaleControl({
            anchor: BMAP_ANCHOR_BOTTOM_LEFT,
            offset: new BMapGL.Size(10, 10),
          })
        );
        // 添加缩放控件
        map.addControl(
          new BMapGL.ZoomControl({
            anchor: BMAP_ANCHOR_BOTTOM_RIGHT,
            offset: new BMapGL.Size(10, 10),
          })
        );

        // 创建点坐标 axios => res 获取的初始化定位坐标
        const point = new BMapGL.Point(114.031761, 22.542826);
        // 初始化地图，设置中心点坐标和地图级别
        map.centerAndZoom(point, 19);
        //开启鼠标滚轮缩放
        map.enableScrollWheelZoom(true);
        //设置地图3d视角
        // map.setHeading(64.5);
        // map.setTilt(73);
        this.$nextTick(() => {
          // 保存地图
          this.map = map;
        });
        this.getLocation();
        this.accuarySearch();
        this.$nextTick(() => {
          const overlays = this.map.getOverlays();
          this.refresh();
        });
      });

    },
    //获取当前地理位置 将地图中心点移动到定位位置

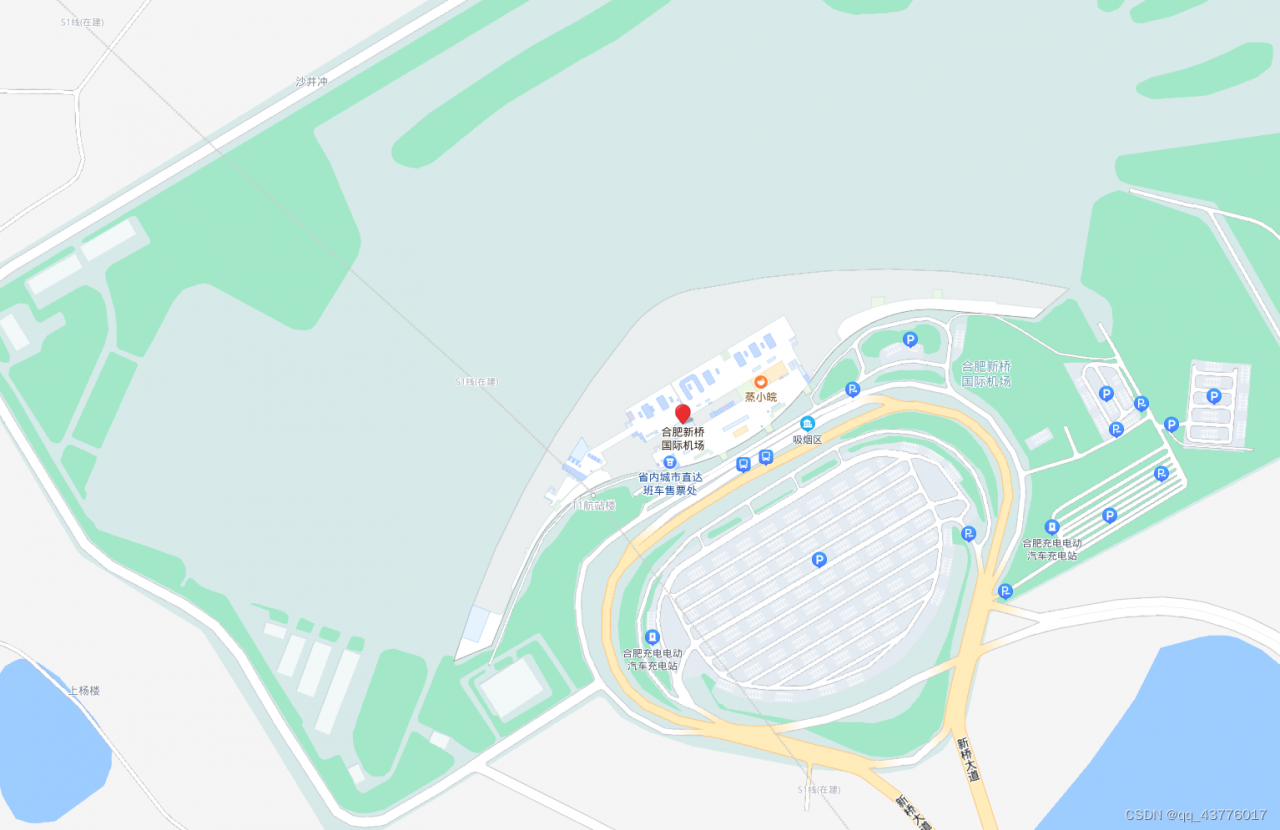

    getLocation() {
      var _this = this;
      var geolocation = new BMapGL.Geolocation();
      //创建定位对象
      geolocation.getCurrentPosition(
        function (r) {
          //通过定位对象调用定位函数,回调函数形参r表示定位结果
          if (this.getStatus() == BMAP_STATUS_SUCCESS) {
            //如果定位成功
            var mk = new BMapGL.Marker(r.point); //创建标记,r是定位结果,r.point就是当前定位的地点
            _this.$nextTick(() => {
              _this.map.addOverlay(mk); //将标记对象添加到地图上
              _this.map.panTo(r.point); //将地图中心店移动到定位地点
            });
          } else {
            alert("定位失败！");
          }
        },
        { enableHighAccuracy: true }
      );
    },

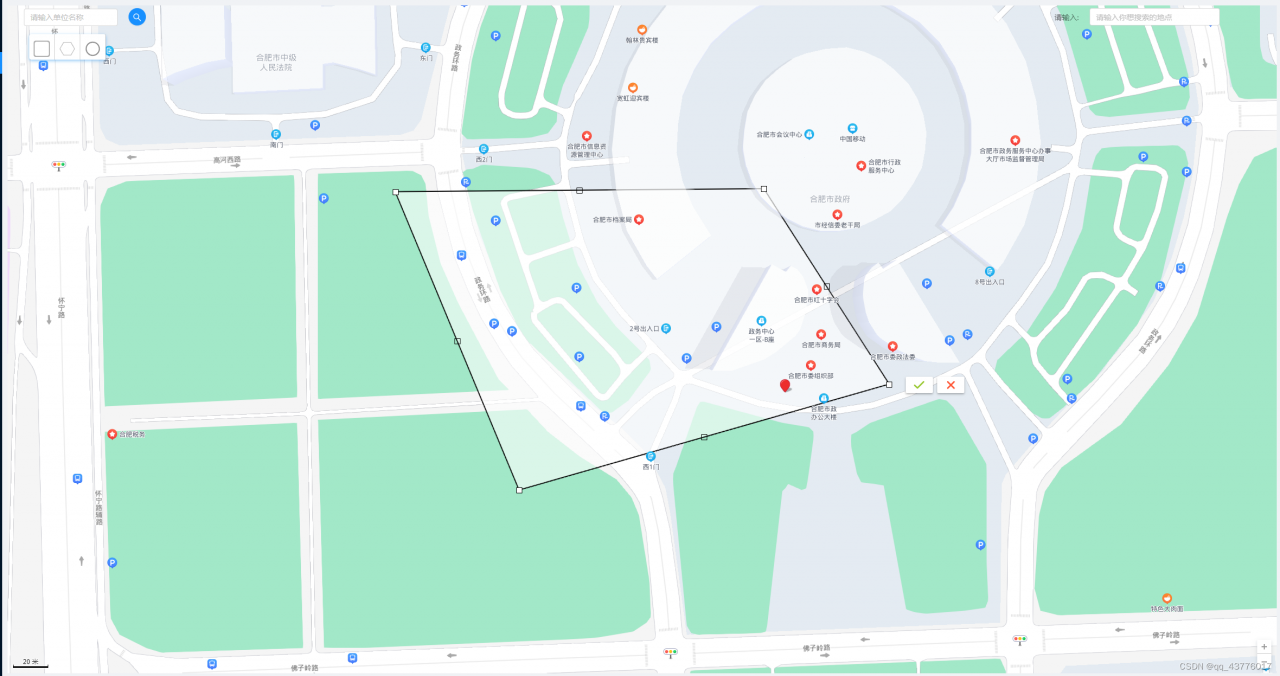

    draw(type) {
      this.actNav = type;
      //设置开始绘图时的线条配置
      const styleOptions = {
        strokeColor: "#5E87DB", // 边线颜色
        fillColor: "#5E87DB", // 填充颜色。当参数为空时，圆形没有填充颜色
        strokeWeight: 2, // 边线宽度，以像素为单位
        strokeOpacity: 1, // 边线透明度，取值范围0-1
        fillOpacity: 0.2, // 填充透明度，取值范围0-1
      };
      // 实例化鼠标绘制工具
      const drawingManager = new BMapGLLib.DrawingManager(this.map, {
        // isOpen: true,        // 是否开启绘制模式
        enableCalculate: false, // 绘制是否进行测距测面
        enableSorption: true, // 是否开启边界吸附功能
        sorptiondistance: 20, // 边界吸附距离
        rectangleOptions: styleOptions, // 矩形的样式
      });
      this._drawingManager = drawingManager;
      if (drawingManager._isOpen && drawingManager.getDrawingMode() === type) {
        drawingManager.close();
      } else {
        drawingManager.setDrawingMode(type);
        drawingManager.open();
      }
      //设置覆盖物绘制完成监听事件
      this._drawingManager.addEventListener(
        "overlaycomplete",
        this.overlayComplete.bind(this._drawingManager)
      );
    },

    //绘制完成事件处理
    overlayComplete(e) {
      console.log(this._drawingManager);
      //添加一个新的覆盖物到覆盖物数组中
      this.overlays.push(e.overlay);
      // //获取绘制类型
      // let drawingMode = e.drawingMode;
      //边界点
      let path = e.overlay.getPath();

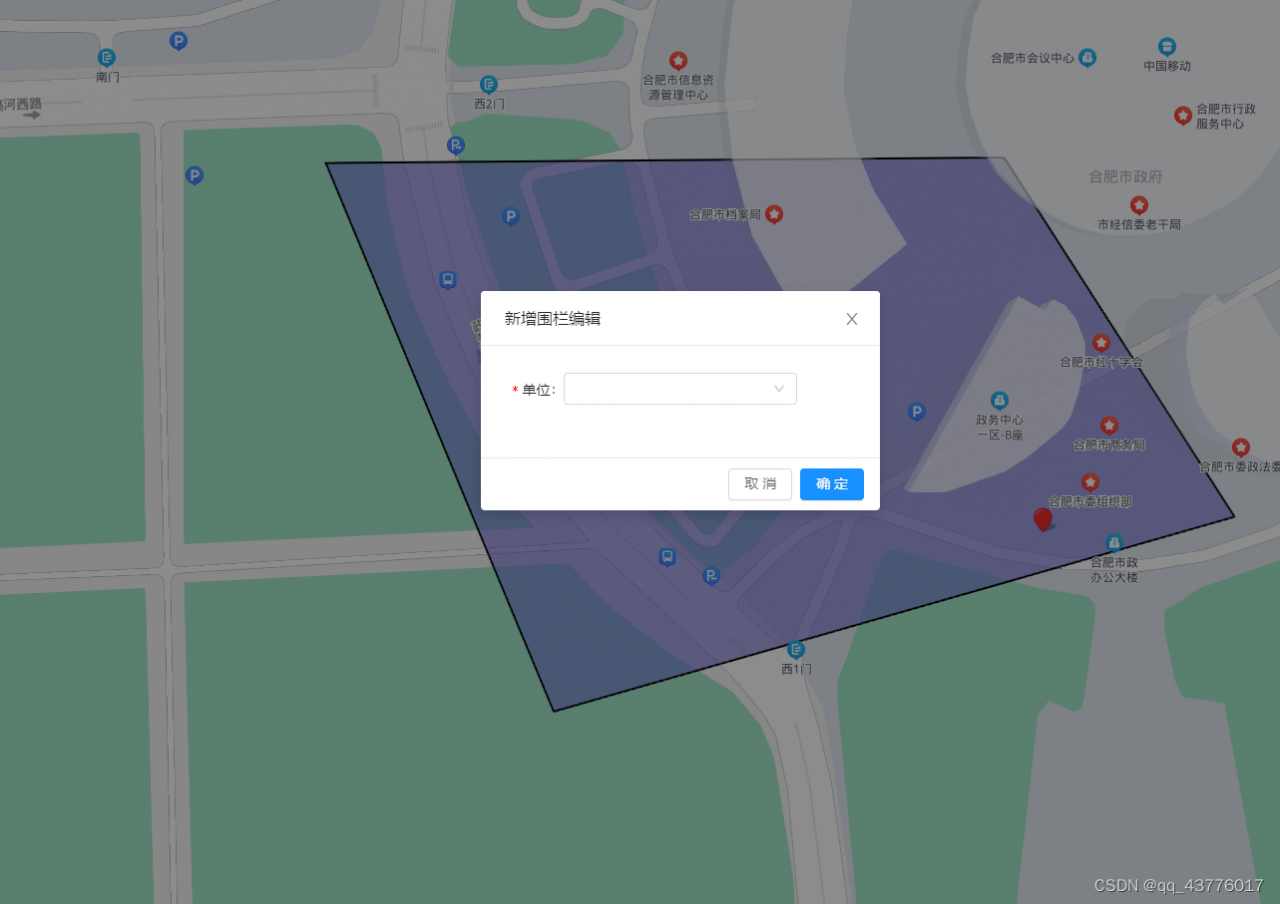

      //打开模态框
      this.$refs.addoverlay.openModal(e.overlay, path);
      // if (drawingModeOperate[drawingMode]) drawingModeOperate[drawingMode](e)
      //     this._drawingManager.close(); //关闭绘图

      //给所有的覆盖物添加删除覆盖物的监听事件
      for (let over = 0; over < this.overlays.length; over++) {
        //添加点击事件
        this.overlays[over].addEventListener(
          "click",
          this.removeOverlay.bind(this.overlays[over])
        );
        //添加鼠标经过事件
        this.overlays[over].addEventListener(
          "mouseover",
          this.overOverlay.bind(this.overlays[over])
        );
        //添加鼠标离开事件
        this.overlays[over].addEventListener(
          "mouseout",
          this.outOverlay.bind(this.overlays[over])
        );
      }
    },

    //删除围栏

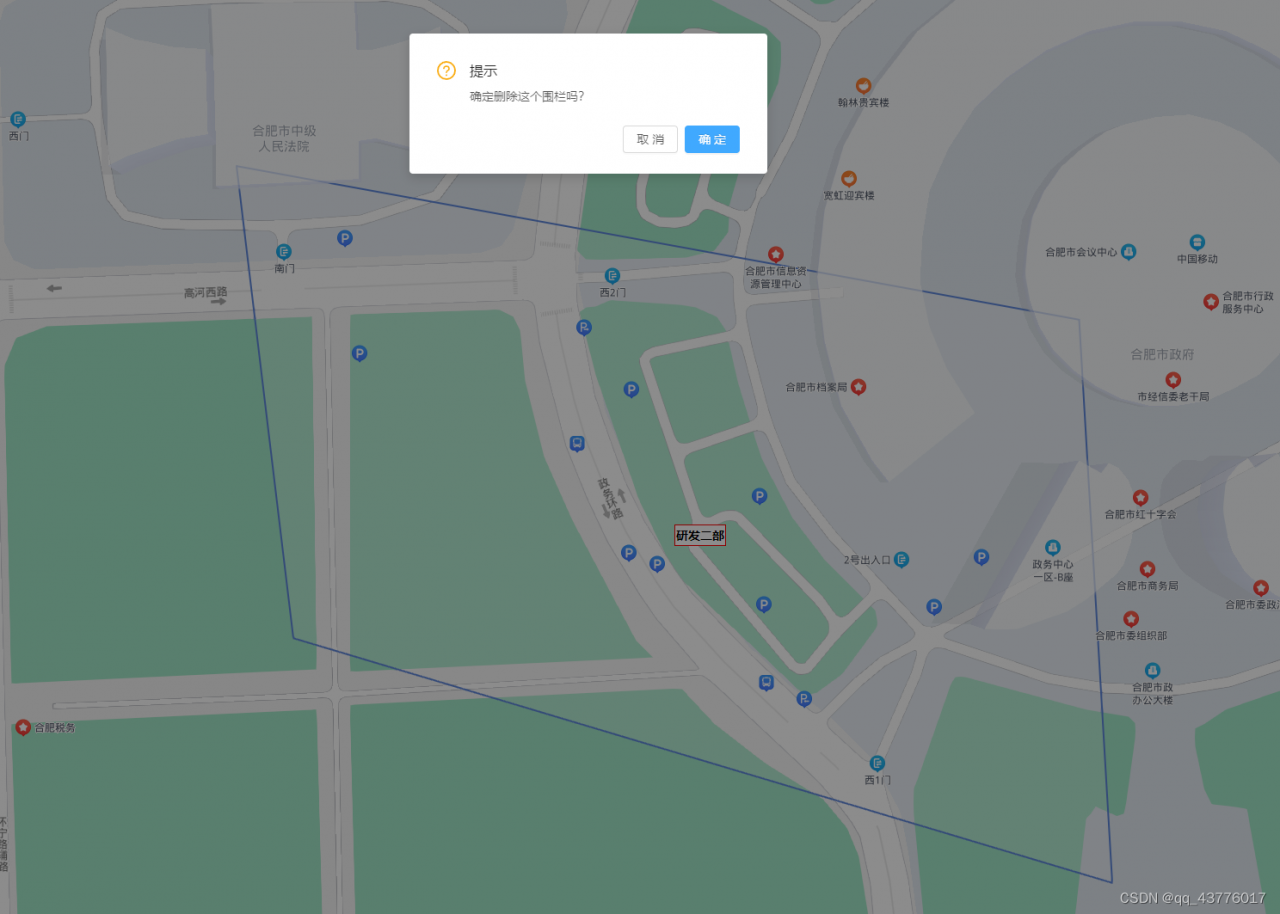

    removeOverlay(e) {
      var _this = this;
      this.$confirm({
        title: "提示",
        content: "确定删除这个围栏吗？",
        onOk() {
          _this.$api.delete(Sapi.del + "/" + e.target.unitid).then((res) => {
            if (res.success) {
              _this.map.removeOverlay(e.target);
              _this.map.clearOverlays()
              _this.$message.success(res.msg);
            } else {
              _this.$message.error(res.msg);
            }
          });
        },
        onCancel() {},
      });
    },

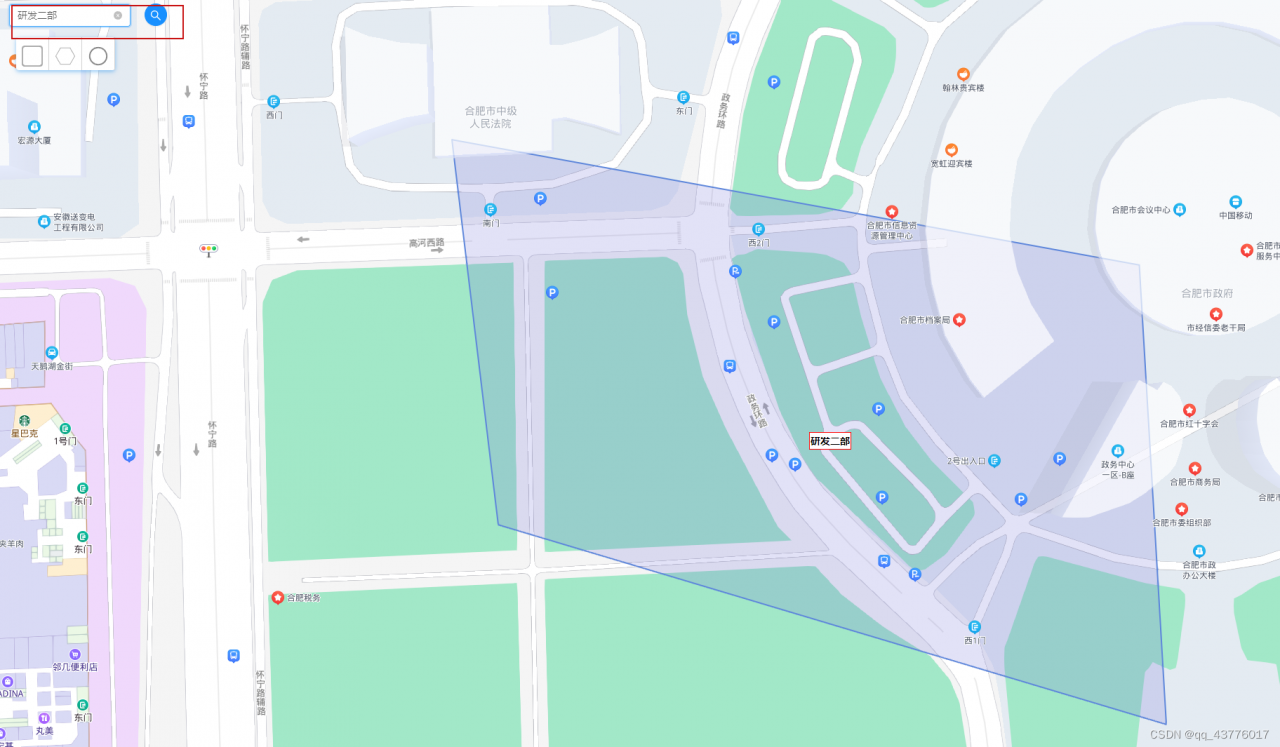

    drawSearchResult() {
      var _this = this;
      if (_this.localOverlays.length == 1) {
        var overlays = this.map.getOverlays();
        if (overlays.length > 0) {
          _this.map.clearOverlays();
        }
        //把围栏名称添加到覆盖物上
        var unitid = _this.localOverlays[0].unitid;
        var unitname = _this.localOverlays[0].unitname;
        const localOverlay = _this.localOverlays[0].area.split(";");
        var points = [];
        for (var i = 0; i < localOverlay.length; i++) {
          var point = new BMapGL.Point(
            Number(localOverlay[i].split(",")[0]),
            Number(localOverlay[i].split(",")[1])
          );
          points.push(point);
        }
        const styleOptions = {
          strokeColor: "#5E87DB", // 边线颜色
          fillColor: "#5E87DB", // 填充颜色。当参数为空时，圆形没有填充颜色
          strokeWeight: 2, // 边线宽度，以像素为单位
          strokeOpacity: 1, // 边线透明度，取值范围0-1
          fillOpacity: 0.2, // 填充透明度，取值范围0-1
        };
        var polygon = new BMapGL.Polygon(points, styleOptions);
        //  //给查询到的围栏做个标识，以便之后的删除
        polygon.unitid = unitid;
        polygon.unitname = unitname;
        _this.overlays.push(polygon);
        //给所有的覆盖物添加删除覆盖物的监听事件
        for (let over = 0; over < this.overlays.length; over++) {
          //添加点击事件
          this.overlays[over].addEventListener(
            "click",
            this.removeOverlay.bind(this.overlays[over])
          );
          //添加鼠标经过事件
          this.overlays[over].addEventListener(
            "mouseover",
            this.overOverlay.bind(this.overlays[over])
          );
          //添加鼠标离开事件
          this.overlays[over].addEventListener(
            "mouseout",
            this.outOverlay.bind(this.overlays[over])
          );
        }
        //添加围栏到地图上
        _this.map.addOverlay(polygon);
        //添加标签至覆盖物上
        _this.addLabel(polygon);
        var centerPoint = polygon.getBounds();
        centerPoint = centerPoint.getCenter();
        //地理值转换为像素值
        // var centerPixel = _this.map.PointToPixel(centerPoint)
        _this.map.panTo(centerPoint);
        // _this.map.panBy(centerPixel)
        _this.queryParams = {};
      } else if (_this.localOverlays.length == 0) {
        this.$message.warning("当前单位目前暂无围栏！");
        this.queryParams = {};
        return;
      }
    },
    //新增围栏
    addLocalOverlay(overlay) {
      var overlays = this.map.getOverlays();
      if (overlays.length > 0) {
        this.map.clearOverlays();
      }
      //添加围栏到地图上
      this.map.addOverlay(overlay);
      this.addLabel(overlay);
      this.refresh();
    },
    //取消围栏编辑
    cancelOverlay(record) {
      this.map.removeOverlay(record);
    },

    //刷新页面
    refresh() {
      const parameter = {
        pageNo: 1,
        pageSize: 25,
      };
      this.loadData(parameter);
    },

    //搜索围栏
    search() {
      this.refresh();
    },

    //给围栏添加标签
    addLabel(overlay) {
      var centerPoint = overlay.getBounds();
      centerPoint = centerPoint.getCenter();
      let label = new BMapGL.Label(overlay.unitname, { position: centerPoint });
      // label.setContent(overlay.unitname)
      label.setStyle({
        color: "black",
        fontSize: "14px",
        fontWeight: 700,
      });
      // label.setPosition(centerPoint)
      this.map.addOverlay(label);
    },

    //鼠标经过覆盖物
    overOverlay(e) {
      e.target.setFillColor("#6f6cd8");
    },
    //鼠标离开覆盖物
    outOverlay(e) {
      e.target.setFillColor("#fff");
    },

    //定点查询
    accuarySearch() {
      var _this = this;
      //建立一个自动完成的实例对象
      let autocomplete = new BMapGL.Autocomplete({
        location: this.map, //设定返回结果的所属范围。例如“北京市”
        // types:'city',  //设置值为"city"，将返回省市区县乡镇街道地址类型数据。
        input: "suggestCity", //文本输入框元素或其id
      });

      //处理函数
      function handleAutoComplete(e) {
        var str = "";
        var _value = e.fromitem.value;
        var value = "";
        if (e.fromitem.index > -1) {
          value =
            _value.province +
            _value.city +
            _value.district +
            _value.street +
            _value.business;
        }
        str =
          "FromItem<br />index = " +
          e.fromitem.index +
          "<br />value = " +
          value;

        value = "";
        if (e.toitem.index > -1) {
          _value = e.toitem.value;
          value =
            _value.province +
            _value.city +
            _value.district +
            _value.street +
            _value.business;
        }
        str +=
          "<br />ToItem<br />index = " +
          e.toitem.index +
          "<br />value = " +
          value;
        document.getElementById("searchResultPanel").innerHTML = str;
        document.getElementById("tangram-suggestion--TANGRAM__1").style.zIndex = 2000;

      }

      //鼠标放在下拉列表上的事件
      autocomplete.addEventListener("highlight", handleAutoComplete);

      //处理函数
      function handleOnConfirm(e) {
        var _value = e.item.value;
        _this.myValue =
          _value.province +
          _value.city +
          _value.district +
          _value.street +
          _value.business;
        document.getElementById("searchResultPanel").innerHTML =
          "onconfirm<br />index = " +
          e.item.index +
          "<br />myValue = " +
          _this.myValue;
        document.getElementById("tangram-suggestion--TANGRAM__1").style.zIndex = 2000;
        _this.setPlace();
      }

      //鼠标点击下拉列表后的事件
      autocomplete.addEventListener("confirm", handleOnConfirm);
    },

    //跳转到指定地点
    setPlace() {
      var _this = this;
      this.map.clearOverlays(); //清除地图上所有覆盖物

      //智能搜索
      function myFun() {
        //获取第一个智能搜索的结果
        var pp = local.getResults().getPoi(0).point;
        _this.map.centerAndZoom(pp, 18);
        //添加标注
        _this.map.addOverlay(new BMapGL.Marker(pp));
      }

      var local = new BMapGL.LocalSearch(_this.map, {
        onSearchComplete: myFun,
      });

      local.search(this.myValue);
      this.myValue = "";
    },
  },
};
</script>
<style >
/* 隐藏版权信息 */
.BMap_cpyCtrl {
  display: none;
}
/* 隐藏版权图标 */
.anchorBL img {
  display: none;
}
</style>
<style  scoped>
.mymap {
  width: 100%;
  height: 95vh;
  position: relative;
  z-index: 1;
}
.change-map-type {
  position: absolute;
  right: 50px;
  bottom: 10px;
  z-index: 2;
}
ul li {
  list-style: none;
  margin: 0;
  padding: 0;
}
.info {
  z-index: 999;
  width: auto;
  min-width: 22rem;
  padding: 0.75rem 1.25rem;
  margin-left: 1.25rem;
  position: fixed;
  top: 1rem;
  background-color: #fff;
  border-radius: 0.25rem;
  font-size: 14px;
  color: #666;
  box-shadow: 0 2px 6px 0 rgba(27, 142, 236, 0.5);
}
.drawing-panel {
  display: flex;
  z-index: 999;
  position: fixed;
  top: 108px;
  left: 250px;
  border-radius: 0.25rem;
  height: 47px;
  box-shadow: 0 2px 6px 0 rgba(27, 142, 236, 0.5);
  background-color: #fff;
  padding-inline-start: 0;
}
.drawing-panel li {
  width: 47px;
  height: 47px;
  /* float: left; */
  flex: 1;
  border-right: 1px solid #d2d2d2;
  text-align: center;
  line-height: 47px;
  cursor: pointer;
}
::v-deep .drawing-panel li:hover,
.drawing-panel li:active {
  background-color: rgb(98, 169, 214);
}

.tool-icon {
  font-size: 30px;
  color: #aaa;
  text-align: center;
  margin-top: 12px;
}
.tool-icon:hover {
  transform: translate(1.1);
  text-align: center;
  color: #fff;
}

.search {
  position: fixed;
  z-index: 2;
  top: 60px;
  left: 240px;
  width: 288px;
  height: 30px;
  line-height: 30px;
}

.minput {
  position: fixed;
  width: 400px;
  top: 60px;
  right: 20px;
  z-index: 99;
}
::v-deep.tangram-suggestion-main {
  z-index: 100 !important;
}

::v-deep table tbody {
  z-index: 100 !important;
}

/* .bmap-btn {
  border-right: 1px solid #d2d2d2;
  float: left;
  width: 64px;
  height: 100%;
  background-image: url(http://api.map.baidu.com/library/DrawingManager/1.4/src/bg_drawing_tool.png);
  cursor: pointer;
} */
/* .drawing-panel .bmap-marker {
  background-position: -65px 0;
}
.drawing-panel .bmap-polyline {
  background-position: -195px 0;
}
.drawing-panel .bmap-rectangle {
  background-position: -325px 0;
}
.drawing-panel .bmap-polygon {
  background-position: -260px 0;
}
.drawing-panel .bmap-circle {
  background-position: -130px 0;
} */
</style>

下面是新增围栏的模态框源码：这里我命名为 addOverlay.vue。

<template>
    <div style="width:100%">
         <drag-modal
            :title="modalTitle"
            width="400px"
            v-if="visible"
            :visible="visible"
            :confirmLoading="confirmLoading"
            @ok="handleSubmit"
            @cancel="handleCancel"
        >
             <template slot="modalBody">
                    <a-form :form="form" autocomplete="off">
                        <a-form-item
                             label="单位"
                            :labelCol="{span:4}"
                            :wrapperCol="{span:16}"
                            >
                                 <a-tree-select
                                    :allowClear="true"
                                    showSearch
                                    treeNodeFilterProp="title"
                                    :dropdown-style="{ maxHeight: '400px', overflow: 'auto' }"
                                    :treeData="deptTreeData"
                                    v-decorator="[
                                    'unitid',
                                    {
                                        rules: [{ required: true, message: '请选择所属单位' }],
                                        initialValue: formdata.unitid || ''
                                    }
                                    ]"
                                >
                                </a-tree-select>
                        </a-form-item>
                    </a-form>
             </template>
        </drag-modal>
    </div>
</template>
<script>
//获取单位树
import { userApi as api } from '@/api'
//围栏管理接口
import {sysAreaApi as Sapi} from '@/api'
export default {
    data(){
        return {
            visible:false,
            form:this.$form.createForm(this),
            modalTitle:'新增围栏编辑',
            formdata: {},
            treeExpandedKeys: [],
            deptTreeData: [],
            //当前编辑的围栏
            overlay:{},
            //当前围栏的点数组字符串
            points:'',
            confirmLoading:false
        }
    },
    created: function () {
    //获取单位树数据
    this.$api.get(api.deptTree).then((res) => {
      this.deptTreeData = res.data.map((item) => {
        item.selectable = false
        return item
      })
    })
  },
    methods:{
        openModal(overlay,points){
            this.visible = true
            this.overlay = overlay
            points.forEach(item =>{
                this.points = this.points + item.lng + ',' + item.lat + ';'
            })
            this.points = this.points.substring(0,this.points.length - 1)
            console.log("overlay:",overlay,this.points);
        },
        handleSubmit(){
            // this.$emit('addoverlay',obj)
            this.form.validateFields((err, values) => {
                if (err) {
                this.confirmLoading = false
                return
                }
                //-----------字符串去首尾空格--------
                for (let key in values) {
                    if (typeof values[key] == 'string') {
                    values[key] = values[key].trim()
                    }
                }

                 //-----------字段关联值处理----------
                let _this = this
                ;(function () {
                    for (let i = 0, pDept; (pDept = _this.deptTreeData[i++]); ) {
                    for (let j = 0, dept; (dept = pDept.children[j++]); ) {
                        if (dept.value == values.unitid) {
                        // values.paraentid = pDept.value
                        // values.paraentname = pDept.title
                        values.unitname = dept.title
                        return
                        }
                    }
                    }
                })()
                let params = {}
                params.id = 0
                params.inputtime = ""
                params.area = this.points
                params.unitid = values.unitid
                params.unitname = values.unitname

                //保存
                console.log("params:",params);

                this.$api.post(Sapi.save,params).then((res) =>{
                   if (res.success) {
                        this.visible = false
                        this.$message.success(res.msg)
                        this.overlay.unitid = params.unitid
                        this.overlay.unitname = params.unitname

                        this.$emit('addoverlay',this.overlay)
                        this.points = ''
                        this.overlay = {}
                    }
                    this.confirmLoading = false
                }).catch((err) => {
                    //保存请求出错，给出提示
                    this.confirmLoading = false
                    this.$message.warning(err)
               })
            })
        },
        handleCancel(){
            this.visible = false
            this.$emit('canceloverlay',this.overlay)

        }
    }
}
</script>
<style scoped>

</style>

代码中已经有了详细的注释，开发者们可以根据注释修改修改代码，就可以实现自己的百度地图引入以及围栏管理模块了。

功能展示：

地图展示：

新增围栏：（以多边形为例）
区域绘制

保存围栏

查询围栏：

修改围栏：通过新增围栏 数据库记录覆盖以达到修改目的。
删除围栏：

地点搜索：

跳至搜索地点：

编码不易，点个小红心呗。

参考链接：
百度地图开发者平台
百度地图 开发文档
百度地图绘制工具
