使用labelme批量注释的时候出现：module 'labelme.utils' has no attribute 'label_colormap'或者提示没有 'draw_label'

1 问题

在使用labelme进行批量标注的时候出现如下错误：

module 'labelme.utils' has no attribute 'label_colormap'

或者：

module 'labelme.utils' has no attribute  'draw_label'

2 产生的原因以及解决方法

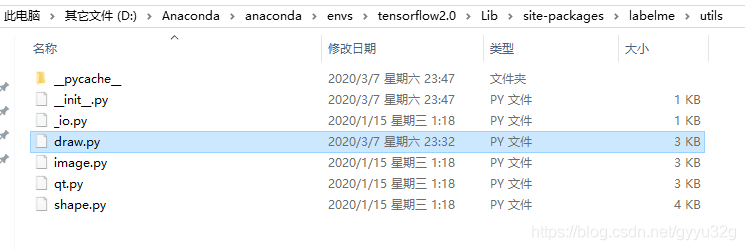

出现以上的两个问题中的一个或者两个，其都是因为安装的labelme缺少了一个draw.py文件，可以到你的anaconda路径下的 \envs\你的虚拟环境的名字\Lib\site-packages\labelme\utils 目录下查看是否缺失了draw.py文件：
如果缺失了这个文件，说明就是由于缺失这个文件导致缺失了这个模块。可以这样做：

① 可以在这个目录下创建draw.py文件，然后复制下面的代码进去。

import io

import numpy as np
import PIL.Image
import PIL.ImageDraw


def label_colormap(N=256):

    def bitget(byteval, idx):
        return ((byteval & (1 << idx)) != 0)

    cmap = np.zeros((N, 3))
    for i in range(0, N):
        id = i
        r, g, b = 0, 0, 0
        for j in range(0, 8):
            r = np.bitwise_or(r, (bitget(id, 0) << 7 - j))
            g = np.bitwise_or(g, (bitget(id, 1) << 7 - j))
            b = np.bitwise_or(b, (bitget(id, 2) << 7 - j))
            id = (id >> 3)
        cmap[i, 0] = r
        cmap[i, 1] = g
        cmap[i, 2] = b
    cmap = cmap.astype(np.float32) / 255
    return cmap


# similar function as skimage.color.label2rgb
def label2rgb(lbl, img=None, n_labels=None, alpha=0.5, thresh_suppress=0):
    if n_labels is None:
        n_labels = len(np.unique(lbl))

    cmap = label_colormap(n_labels)
    cmap = (cmap * 255).astype(np.uint8)

    lbl_viz = cmap[lbl]
    lbl_viz[lbl == -1] = (0, 0, 0)  # unlabeled

    if img is not None:
        img_gray = PIL.Image.fromarray(img).convert('LA')
        img_gray = np.asarray(img_gray.convert('RGB'))
        # img_gray = cv2.cvtColor(img, cv2.COLOR_RGB2GRAY)
        # img_gray = cv2.cvtColor(img_gray, cv2.COLOR_GRAY2RGB)
        lbl_viz = alpha * lbl_viz + (1 - alpha) * img_gray
        lbl_viz = lbl_viz.astype(np.uint8)

    return lbl_viz


def draw_label(label, img=None, label_names=None, colormap=None):
    import matplotlib.pyplot as plt
    backend_org = plt.rcParams['backend']
    plt.switch_backend('agg')

    plt.subplots_adjust(left=0, right=1, top=1, bottom=0,
                        wspace=0, hspace=0)
    plt.margins(0, 0)
    plt.gca().xaxis.set_major_locator(plt.NullLocator())
    plt.gca().yaxis.set_major_locator(plt.NullLocator())

    if label_names is None:
        label_names = [str(l) for l in range(label.max() + 1)]

    if colormap is None:
        colormap = label_colormap(len(label_names))

    label_viz = label2rgb(label, img, n_labels=len(label_names))
    plt.imshow(label_viz)
    plt.axis('off')

    plt_handlers = []
    plt_titles = []
    for label_value, label_name in enumerate(label_names):
        if label_value not in label:
            continue
        if label_name.startswith('_'):
            continue
        fc = colormap[label_value]
        p = plt.Rectangle((0, 0), 1, 1, fc=fc)
        plt_handlers.append(p)
        plt_titles.append('{value}: {name}'
                          .format(value=label_value, name=label_name))
    plt.legend(plt_handlers, plt_titles, loc='lower right', framealpha=.5)

    f = io.BytesIO()
    plt.savefig(f, bbox_inches='tight', pad_inches=0)
    plt.cla()
    plt.close()

    plt.switch_backend(backend_org)

    out_size = (label_viz.shape[1], label_viz.shape[0])
    out = PIL.Image.open(f).resize(out_size, PIL.Image.BILINEAR).convert('RGB')
    out = np.asarray(out)
    return out

② 因为复制进去以后还需要导入模块才行，所以打开同目录的__init__.py文件，在文件后面将模块添加进去：

from .draw import label_colormap
from .draw import label2rgb
from .draw import draw_label

③ 保存，OK。
