java 处理树形结构树形转为list list转为树形

java 处理树形结构树形转为list list转为树形

?树形转为list
?每个节点对祖级列表的编号List赋值
?list转为树形
- 方式1
- 方式2（使用stream，如果id是唯一的话，比递归效率快）
从数据查询树
- 1.添加数据的时候加入祖父列表字段，方便匹配（推荐）
- 2.Mysql进行树形查询

实体类结构：

@Data
@NoArgsConstructor
@AllArgsConstructor
class Node {
    // id
    private Integer id;
    // 父id
    private Integer pId;
    // 名称
    private String name;
    // 祖级id列表
    private List<Integer> ancestors;
    // 子节点
    private List<Node> children;

    public Node(int id, int pId, String name) {
        this.id = id;
        this.pId = pId;
        this.name = name;
    }

    @Override
    public String toString() {
        return "Node{" +
                "id=" + id +
                ", pId=" + pId +
                ", name='" + name + '\'' +
                ", ancestors=" + ancestors +
                ", children=" + children +
                '}';
    }
}

?树形转为list

	@Test
    public void test01() {
        // 填充数据
        Node level4 = new Node(4, 3, "level4-01");
        Node level3 = new Node(3, 2, "level3-01");
        Node level2 = new Node(2, 1, "level2-01");
        Node level22 = new Node(22, 1, "level2-02");
        Node level1 = new Node(1, 0, "level1-01");
        List<Node> level3children = new ArrayList<>();
        level3children.add(level4);
        level3.setChildren(level3children);
        List<Node> level2children = new ArrayList<>();
        level2children.add(level3);
        level2.setChildren(level2children);
        List<Node> children = new ArrayList<>();
        children.add(level2);
        children.add(level22);
        level1.setChildren(children);
        System.out.println(level1.toString());
        System.out.println("===============before===============");
        // 树形转为list
        List<Node> result = new ArrayList<>();
        this.recursionTreeToList(result, level1, null);
        for (Node node : result) {
            node.setChildren(null);
            System.out.println(node.toString());
        }
        System.out.println("===============after===============");
    }
    /**

     * 递归把传过来的tree转为list
     *
     * @param result     结果集
     * @param root       当前对象
     * @param parentNode 没有传Null
     */
    public void recursionTreeToList(List<Node> result, Node root, Node parentNode) {
        // 如果没有pid那么就赋值
       /* if (parentNode != null) {
            root.setPid(parentNode.getEid());
        }*/
        result.add(root);
        if (CollectionUtils.isEmpty(root.getChildren())) {
            return;
        }
        for (Node child : root.getChildren()) {
            this.recursionTreeToList(result, child, root);
        }
    }

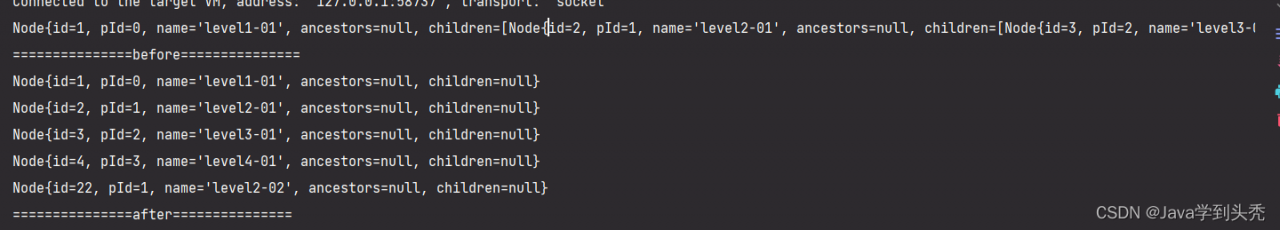

结果如下：
在这里插入图片描述

?每个节点对祖级列表的编号List赋值

	@Test
    public void test01() {
        // 填充数据
        Node level4 = new Node(4, 3, "level4-01");
        Node level3 = new Node(3, 2, "level3-01");
        Node level2 = new Node(2, 1, "level2-01");
        Node level22 = new Node(22, 1, "level2-02");
        Node level1 = new Node(1, 0, "level1-01");
        List<Node> level3children = new ArrayList<>();
        level3children.add(level4);
        level3.setChildren(level3children);
        List<Node> level2children = new ArrayList<>();
        level2children.add(level3);
        level2.setChildren(level2children);
        List<Node> children = new ArrayList<>();
        children.add(level2);
        children.add(level22);
        level1.setChildren(children);
        System.out.println(level1.toString());
        System.out.println("===============before===============");
        // 树形转为list
        List<Node> result = new ArrayList<>();
        this.recursionTreeToList(result, level1, null);
        for (Node node : result) {
            node.setChildren(null);
            System.out.println(node.toString());
        }
        System.out.println("===============after===============");
        // 处理祖父列表
        this.handleAncestors(result);
        for (Node node : result) {
            System.out.println(node.toString());
        }
        System.out.println("===============handle ancestors after===============");
    }

    /**
     * 递归把传过来的tree转为list
     *
     * @param result     结果集
     * @param root       当前对象
     * @param parentNode 没有传Null
     */
    public void recursionTreeToList(List<Node> result, Node root, Node parentNode) {
        // 如果没有pid那么就赋值
       /* if (parentNode != null) {
            root.setPid(parentNode.getEid());
        }*/
        result.add(root);
        if (CollectionUtils.isEmpty(root.getChildren())) {
            return;
        }
        for (Node child : root.getChildren()) {
            this.recursionTreeToList(result, child, root);
        }
    }


    List<Integer> ancestors = new ArrayList<>();

    /**
     * 给list赋值祖父节点
     * @param list
     */
    public void handleAncestors(List<Node> list) {
        for (Node node : list) {
            ancestors = new ArrayList<>();
            List<Integer> ancestorsList = this.recursionAncestors(list, node);
            ancestorsList.add(node.getId());
            node.setAncestors(ancestorsList);
        }
    }

    /**
     * 根据当前节点查询他的祖父列表
     * @param list 数据List
     * @param n 当前节点
     * @return 所有父节点
     */
    public List<Integer> recursionAncestors(List<Node> list, Node n) {
        if (n.getId() == null) {
            return ancestors;
        }
        for (Node node : list) {
            if (n.getPId() == node.getId()) {
                this.recursionAncestors(list, node);
                ancestors.add(node.getId());
            }
        }
        return ancestors;
    }

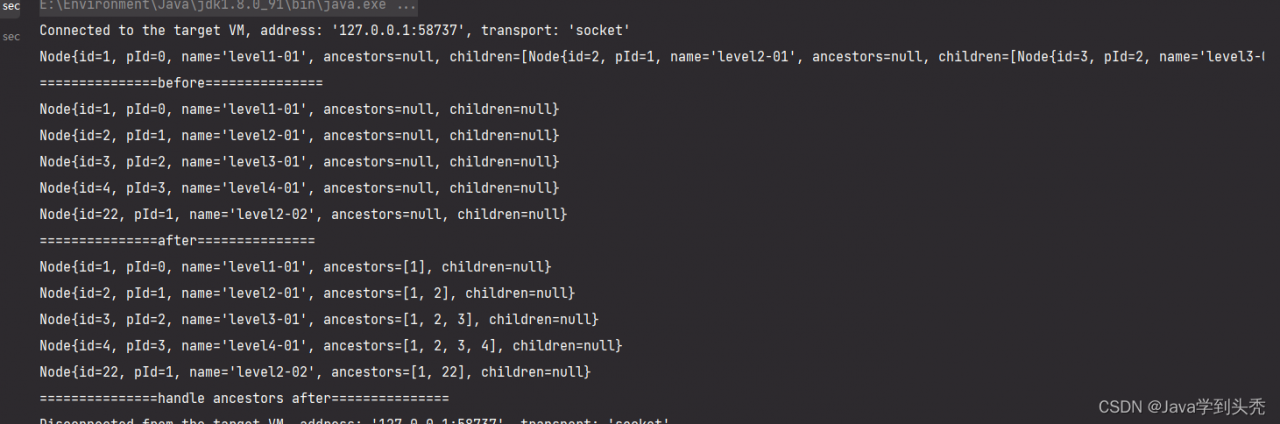

结果如下：
在这里插入图片描述

?list转为树形

方式1

 	@Test
    public void test01() {
        // 填充数据
        Node level4 = new Node(4, 3, "level4-01");
        Node level3 = new Node(3, 2, "level3-01");
        Node level2 = new Node(2, 1, "level2-01");
        Node level22 = new Node(22, 1, "level2-02");
        Node level1 = new Node(1, 0, "level1-01");
        List<Node> level3children = new ArrayList<>();
        level3children.add(level4);
        level3.setChildren(level3children);
        List<Node> level2children = new ArrayList<>();
        level2children.add(level3);
        level2.setChildren(level2children);
        List<Node> children = new ArrayList<>();
        children.add(level2);
        children.add(level22);
        level1.setChildren(children);
        System.out.println(level1.toString());
        System.out.println("=============== before Tree To List ===============");
        List<Node> result = new ArrayList<>();
        // 树形转为list
        this.recursionTreeToList(result, level1, null);
        for (Node node : result) {
            node.setChildren(null);
            System.out.println(node.toString());
        }
        System.out.println("=============== after Tree To List ===============");
        // 处理祖父列表
        this.handleAncestors(result);
        for (Node node : result) {
            System.out.println(node.toString());
        }
        System.out.println("===============handle ancestors after===============");
        List<Node> nodes = this.recursionListToTree(result, 0);
        for (Node node : nodes) {
            System.out.println(node.toString());
        }
        System.out.println("=============== after List To Tree ===============");
    }

    /**
     * 递归把传过来的tree转为list
     *
     * @param result     结果集
     * @param root       当前对象
     * @param parentNode 没有传Null
     */
    public void recursionTreeToList(List<Node> result, Node root, Node parentNode) {
        // 如果没有pid那么就赋值
       /* if (parentNode != null) {
            root.setPid(parentNode.getEid());
        }*/
        result.add(root);
        if (CollectionUtils.isEmpty(root.getChildren())) {
            return;
        }
        for (Node child : root.getChildren()) {
            this.recursionTreeToList(result, child, root);
        }
    }

    /**
     * 递归方法把传过来的list转为tree
     *
     * @param tree     父节点对象
     * @param treeList 所有的List
     * @return
     */
    public List<Node> recursionListToTree(List<Node> list, int pId) {
        List<Node> nodes = new ArrayList<>();
        for (Node node : list) {
            // 找出父节点
            if (pId == node.getPId()) {
                // 调用递归方法填充子节点列表
                nodes.add(this.findChildren(node, list));
            }
        }
        return nodes;
    }

    /**
     * 递归方法
     *
     * @param tree     父节点对象
     * @param treeList 所有的List
     * @return
     */
    public Node findChildren(Node tree, List<Node> treeList) {
        for (Node node : treeList) {
            if (tree.getId().equals(node.getPId())) {
                if (CollectionUtils.isEmpty(tree.getChildren())) {
                    tree.setChildren(new ArrayList<>());
                }
                // 递归 调用自身
                tree.getChildren().add(this.findChildren(node, treeList));
            }
        }
        return tree;
    }

    List<Integer> ancestors = new ArrayList<>();

    /**
     * 给list赋值祖父节点
     *
     * @param list
     */
    public void handleAncestors(List<Node> list) {
        for (Node node : list) {
            ancestors = new ArrayList<>();
            List<Integer> ancestorsList = this.recursionAncestors(list, node);
            ancestorsList.add(node.getId());
            node.setAncestors(ancestorsList);
        }
    }

    /**
     * 根据当前节点查询他的祖父列表
     *
     * @param list 数据List
     * @param n    当前节点
     * @return 所有父节点
     */
    public List<Integer> recursionAncestors(List<Node> list, Node n) {
        if (n.getId() == null) {
            return ancestors;
        }
        for (Node node : list) {
            if (n.getPId() == node.getId()) {
                this.recursionAncestors(list, node);
                ancestors.add(node.getId());
            }
        }
        return ancestors;
    }

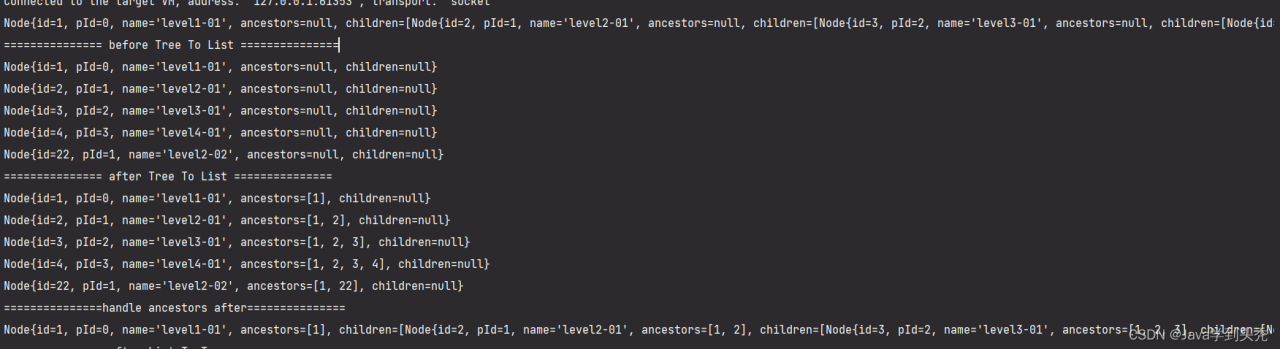

结果如图：
在这里插入图片描述

方式2（使用stream，如果id是唯一的话，比递归效率快）

    /**
     * stream把传过来的list转为tree
     *
     * @param tree     父节点对象
     * @param treeList 所有的List
     * @return
     */
    public List<Node> handleListToTree(List<Node> list, int pId) {
         List<Node> nodes = new ArrayList<>();
		 Map<String, List<Node>> nodeMap = list.stream().collect(Collectors.groupingBy(Node::getPId));
		 list.forEach(n -> { n.setChildren(nodeMap.get(n.getPId())); });
		 nodes = list.stream().filter(n -> n.getPId().equals(pId)).collect(Collectors.toList());
		 return nodes;
    }

从数据查询树

1.添加数据的时候加入祖父列表字段，方便匹配（推荐）

select * from tb1 where FIND_IN_SET('id',祖父列表字段) > 0

2.Mysql进行树形查询

SELECT DISTINCT tb1.id,  pid
FROM tb1, ( SELECT @pid := 'id' ) pd
WHERE
	FIND_IN_SET( pid, @pid ) > 0
	AND @pid := concat( @pid, ',', id )
UNION SELECT id, pid  FROM tb1  WHERE id = 'id ';
