使用IDEA2017.3.4搭建SSM项目框架

https://www.cnblogs.com/hackyo/p/6646051.html

主要参考此文章。。



自己配置好Maven，JDK,以及IDEA。

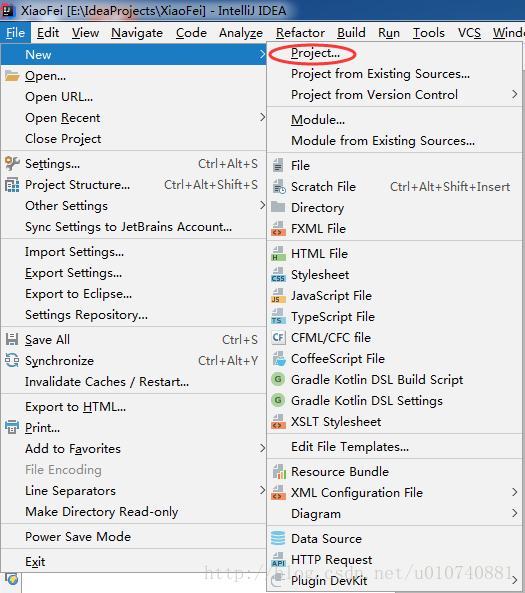

首先新建一个项目，

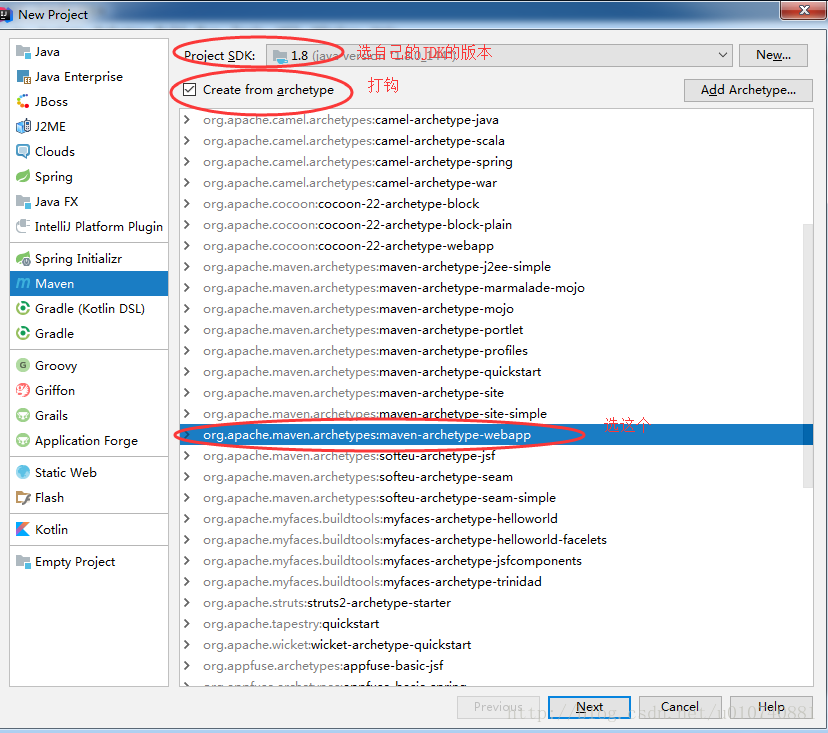

按照文字来就好，自己选自己的JDK安装路劲，打钩，选中webapp 点击next。

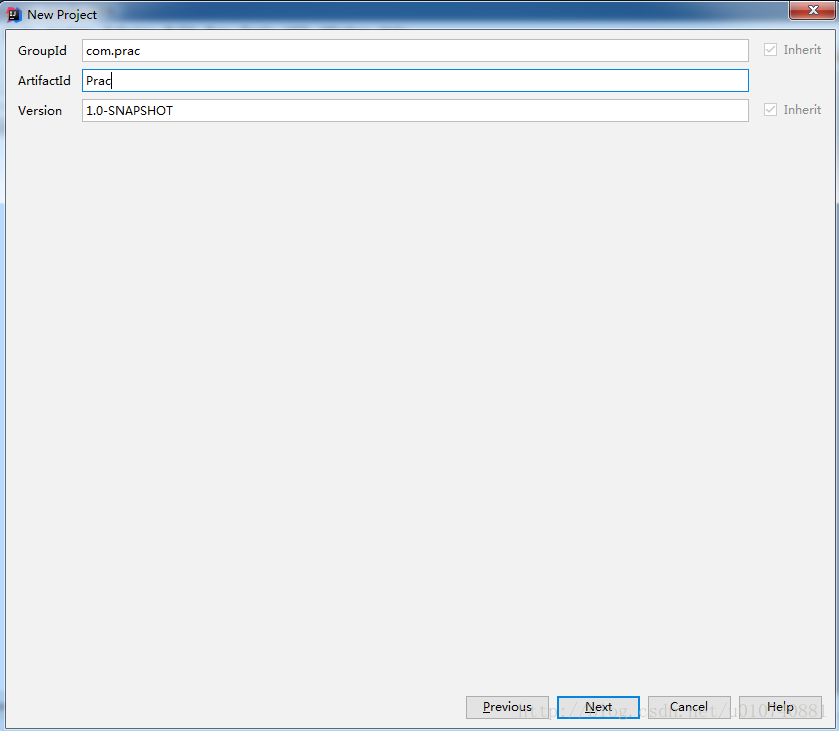

继续Next。

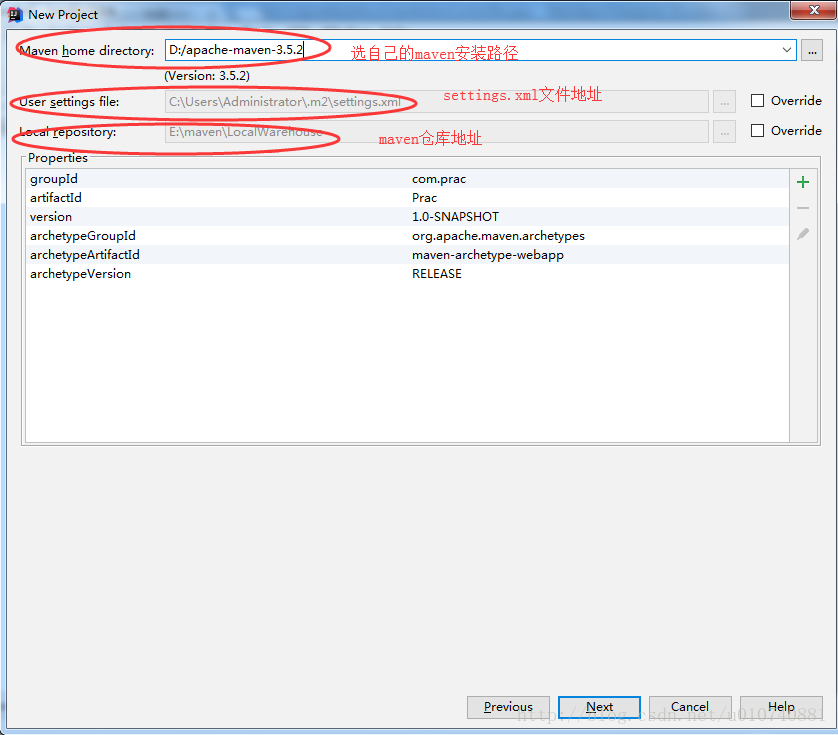

可以选择自己的路径，也可以用默认的路径。继续next。

这个不用改，点finish就好了。

第一次会比较慢，建议你上个厕所，喝个茶，不然等会你复制完pom.xml配置，他又要change。

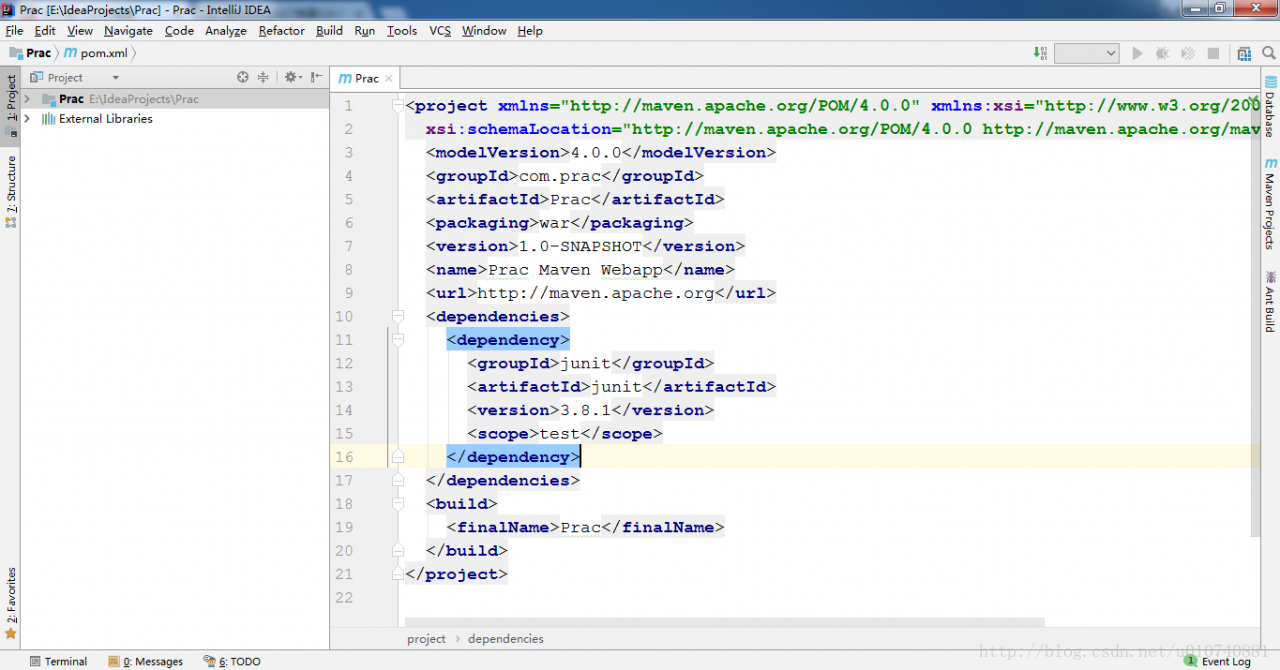

完成之后大概就这样了。

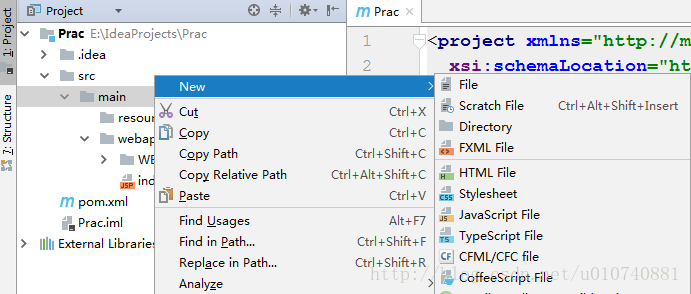

右键选new,Dircetory 输入java，就这样一个个建目录。

目录搞好之后这个样子。

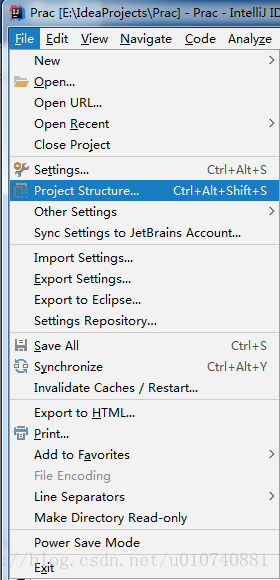

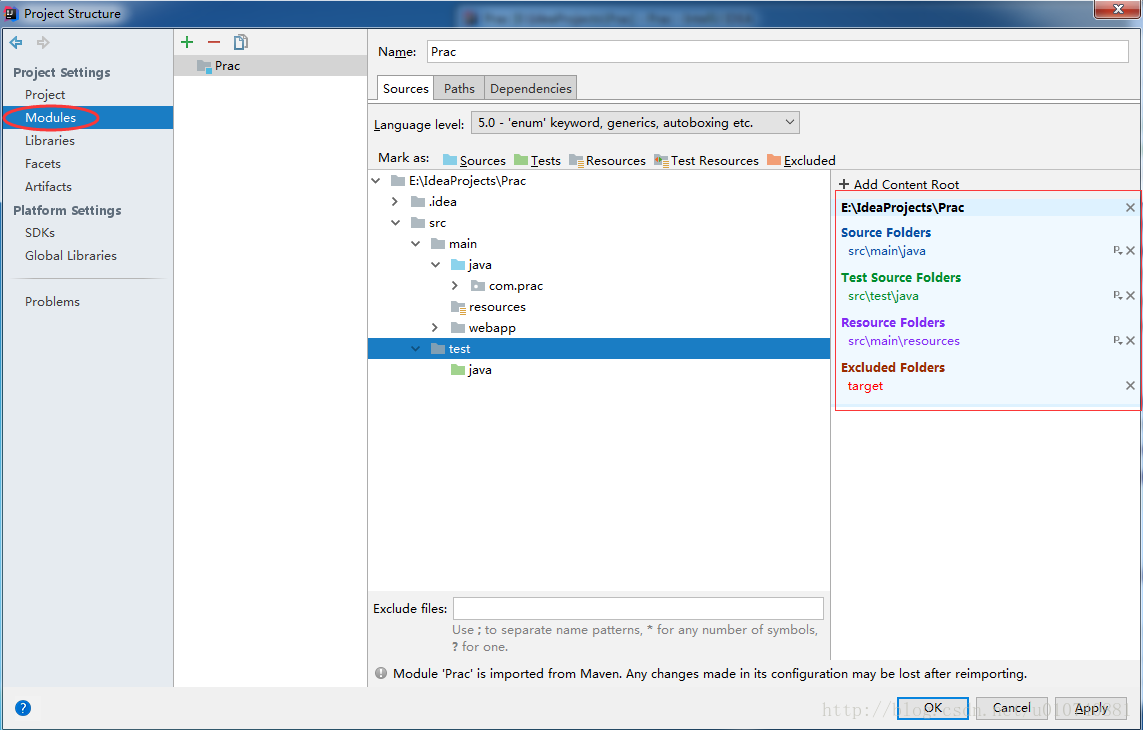

然后选这个。

这样搞完点击OK。

接下来修改pom.xml文件，这个时候IDEA会自己下载jar包。

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.prac</groupId>
  <artifactId>Prac</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>
  <name>Prac Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <properties>
    <!-- 设置项目编码编码 -->
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <!-- spring版本号 -->
    <spring.version>4.3.5.RELEASE</spring.version>
    <!-- mybatis版本号 -->
    <mybatis.version>3.4.1</mybatis.version>
  </properties>

  <dependencies>

    <!-- 单元测试 -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
    </dependency>

    <!-- 实现slf4j接口并整合 -->
    <dependency>
      <groupId>ch.qos.logback</groupId>
      <artifactId>logback-classic</artifactId>
      <version>1.2.2</version>
    </dependency>

    <!-- JSON -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.8.7</version>
    </dependency>


    <!-- 数据库 -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.41</version>
      <scope>runtime</scope>
    </dependency>

    <!-- 数据库连接池 -->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.2</version>
    </dependency>

    <!-- MyBatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>

    <!-- mybatis/spring整合包 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.1</version>
    </dependency>

    <!-- Spring -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>

  </dependencies>

  <build>
    <finalName>Prac</finalName>
  </build>

</project>

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
#数据库地址
jdbc.url=jdbc:mysql://127.0.0.1:3306/数据库名称?useUnicode=true&characterEncoding=utf8
#用户名
jdbc.username=xxxx
#密码
jdbc.password=xxxxx
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2

spring-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 扫描service包下所有使用注解的类型 -->
    <context:component-scan base-package="com.prac.service"/>

    <!-- 配置数据库相关参数properties的属性：${url} -->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 数据库连接池 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="${c3p0.maxPoolSize}"/>
        <property name="minPoolSize" value="${c3p0.minPoolSize}"/>
        <property name="autoCommitOnClose" value="${c3p0.autoCommitOnClose}"/>
        <property name="checkoutTimeout" value="${c3p0.checkoutTimeout}"/>
        <property name="acquireRetryAttempts" value="${c3p0.acquireRetryAttempts}"/>
    </bean>

    <!-- 配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 扫描model包 使用别名 -->
        <property name="typeAliasesPackage" value="com.prac.pojo"/>
        <!-- 扫描sql配置文件:mapper需要的xml文件 -->
        <property name="mapperLocations" value="classpath:com.prac.dao.mapper/*.xml"/>
    </bean>

    <!-- 配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.prac.dao"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 配置基于注解的声明式事务 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>

</beans>

spring-mvc.xml



<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

    <!-- 扫描web相关的bean -->
    <context:component-scan base-package="com.prac.controller"/>

    <!-- 开启SpringMVC注解模式 -->
    <mvc:annotation-driven/>

    <!-- 静态资源默认servlet配置 -->
    <mvc:default-servlet-handler/>

    <!-- 配置jsp 显示ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

</beans>

web.xml



<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

    <display-name>ChatRobot</display-name>
    <description>ChatRobot_Alpha_0.0.1</description>

    <!-- 编码过滤器 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 配置DispatcherServlet -->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- 配置springMVC需要加载的配置文件-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-*.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
        <async-supported>true</async-supported>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <!-- 匹配所有请求，此处也可以配置成 *.do 形式 -->
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <welcome-file-list>
        <welcome-file>index.html</welcome-file>
    </welcome-file-list>

</web-app>

这个时候就配置完成了。



sql文件



CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '用户ID',
  `password` varchar(255) NOT NULL COMMENT '用户密码',
  `username` varchar(255) NOT NULL COMMENT '用户昵称',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;
INSERT INTO `user` VALUES ('1', '123', 'test');
SET FOREIGN_KEY_CHECKS=1;



接下来就是配置类了

controller



package com.prac.controller;

import javax.servlet.http.HttpServletRequest;

import com.prac.pojo.User;
import com.prac.service.IUserService;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Controller
@RequestMapping("/user")
public class UserController {

    @Autowired
    private IUserService userService;

    @RequestMapping("/showUser.do")
    public void selectUser(HttpServletRequest request, HttpServletResponse response) throws IOException {
        request.setCharacterEncoding("UTF-8");
        response.setCharacterEncoding("UTF-8");
        long userId = Long.parseLong(request.getParameter("id"));
        User user = this.userService.selectUser(userId);
        ObjectMapper mapper = new ObjectMapper();
        response.getWriter().write(mapper.writeValueAsString(user));
        response.getWriter().close();
    }

}

IUserDAO



package com.prac.dao;

import com.prac.pojo.User;

public interface IUserDao {

    User selectUser(long id);

}



User



package com.prac.pojo;



public class User {

    private long id;
    private String password;
    private String username;

    public long getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }
}



IUserService



package com.prac.service;

import com.prac.pojo.User;

public interface IUserService {

    public User selectUser(long userId);

}
package com.prac.service.impl;

import com.prac.dao.IUserDao;
import com.prac.pojo.User;
import com.prac.service.IUserService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service("userService")
public class UserServiceImpl implements IUserService {

    @Resource
    private IUserDao userDao;

    public User selectUser(long userId) {
        return this.userDao.selectUser(userId);
    }

}



UserServiceImpl



package com.prac.service.impl;

import com.prac.dao.IUserDao;
import com.prac.pojo.User;
import com.prac.service.IUserService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service("userService")
public class UserServiceImpl implements IUserService {

    @Resource
    private IUserDao userDao;

    public User selectUser(long userId) {
        return this.userDao.selectUser(userId);
    }

}



UserDao.xml(这个文件放在Dao下面的mapper文件夹中,mapper文件夹自己新建)



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!-- 设置为IUserDao接口方法提供sql语句配置 -->
<mapper namespace="com.prac.dao.IUserDao">

    <select id="selectUser" resultType="User" parameterType="long">
        SELECT * FROM user WHERE id = #{id}
    </select>

</mapper>



然后是index.html



<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>test</title>
</head>
<script>
    function selectUser() {
        var xmlhttp = new XMLHttpRequest();
        xmlhttp.onreadystatechange = function () {
            if (xmlhttp.readyState == 4 && xmlhttp.status == 200) {
                document.getElementById("test").innerHTML = xmlhttp.responseText;
            }
        }
        xmlhttp.open("POST", "user/showUser.do", true);
        xmlhttp.setRequestHeader("Content-type", "application/x-www-form-urlencoded");
        xmlhttp.send("id=1");
    }
</script>
<body>
<p id="test">Hello World!</p>
<button type="button" onclick="selectUser()">onclick test</button>
</body>
</html>



完成好之后需要开始配置tomcat了。

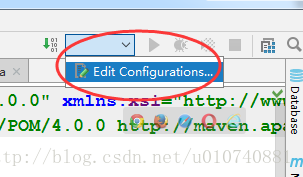

IDEA右上角下拉框中选Edit Configurations

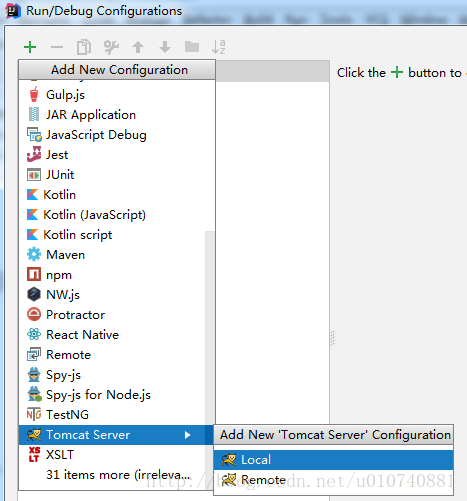

点左上角“+”号，选择local。

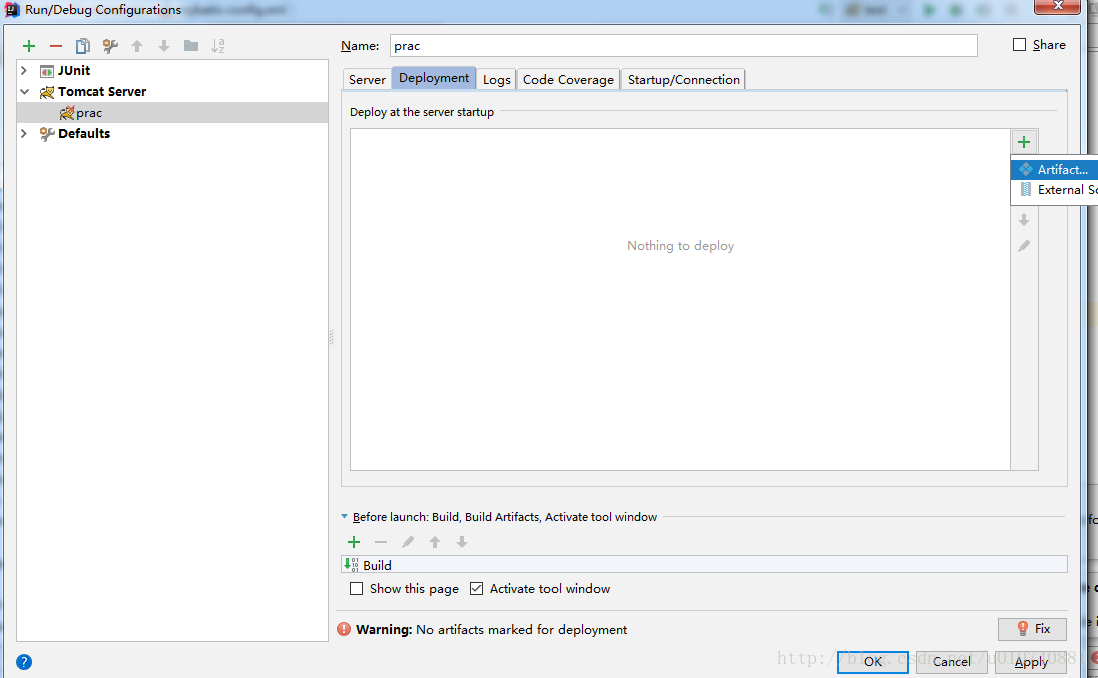

选Deployment，右边“+”号选Artifact...。

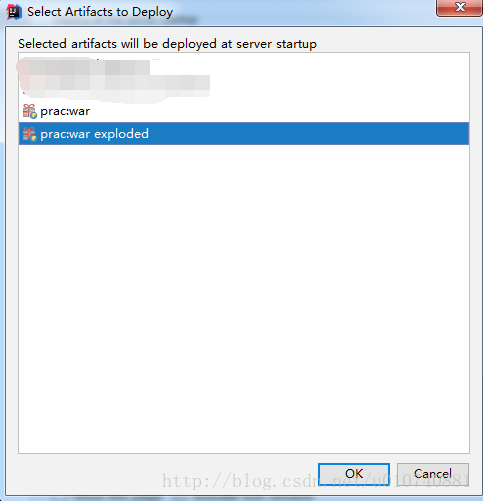

选有exploded的。。

然后在右边部署你的项目名。最后点OK。

这个时候就有一个小猫出来啦。。

最后自己运行项目吧。。

版权声明：本文为u010740881原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接和本声明。
