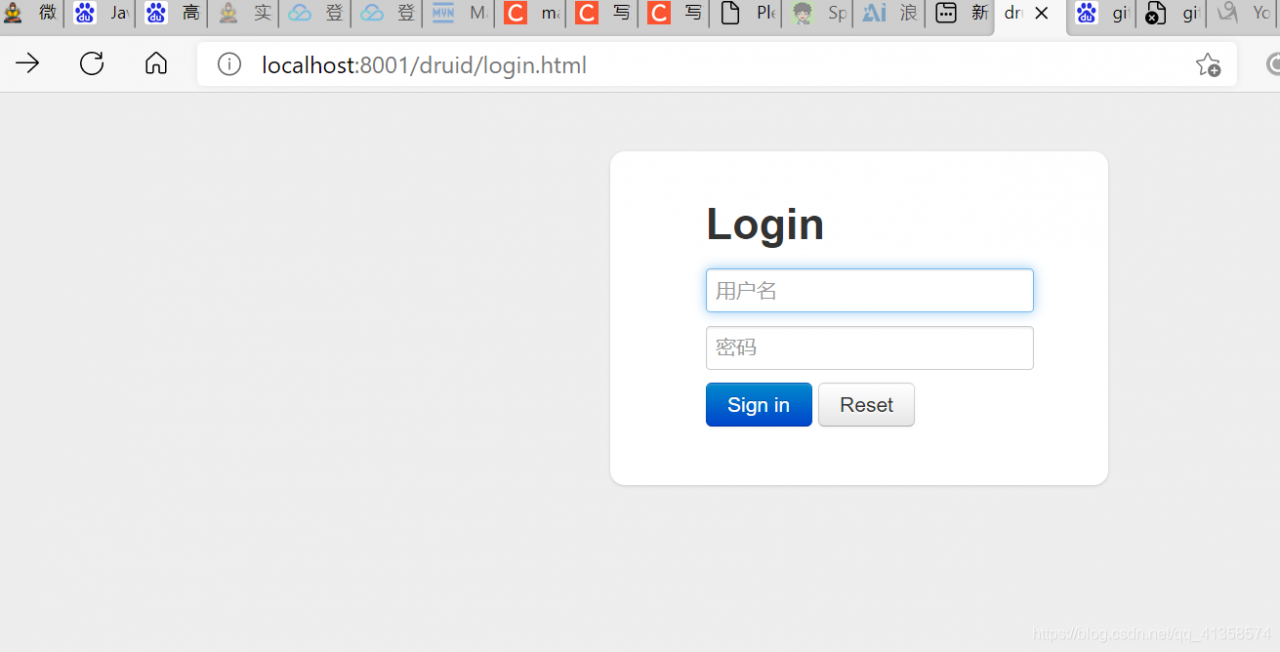

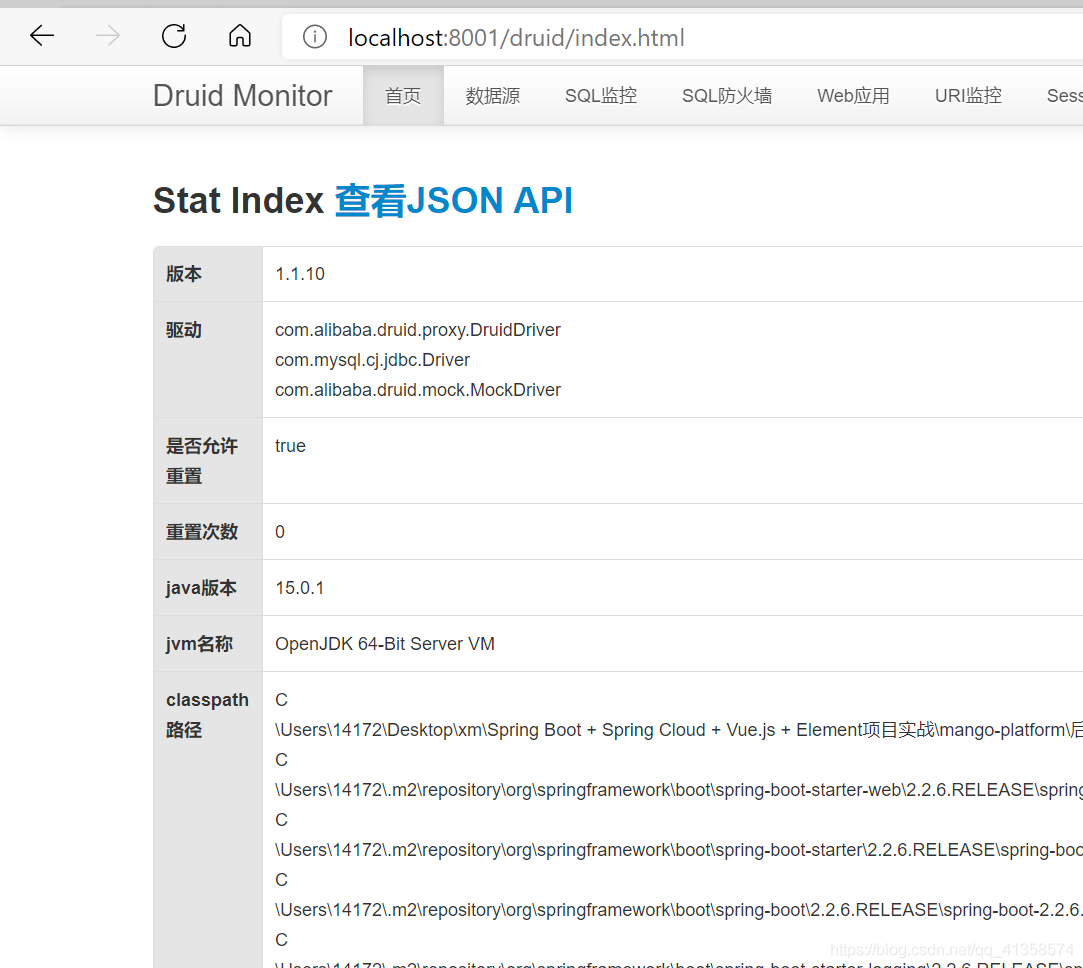

【笔记】整合Druid数据源 Druid监控以及属性绑定配置在浏览器输入端口进入监控页面查看

整合Druid数据源
步骤：

1.导入依赖

<dependency>
		   <groupId>com.alibaba</groupId>
		   <artifactId>druid-spring-boot-starter</artifactId>
		   <version>1.1.10</version>
		</dependency>

1.yml配置

server:
  port: 8001
spring:
  datasource:
    name: druidDataSource
    type: com.alibaba.druid.pool.DruidDataSource
    druid:
      driver-class-name: com.mysql.cj.jdbc.Driver
      url: jdbc:mysql://localhost:3308/new?useUnicode=true&zeroDateTimeBehavior=convertToNull&autoReconnect=true&characterEncoding=utf-8
      username: he
      password: 123456
      filters: stat,wall,log4j,config
      max-active: 100
      initial-size: 1
      max-wait: 60000
      min-idle: 1
      time-between-eviction-runs-millis: 60000
      min-evictable-idle-time-millis: 300000
      validation-query: select 'x'
      test-while-idle: true
      test-on-borrow: false
      test-on-return: false
      pool-prepared-statements: true
      max-open-prepared-statements: 50
      max-pool-prepared-statement-per-connection-size: 20

注意： type: com.alibaba.druid.pool.DruidDataSource
username、password属性和DatasourceProperties中的属性进行绑定了，但是initialSize、minIdle等属性没法与DatasourceProperties中的属性绑定，它需要和DruidDataSource进行绑定。

自定义一个Druid数据源来进行绑定：

@Configuration
public class Config {
// 把配置文件中spring.datasource.initialSize等属性和DruidDataSource中属
性进行绑定
@ConfigurationProperties(prefix = "spring.datasource")
@Bean
public DruidDataSource druidDataSource () {
return new DruidDataSource();
}
}

配置Druid监控、过滤器

@Configuration
public class DruidConfig {
/**
* spring.datasource中的配置和DruidDataSource中的属性绑定
* @return
*/
@ConfigurationProperties(prefix = "spring.datasource")
@Bean
public DruidDataSource druidDataSource () {
return new DruidDataSource();
}
/**
* 配置Druid的监控
* 1、配置一个管理后台的Servlet，拦截登陆
* @return
*/
@Bean
public ServletRegistrationBean statViewServlet(){
ServletRegistrationBean servletRegistrationBean = new
ServletRegistrationBean(new StatViewServlet(),"/druid/*");
Map<String,String> initParams = new HashMap<>();
initParams.put("loginUsername","admin");
initParams.put("loginPassword","123456");
initParams.put("allow",""); // 允许所有访问
servletRegistrationBean.setInitParameters(initParams);
return servletRegistrationBean;
}

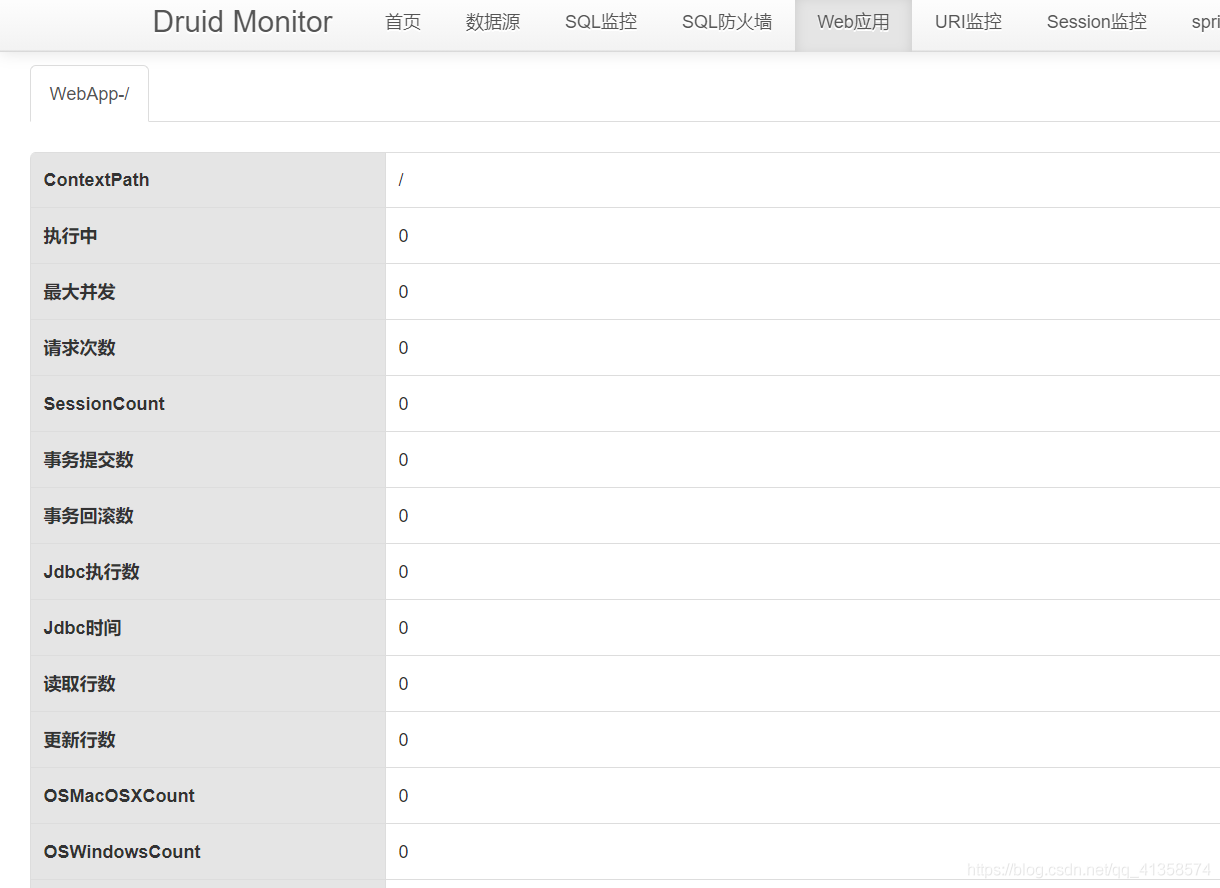

// 配置一个web监控的filter，哪些请求会被监控，哪些排除。
@Bean
public FilterRegistrationBean webStatFilter() {
FilterRegistrationBean bean = new FilterRegistrationBean(new
WebStatFilter());
Map<String,String> initParams = new HashMap<>();
initParams.put("exclusions","*.js,*.css,/druid/*");
bean.setInitParameters(initParams);
bean.setUrlPatterns(Arrays.asList("/*"));
return bean;
}
}

DruidDataSourceProperties :

import org.springframework.boot.context.properties.ConfigurationProperties;


@ConfigurationProperties(prefix = "spring.datasource.druid")
public class DruidDataSourceProperties {

	// jdbc
	private String driverClassName;
	private String url;
	private String username;
	private String password;
	// jdbc connection pool
	private int initialSize;
	private int minIdle;
	private int maxActive = 100;
	private long maxWait;
	private long timeBetweenEvictionRunsMillis;
	private long minEvictableIdleTimeMillis;
	private String validationQuery;
	private boolean testWhileIdle;
	private boolean testOnBorrow;
	private boolean testOnReturn;
	private boolean poolPreparedStatements;
	private int maxPoolPreparedStatementPerConnectionSize;
	// filter
	private String filters;

	public int getInitialSize() {
		return initialSize;
	}

	public void setInitialSize(int initialSize) {
		this.initialSize = initialSize;
	}

	public int getMinIdle() {
		return minIdle;
	}

	public void setMinIdle(int minIdle) {
		this.minIdle = minIdle;
	}

	public int getMaxActive() {
		return maxActive;
	}

	public void setMaxActive(int maxActive) {
		this.maxActive = maxActive;
	}

	public long getMaxWait() {
		return maxWait;
	}

	public void setMaxWait(long maxWait) {
		this.maxWait = maxWait;
	}

	public long getTimeBetweenEvictionRunsMillis() {
		return timeBetweenEvictionRunsMillis;
	}

	public void setTimeBetweenEvictionRunsMillis(long timeBetweenEvictionRunsMillis) {
		this.timeBetweenEvictionRunsMillis = timeBetweenEvictionRunsMillis;
	}

	public long getMinEvictableIdleTimeMillis() {
		return minEvictableIdleTimeMillis;
	}

	public void setMinEvictableIdleTimeMillis(long minEvictableIdleTimeMillis) {
		this.minEvictableIdleTimeMillis = minEvictableIdleTimeMillis;
	}

	public String getValidationQuery() {
		return validationQuery;
	}

	public void setValidationQuery(String validationQuery) {
		this.validationQuery = validationQuery;
	}

	public boolean isTestWhileIdle() {
		return testWhileIdle;
	}

	public void setTestWhileIdle(boolean testWhileIdle) {
		this.testWhileIdle = testWhileIdle;
	}

	public boolean isTestOnBorrow() {
		return testOnBorrow;
	}

	public void setTestOnBorrow(boolean testOnBorrow) {
		this.testOnBorrow = testOnBorrow;
	}

	public boolean isTestOnReturn() {
		return testOnReturn;
	}

	public void setTestOnReturn(boolean testOnReturn) {
		this.testOnReturn = testOnReturn;
	}

	public boolean isPoolPreparedStatements() {
		return poolPreparedStatements;
	}

	public void setPoolPreparedStatements(boolean poolPreparedStatements) {
		this.poolPreparedStatements = poolPreparedStatements;
	}

	public int getMaxPoolPreparedStatementPerConnectionSize() {
		return maxPoolPreparedStatementPerConnectionSize;
	}

	public void setMaxPoolPreparedStatementPerConnectionSize(int maxPoolPreparedStatementPerConnectionSize) {
		this.maxPoolPreparedStatementPerConnectionSize = maxPoolPreparedStatementPerConnectionSize;
	}

	public String getFilters() {
		return filters;
	}

	public void setFilters(String filters) {
		this.filters = filters;
	}

	public String getDriverClassName() {
		return driverClassName;
	}

	public void setDriverClassName(String driverClassName) {
		this.driverClassName = driverClassName;
	}

	public String getUrl() {
		return url;
	}

	public void setUrl(String url) {
		this.url = url;
	}

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

}

如果以注解的方式：
DataSourceConfig.java：

@Configuration
@MapperScan(basePackages = MasterDataSourceConfig.PACKAGE, sqlSessionFactoryRef = "masterSqlSessionFactory")
public class MasterDataSourceConfig {
static final String PACKAGE = "com.pancm.dao.master";
static final String MAPPER_LOCATION = "classpath:mapper/master/*.xml";
@Value("${master.datasource.url}")
private String url;
@Value("${master.datasource.username}")
private String username;
@Value("${master.datasource.password}")
private String password;
@Value("${master.datasource.driverClassName}")
private String driverClassName;
@Value("${spring.datasource.initialSize}")
private int initialSize;
@Value("${spring.datasource.minIdle}")
private int minIdle;
@Value("${spring.datasource.maxActive}")
private int maxActive;
@Value("${spring.datasource.maxWait}")
private int maxWait;
@Value("${spring.datasource.timeBetweenEvictionRunsMillis}")
private int timeBetweenEvictionRunsMillis;
@Value("${spring.datasource.minEvictableIdleTimeMillis}")
private int minEvictableIdleTimeMillis;
@Value("${spring.datasource.validationQuery}")
private String validationQuery;
@Value("${spring.datasource.testWhileIdle}")
private boolean testWhileIdle;
@Value("${spring.datasource.testOnBorrow}")
private boolean testOnBorrow;
@Value("${spring.datasource.testOnReturn}")
private boolean testOnReturn;
@Value("${spring.datasource.poolPreparedStatements}")
private boolean poolPreparedStatements;
@Value("${spring.datasource.maxPoolPreparedStatementPerConnectionSize}")
private int maxPoolPreparedStatementPerConnectionSize;
@Value("${spring.datasource.filters}")
private String filters;
@Value("{spring.datasource.connectionProperties}")
private String connectionProperties;
@Bean(name = "masterDataSource")
@Primary
public DataSource masterDataSource() {
DruidDataSource dataSource = new DruidDataSource();
dataSource.setUrl(url);
dataSource.setUsername(username);
dataSource.setUsername(username);
dataSource.setPassword(password);
dataSource.setDriverClassName(driverClassName);
//具体配置
dataSource.setInitialSize(initialSize);
dataSource.setMinIdle(minIdle);
dataSource.setMaxActive(maxActive);
dataSource.setMaxWait(maxWait);
dataSource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
dataSource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
dataSource.setValidationQuery(validationQuery);
dataSource.setTestWhileIdle(testWhileIdle);
dataSource.setTestOnBorrow(testOnBorrow);
dataSource.setTestOnReturn(testOnReturn);
dataSource.setPoolPreparedStatements(poolPreparedStatements);
dataSource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);
try {
dataSource.setFilters(filters);
} catch (SQLException e) {
e.printStackTrace();
}
dataSource.setConnectionProperties(connectionProperties);
return dataSource;
}
@Bean(name = "masterTransactionManager")
@Primary
public DataSourceTransactionManager masterTransactionManager() {
return new DataSourceTransactionManager(masterDataSource());
}
@Bean(name = "masterSqlSessionFactory")
@Primary
public SqlSessionFactory masterSqlSessionFactory(@Qualifier("masterDataSource") DataSource masterDataSource)
throws Exception {
final SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();
sessionFactory.setDataSource(masterDataSource);
sessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver()
.getResources(MasterDataSourceConfig.MAPPER_LOCATION));
return sessionFactory.getObject();
}
}

@Primary ：标志这个 Bean 如果在多个同类 Bean 候选时，该 Bean优先被考虑。多数据源配置的时候注意，必须要有⼀个主数据源，⽤ @Primary 标志该 Bean。
@MapperScan：扫描 Mapper 接⼝并容器管理。

DruidConfig:
在SpringBoot中运⽤Druid的监控作⽤，只需要编写StatViewServlet和WebStatFilter类，实现注册服务和过滤规则。
这⾥我们可以将这两个写在⼀起，使⽤@Configuration和@Bean。

@Configuration
@EnableConfigurationProperties({DruidDataSourceProperties.class})
public class DruidConfig {
    @Autowired
    private DruidDataSourceProperties properties;

    @Bean
    @ConditionalOnMissingBean
    public DataSource druidDataSource() {
        DruidDataSource druidDataSource = new DruidDataSource();
        druidDataSource.setDriverClassName(properties.getDriverClassName());
        druidDataSource.setUrl(properties.getUrl());
        druidDataSource.setUsername(properties.getUsername());
        druidDataSource.setPassword(properties.getPassword());
        druidDataSource.setInitialSize(properties.getInitialSize());
        druidDataSource.setMinIdle(properties.getMinIdle());
        druidDataSource.setMaxActive(properties.getMaxActive());
        druidDataSource.setMaxWait(properties.getMaxWait());
        druidDataSource.setTimeBetweenEvictionRunsMillis(properties.getTimeBetweenEvictionRunsMillis());
        druidDataSource.setMinEvictableIdleTimeMillis(properties.getMinEvictableIdleTimeMillis());
        druidDataSource.setValidationQuery(properties.getValidationQuery());
        druidDataSource.setTestWhileIdle(properties.isTestWhileIdle());
        druidDataSource.setTestOnBorrow(properties.isTestOnBorrow());
        druidDataSource.setTestOnReturn(properties.isTestOnReturn());
        druidDataSource.setPoolPreparedStatements(properties.isPoolPreparedStatements());
        druidDataSource.setMaxPoolPreparedStatementPerConnectionSize(properties.getMaxPoolPreparedStatementPerConnectionSize());

        try {
            druidDataSource.setFilters(properties.getFilters());
            druidDataSource.init();
        } catch (SQLException e) {
            e.printStackTrace();
        }

        return druidDataSource;
    }

    /**
     * 注册Servlet信息， 配置监控视图
     *
     * @return
     */
    @Bean
    @ConditionalOnMissingBean
    public ServletRegistrationBean<Servlet> druidServlet() {
        ServletRegistrationBean<Servlet> servletRegistrationBean = new ServletRegistrationBean<Servlet>(new StatViewServlet(), "/druid/*");

        //白名单：
        servletRegistrationBean.addInitParameter("allow","127.0.0.1,139.196.87.48");
        //IP黑名单 (存在共同时，deny优先于allow) : 如果满足deny的话提示:Sorry, you are not permitted to view this page.
       // servletRegistrationBean.addInitParameter("deny","192.168.1.119");
        //登录查看信息的账号密码, 用于登录Druid监控后台
        servletRegistrationBean.addInitParameter("loginUsername", "admin");
        servletRegistrationBean.addInitParameter("loginPassword", "admin");
        //是否能够重置数据.
        servletRegistrationBean.addInitParameter("resetEnable", "true");
        return servletRegistrationBean;

    }

    /**
     * 注册Filter信息, 监控拦截器
     *
     * @return
     */
    @Bean
    @ConditionalOnMissingBean
    public FilterRegistrationBean<Filter> filterRegistrationBean() {
        FilterRegistrationBean<Filter> filterRegistrationBean = new FilterRegistrationBean<Filter>();
        filterRegistrationBean.setFilter(new WebStatFilter());
        // 添加过滤规则
        filterRegistrationBean.addUrlPatterns("/*");
        // 添加不需要忽略的格式信息
        filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
        return filterRegistrationBean;
    }
}

servletRegistrationBean.addInitParameter(“loginUsername”, “admin”);
servletRegistrationBean.addInitParameter(“loginPassword”, “admin”);
为账号密码
配置完之后，就可以将Druid作为连接池使⽤了。但是Druid并不简简单单的是个连接池，它也可以说是⼀个监控应⽤，它⾃带了web监控界⾯，可以很清晰的看到SQL相关信息。

在这里插入图片描述
此页面输入账号密码

原文链接：https://blog.csdn.net/qq_41358574/article/details/117071443
