? websocket配置 ?

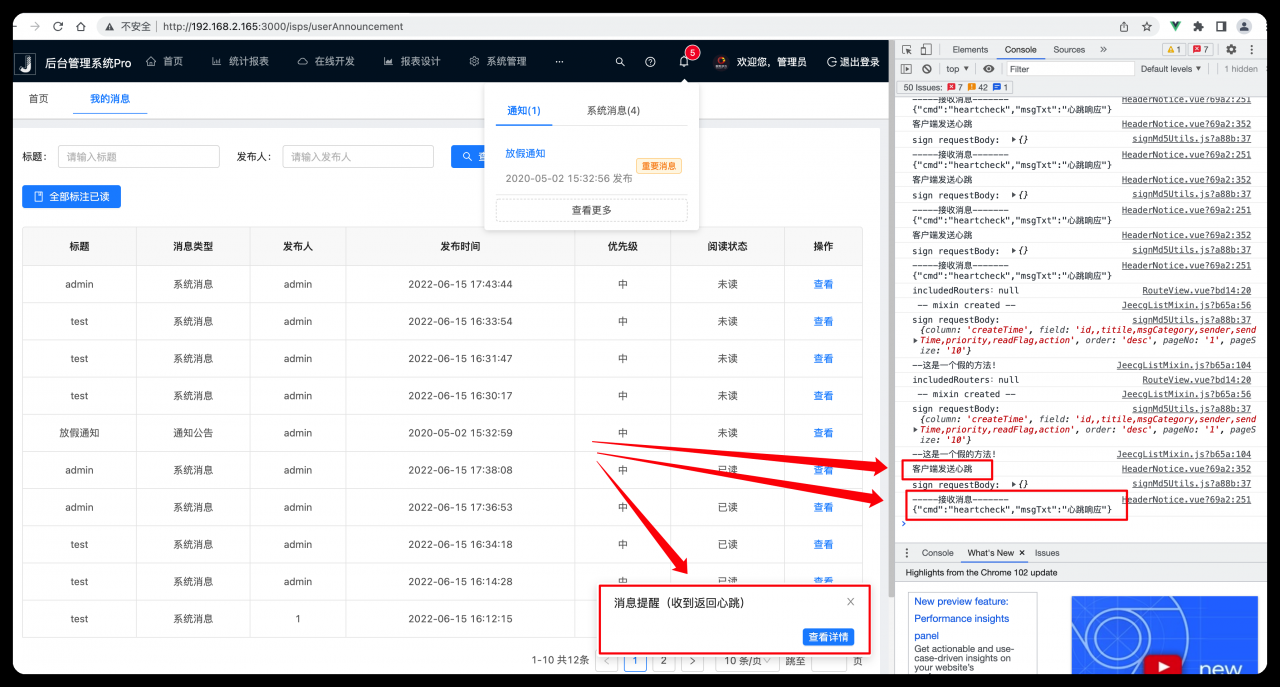

- 首先2022-06-10下载下来的源码心跳模块的日志打印都是关掉的,所以咱们看不出来心跳传送,这里记录下怎么把日志放开调试的步骤
- 到官方源码看websocket配置代码,位置在这:
ant-design-vue-jeecg/src/components/tools/HeaderNotice.vue

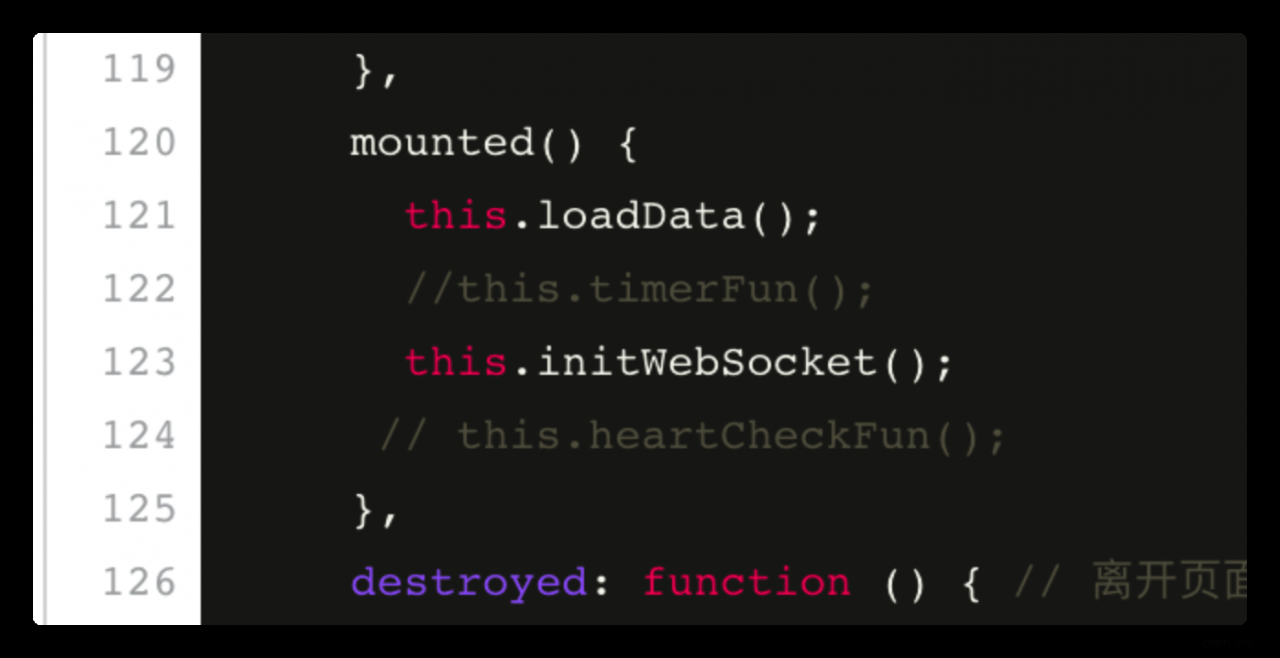

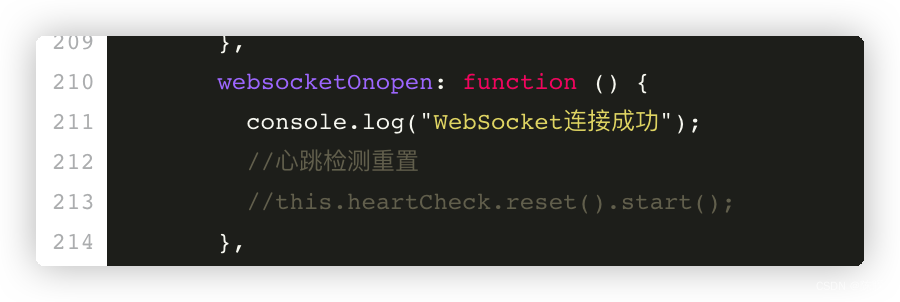

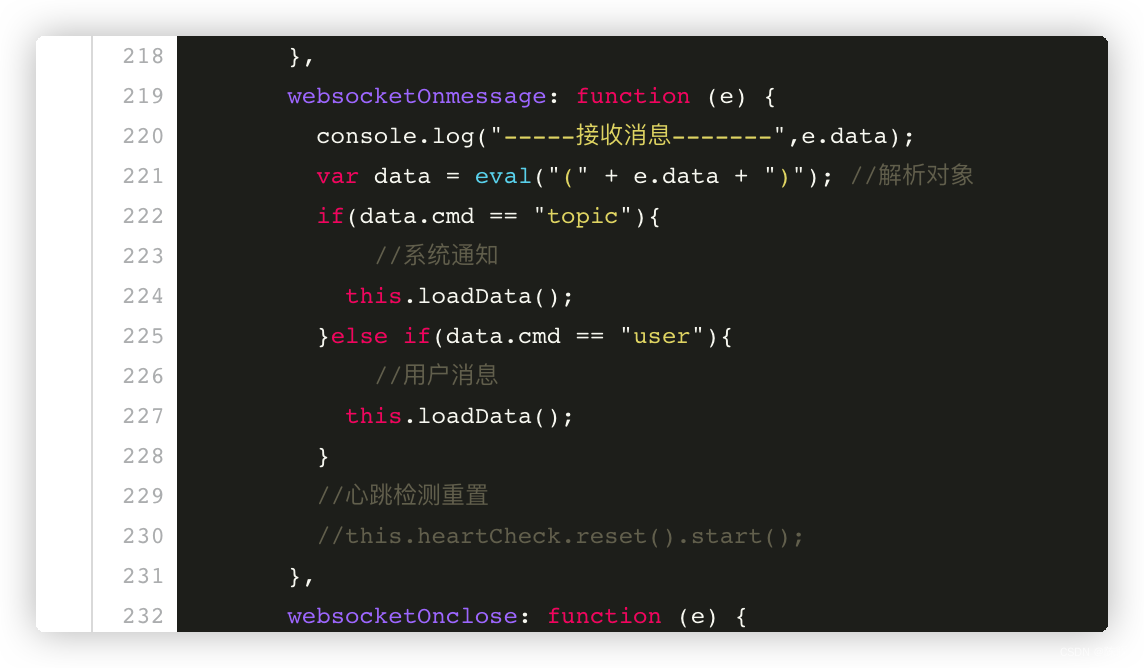

- 注意这几个被注释的地方
- 看后端websocket配置
jeecg-boot/jeecg-boot-module-system/src/main/java/org/jeecg/modules/message/websocket/WebSocket.java
- 后端无需改什么代码,可以启动调试下,多在前后端进行debugger即可,如有疑问可留言交流哈,附上前端改动及弹窗代码
<template>
<a-popover
trigger="click"
placement="bottomRight"
:autoAdjustOverflow="true"
:arrowPointAtCenter="true"
overlayClassName="header-notice-wrapper"
@visibleChange="handleHoverChange"
:overlayStyle="{ width: '300px', top: '50px' }"
>
<template slot="content">
<a-spin :spinning="loadding">
<a-tabs>
<a-tab-pane :tab="msg1Title" key="1">
<!-- <a-list>
<a-list-item>
<a-list-item-meta title="你收到了 14 份新周报" description="一年前">
<a-avatar style="background-color: white" slot="avatar" src="https://gw.alipayobjects.com/zos/rmsportal/ThXAXghbEsBCCSDihZxY.png"/>
</a-list-item-meta>
</a-list-item>
<a-list-item>
<a-list-item-meta title="你推荐的 IT大牛 已通过第三轮面试" description="一年前">
<a-avatar style="background-color: white" slot="avatar" src="https://gw.alipayobjects.com/zos/rmsportal/OKJXDXrmkNshAMvwtvhu.png"/>
</a-list-item-meta>
</a-list-item>
<a-list-item>
<a-list-item-meta title="这种模板可以区分多种通知类型" description="一年前">
<a-avatar style="background-color: white" slot="avatar" src="https://gw.alipayobjects.com/zos/rmsportal/kISTdvpyTAhtGxpovNWd.png"/>
</a-list-item-meta>
</a-list-item>
</a-list> -->
<a-list>
<a-list-item :key="index" v-for="(record, index) in announcement1">
<div style="margin-left: 5%; width: 80%">
<p>
<a @click="showAnnouncement(record)">{{ record.titile }}</a>
</p>
<p style="color: rgba(0, 0, 0, 0.45); margin-bottom: 0px">{{ record.createTime }} 发布</p>
</div>
<div style="text-align: right">
<a-tag @click="showAnnouncement(record)" v-if="record.priority === 'L'" color="blue">一般消息</a-tag>
<a-tag @click="showAnnouncement(record)" v-if="record.priority === 'M'" color="orange"
>重要消息</a-tag
>
<a-tag @click="showAnnouncement(record)" v-if="record.priority === 'H'" color="red">紧急消息</a-tag>
</div>
</a-list-item>
<div style="margin-top: 5px; text-align: center">
<a-button @click="toMyAnnouncement()" type="dashed" block>查看更多</a-button>
</div>
</a-list>
</a-tab-pane>
<a-tab-pane :tab="msg2Title" key="2">
<a-list>
<a-list-item :key="index" v-for="(record, index) in announcement2">
<div style="margin-left: 5%; width: 80%">
<p>
<a @click="showAnnouncement(record)">{{ record.titile }}</a>
</p>
<p style="color: rgba(0, 0, 0, 0.45); margin-bottom: 0px">{{ record.createTime }} 发布</p>
</div>
<div style="text-align: right">
<a-tag @click="showAnnouncement(record)" v-if="record.priority === 'L'" color="blue">一般消息</a-tag>
<a-tag @click="showAnnouncement(record)" v-if="record.priority === 'M'" color="orange"
>重要消息</a-tag
>
<a-tag @click="showAnnouncement(record)" v-if="record.priority === 'H'" color="red">紧急消息</a-tag>
</div>
</a-list-item>
<div style="margin-top: 5px; text-align: center">
<a-button @click="toMyAnnouncement()" type="dashed" block>查看更多</a-button>
</div>
</a-list>
</a-tab-pane>
</a-tabs>
</a-spin>
</template>
<span @click="fetchNotice" class="header-notice">
<a-badge :count="msgTotal">
<a-icon style="font-size: 16px; padding: 4px" type="bell" />
</a-badge>
</span>
<show-announcement ref="ShowAnnouncement" @ok="modalFormOk"></show-announcement>
<dynamic-notice ref="showDynamNotice" :path="openPath" :formData="formData" />
</a-popover>
</template>
<script>
import { getAction, putAction } from '@/api/manage'
import ShowAnnouncement from './ShowAnnouncement'
import store from '@/store/'
import DynamicNotice from './DynamicNotice'
export default {
name: 'HeaderNotice',
components: {
DynamicNotice,
ShowAnnouncement,
},
data() {
return {
loadding: false,
url: {
listCementByUser: '/sys/annountCement/listByUser',
editCementSend: '/sys/sysAnnouncementSend/editByAnntIdAndUserId',
queryById: '/sys/annountCement/queryById',
},
hovered: false,
announcement1: [],
announcement2: [],
msg1Count: '0',
msg2Count: '0',
msg1Title: '通知(0)',
msg2Title: '',
stopTimer: false,
websock: null,
lockReconnect: false, //避免重复连接
heartCheck: null,
formData: {},
openPath: '',
}
},
computed: {
msgTotal() {
return parseInt(this.msg1Count) + parseInt(this.msg2Count)
},
},
mounted() {
this.loadData()
this.timerFun()
this.initWebSocket()
this.heartCheckFun()
},
destroyed: function () {
// 离开页面生命周期函数
this.websocketOnclose()
},
methods: {
timerFun() {
this.stopTimer = false
let myTimer = setInterval(() => {
// 停止定时器
if (this.stopTimer == true) {
clearInterval(myTimer)
return
}
// debugger
// this.loadData()
}, 10000)
},
loadData() {
try {
// debugger
// 获取系统消息
getAction(this.url.listCementByUser)
.then((res) => {
if (res.success) {
this.announcement1 = res.result.anntMsgList
this.msg1Count = res.result.anntMsgTotal
this.msg1Title = '通知(' + res.result.anntMsgTotal + ')'
this.announcement2 = res.result.sysMsgList
this.msg2Count = res.result.sysMsgTotal
this.msg2Title = '系统消息(' + res.result.sysMsgTotal + ')'
}
})
.catch((error) => {
console.log('系统消息通知异常', error) //这行打印permissionName is undefined
this.stopTimer = true
console.log('清理timer')
})
} catch (err) {
this.stopTimer = true
console.log('通知异常', err)
}
},
fetchNotice() {
if (this.loadding) {
this.loadding = false
return
}
this.loadding = true
setTimeout(() => {
this.loadding = false
}, 2000)
},
/**
* 显示公告
* @param {*} record
*/
showAnnouncement(record) {
putAction(this.url.editCementSend, { anntId: record.id }).then((res) => {
if (res.success) {
// debugger
this.loadData()
}
})
this.hovered = false
if (record.openType === 'component') {
this.openPath = record.openPage
this.formData = { id: record.busId }
this.$refs.showDynamNotice.detail(record.openPage)
} else {
this.$refs.ShowAnnouncement.detail(record)
}
},
toMyAnnouncement() {
this.$router.push({
path: '/isps/userAnnouncement',
})
},
modalFormOk() {},
handleHoverChange(visible) {
this.hovered = visible
},
/**
* socket初始化
*/
initWebSocket: function () {
// WebSocket与普通的请求所用协议有所不同,ws等同于http,wss等同于https
var userId = store.getters.userInfo.id
var url =
window._CONFIG['domianURL'].replace('https://', 'wss://').replace('http://', 'ws://') + '/websocket/' + userId
console.log(url);
this.websock = new WebSocket(url)
this.websock.onopen = this.websocketOnopen
this.websock.onerror = this.websocketOnerror
this.websock.onmessage = this.websocketOnmessage
this.websock.onclose = this.websocketOnclose
},
/**
* WebSocket连接成功
*/
websocketOnopen: function () {
console.log('WebSocket连接成功')
//心跳检测重置
this.heartCheck.reset().start()
},
/**
* WebSocket连接发生错误
*/
websocketOnerror: function (e) {
console.log('WebSocket连接发生错误')
this.reconnect()
},
/**
* 接收消息
* @param {*} e
*/
websocketOnmessage: function (e) {
this.loadData()
console.log('-----接收消息-------', e.data)
this.openNotification(e.data)
var data = eval('(' + e.data + ')') //解析对象
// debugger
if (data.cmd == 'topic') {
//系统通知
this.loadData()
} else if (data.cmd == 'user') {
//用户消息
this.loadData()
}
//心跳检测重置
this.heartCheck.reset().start()
},
/**
* 关闭socket
* @param {*} e
*/
websocketOnclose: function (e) {
console.log('connection closed (' + e + ')')
if (e) {
console.log('connection closed (' + e.code + ')')
}
this.reconnect()
},
/**
* 数据发送
* @param {*} text
*/
websocketSend(text) {
// 数据发送
try {
this.websock.send(text)
} catch (err) {
console.log('send failed (' + err.code + ')')
}
},
/**
* 消息弹窗
* @param {*} data
*/
openNotification(data) {
var text = data.msgTxt
const key = `open${Date.now()}`
this.$notification.open({
message: '消息提醒(收到返回心跳)',
placement: 'bottomRight',
description: text,
key,
btn: (h) => {
return h(
'a-button',
{
props: {
type: 'primary',
size: 'small',
},
on: {
click: () => this.showDetail(key, data),
},
},
'查看详情'
)
},
})
},
/**
* 重连
*/
reconnect() {
var that = this
if (that.lockReconnect) return
that.lockReconnect = true
//没连接上会一直重连,设置延迟避免请求过多
setTimeout(function () {
console.info('尝试重连...')
that.initWebSocket()
that.lockReconnect = false
}, 5000)
},
/**
* 心跳检测
*/
heartCheckFun() {
var that = this
//心跳检测,每20s心跳一次
that.heartCheck = {
timeout: 20000,
timeoutObj: null,
serverTimeoutObj: null,
reset: function () {
clearTimeout(this.timeoutObj)
clearTimeout(this.serverTimeoutObj)
return this
},
start: function () {
var self = this
this.timeoutObj = setTimeout(function () {
//这里发送一个心跳,后端收到后,返回一个心跳消息,
//onmessage拿到返回的心跳就说明连接正常
that.websocketSend('HeartBeat')
console.info('客户端发送心跳')
self.serverTimeoutObj = setTimeout(function () {
//如果超过一定时间还没重置,说明后端主动断开了
that.websock.close() //如果onclose会执行reconnect,我们执行ws.close()就行了.如果直接执行reconnect 会触发onclose导致重连两次
}, self.timeout)
}, this.timeout)
},
}
},
/**
* 获取信息详情
* @param {*} key
* @param {*} data
*/
showDetail(key, data) {
this.$notification.close(key)
var id = data.msgId
getAction(this.url.queryById, { id: id }).then((res) => {
if (res.success) {
var record = res.result
this.showAnnouncement(record)
}
})
},
},
}
</script>
<style lang="css">
.header-notice-wrapper {
top: 50px !important;
}
</style>
<style lang="less" scoped>
.header-notice {
display: inline-block;
transition: all 0.3s;
span {
vertical-align: initial;
}
}
</style>
