Smart-Link

专用于双上行组网

收敛速度快，毫秒级

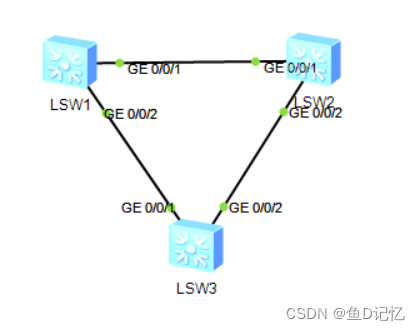

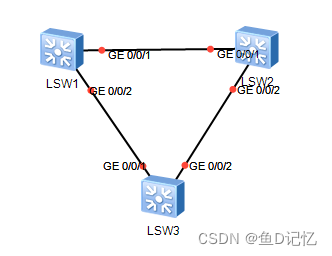

SW3
创建vlan
vlan batch 10 20 99
进接口，trunk，放行vlan
int g0/0/1,g0/0/2
stp disable
port link-type trunk
port trunk all-pass vlan 10 20 99
创建smart组
smart-link group 1
设置master/slave端口
port g0/0/1 master
port g0/0/2 slave
配置发送控制vlan
flush send control-vlan 99 password simple 123
开抢占，默认不开，设置等待时间，默认60s
restore enable
timer wtr 30
使用smart组
smart-link enable

SW1,SW2

创建vlan
vlan batch 10 20 99
进接口，trunk，放行vlan
int g0/0/1,g0/0/2
stp disable
port link-type trunk
port trunk all-pass vlan 10 20 99
int g0/0/2
stp disable
port link-type trunk
port trunk all-pass vlan 10 20 99


int g0/0/1
smart-link flush receive control-vlan 99 passw sim 123
int g0/0/2
smart-link flush receive control-vlan 99 passw sim 123

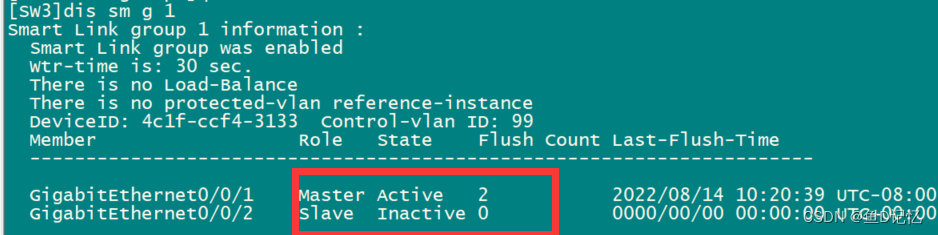

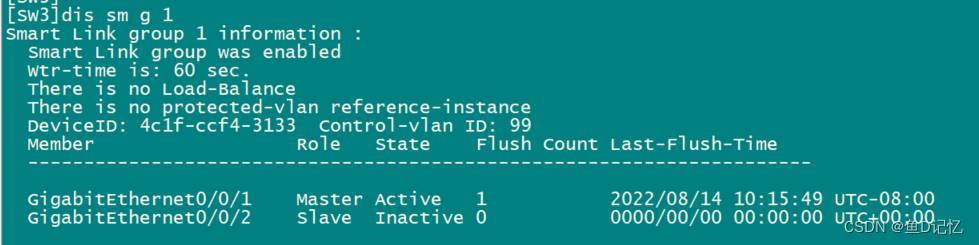

sw3 dis smart-link group 1

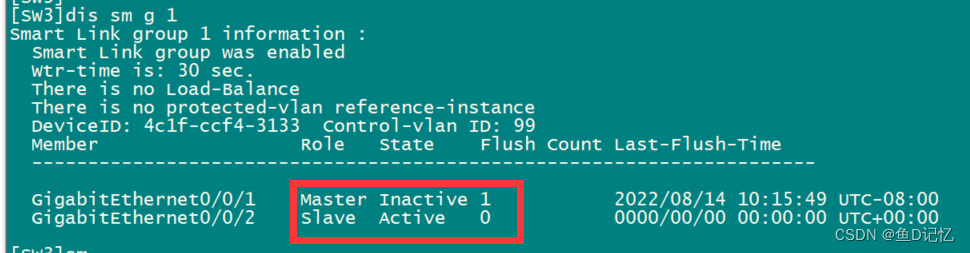

shutdown g0/0/1

不知道是bug还是什么其他问题，0/0/2时间没有变动

un sh g0/0/1

smart-link + MSTP 负载

vlan 1-20 99

11-20 走 g0/0/2

load-balance instance 20 slave

SW3

vlan batch 1 to 20 99

int g0/0/1
stp disable
port link-type trunk
port trunk allow-pass vlan 1 to 20 99
int g0/0/2
stp disable
port link-type trunk
port trunk allow-pass vlan 1 to 20 99
q


stp region-configuration
instance 20 vlan 11 to 20
active region-configuration

smart-link group 1
port g1/0/1 master
port g1/0/2 slave
flush send control-vlan 99 pass sim 123
load-balance instance 20 slave
smart-link enable
q

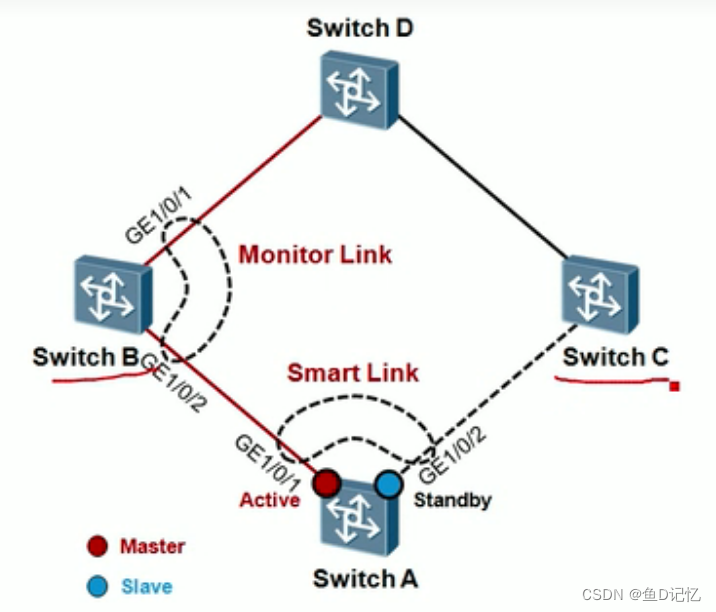

Monitor Link

SWB

monitor-link group 1
port g1/0/1 uplink
port g1/0/2 downlink

SW A
smart-link group 1
port g1/0/1 master
port g1/0/2 slave
flush send control vlan 99 pas sim 123

smart-link en

SW D
int g1/0/1 g1/0/2
smart-link flush receive control-vlan 99 passw sim 123
