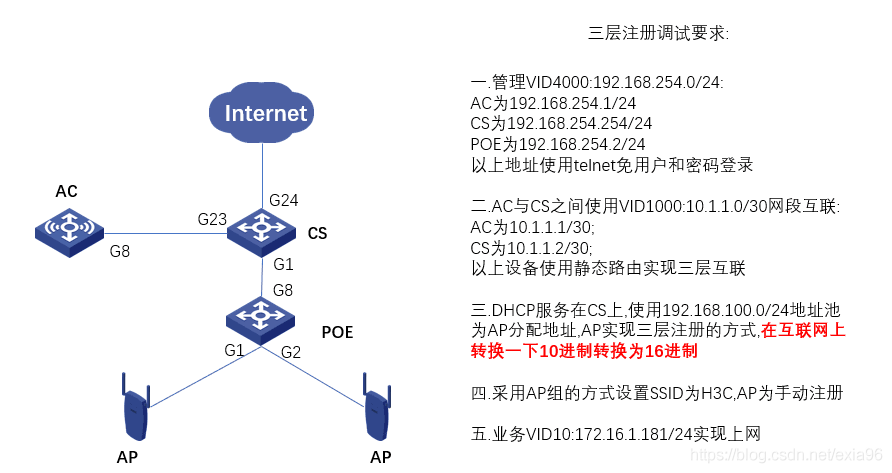

<ac>
<ac>
<ac>dis cu
#
version 7.1.064, Release 5221P02
#
sysname ac
#
telnet server enable
#
irf mac-address persistent timer
irf auto-update enable
irf auto-merge enable
irf member 1 priority 1
#
password-recovery enable
#
vlan 1
#
vlan 10
description 业务vlan
#
vlan 100
description AP管理vlan
#
vlan 1000
description ac-cs-互联
#
vlan 4000
description 设备管理vlan
#
irf-port 1
#
wlan service-template 1
ssid h3c
service-template enable
#
interface NULL0
#
interface Vlan-interface1
ip address 192.168.0.100 255.255.255.0
#
interface Vlan-interface1000
description ac-cs-互联
ip address 10.1.1.1 255.255.255.252
#
interface Vlan-interface4000
description 设备管理vlan
ip address 192.168.254.1 255.255.255.0
#
interface GigabitEthernet1/0/1
port link-mode bridge
#
interface GigabitEthernet1/0/2
port link-mode bridge
#
interface GigabitEthernet1/0/3
port link-mode bridge
#
interface GigabitEthernet1/0/4
port link-mode bridge
#
interface GigabitEthernet1/0/5
port link-mode bridge
#
interface GigabitEthernet1/0/6
port link-mode bridge
#
interface GigabitEthernet1/0/7
port link-mode bridge
#
interface GigabitEthernet1/0/8
port link-mode bridge
description ac-cs-互联
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 10 100 1000 4000
#
scheduler logfile size 16
#
line class console
user-role network-admin
#
line class vty
user-role network-operator
#
line con 0
user-role network-admin
#
line vty 0 31
authentication-mode none
user-role network-admin
user-role network-operator
#
ip route-static 0.0.0.0 0 192.168.254.254
#
undo info-center logfile enable
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
local-user admin class manage
password hash $h$6$B3OHos2lqioOcY22$Re45G6kg5SQC8Ffk0SuIRWFV3WaF8+0khFUJQYgYixJ7/npCQoNYVKYL6gqBes/fGVLEqOtQS9XW0VbvUkSP+A==
service-type telnet http https
authorization-attribute user-role network-admin
#
ip http enable
ip https enable
#
wlan global-configuration
#
wlan ap-group 1
ap ap1
ap ap2
vlan 1
ap-model WA5320
radio 1
radio enable
service-template 1 vlan 10
radio 2
radio enable
service-template 1 vlan 10
gigabitethernet 1
gigabitethernet 2
#
wlan ap-group default-group
vlan 1
#
wlan ap ap1 model WA5320
serial-id 219801A0YD8173E01730
vlan 1
radio 1
radio 2
gigabitethernet 1
gigabitethernet 2
#
wlan ap ap2 model WA5320
serial-id 219801A0YD8173E00084
vlan 1
radio 1
radio 2
gigabitethernet 1
gigabitethernet 2
#
return
<ac> dis wlan ap all
Total number of APs: 2
Total number of connected APs: 2
Total number of connected manual APs: 2
Total number of connected auto APs: 0
Total number of connected common APs: 2
Total number of connected WTUs: 0
Total number of inside APs: 0
Maximum supported APs: 256
Remaining APs: 254
Total AP licenses: 40
Remaining AP licenses: 38
Sync AP licenses: 0
AP information
State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad
C = Config, DC = DataCheck, R = Run, M = Master, B = Backup
AP name APID State Model Serial ID
ap1 1 R/M WA5320 219801A0YD8173E01730
ap2 2 R/M WA5320 219801A0YD8173E00084
<ac> dis wlan cl
<ac>dis wlan client
Total number of clients: 1
MAC address User name AP name RID IP address IPv6 address VLAN
5425-ea6c-b01b N/A ap1 2 172.16.2.111 10
<ac>
<ac>dis wlan client
Total number of clients: 1
MAC address User name AP name RID IP address IPv6 address VLAN
5425-ea6c-b01b N/A ap1 2 172.16.2.111 10
<ac>
<ac>
<ac>
<ac>telnet
<ac>telnet 192.168.254.254
Trying 192.168.254.254 ...
Press CTRL+K to abort
Connected to 192.168.254.254 ...
******************************************************************************
* Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. All rights reserved.*
* Without the owner's prior written consent, *
* no decompiling or reverse-engineering shall be allowed. *
******************************************************************************
<cs>
<cs>
<cs>dis cu
#
version 7.1.070, Release 6126P10
#
sysname cs
#
telnet server enable
#
irf mac-address persistent timer
irf auto-update enable
undo irf link-delay
irf member 1 priority 1
#
dhcp enable
#
lldp global enable
#
password-recovery enable
#
vlan 1
#
vlan 10
description 业务vlan
#
vlan 100
description AP管理vlan
#
vlan 1000
description cs-ac-互联
#
vlan 4000
description 设备管理vlan
#
stp global enable
#
dhcp server ip-pool apguanli
gateway-list 192.168.100.254
network 192.168.100.0 mask 255.255.255.0
option 43 hex 80070000010a010101
####### Ac vlan1000互联地址10.1.1.1
#
interface NULL0
#
interface Vlan-interface10
description to-公网
ip address 172.16.1.181 255.255.255.0
#
interface Vlan-interface100
description AP管理vlan
ip address 192.168.100.254 255.255.255.0
#
interface Vlan-interface1000
description cs-ac-互联
ip address 10.1.1.2 255.255.255.252
#
interface Vlan-interface4000
description 设备管理vlan
ip address 192.168.254.254 255.255.255.0
#
interface GigabitEthernet1/0/1
description cs-poesw
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100 4000
#
interface GigabitEthernet1/0/2
#
interface GigabitEthernet1/0/3
#
interface GigabitEthernet1/0/4
#
interface GigabitEthernet1/0/5
#
interface GigabitEthernet1/0/6
#
interface GigabitEthernet1/0/7
#
interface GigabitEthernet1/0/8
#
interface GigabitEthernet1/0/9
#
interface GigabitEthernet1/0/10
#
interface GigabitEthernet1/0/11
#
interface GigabitEthernet1/0/12
#
interface GigabitEthernet1/0/13
#
interface GigabitEthernet1/0/14
#
interface GigabitEthernet1/0/15
#
interface GigabitEthernet1/0/16
#
interface GigabitEthernet1/0/17
#
interface GigabitEthernet1/0/18
#
interface GigabitEthernet1/0/19
#
interface GigabitEthernet1/0/20
#
interface GigabitEthernet1/0/21
#
interface GigabitEthernet1/0/22
#
interface GigabitEthernet1/0/23
description cs-ac-互联
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 10 100 1000 4000
#
interface GigabitEthernet1/0/24
description to-公网
port access vlan 10
#
interface Ten-GigabitEthernet1/0/25
#
interface Ten-GigabitEthernet1/0/26
#
interface Ten-GigabitEthernet1/0/27
#
interface Ten-GigabitEthernet1/0/28
#
scheduler logfile size 16
#
line class aux
user-role network-admin
#
line class vty
user-role network-operator
#
line aux 0
user-role network-admin
#
line vty 0 63
authentication-mode none
user-role network-admin
user-role network-operator
#
ip route-static 0.0.0.0 0 172.16.1.10
#
radius scheme system
user-name-format without-domain
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
return
<cs> ping 172.16.1.10
Ping 172.16.1.10 (172.16.1.10): 56 data bytes, press CTRL_C to break
56 bytes from 172.16.1.10: icmp_seq=0 ttl=255 time=3.336 ms
56 bytes from 172.16.1.10: icmp_seq=1 ttl=255 time=2.038 ms
56 bytes from 172.16.1.10: icmp_seq=2 ttl=255 time=2.002 ms
56 bytes from 172.16.1.10: icmp_seq=3 ttl=255 time=2.066 ms
56 bytes from 172.16.1.10: icmp_seq=4 ttl=255 time=1.954 ms
--- Ping statistics for 172.16.1.10 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 1.954/2.279/3.336/0.530 ms
<cs>
<cs>
<cs>
<cs>
<cs>
<cs>
<cs>telnet
<cs>telnet 192.168.254.2
Trying 192.168.254.2 ...
Press CTRL+K to abort
Connected to 192.168.254.2 ...
******************************************************************************
* Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. All rights reserved.*
* Without the owner's prior written consent, *
* no decompiling or reverse-engineering shall be allowed. *
******************************************************************************
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>dis cu
#
version 7.1.070, Release 6126P10
#
sysname poesw
#
telnet server enable
#
irf mac-address persistent timer
irf auto-update enable
undo irf link-delay
irf member 1 priority 1
#
lldp global enable
#
password-recovery enable
#
vlan 1
#
vlan 100
description AP管理vlan
#
vlan 4000
description 设备管理vlan
#
stp global enable
#
interface NULL0
#
interface Vlan-interface4000
description 设备管理vlan
ip address 192.168.254.2 255.255.255.0
#
interface GigabitEthernet1/0/1
description poesw-ap
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 2 to 4094
port trunk pvid vlan 100
poe enable
#
interface GigabitEthernet1/0/2
description poesw-ap
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 2 to 4094
port trunk pvid vlan 100
poe enable
#
interface GigabitEthernet1/0/3
#
interface GigabitEthernet1/0/4
#
interface GigabitEthernet1/0/5
#
interface GigabitEthernet1/0/6
#
interface GigabitEthernet1/0/7
#
interface GigabitEthernet1/0/8
description poesw-cs
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100 4000
#
interface GigabitEthernet1/0/9
#
interface GigabitEthernet1/0/10
#
scheduler logfile size 16
#
line class aux
user-role network-admin
#
line class vty
user-role network-operator
#
line aux 0
user-role network-admin
#
line vty 0 63
authentication-mode none
user-role network-admin
user-role network-operator
#
ip route-static 0.0.0.0 0 192.168.254.254
#
radius scheme system
user-name-format without-domain
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
return
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>telnet 192.168.
Unknown host or wrong IP address!
<poesw>
<poesw>
<poesw>telnet 192.168.254.1
Trying 192.168.254.1 ...
Press CTRL+K to abort
Connected to 192.168.254.1 ...
******************************************************************************
* Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. All rights reserved.*
* Without the owner's prior written consent, *
* no decompiling or reverse-engineering shall be allowed. *
******************************************************************************
<ac>
<ac>%Dec 1 10:49:30:875 2018 ac SHELL/5/SHELL_LOGIN: VTY logged in from 192.168.254.2.
<ac>
<ac>
<ac>
<ac>
<ac>
<ac>dis wlan ap all
Total number of APs: 2
Total number of connected APs: 2
Total number of connected manual APs: 2
Total number of connected auto APs: 0
Total number of connected common APs: 2
Total number of connected WTUs: 0
Total number of inside APs: 0
Maximum supported APs: 256
Remaining APs: 254
Total AP licenses: 40
Remaining AP licenses: 38
Sync AP licenses: 0
AP information
State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad
C = Config, DC = DataCheck, R = Run, M = Master, B = Backup
AP name APID State Model Serial ID
ap1 1 R/M WA5320 219801A0YD8173E01730
ap2 2 R/M WA5320 219801A0YD8173E00084
<ac>
<ac>
<ac>
<ac>
