Enrichment plot的另一种展示

上图大家都不陌生，GSEA分析出来的一个结果图。这里想像大家介绍的不是这个图是什么意思，而是这个图换一种形式展示！

#安装R包

library(plyr)
library(ggplot2)
library(grid)
library(gridExtra)
#设置工作目录
setwd("C:\\Users\\lexb4\\Desktop\\singleGene\\21.multipleGSEA")
#获取目录下的所有xls文件
files=grep(".xls",dir(),value=T)
 #读取每个文件
data = lapply(files,read.delim)
names(data) = files

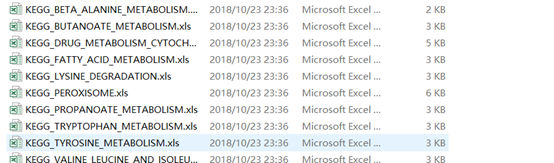

                               该目录下的所有文件

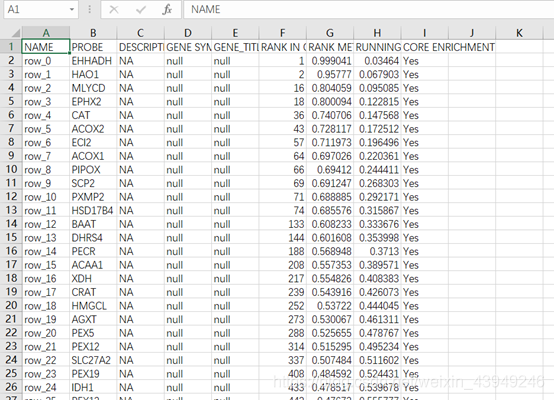

以其中一个文件为例

dataSet = ldply(data, data.frame)
#将文件后缀删掉
dataSet$pathway = gsub(".xls","",dataSet$.id)
gseaCol=c("#58CDD9","#7A142C","#5D90BA","#431A3D","#91612D","#6E568C","#E0367A","#D8D155","#64495D","#7CC767","#223D6C","#D20A13","#FFD121","#088247","#11AA4D")
pGsea=ggplot(dataSet,aes(x=RANK.IN.GENE.LIST,y=RUNNING.ES,colour=pathway,group=pathway))+
  geom_line(size = 1.5) +
  scale_color_manual(values = gseaCol[1:nrow(dataSet)]) +
  labs(x = "", y = "Enrichment Score", title = "") +
   scale_x_continuous(expand = c(0, 0)) +
  scale_y_continuous(expand = c(0, 0),limits = c(min(dataSet$RUNNING.ES - 0.02), max(dataSet$RUNNING.ES + 0.02))) +
  theme_bw() +
   theme(panel.grid = element_blank(),
         panel.border = element_blank(),
         axis.line = element_line(colour = "black"),
         axis.line.x = element_blank(),
         axis.ticks.x = element_blank(),
         axis.text.x = element_blank(),
         legend.position = c(0,0),
         legend.justification = c(0,0),
         legend.background = element_blank(),
         legend.key = element_blank(),
         legend.key.size=unit(0.8,'cm')) +
  geom_hline(yintercept = 0) +
  guides(colour = guide_legend(title = NULL))

pGene=ggplot(dataSet,aes(RANK.IN.GENE.LIST,pathway,colour=pathway))+
geom_tile()+
  scale_color_manual(values = gseaCol[1:nrow(dataSet)]) +
  labs(x = "high expression<----------->low expression", y = "", title = "") +
  scale_x_discrete(expand = c(0, 0)) + scale_y_discrete(expand = c(0, 0)) +
  theme_bw() +
  theme(panel.grid = element_blank(),
        axis.line.y = element_blank(),
        axis.ticks.y = element_blank(),
        axis.text.y = element_blank(),
        panel.border = element_blank(),
        axis.line = element_line(colour = "black") ) +
        guides(color=FALSE)

gGsea = ggplot_gtable(ggplot_build(pGsea))
gGene = ggplot_gtable(ggplot_build(pGene))
maxWidth = grid::unit.pmax(gGsea$widths, gGene$widths)
gGsea$widths = as.list(maxWidth)
gGene$widths = as.list(maxWidth)
dev.off()

#将图形可视化，保存在"multipleGSEA.pdf"
pdf(‘multipleGSEA.pdf’, #输出图片的文件
width=7, #设置输出图片高度
height=5.5) #设置输出图片高度
par(mar=c(5,5,2,5))
grid.arrange(arrangeGrob(gGsea,gGene,nrow=2,heights=c(.8,.3)))
dev.off()

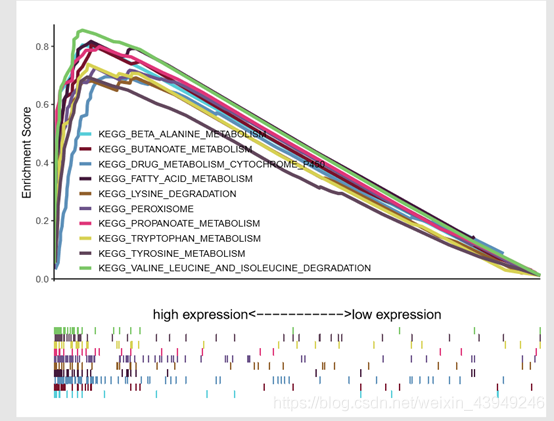

如何去解释上图呢？
不同的颜色代表不同的通路，纵轴是每个基因对应的ES，而横轴代表gene。如果该基因在该通路上富集，则在图中出现。如果不在通路上富集则表现为空。这里我不进行详细的解释，如果有不明白的，可以直接留言。
