spring Cloud Gateway 源码分析

老样子, 查看factories内配置如下

# Auto Configure
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
#  依赖包校验配置
org.springframework.cloud.gateway.config.GatewayClassPathWarningAutoConfiguration,\
#  Gateway核心配置
org.springframework.cloud.gateway.config.GatewayAutoConfiguration,\
# Gateway的Hystrix断路器配置
org.springframework.cloud.gateway.config.GatewayHystrixCircuitBreakerAutoConfiguration,\
# Gateway的Resilience4J断路器配置
org.springframework.cloud.gateway.config.GatewayResilience4JCircuitBreakerAutoConfiguration,\
#  gateway负载均衡客户端配置
org.springframework.cloud.gateway.config.GatewayLoadBalancerClientAutoConfiguration,\
#
org.springframework.cloud.gateway.config.GatewayNoLoadBalancerClientAutoConfiguration,\
#  路由度量配置
org.springframework.cloud.gateway.config.GatewayMetricsAutoConfiguration,\
#  流控的依赖配置信息
org.springframework.cloud.gateway.config.GatewayRedisAutoConfiguration,\
#  服务发现相关的依赖配置
org.springframework.cloud.gateway.discovery.GatewayDiscoveryClientAutoConfiguration,\
#  url全局处理映射配置
org.springframework.cloud.gateway.config.SimpleUrlHandlerMappingGlobalCorsAutoConfiguration,\
#
org.springframework.cloud.gateway.config.GatewayReactiveLoadBalancerClientAutoConfiguration

#网关环境后处理器
org.springframework.boot.env.EnvironmentPostProcessor=\
org.springframework.cloud.gateway.config.GatewayEnvironmentPostProcessor

依赖包校验配置

配置文件 GatewayClassPathWarningAutoConfiguration.java

@Configuration(proxyBeanMethods = false)
@AutoConfigureBefore(GatewayAutoConfiguration.class)
public class GatewayClassPathWarningAutoConfiguration {

	private static final Log log = LogFactory
			.getLog(GatewayClassPathWarningAutoConfiguration.class);

	private static final String BORDER = "\n\n**********************************************************\n\n";

	@Configuration(proxyBeanMethods = false)
	@ConditionalOnClass(name = "org.springframework.web.servlet.DispatcherServlet")
	protected static class SpringMvcFoundOnClasspathConfiguration {

		public SpringMvcFoundOnClasspathConfiguration() {
			log.warn(BORDER
					+ "Spring MVC found on classpath, which is incompatible with Spring Cloud Gateway at this time. "
					+ "Please remove spring-boot-starter-web dependency." + BORDER);
		}

	}

	@Configuration(proxyBeanMethods = false)
	@ConditionalOnMissingClass("org.springframework.web.reactive.DispatcherHandler")
	protected static class WebfluxMissingFromClasspathConfiguration {

		public WebfluxMissingFromClasspathConfiguration() {
			log.warn(BORDER + "Spring Webflux is missing from the classpath, "
					+ "which is required for Spring Cloud Gateway at this time. "
					+ "Please add spring-boot-starter-webflux dependency." + BORDER);
		}

	}

}

第一个校验提示 Spring MVC found on classpath, which is incompatible with Spring Cloud Gateway at this time. Please remove spring-boot-starter-web dependency.
意思是在上下文中发现有 spring MVC的踪影(引入了 springmvc 包), 它不能与 Gateway 相容, 请移除spring-boot-starter-web这个依赖
第二个校验提示 Spring Webflux is missing from the classpath,which is required for Spring Cloud Gateway at this time. Please add spring-boot-starter-webflux dependency.
意思是在上下文中没有发现 webflux 的踪迹(没有引入 webflux包), 这个包是 gateway 必须的, 请引入 spring-boot-starter-webflux依赖

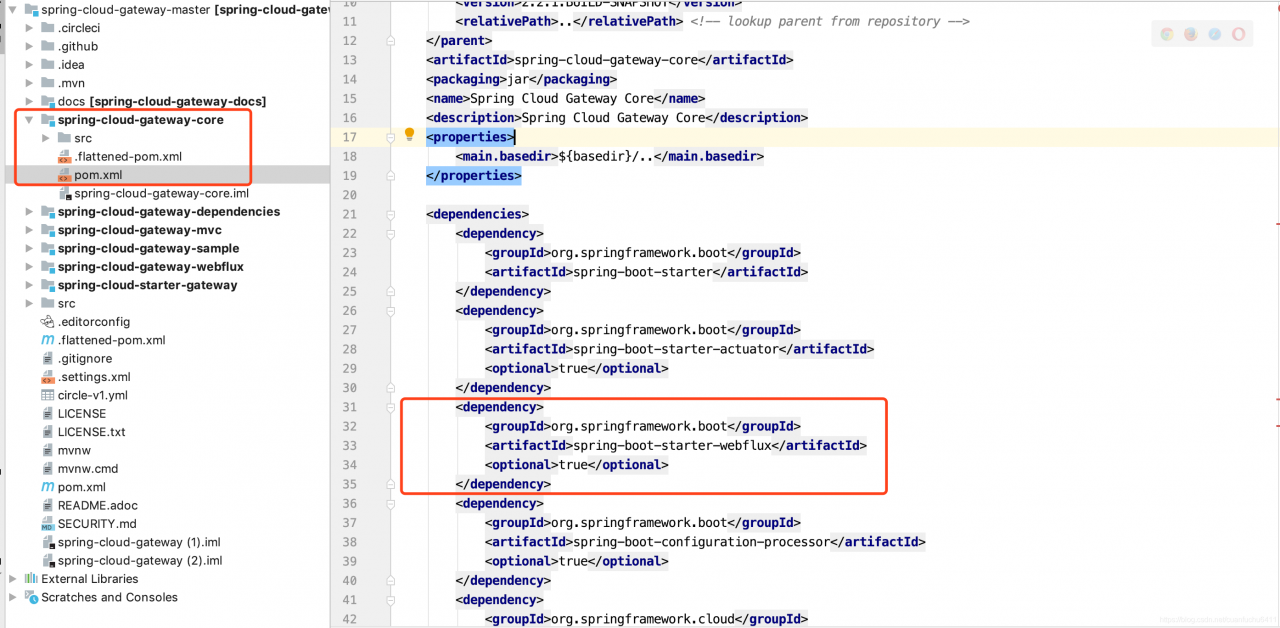

再看 spring-cloud-gateway 源码包结构, 发现在 core 包中的 pom 文件已经包含了 webflux 文件

在这里插入图片描述
所以基本上不会出现第二个提示, 除非在引入 gateway 包时, 排除 webflux, 然而, 第一个提示却是时有发生, 但这是不应该的, 因为 gateway 本身就不是一个业务模块, 这个模块中, 不应该存有接收其它你需要的业务的功能, 如果实在必要, 也可以使用 webflux 接收请求, 而且可以扩大请求量

总结:

gateway依赖webflux, 所以 gateway 是通过 netty 容器启动的, 协议是 socket
gateway 与 springmvc 不兼容, 但不表示 webflux 与 springMVC 不兼容
对于熟悉 springMVC 的人都知道它是基于org.springframework.web.servlet.DispatcherServlet作为请求接收核心,再转到其它处理器处理的! webflux 基于 Socket, 使用的也不是 web 容器, 所以它的核心并不是servlet, webflux 使用org.springframework.web.reactive.DispatcherHandler作为接收器, 以长连接的形式接收请求,作出相应, 以后有时间再详细看看 webflux 源码

Gateway核心配置

配置文件 GatewayAutoConfiguration.java

这个配置bean 中的内容还是挺多的, 一个一个来吧!!!

@Configuration(proxyBeanMethods = false)
@ConditionalOnProperty(name = "spring.cloud.gateway.enabled", matchIfMissing = true)
@EnableConfigurationProperties
@AutoConfigureBefore({ HttpHandlerAutoConfiguration.class,
		WebFluxAutoConfiguration.class })
@AutoConfigureAfter({ GatewayLoadBalancerClientAutoConfiguration.class,
		GatewayClassPathWarningAutoConfiguration.class })
@ConditionalOnClass(DispatcherHandler.class)
public class GatewayAutoConfiguration {
	...

	//路由定位器构造器
	@Bean
	public RouteLocatorBuilder routeLocatorBuilder(
			ConfigurableApplicationContext context) {
		return new RouteLocatorBuilder(context);
	}
  ...
}

看加类加载依赖, gateway 的自动配置加载顺序

HttpHandlerAutoConfiguration和WebFluxAutoConfiguration
GatewayAutoConfiguration
GatewayLoadBalancerClientAutoConfiguration和GatewayClassPathWarningAutoConfiguration

没别的感悟, 就是这个加载顺序…

路由构造器

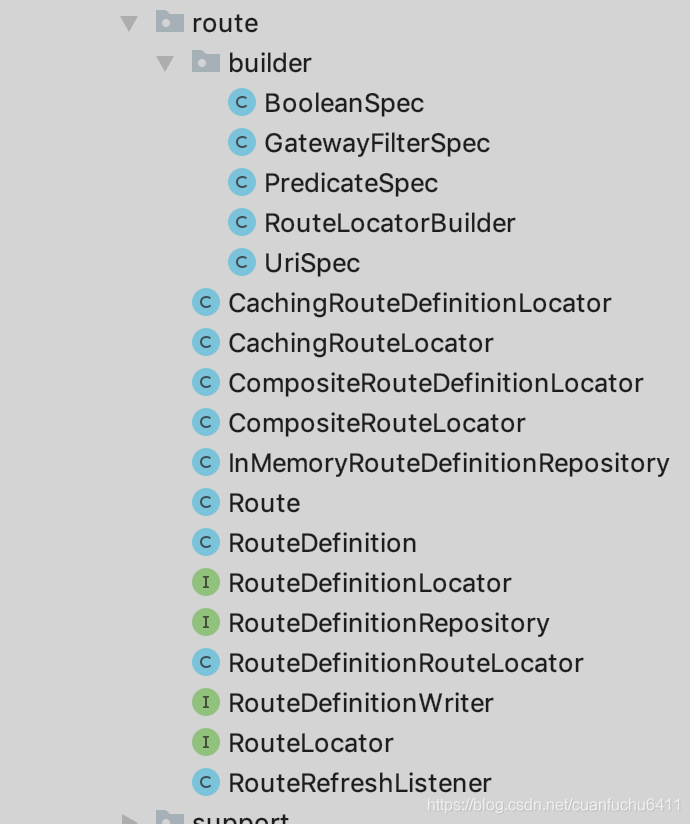

gateway 匹配路由的方式有多种, 此处显示, gateway 以建造者模式, 配置不同的路由定位器

在这里插入图片描述

public class RouteLocatorBuilder {
  ...
		/**
		 * Creates a new {@link Route}
		 * @param id the unique id for the route
		 * @param fn a function which takes in a {@link PredicateSpec} and returns a
		 * {@link Route.AsyncBuilder}
		 * @return a {@link Builder}
		 */
		public Builder route(String id, Function<PredicateSpec, Route.AsyncBuilder> fn) {
			Route.AsyncBuilder routeBuilder = fn.apply(new RouteSpec(this).id(id));
			add(routeBuilder);
			return this;
		}

		/**
		 * Creates a new {@link Route}
		 * @param fn a function which takes in a {@link PredicateSpec} and returns a
		 * {@link Route.AsyncBuilder}
		 * @return a {@link Builder}
		 */
		public Builder route(Function<PredicateSpec, Route.AsyncBuilder> fn) {
			Route.AsyncBuilder routeBuilder = fn.apply(new RouteSpec(this).randomId());
			add(routeBuilder);
			return this;
		}

		/**
		 * 创建一个路由定位器
		 */
		public RouteLocator build() {
			return () -> Flux.fromIterable(this.routes)
					.map(routeBuilder -> routeBuilder.build());
		}
...

    public static class RouteSpec {

      private final Route.AsyncBuilder routeBuilder = Route.async();

      private final Builder builder;

      RouteSpec(Builder builder) {
        this.builder = builder;
      }

      public PredicateSpec id(String id) {
        this.routeBuilder.id(id);
        return predicateBuilder();
      }

      public PredicateSpec randomId() {
        return id(UUID.randomUUID().toString());
      }

      private PredicateSpec predicateBuilder() {
        return new PredicateSpec(this.routeBuilder, this.builder);
      }

    }
}

创建构造器的方法, 这里注意, 一个带有 id, 一个不带有 id, 对应的是配置路由时的 id, id可以不配置, 会通过RouteSpec随机生成 UUID 作为路由id, 此时构造的构造器都是 AsyncBuilder extend AbstractBuilder,

通过 RouteSpec将 PredicateSpec extend UriSpec 放进 builder 中

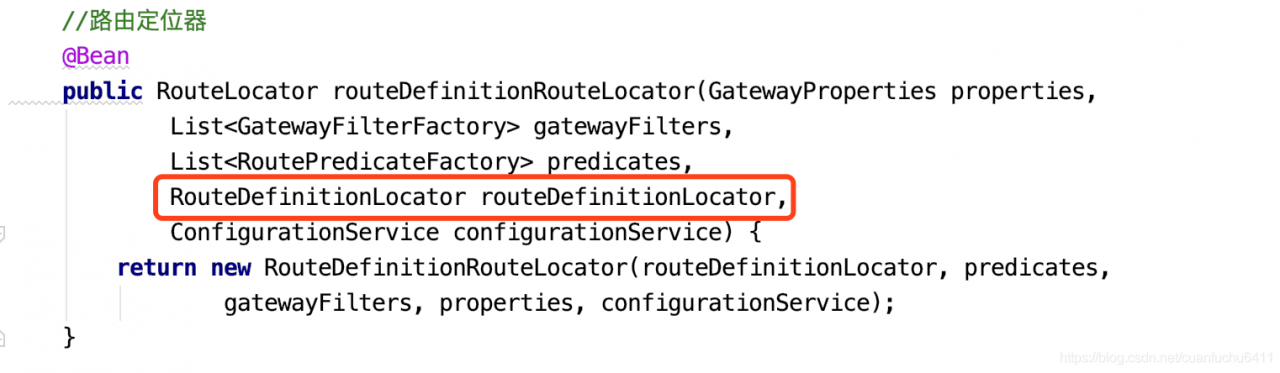

初始化路由定位器与自定义路由定位器

public class GatewayAutoConfiguration {
	...
    //路由定位器
    @Bean
    public RouteLocator routeDefinitionRouteLocator(GatewayProperties properties,
        List<GatewayFilterFactory> gatewayFilters,
        List<RoutePredicateFactory> predicates,
        RouteDefinitionLocator routeDefinitionLocator,
        ConfigurationService configurationService) {
      return new RouteDefinitionRouteLocator(routeDefinitionLocator, predicates,
          gatewayFilters, properties, configurationService);
    }
  ...
}

初始化 bean, 将多有已经初始化过的RoutePredicateFactory 注入到集合中传入此初始化方法, 创建RouteDefinitionRouteLocator, 进入构造函数

public class RouteDefinitionRouteLocator
		implements RouteLocator, BeanFactoryAware, ApplicationEventPublisherAware {

  ...
	private final Map<String, RoutePredicateFactory> predicates = new LinkedHashMap<>();

	private final Map<String, GatewayFilterFactory> gatewayFilterFactories = new HashMap<>();

 	...
  	public RouteDefinitionRouteLocator(RouteDefinitionLocator routeDefinitionLocator,
        List<RoutePredicateFactory> predicates,
        List<GatewayFilterFactory> gatewayFilterFactories,
        GatewayProperties gatewayProperties,
        ConfigurationService configurationService) {
      this.routeDefinitionLocator = routeDefinitionLocator;
      this.configurationService = configurationService;
      initFactories(predicates);
      gatewayFilterFactories.forEach(
          factory -> this.gatewayFilterFactories.put(factory.name(), factory));
      this.gatewayProperties = gatewayProperties;
    }
  	...
  	private void initFactories(List<RoutePredicateFactory> predicates) {
      predicates.forEach(factory -> {
        String key = factory.name();
        if (this.predicates.containsKey(key)) {
          this.logger.warn("A RoutePredicateFactory named " + key
              + " already exists, class: " + this.predicates.get(key)
              + ". It will be overwritten.");
        }
        this.predicates.put(key, factory);
        if (logger.isInfoEnabled()) {
          logger.info("Loaded RoutePredicateFactory [" + key + "]");
        }
		});
	}
  ...
}

看initFactories(predicates);方法, 遍历所有 RoutePredicateFactory, 定义对每一个factory 定义 key 放进predicates这个 map中,进行缓存,factory.name()这个名字作为 key, 这个是 LinkedHashMap是有顺序的由NameUtils.normalizeFilterFactoryName(getClass());中实现如下

	public static String normalizeRoutePredicateName(
			Class<? extends RoutePredicateFactory> clazz) {
		return removeGarbage(clazz.getSimpleName()
				.replace(RoutePredicateFactory.class.getSimpleName(), ""));
	}

名称规则为真实实例类名截掉RoutePredicateFactory所剩部分为 key 例如:

PathRoutePredicateFactory类被初始化后的 key 为 Path, 在启动 Gateway模块时,控制台会打印上面的日志

2019-05-20 20:24:09.325  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [User]
2019-05-20 20:24:09.325  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [After]
2019-05-20 20:24:09.325  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Before]
2019-05-20 20:24:09.325  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Between]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Cookie]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Header]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Host]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Method]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Path]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Query]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [ReadBodyPredicateFactory]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [RemoteAddr]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [Weight]
2019-05-20 20:24:09.326  INFO 3448 --- [           main] o.s.c.g.r.RouteDefinitionRouteLocator    : Loaded RoutePredicateFactory [CloudFoundryRouteService]

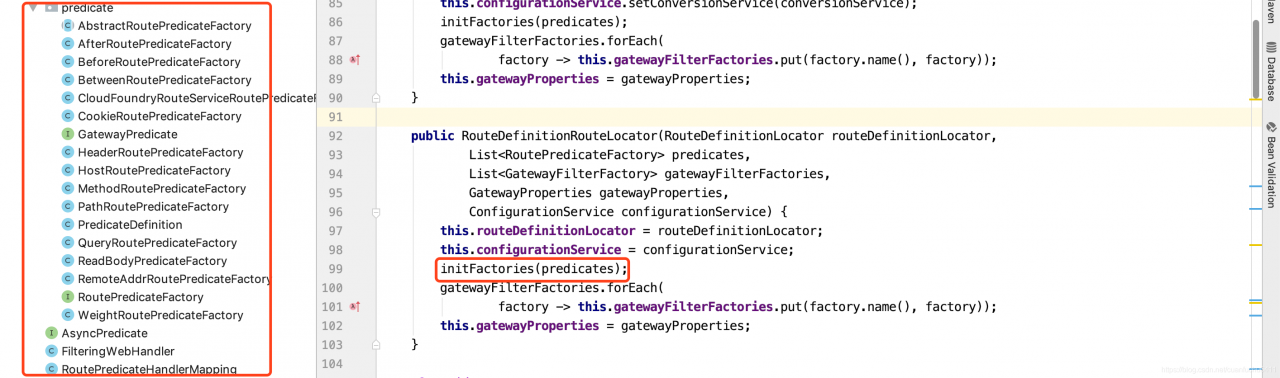

这代表了所加载的所有 predicates, 配置的 gateway 路由匹配规则中, 就是路由规则类型

在这里插入图片描述

这个包下是 gateway 提供的所有 predicate, 在 GatewayAutoConfiguration中都通过 Bean 进行了实例化, 通过上面的规则, 我们可以定义我们自己的请求匹配规则!

定义predicate 继承 AbstractRoutePredicateFactory, 并定义内部类 Config, 如下:

public class CustomerRoutePredicateFactory extends AbstractRoutePredicateFactory<CustomerRoutePredicateFactory.Config> {
    public PathRoutePredicateFactory() {
			super(Config.class);
		}

    @Override
    public Predicate<ServerWebExchange> apply(Config config) {
				//此处实现校验内容
        return exchange -> {
						exchange.getRequest()....
        }
    }
    @Validated
    public static class Config {
				public Config setPatterns() {
						//配置属性
        }
    }
}

进行初始化配置, 可以增加@component 注解或加@Bean 配置等使其能注入到 RouteDefinitionRouteLocator中

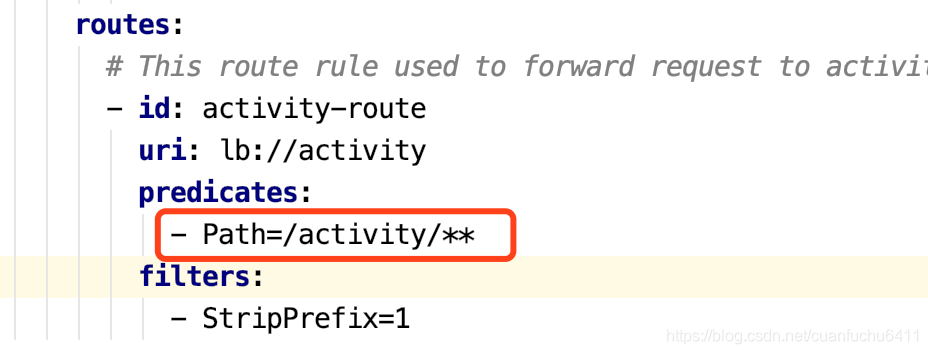

这个在配置文件中的配置类似于: - Customer=……

初始化路由过滤器与自定义路由过滤器

还是上面的源码

public class RouteDefinitionRouteLocator
		implements RouteLocator, BeanFactoryAware, ApplicationEventPublisherAware {

  ...
	private final Map<String, RoutePredicateFactory> predicates = new LinkedHashMap<>();

	private final Map<String, GatewayFilterFactory> gatewayFilterFactories = new HashMap<>();

 	...
  	public RouteDefinitionRouteLocator(RouteDefinitionLocator routeDefinitionLocator,
        List<RoutePredicateFactory> predicates,
        List<GatewayFilterFactory> gatewayFilterFactories,
        GatewayProperties gatewayProperties,
        ConfigurationService configurationService) {
      this.routeDefinitionLocator = routeDefinitionLocator;
      this.configurationService = configurationService;
      initFactories(predicates);
      gatewayFilterFactories.forEach(
          factory -> this.gatewayFilterFactories.put(factory.name(), factory));
      this.gatewayProperties = gatewayProperties;
    }
  ...
}

gatewayFilterFactories.forEach(
          factory -> this.gatewayFilterFactories.put(factory.name(), factory));

这句代码遍历所有已初始化的过滤器, 然后放进gatewayFilterFactories这个 map 属性中缓存, 规则同样是根据类实例的类名截掉根接口名, 不过这个接口是GatewayFilterFactory

	public static String normalizeFilterFactoryName(
			Class<? extends GatewayFilterFactory> clazz) {
		return removeGarbage(clazz.getSimpleName()
				.replace(GatewayFilterFactory.class.getSimpleName(), ""));
	}

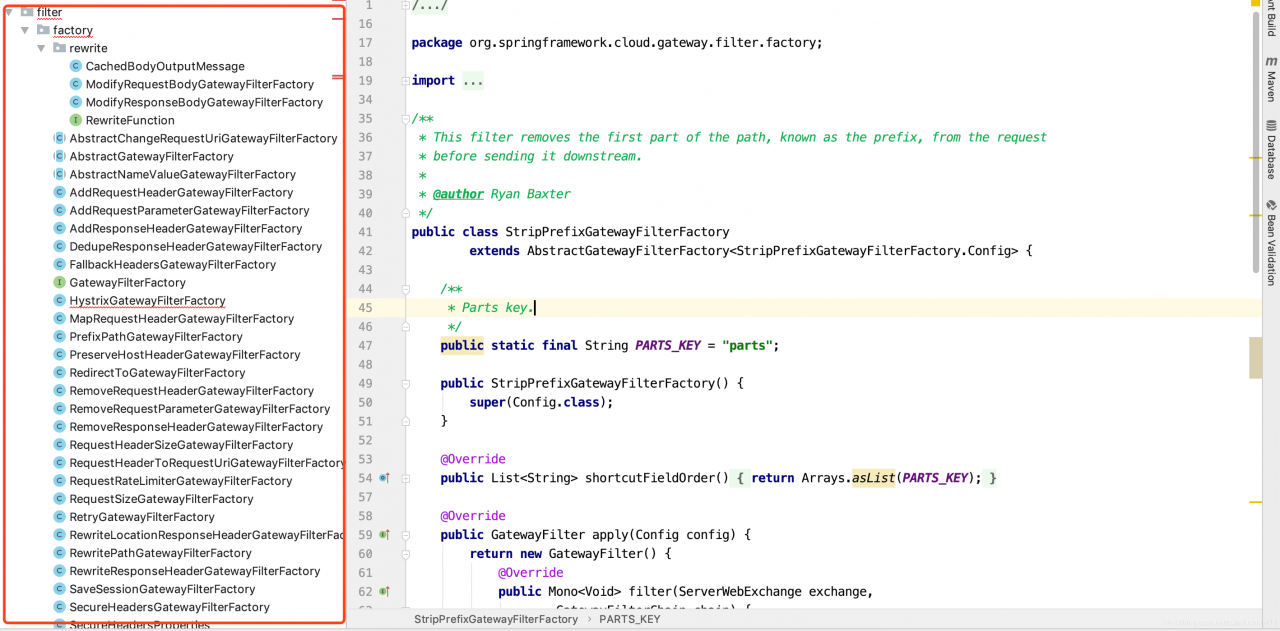

spring cloud 也提供了很多过滤器

在这里插入图片描述

自定义过滤器:

public class CustomerGatewayFilterFactory extends AbstractGatewayFilterFactory<CustomerGatewayFilterFactory.Config> {

    @Override
    public GatewayFilter apply(Config config) {
        return new GatewayFilter() {
            @Override
            public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
                //内容实现
                return null;
            }
        };
    }

    public class Config {
        public Config() {
            //参数接收实现
        }
    }
}

同样需要在初始化RouteLocator前对这个类进行初始化@Component 或@bean

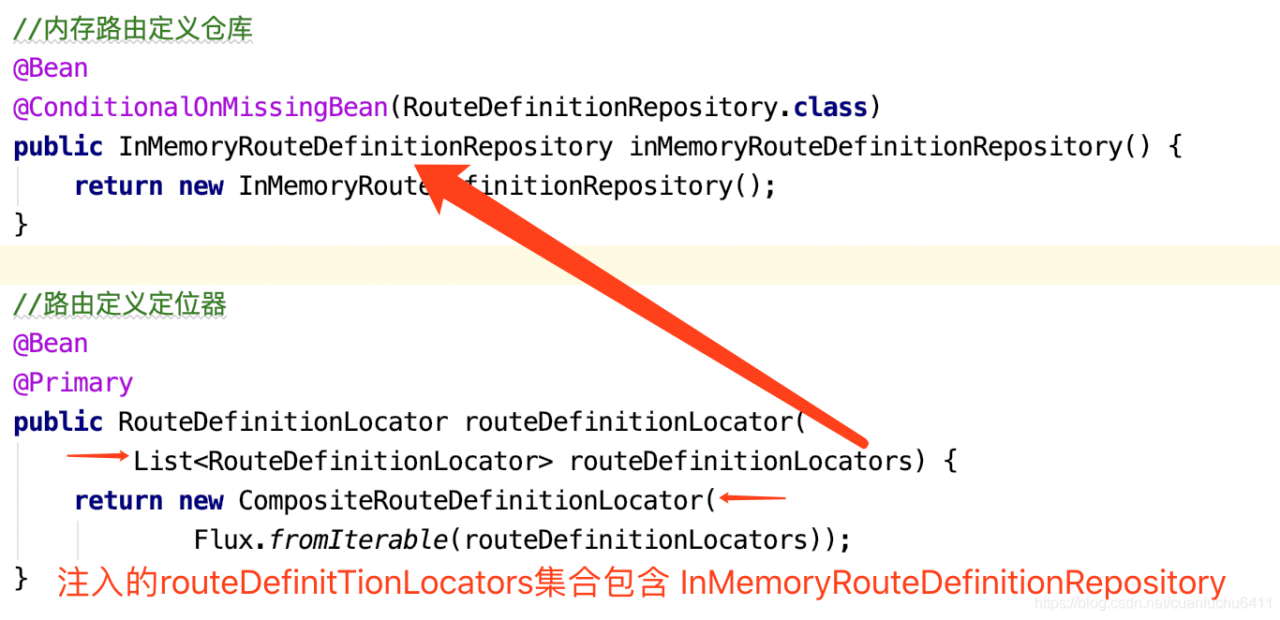

动态路由与自定义动态路由

public class GatewayAutoConfiguration {
...
   //内存路由定义仓库
    @Bean
    @ConditionalOnMissingBean(RouteDefinitionRepository.class)
    public InMemoryRouteDefinitionRepository inMemoryRouteDefinitionRepository() {
       return new InMemoryRouteDefinitionRepository();
    }
...
}

public class InMemoryRouteDefinitionRepository implements RouteDefinitionRepository {

	private final Map<String, RouteDefinition> routes = synchronizedMap(
			new LinkedHashMap<String, RouteDefinition>());

	@Override
	public Mono<Void> save(Mono<RouteDefinition> route) {
		return route.flatMap(r -> {
			if (StringUtils.isEmpty(r.getId())) {
				return Mono.error(new IllegalArgumentException("id may not be empty"));
			}
			routes.put(r.getId(), r);
			return Mono.empty();
		});
	}

	@Override
	public Mono<Void> delete(Mono<String> routeId) {
		return routeId.flatMap(id -> {
			if (routes.containsKey(id)) {
				routes.remove(id);
				return Mono.empty();
			}
			return Mono.defer(() -> Mono.error(
					new NotFoundException("RouteDefinition not found: " + routeId)));
		});
	}

	@Override
	public Flux<RouteDefinition> getRouteDefinitions() {
		return Flux.fromIterable(routes.values());
	}

}

在自动配置中配置了这么个实例: 他可以删除路由,添加路由, 获取所有路由, 这个类里还实现了一个LinkedHashMap<String, RouteDefinition> 的map缓存, 与类实例共生; 再向上找, 又有惊奇发现

public class AbstractGatewayControllerEndpoint implements ApplicationEventPublisherAware {
	protected RouteDefinitionWriter routeDefinitionWriter;

  /*
	 * http POST :8080/admin/gateway/routes/apiaddreqhead uri=http://httpbin.org:80
	 * predicates:='["Host=**.apiaddrequestheader.org", "Path=/headers"]'
	 * filters:='["AddRequestHeader=X-Request-ApiFoo, ApiBar"]'
	 */
  @PostMapping("/routes/{id}")
	@SuppressWarnings("unchecked")
	public Mono<ResponseEntity<Object>> save(@PathVariable String id,
			@RequestBody RouteDefinition route) {
		return Mono.just(route).filter(this::validateRouteDefinition)
				.flatMap(routeDefinition -> this.routeDefinitionWriter
						.save(Mono.just(routeDefinition).map(r -> {
							r.setId(id);
							log.debug("Saving route: " + route);
							return r;
						}))
						.then(Mono.defer(() -> Mono.just(ResponseEntity
								.created(URI.create("/routes/" + id)).build()))))
				.switchIfEmpty(
						Mono.defer(() -> Mono.just(ResponseEntity.badRequest().build())));
	}

	@DeleteMapping("/routes/{id}")
	public Mono<ResponseEntity<Object>> delete(@PathVariable String id) {
		return this.routeDefinitionWriter.delete(Mono.just(id))
				.then(Mono.defer(() -> Mono.just(ResponseEntity.ok().build())))
				.onErrorResume(t -> t instanceof NotFoundException,
						t -> Mono.just(ResponseEntity.notFound().build()));
	}
}

AbstractGatewayControllerEndpoint提供 rest API接口,向内存中添加, 删除路由配置, routeDefinitionWriter是InMemoryRouteDefinitionRepository的实例

再从自动配置开始看

在这里插入图片描述

public class CompositeRouteDefinitionLocator implements RouteDefinitionLocator {

   private static final Log log = LogFactory
         .getLog(CompositeRouteDefinitionLocator.class);

   private final Flux<RouteDefinitionLocator> delegates;

   private final IdGenerator idGenerator;

   public CompositeRouteDefinitionLocator(Flux<RouteDefinitionLocator> delegates) {
      this(delegates, new AlternativeJdkIdGenerator());
   }

   public CompositeRouteDefinitionLocator(Flux<RouteDefinitionLocator> delegates,
         IdGenerator idGenerator) {
      this.delegates = delegates;
      this.idGenerator = idGenerator;
   }

   @Override
   public Flux<RouteDefinition> getRouteDefinitions() {
      return this.delegates.flatMap(RouteDefinitionLocator::getRouteDefinitions)
            .flatMap(routeDefinition -> Mono.justOrEmpty(routeDefinition.getId())
                  .defaultIfEmpty(idGenerator.generateId().toString())
                  .publishOn(Schedulers.elastic()).map(id -> {
                     if (routeDefinition.getId() == null) {
                        routeDefinition.setId(id);
                        if (log.isDebugEnabled()) {
                           log.debug("Id set on route definition: "
                                 + routeDefinition);
                        }
                     }
                     return routeDefinition;
                  }));
   }

}

初始化RouteLocator时, 注入了 RouteDefinitionLocator
初始化RouteDefinitionLocator时, 已经注入了InMemoryRouteDefinitionRepository

RouteLocator可以通过RouteDefinitionLocator, 拿到InMemoryRouteDefinitionRepository里面的所有路由配置, 并且也是这么做的

public class RouteDefinitionRouteLocator
		implements RouteLocator, BeanFactoryAware, ApplicationEventPublisherAware {
  ...
		@Override
    public Flux<Route> getRoutes() {
      return this.routeDefinitionLocator.getRouteDefinitions().map(this::convertToRoute)
          // TODO: error handling
          .map(route -> {
            if (logger.isDebugEnabled()) {
              logger.debug("RouteDefinition matched: " + route.getId());
            }
            return route;
          });

      /*
       * TODO: trace logging if (logger.isTraceEnabled()) {
       * logger.trace("RouteDefinition did not match: " + routeDefinition.getId()); }
       */
    }
  ...
}

返回值Flux<Route>是RouteDefinitionLocator中所有RouteDefinitionLocator的所有路由定义, 当然也包括InMemoryRouteDefinitionRepository的

这个路径走通的话, 是不是就可以动态的向 gateway 中增加和删除路由了呢!!! 我觉得是的!!!

在AbstractGatewayControllerEndpoint中的接口可以看到, 通过 json 传递RouteDefinition对象就可以了, 然后就会通过this.routeDefinitionWriter这个属性增加到内存中

那么这是 spring cloud 实现的, 内存方案的特点就是处理速度快, 但是重启后会丢失, 那么是不是重启后, 之前配的什么路由就不知道了, 还得重新找要配哪些, 是的, 就是这么 high!!!

设想, 增加数据库存储, 文件存储, nosql 存储, 是不是就能解决这个问题了

redis 自带RDB和 AOF备份, 再加上 mysql, 这样应该没问题

伪代码如下:

@Component
public class InRedisRouteDefinitionRepository implements RouteDefinitionRepository {
    @Autowired
    private RedisTemplate redisTemplate;

    @Autowired
    private RouteDefinitionDao routeDefinitionDao;

    public InRedisRouteDefinitionRepository() {
        super();
        Flux<RouteDefinition> dbRouteDefinitions = routeDefinitionDao.getAll();
        Flux<RouteDefinition> rdRouteDefinitions = redisTemplate.getAll();
        //获取差集
        Flux<RouteDefinition> dsRouteDefinitions = differenceSet(dbRouteDefinitions, rdRouteDefinitions);
        //同步两库数据
        routeDefinitionDao.same();
        redisTemplate.same();
    }

    @Override
    public Flux<RouteDefinition> getRouteDefinitions() {
        //从 redis 中获取所有路由配置
        Flux<RouteDefinition> rdRouteDefinitions = redisTemplate.getAll();
        return rdRouteDefinitions;
    }

    @Override
    public Mono<Void> save(Mono<RouteDefinition> route) {
        //向 redis 和 db 中增加路由配置
        routeDefinitionDao.insert(route);
        redisTemplate.add(route);
        return Mono.empty();
    }

    @Override
    public Mono<Void> delete(Mono<String> routeId) {
        //redis 和 db 中删除路由配置
        routeDefinitionDao.delete(route);
        redisTemplate.del(route);
        return Mono.empty();
    }
}

InRedisRouteDefinitionRepository增加自动注入配置, 会和InMemoryRouteDefinitionRepository`一样注入

可以使用 webFlux接口, 支持 http 和 socket, 以流的方式或者 json 方式控制路由,

也可以使用触发器监听文件或其它行为, 只要能触发这些方法, 就可以, OK

初始化全局过滤器与自定义全局过滤器

public class GatewayAutoConfiguration {
  	//路由谓词处理映射(路径匹配)
    @Bean
    public RoutePredicateHandlerMapping routePredicateHandlerMapping(
        FilteringWebHandler webHandler, RouteLocator routeLocator,
        GlobalCorsProperties globalCorsProperties, Environment environment) {
      return new RoutePredicateHandlerMapping(webHandler, routeLocator,
          globalCorsProperties, environment);
    }

  	//web 过滤处理器
    @Bean
    public FilteringWebHandler filteringWebHandler(List<GlobalFilter> globalFilters) {
      return new FilteringWebHandler(globalFilters);
    }

    //路由谓词处理映射(路径匹配)
    @Bean
    public RoutePredicateHandlerMapping routePredicateHandlerMapping(
        FilteringWebHandler webHandler, RouteLocator routeLocator,
        GlobalCorsProperties globalCorsProperties, Environment environment) {
      return new RoutePredicateHandlerMapping(webHandler, routeLocator,
          globalCorsProperties, environment);
    }

}

//过滤器处理器, 初始化注入所有全局过滤器放到globalFilters
public class FilteringWebHandler implements WebHandler {
	private final List<GatewayFilter> globalFilters;
	public FilteringWebHandler(List<GlobalFilter> globalFilters) {
		this.globalFilters = loadFilters(globalFilters);
	}
  //通过适配器转化为 GatewayFilter, 进行操作
	private static List<GatewayFilter> loadFilters(List<GlobalFilter> filters) {
		return filters.stream().map(filter -> {
			GatewayFilterAdapter gatewayFilter = new GatewayFilterAdapter(filter);
			if (filter instanceof Ordered) {
				int order = ((Ordered) filter).getOrder();
				return new OrderedGatewayFilter(gatewayFilter, order);
			}
			return gatewayFilter;
		}).collect(Collectors.toList());
	}

  //创建调用链, 根据实现的 Ordered排序
  @Override
	public Mono<Void> handle(ServerWebExchange exchange) {
		Route route = exchange.getRequiredAttribute(GATEWAY_ROUTE_ATTR);
		List<GatewayFilter> gatewayFilters = route.getFilters();

		return new DefaultGatewayFilterChain(combined).filter(exchange);
	}

  //创建调用链, 根据实现的 Ordered排序
  private static class DefaultGatewayFilterChain implements GatewayFilterChain {
		private final List<GatewayFilter> filters;
		@Override
		public Mono<Void> filter(ServerWebExchange exchange) {
			return Mono.defer(() -> {
				if (this.index < filters.size()) {
					GatewayFilter filter = filters.get(this.index);
					DefaultGatewayFilterChain chain = new DefaultGatewayFilterChain(this,
							this.index + 1);
					return filter.filter(exchange, chain);
				}
				else {
					return Mono.empty(); // complete
				}
			});
		}
	}

	private static class GatewayFilterAdapter implements GatewayFilter {
		private final GlobalFilter delegate;

		GatewayFilterAdapter(GlobalFilter delegate) {
			this.delegate = delegate;
		}

		@Override
		public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
			return this.delegate.filter(exchange, chain);
		}
	}
}

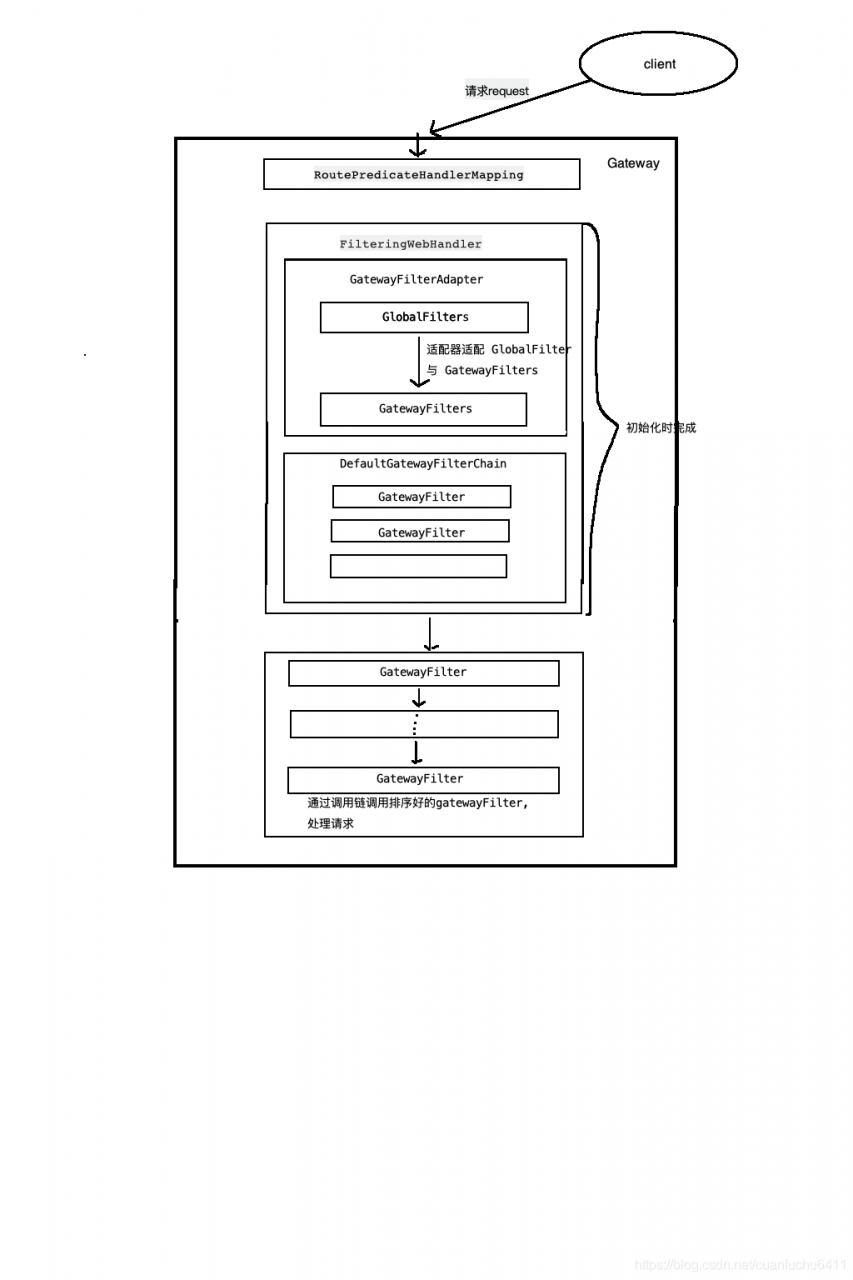

初始化过程:

自动注入, 加载所有实现GlobalFilter的过滤器, 注入到过滤器处FilteringWebHandler理器中
通过过滤器处理器构造器初始化, 调用内部类适配器适配所有 GlobalFilter为GatewayFilter,并创建调用链, 调用链的顺序由过滤器实现的 Orderd接口排序
最后将FilteringWebHandler注入到RoutePredicateHandlerMapping中, 每个请求, 都会通过这个处理器映射器, 然后由处理器映射器调用FilteringWebHandler中的GlobalFilter 的 filter 方法对 exchange 进行处理
设计模式:
代理设计模式
适配器设计模式

在这里插入图片描述

自定义全局过滤器

实现GlobalFilter, Ordered, ApplicationListener<EnableBodyCachingEvent>接口

实现onApplicationEvent filter getOrder 三个方法

	@Override
	public void onApplicationEvent(EnableBodyCachingEvent event) {
		this.routesToCache.putIfAbsent(event.getRouteId(), true);
	}

固定实现

filter 方法处理 exchange的 request 请求

getOrder返回整数, 表示调用链的调用顺序,

使用@Compnent 或@Bean 自动自动注入

原文链接：https://blog.csdn.net/cuanfuchu6411/article/details/105179528
